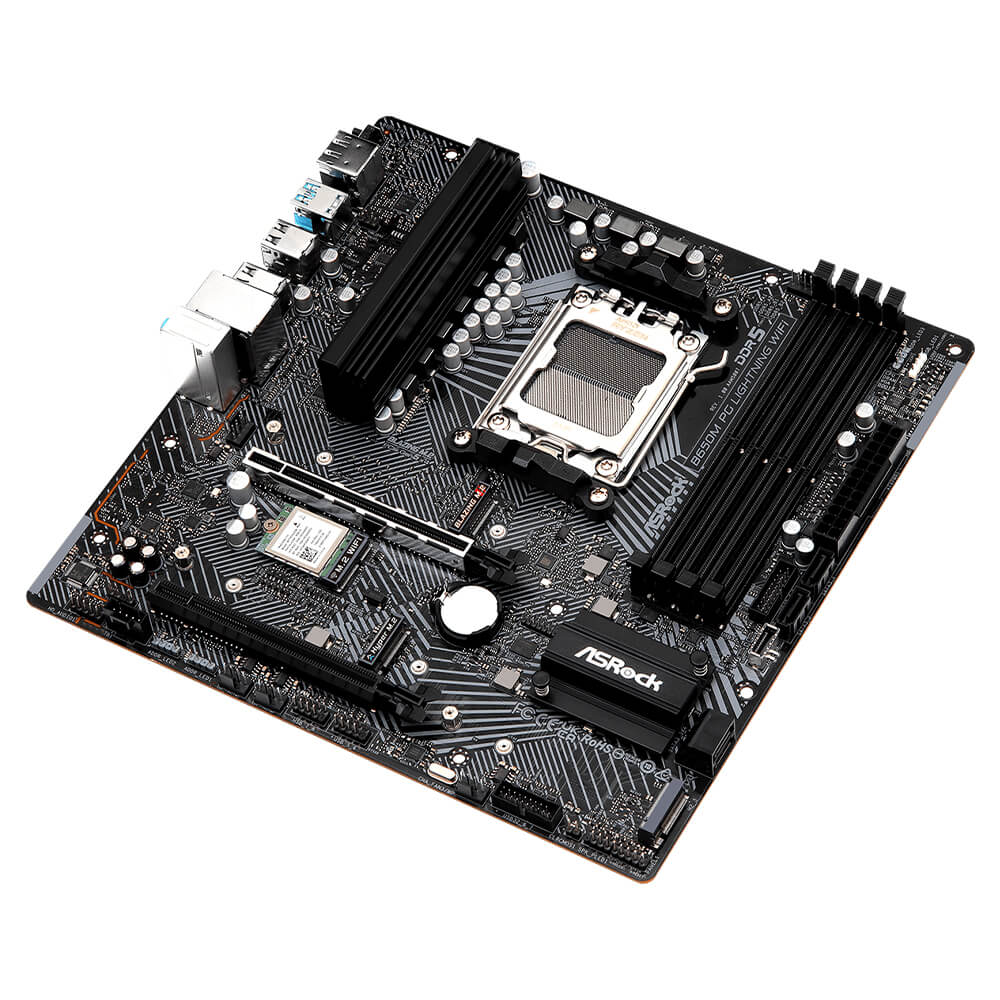

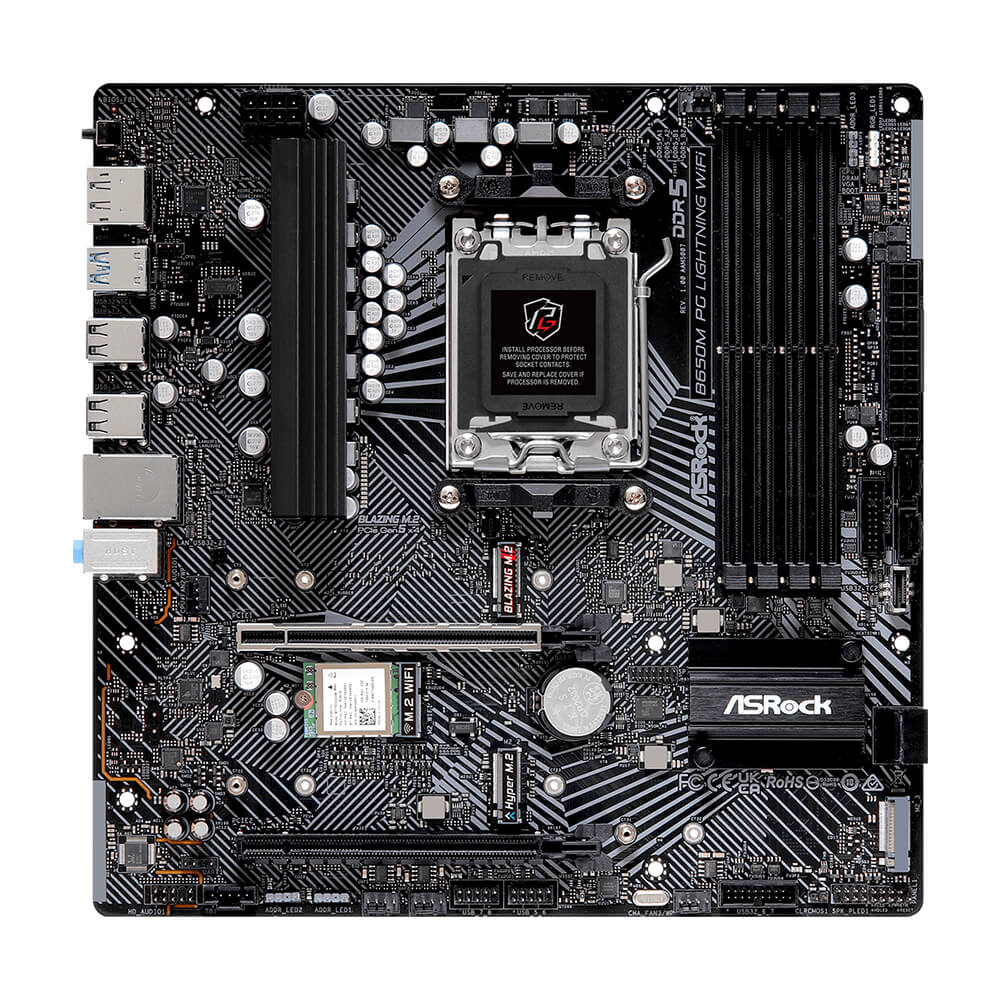

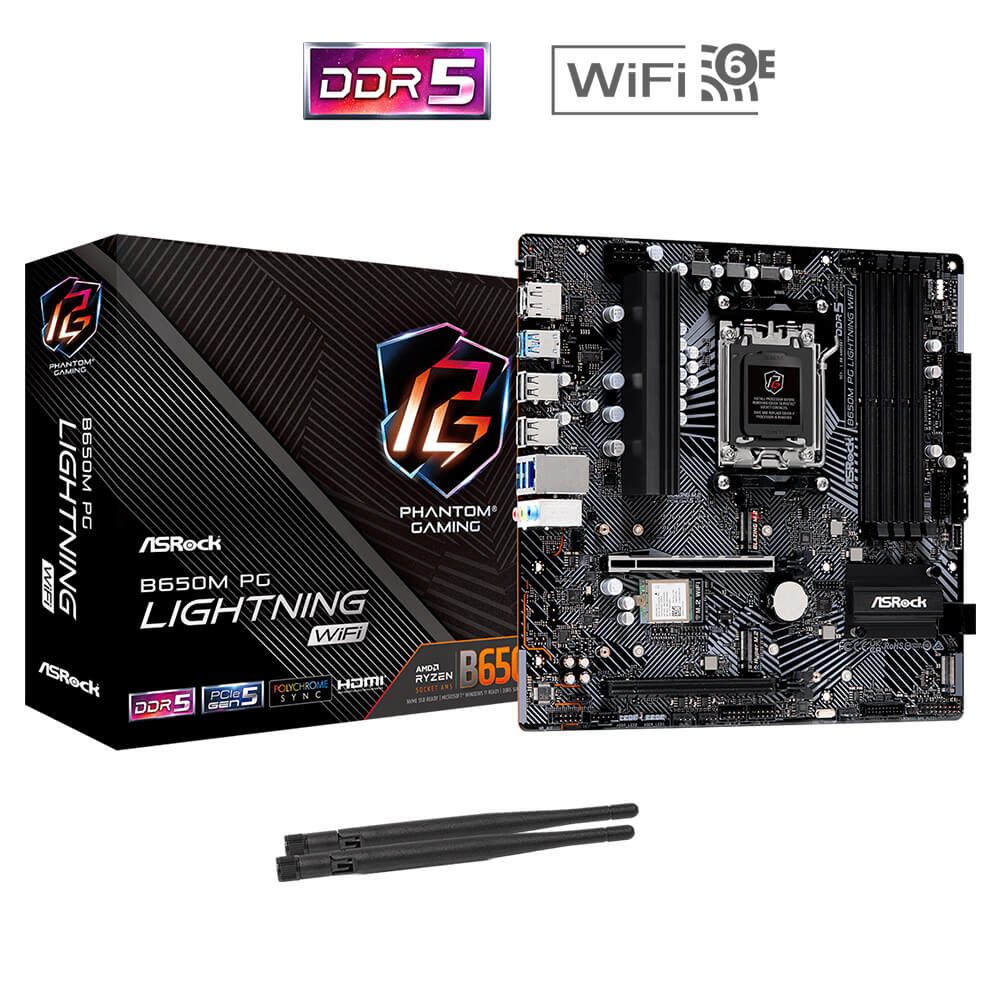

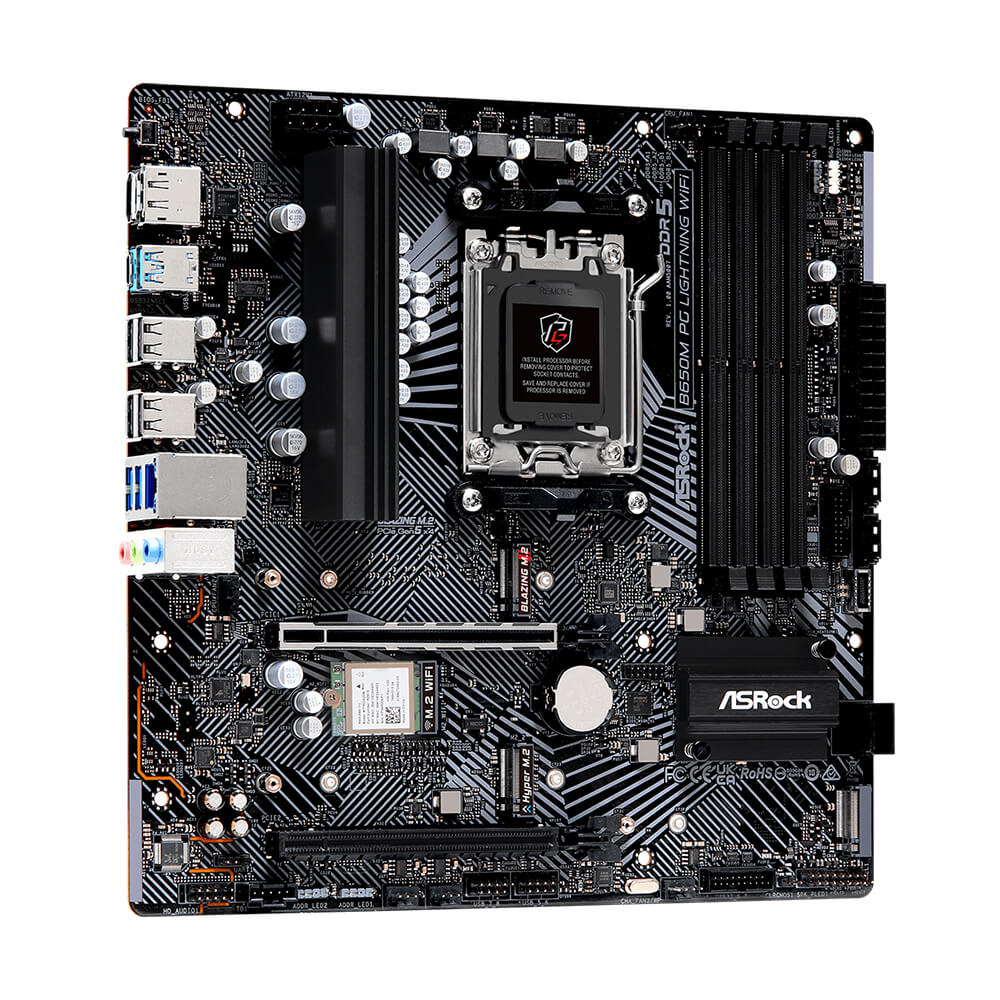

ASRock B650M PG Lightning WiFi – SOCKET AM5
Giá Tân Doanh:
3,550,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASROCK
- Giá trên đã bao gồm VAT.
- Phase 6+2+1 với Dr.MOS giúp cung cấp điện năng ổn định và hiệu quả cho CPU, cải thiện hiệu suất tổng thể. Có thể cân các CPU 7600, 7600X, 7700, 7700X, 8500G, 8600G thoải mái.
- Kết nối M.2 tốc độ cao bao gồm 1 khe cắm Blazing M.2 (PCIe Gen5 x4), 1 khe cắm Hyper M.2 (PCIe Gen4 x4) và 1 khe cắm M.2 (PCIe Gen4 x2), giúp tăng tốc độ truyền dữ liệu.
- Hỗ trợ kết nối mạng tốc độ cao với Wifi 6E và cổng Lan lên tới 2.5 Gigabit cùng kết nối Bluetooth chuẩn 5.2 đảm bảo kết nối ổn định nhất.
- Âm thanh chất lượng cao với Realtek ALC897 7.1 CH HD và công nghệ âm thanh Nahimic, mang lại trải nghiệm âm thanh sống động.
Thông tin Sản Phẩm
| Unique Feature | Superb Productivity – PCIe Gen5 (M.2) – Dual Channel DDR5 Rock-Solid Durability – 8+2+1 Power Phase, 50A Dr.MOS – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
|
CPU
|
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
|
|
Chipset
|
– AMD B650
|
|
Memory
|
– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information.
|
|
BIOS
|
– 256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Phantom Gaming LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
|
Slots
|
CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks
|
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
|
|
RAID
|
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
|
|
USB
|
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
|
| Connector | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
|

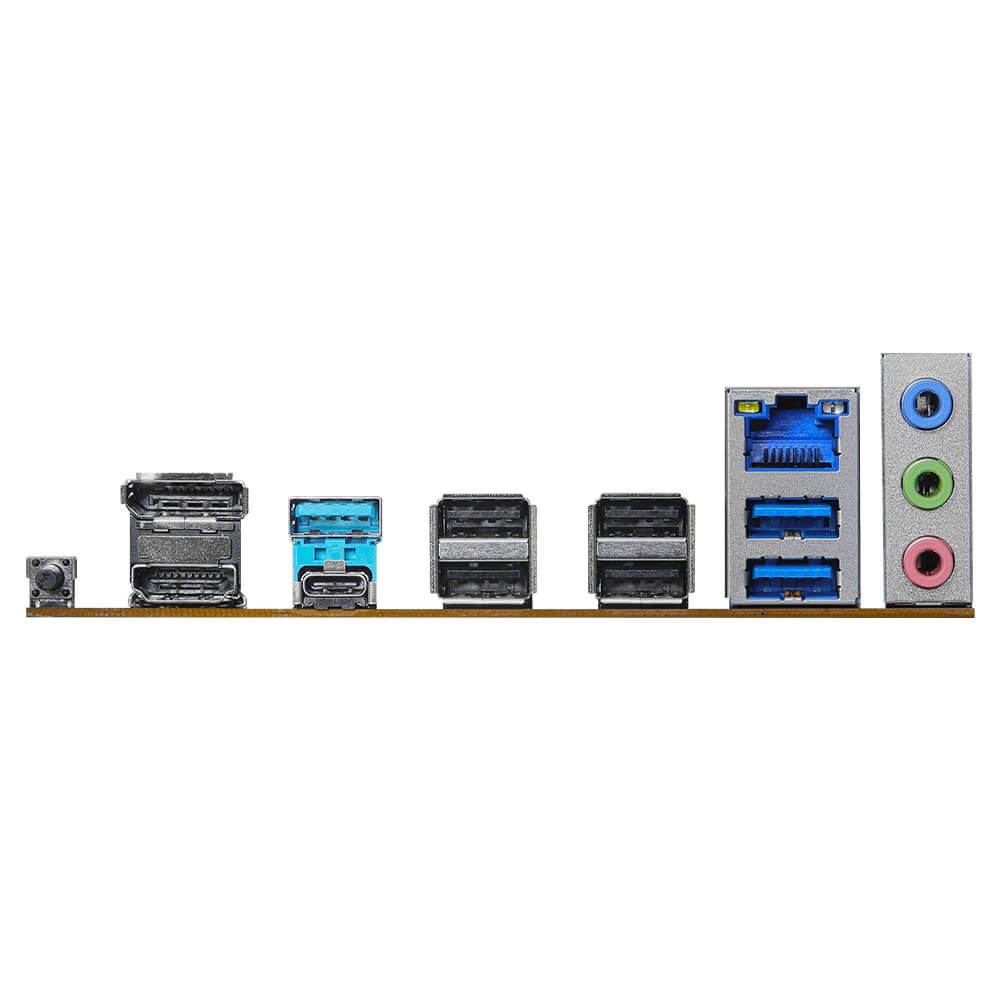

Rear Panel I/O
|
– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI
|
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories |
– 1 x User Manual
– 1 x I/O Shield – 2 x SATA Data Cables – 2 x SMA WiFi Antenna Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Plastic Cover for Wi-Fi Module – 3 x Screws for M.2 Sockets |
|
Form Factor
|
– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB |
|
OS
|
– Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Certifications |
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |
- Phase 6+2+1 với Dr.MOS giúp cung cấp điện năng ổn định và hiệu quả cho CPU, cải thiện hiệu suất tổng thể. Có thể cân các CPU 7600, 7600X, 7700, 7700X, 8500G, 8600G thoải mái.
- Kết nối M.2 tốc độ cao bao gồm 1 khe cắm Blazing M.2 (PCIe Gen5 x4), 1 khe cắm Hyper M.2 (PCIe Gen4 x4) và 1 khe cắm M.2 (PCIe Gen4 x2), giúp tăng tốc độ truyền dữ liệu.
- Hỗ trợ kết nối mạng tốc độ cao với Wifi 6E và cổng Lan lên tới 2.5 Gigabit cùng kết nối Bluetooth chuẩn 5.2 đảm bảo kết nối ổn định nhất.
- Âm thanh chất lượng cao với Realtek ALC897 7.1 CH HD và công nghệ âm thanh Nahimic, mang lại trải nghiệm âm thanh sống động.
