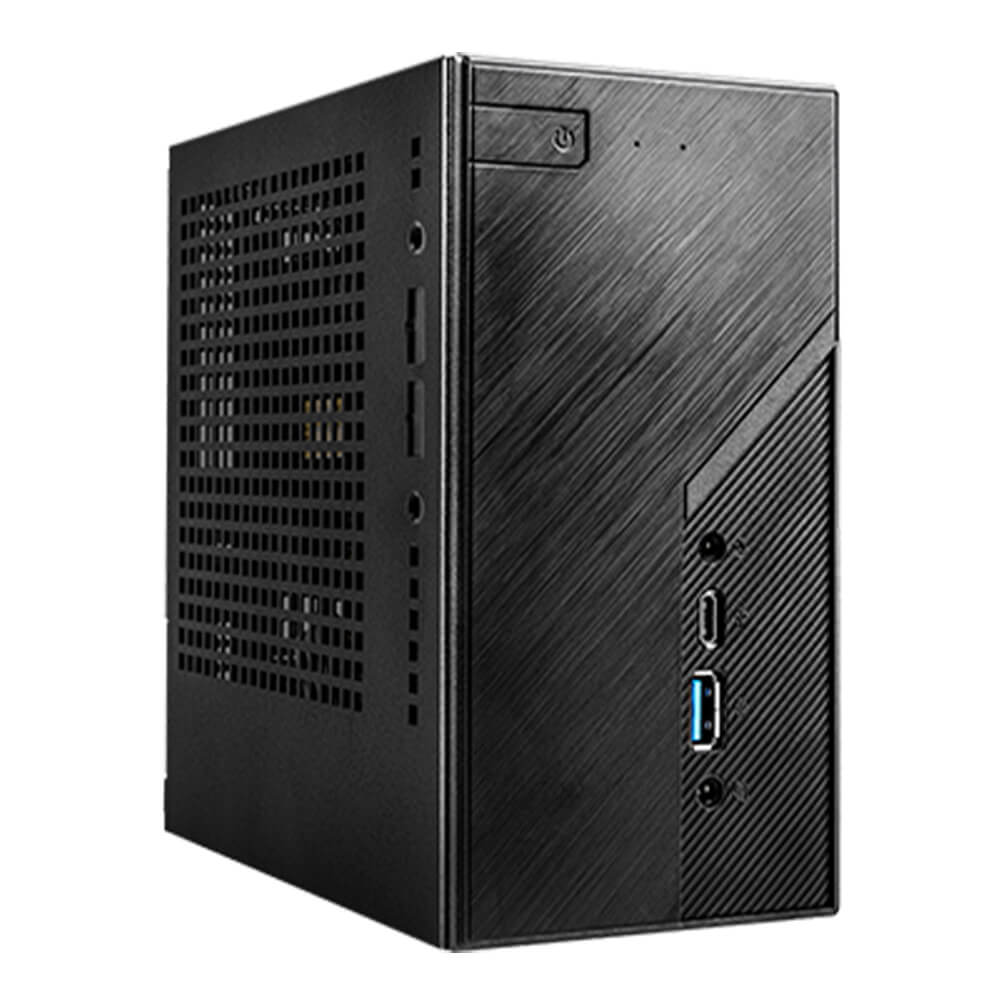

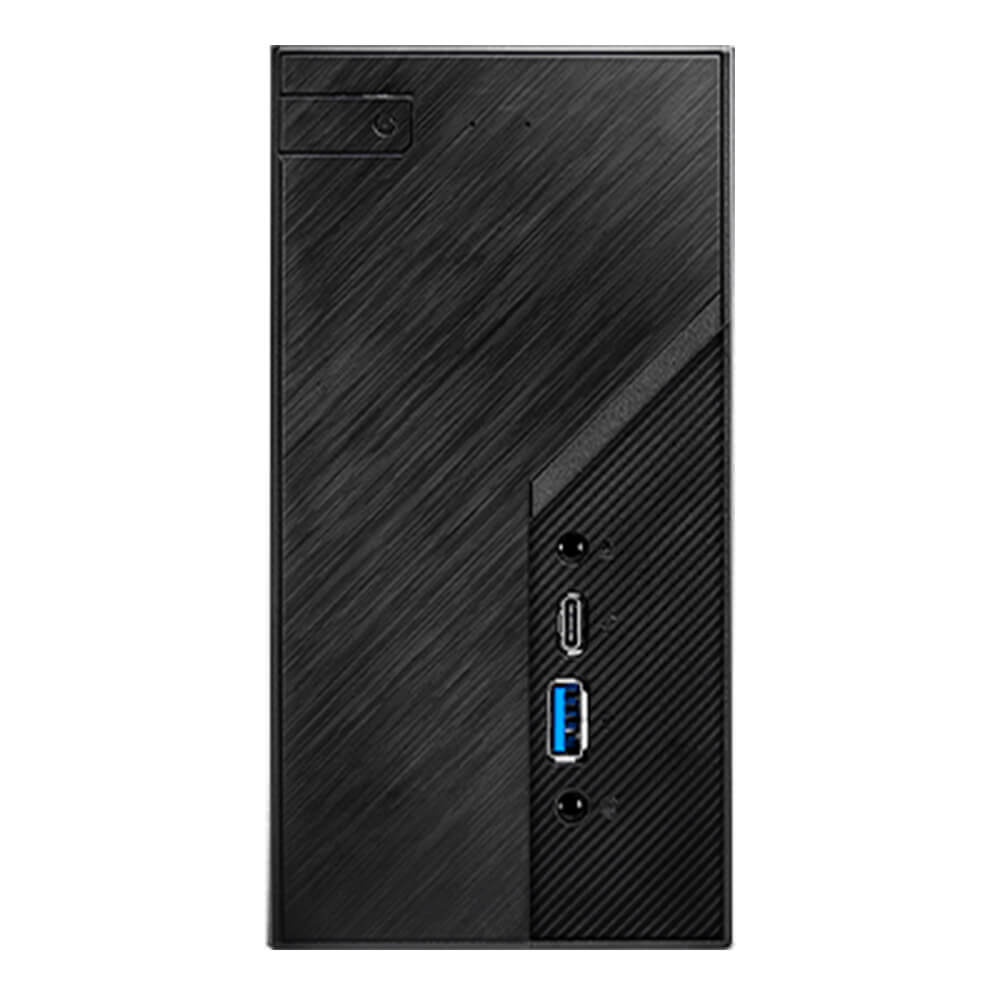

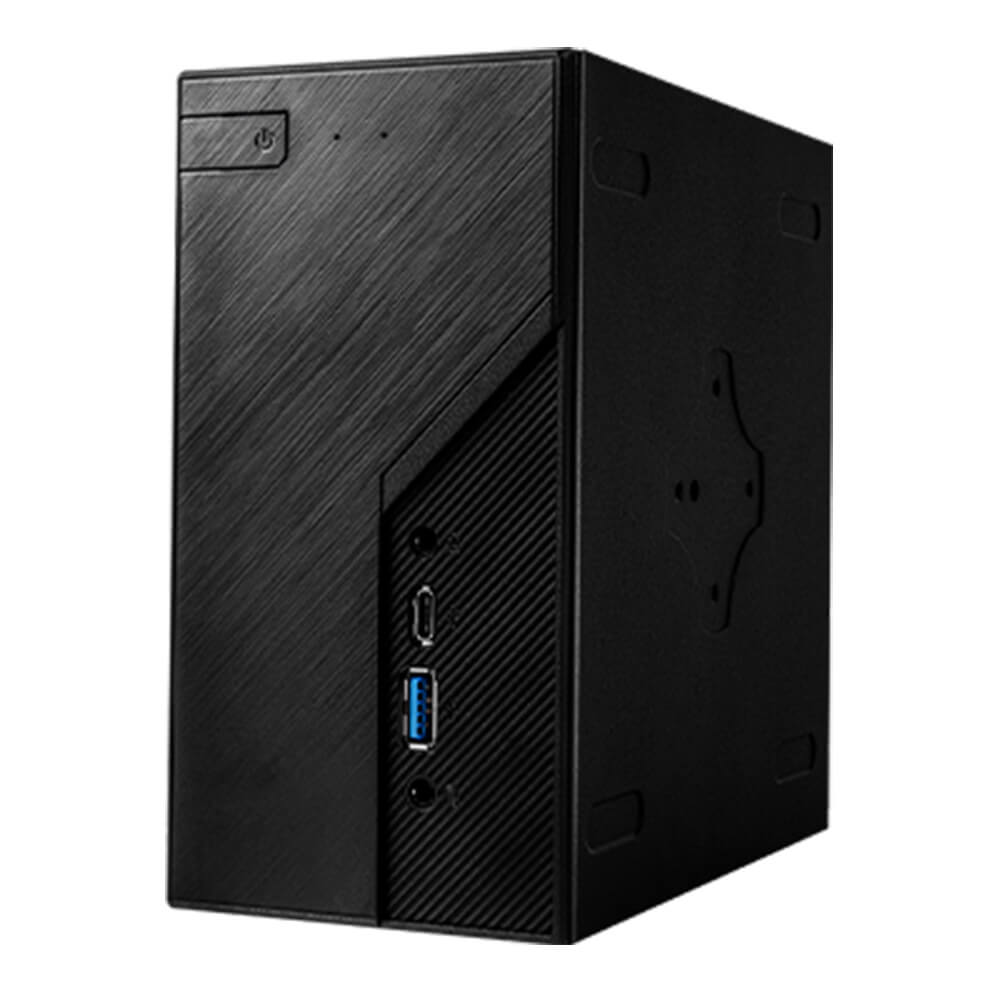

ASRock DeskMini B760 Series – Socket 1700, 2 Slot RAM Up to 3200Mhz, Dual M.2 NVMe, Wifi, USB 3.2 Gen2 TypeC
Đã Sẵn Hàng
Thông tin Sản Phẩm
| CPU | – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W |
| Cooler | – Supports Intel® CPU Cooler (Max. Height ≦ 47mm) |
| Memory | – Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC) |
| Chipset | – Intel® B760 |
| Graphics Output | – HDMI (4K@60Hz) – DisplayPort 1.4 – DisplayPort 1.4 (over USB Type-C Alt Mode) – D-Sub *Supports up to 4 displays simultaneously |
| Audio | – Realtek ALC269 Audio Codec |
| Storage | – 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1) – 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot – 1 x Ultra M.2 (2280) Slot – PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU) – PCIe Gen3 x2 (Athlon 2xxGE series APU) |
| LAN | – 2.5 Gigabit LAN (Dragon RTL8125BG) |
| WLAN | – 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT) |
| Front I/O | – 1 x MIC-In – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x Head Phone with MIC Jack |

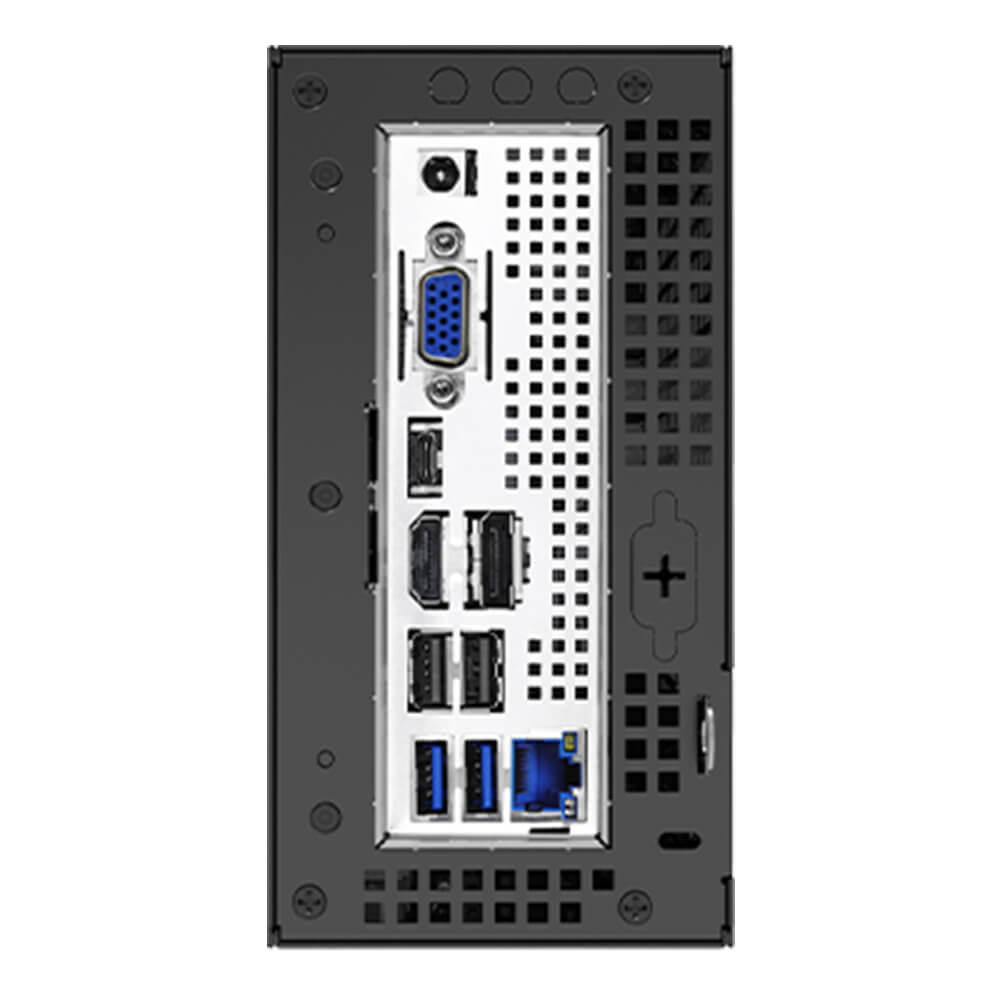

| Rear I/O | – 1 x DC-In Jack (Compatible with the 19V power adapter) – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode) – 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED |
| Connectors | – 1 x USB 2.0 Header – 1 x Front Panel Header – 2 x 4-Pin fan connectors (CPU, SYS) – 1 x Internal Speaker Header (4-Pin) – 1 x Audio Header (4-Pin)-Pin) – 1 x Audio Header (4-Pin) |
| Accessory | – 2 x SATA Data with Power Cable – 1 x 120W/19V adapter – 1 x Screws Pack |
| Dimension | – 155 x 155 x 80 mm (1.92L) |
| OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
