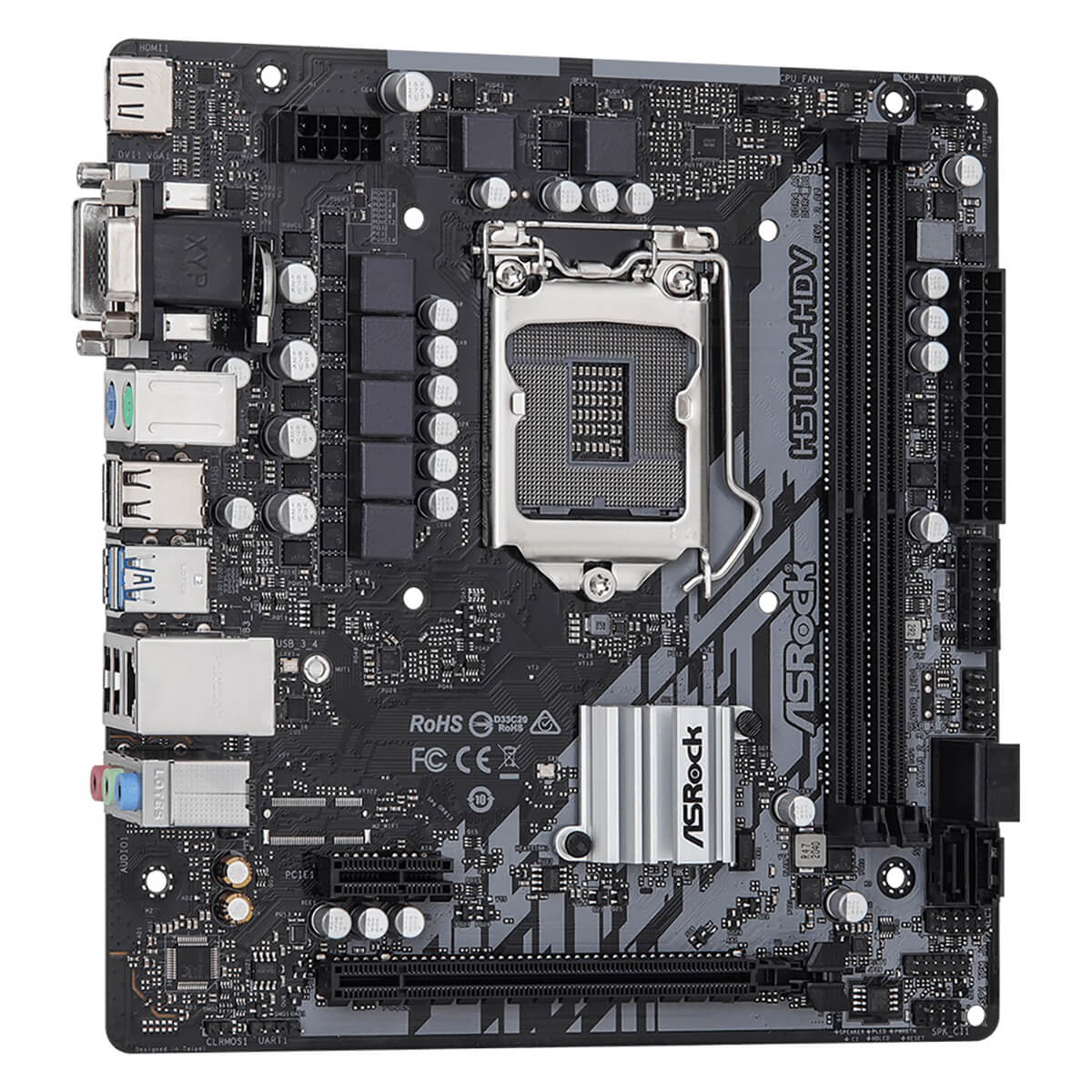

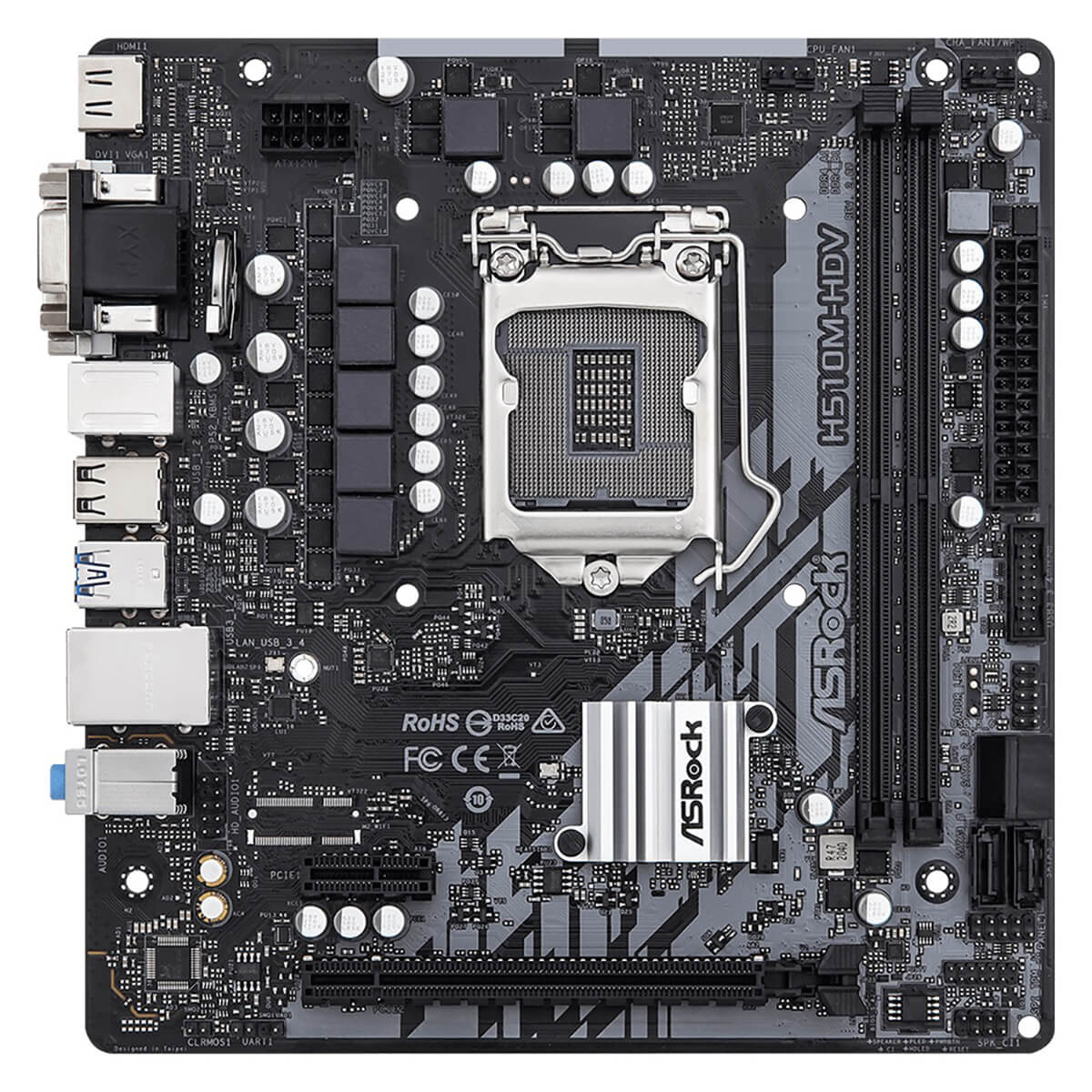

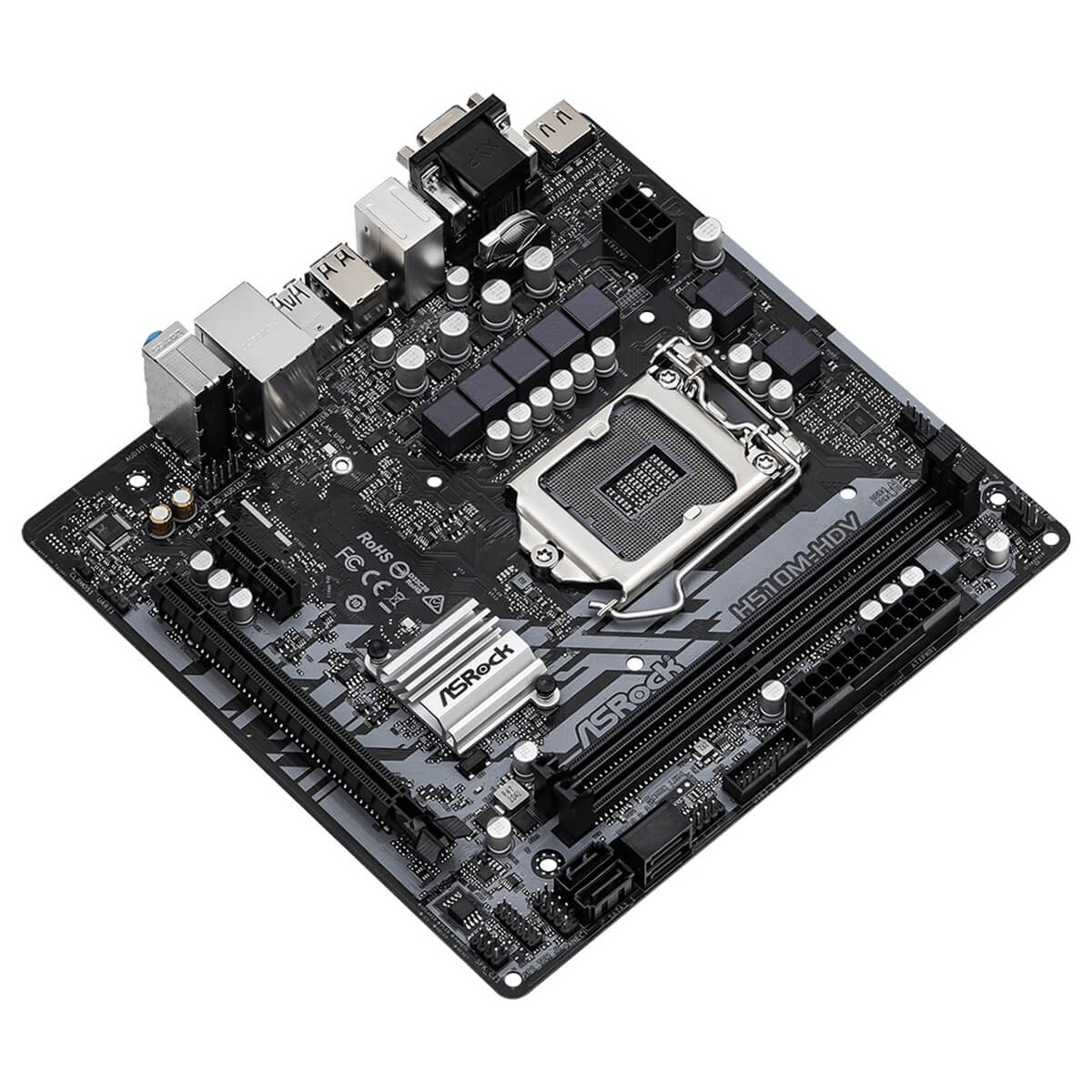

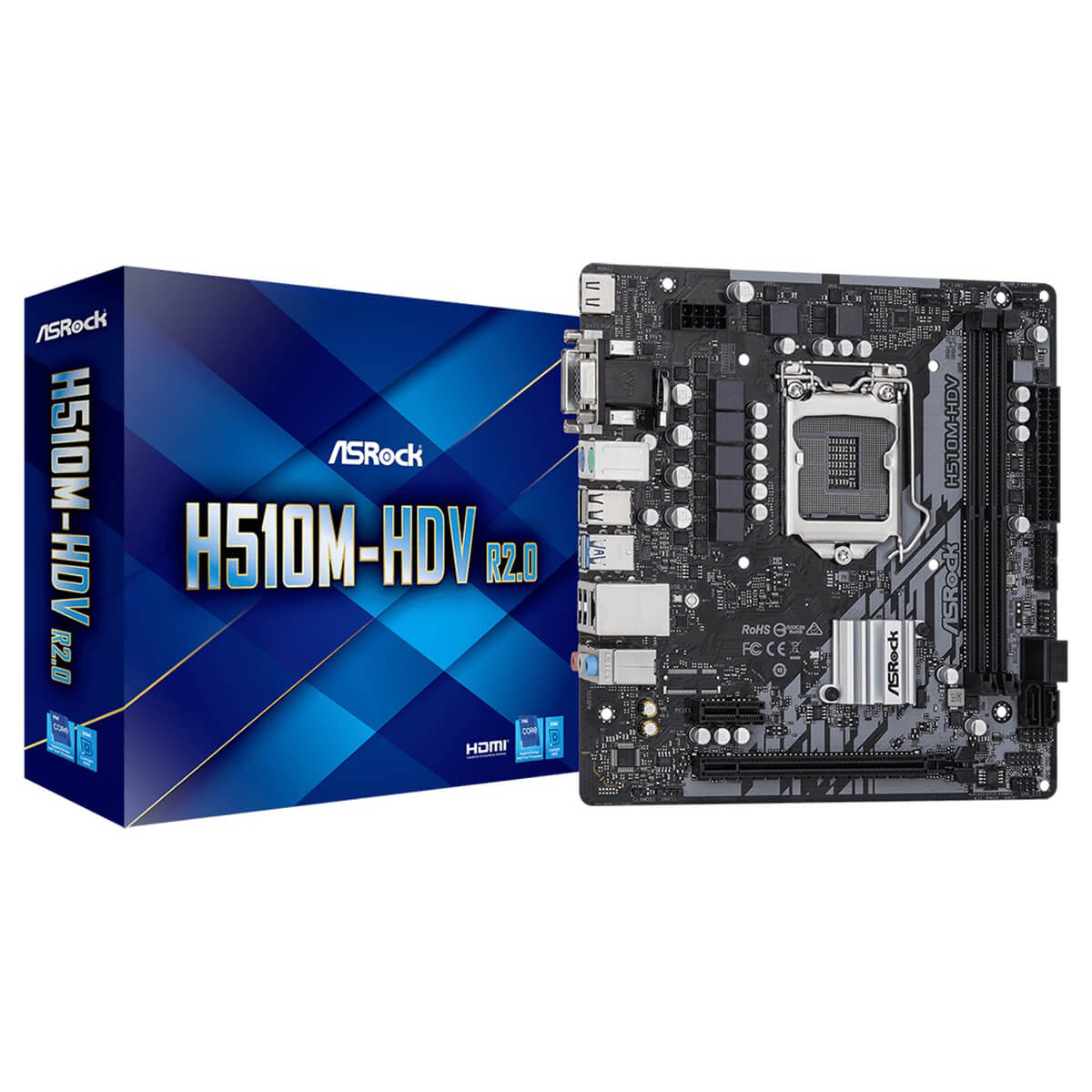

ASRock H510M-HDV R2.0 – Socket 1200

Giá Tân Doanh: 1,500,000₫

Tình trạng: Mới 100%
Bảo hành: 36 Tháng
Xuất xứ: Chính hãng
Thương hiệu: ASRock
Giá bán đã bao gồm VAT.
Giá rẻ nhất trong phân khúc combo với i3 10th
Chỉ sử dụng SSD sata 3 2.5″
Thích hợp máy văn phòng tối ưu chi phí

Chat Facebook

Chat Zalo

Facebook

Mã: M-H510M-HDV Danh mục: Intel H510 - Socket 1200 Thẻ: ASRock, H510

Giao hàng

Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây
Đổi trả

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây
Tổng đài CSKH

1900.966.939
Hotline Kinh Doanh

093.88.99.941
078.366.6668
Hotline Kỹ Thuật

093.88.99.947

Thông tin Sản Phẩm

Mô tả

Unique Feature	ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	– Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors (LGA1200) – 5 Power Phase design – Supports Intel^® Turbo Boost Max 3.0 Technology
Chipset	– Intel^® H510
Bộ nhớ RAM	– Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB** – Supports Intel^® Extreme Memory Profile (XMP) 2.0 11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively. 10th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively. *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
Đồ hoạ	– 11th Gen Intel^® Core™ Processors support Intel^® Xe Graphics Architecture (Gen 12). 10th Gen Intel^® Core™ Processors support Gen 9 Graphics – Three graphics output options: D-Sub, DVI-D and HDMI** – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel^® Core™ Processors – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel^® Core™ Processors – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel^® Core™ Processors) *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Graphics specifications may vary between CPU types.
Âm thanh	– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) – Supports Surge Protection
LAN	– PCIE x1 Gigabit LAN 10/100/1000 Mb/s – 1 x Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Khe cắm	11th Gen Intel^® Core™ Processors – 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel^® Core™ Processors – 1 x PCI Express 3.0 x16 Slot* – 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks
Lưu trữ	– 4 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
Cổng kết nối	– 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

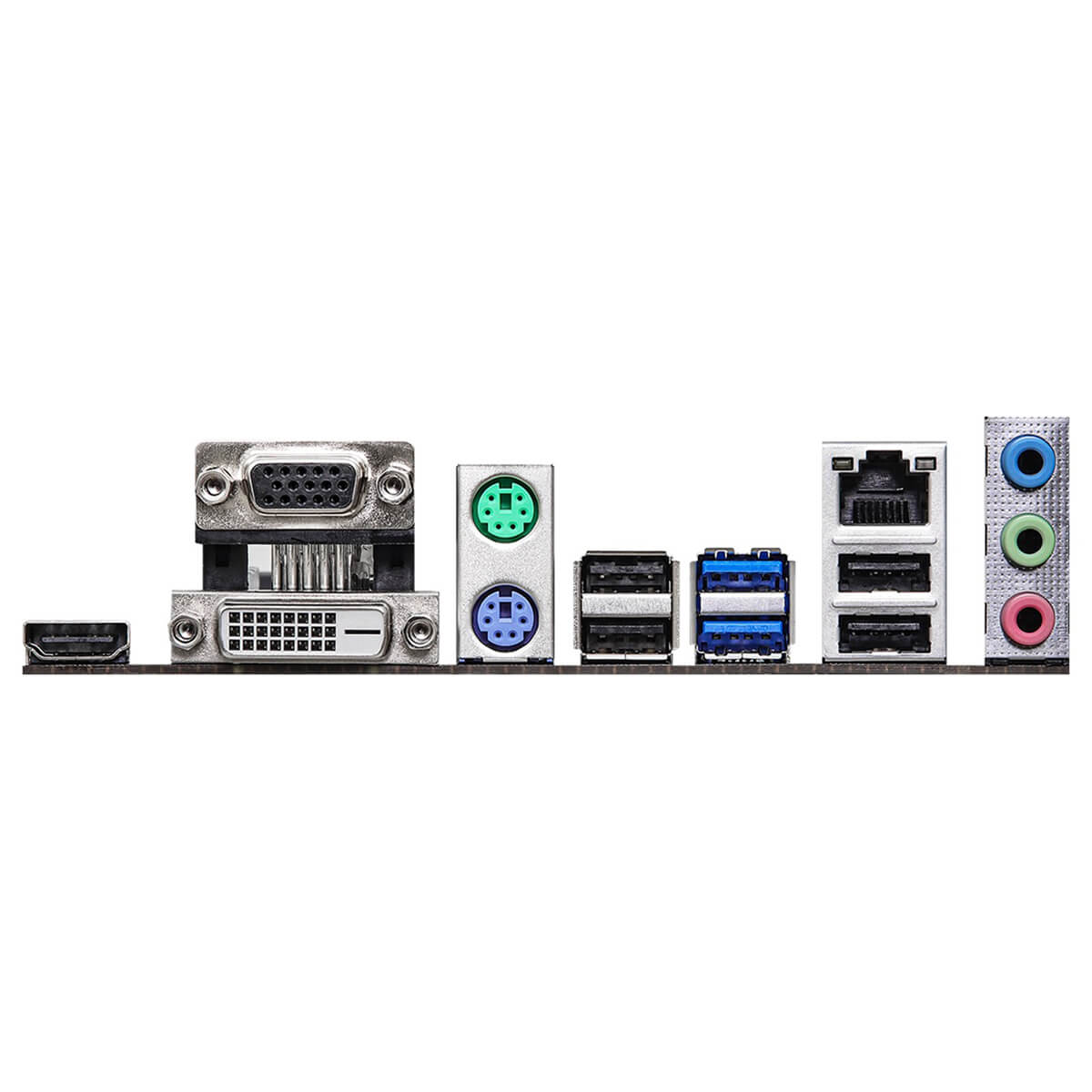

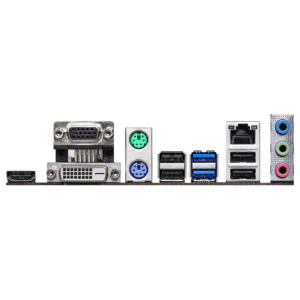

Bảng điều khiển Input/Output phía sau	– 1 x PS/2 Keyboard Port – 1 x PS/2 Mouse Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 4 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone
Phần mềm và UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Hỗ trợ CD	– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Phụ kiện	– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables
Hỗ trợ phần cứng	– Fan Tachometer: CPU, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor	– Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm – Solid Capacitor design
Hệ điều hành	– Microsoft^® Windows^® 10 64-bit / 11 64-bit
