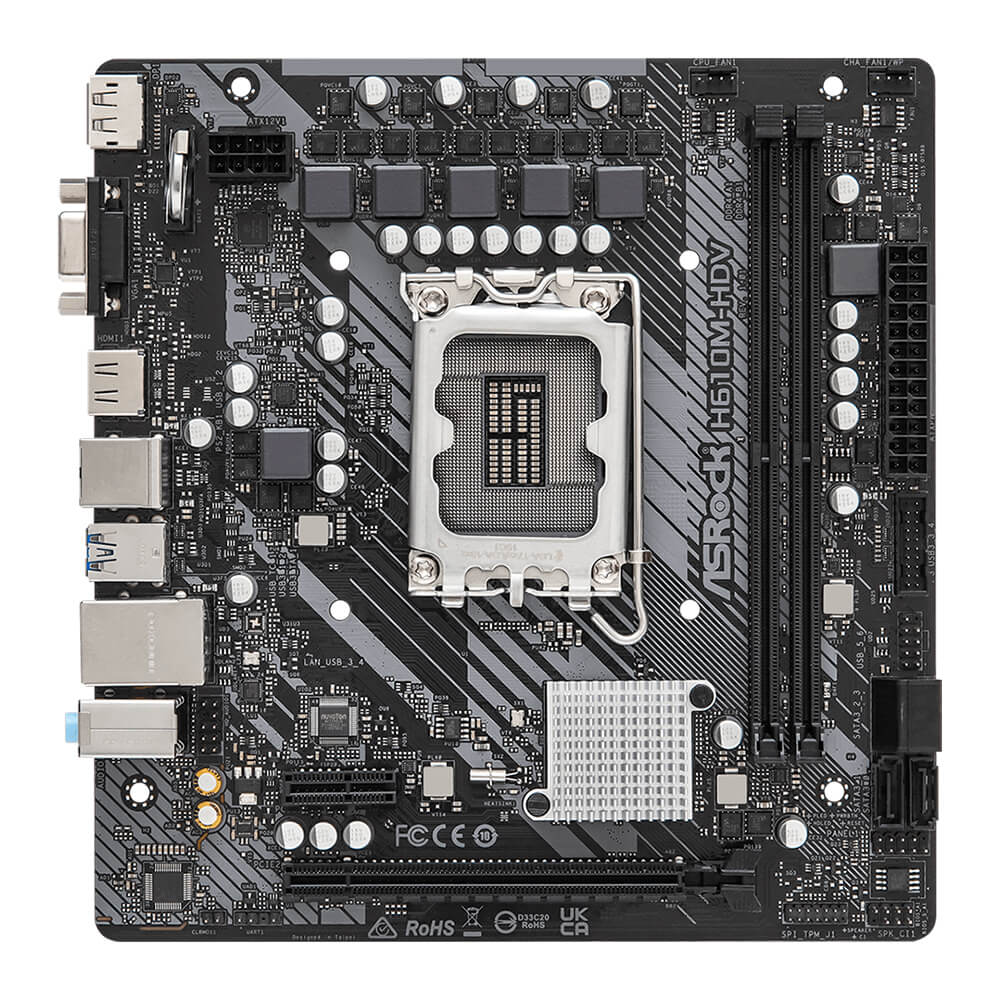

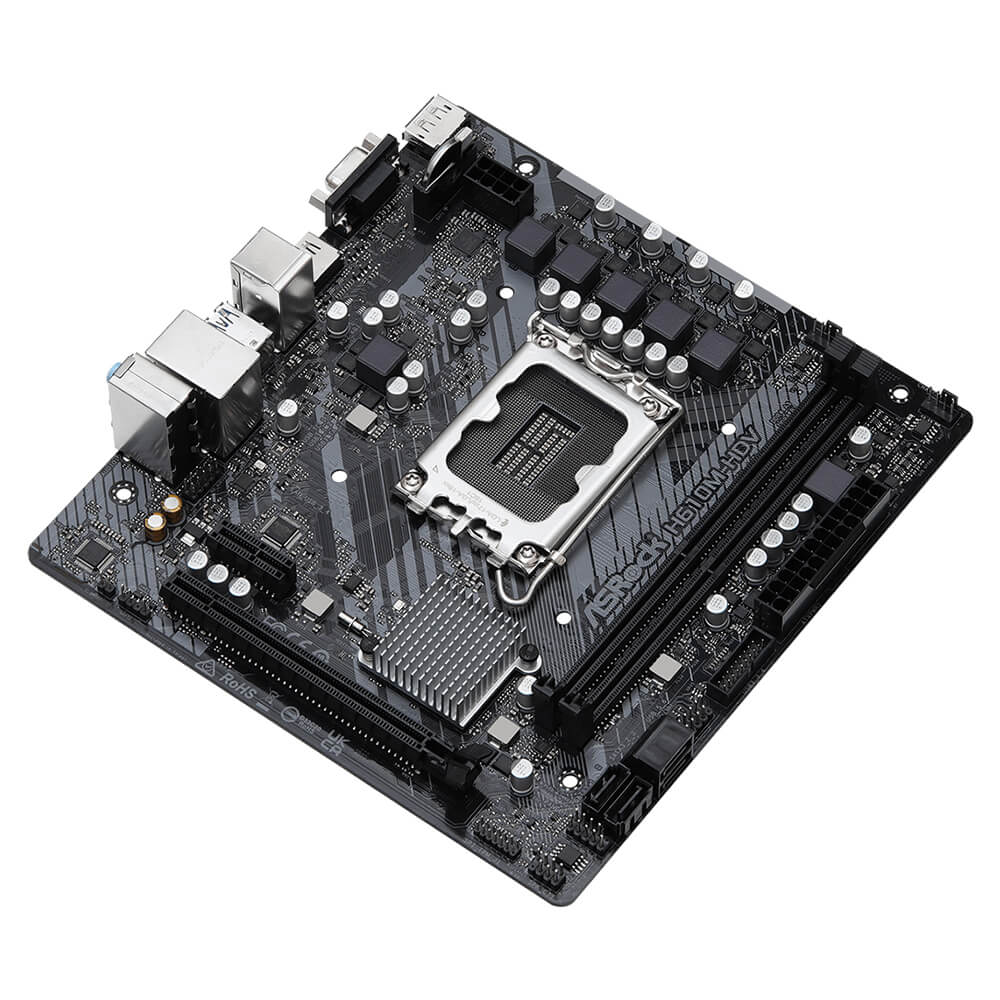

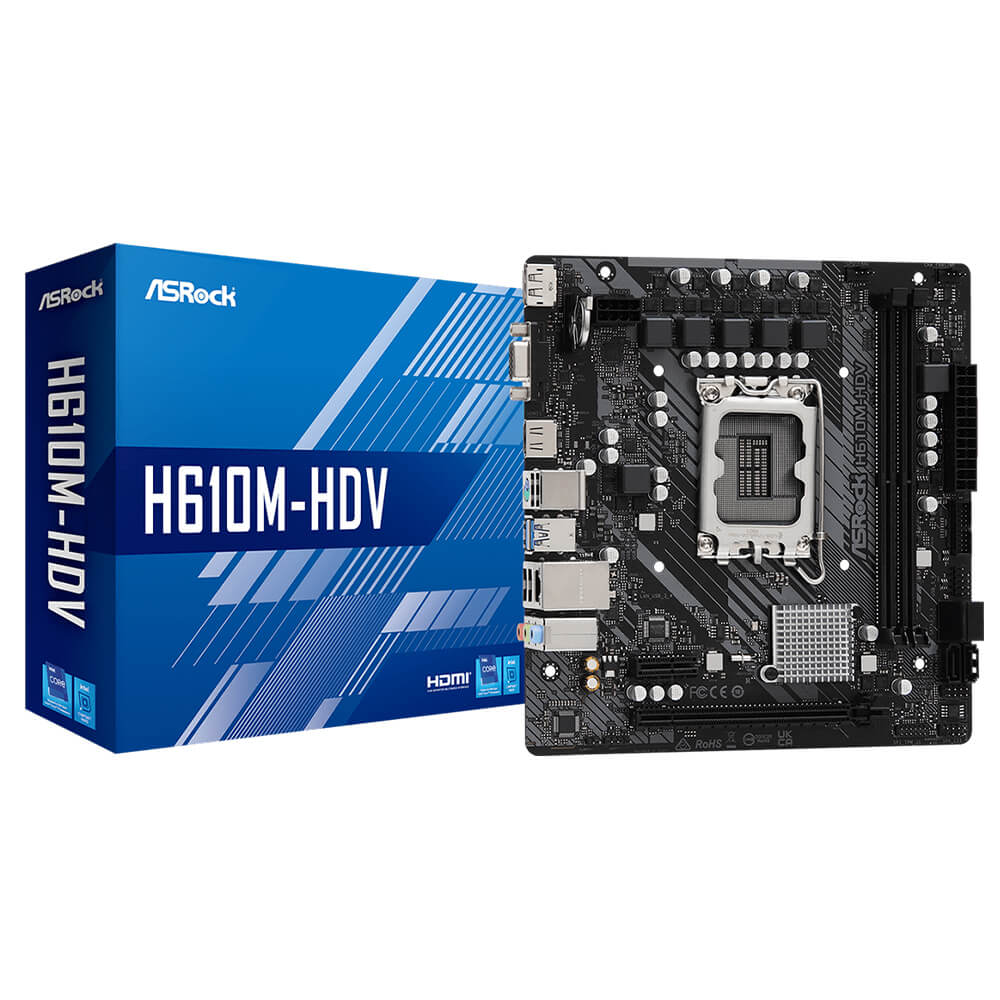

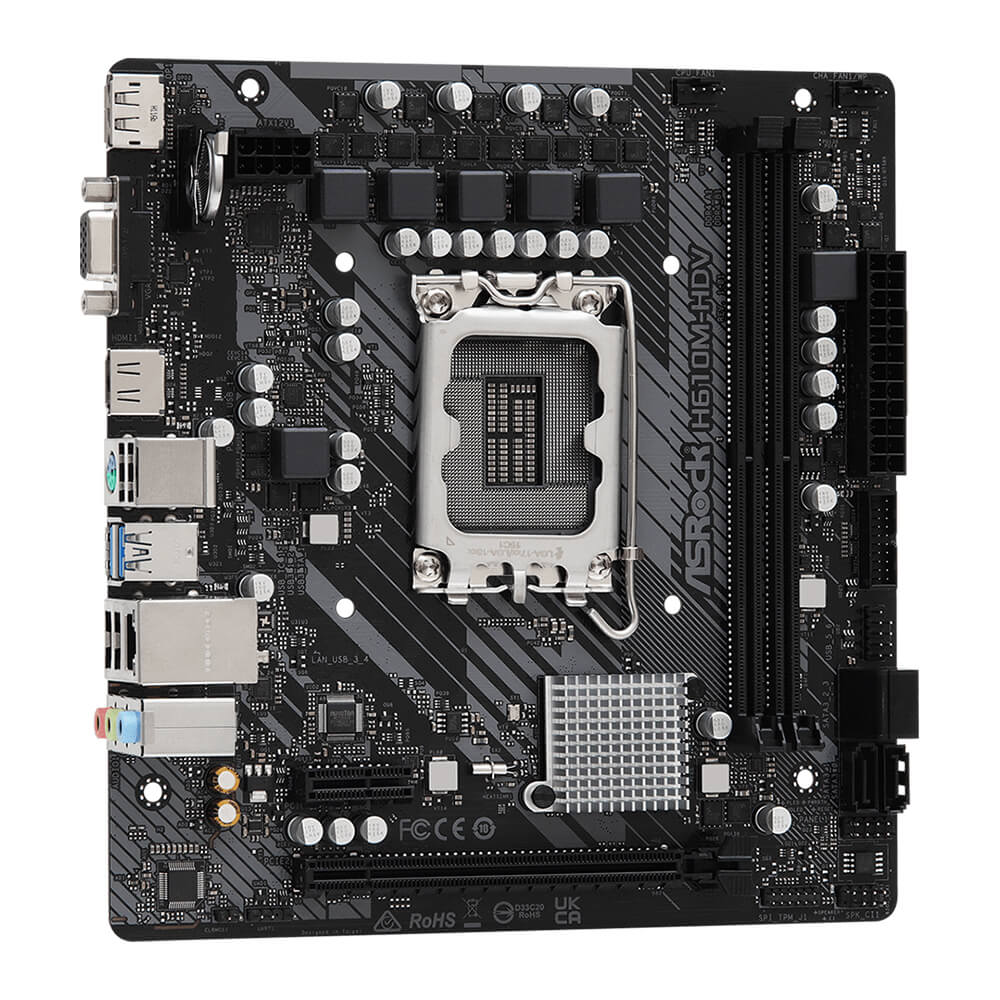

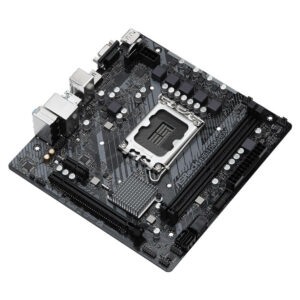

ASRock H610M-HDV – Socket 1700
Thông tin Sản Phẩm
| Unique Feature | ASRock Super Alloy – Premium Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – 5 Power Phase design – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | – Intel® H610 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 3200 – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) – Supports Surge Protection |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – 1 x Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE1)* *Supports NVMe SSD as boot disks
|
| Storage | – 4 x SATA3 6.0 Gb/s Connectors |
| Connector | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
|

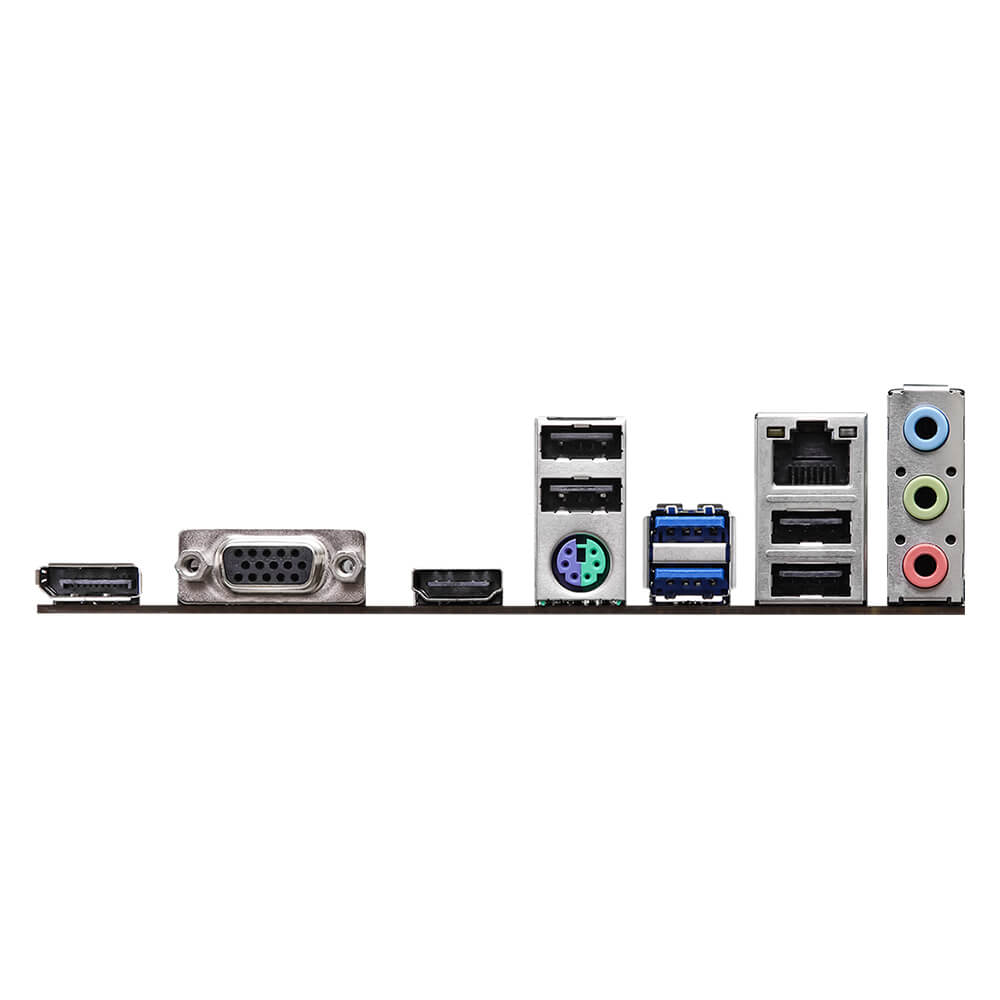

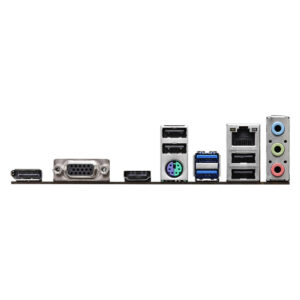

Rear Panel I/O
|
– 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 4 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI
|
Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
– Drivers, Utilities, AntiVirus Software (Trial Version) |
|
Accessories
|
– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables |
|
Hardware Monitor
|
– Fan Tachometer: CPU, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
|
Form Factor
|
– Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm – Solid Capacitor design |
| OS | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
