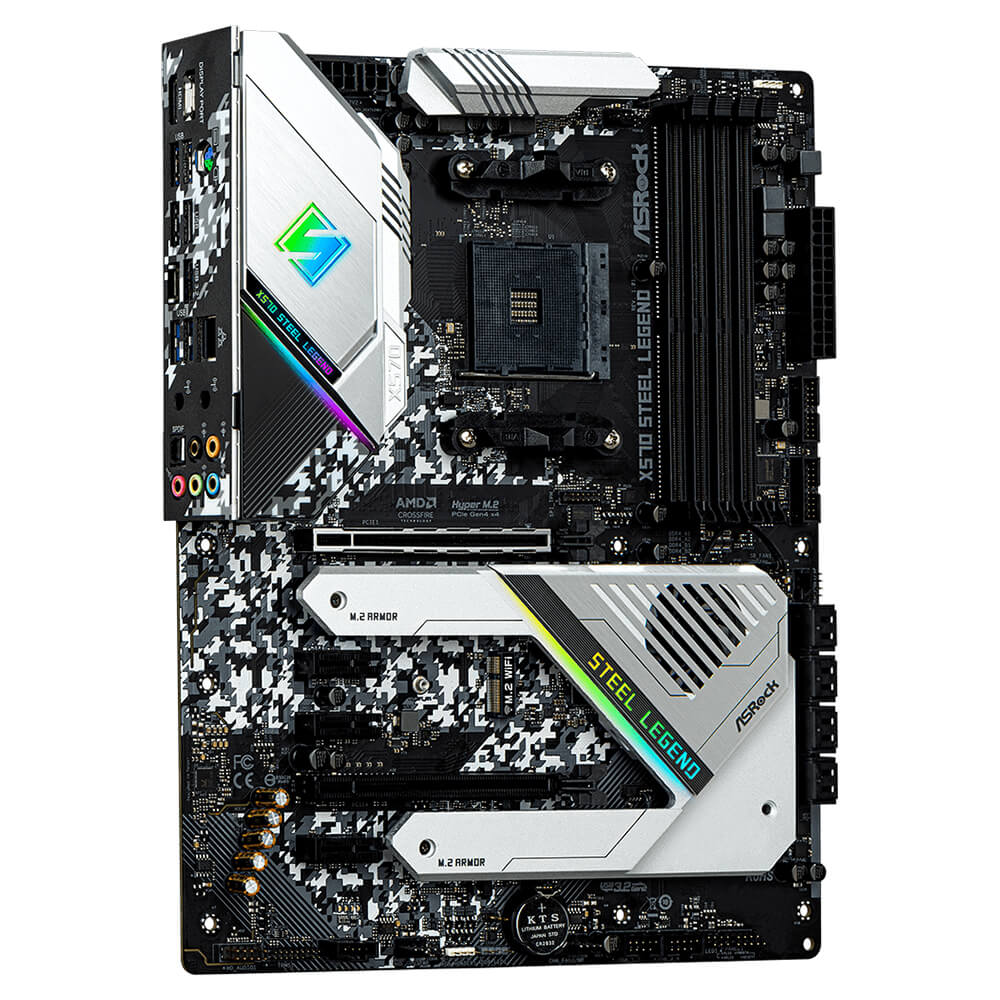

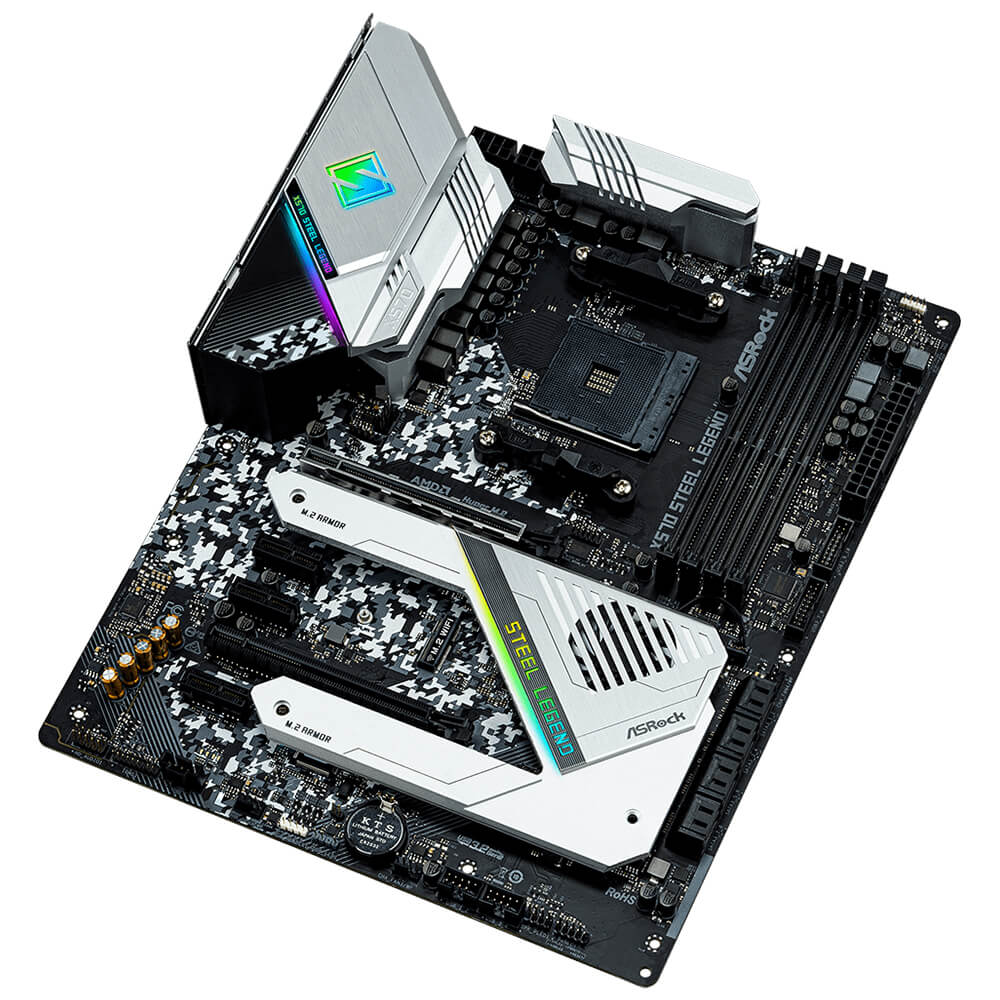

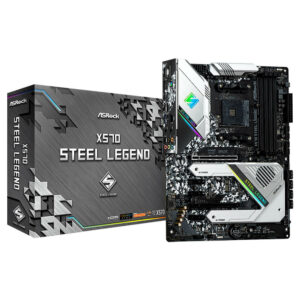

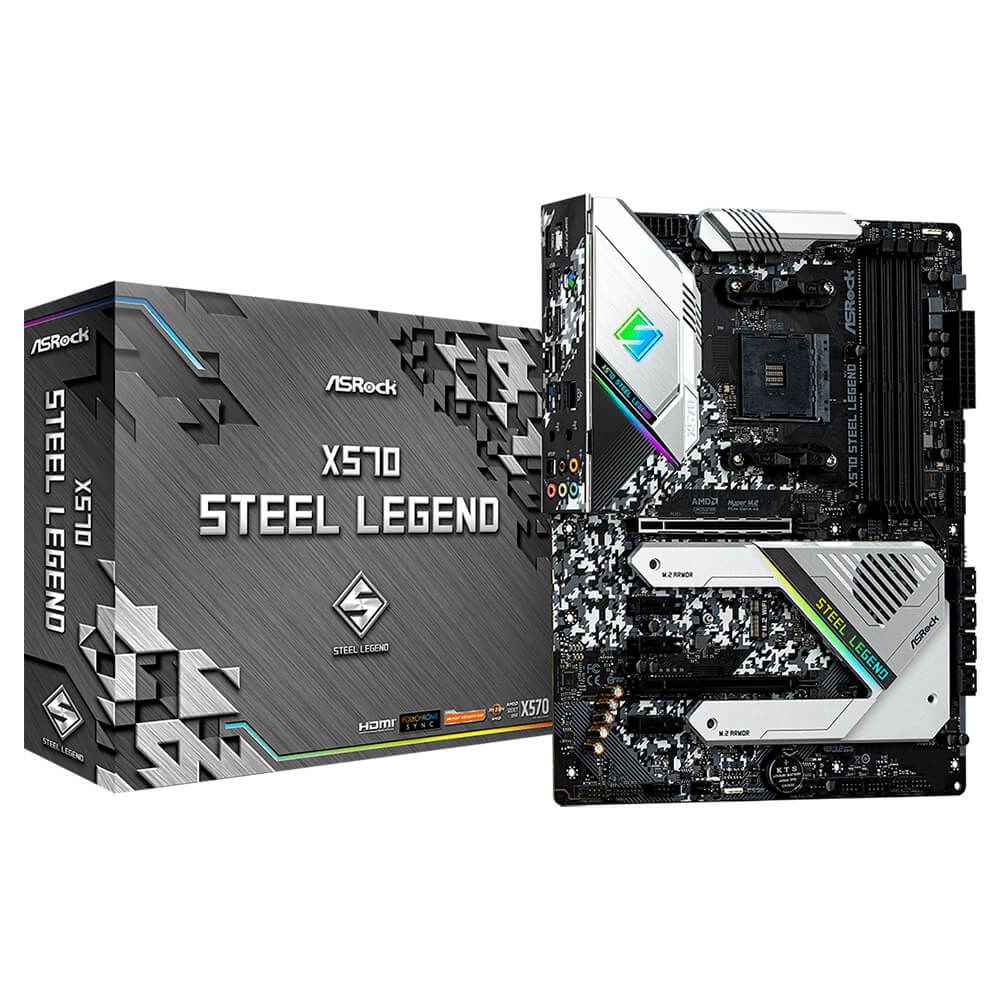

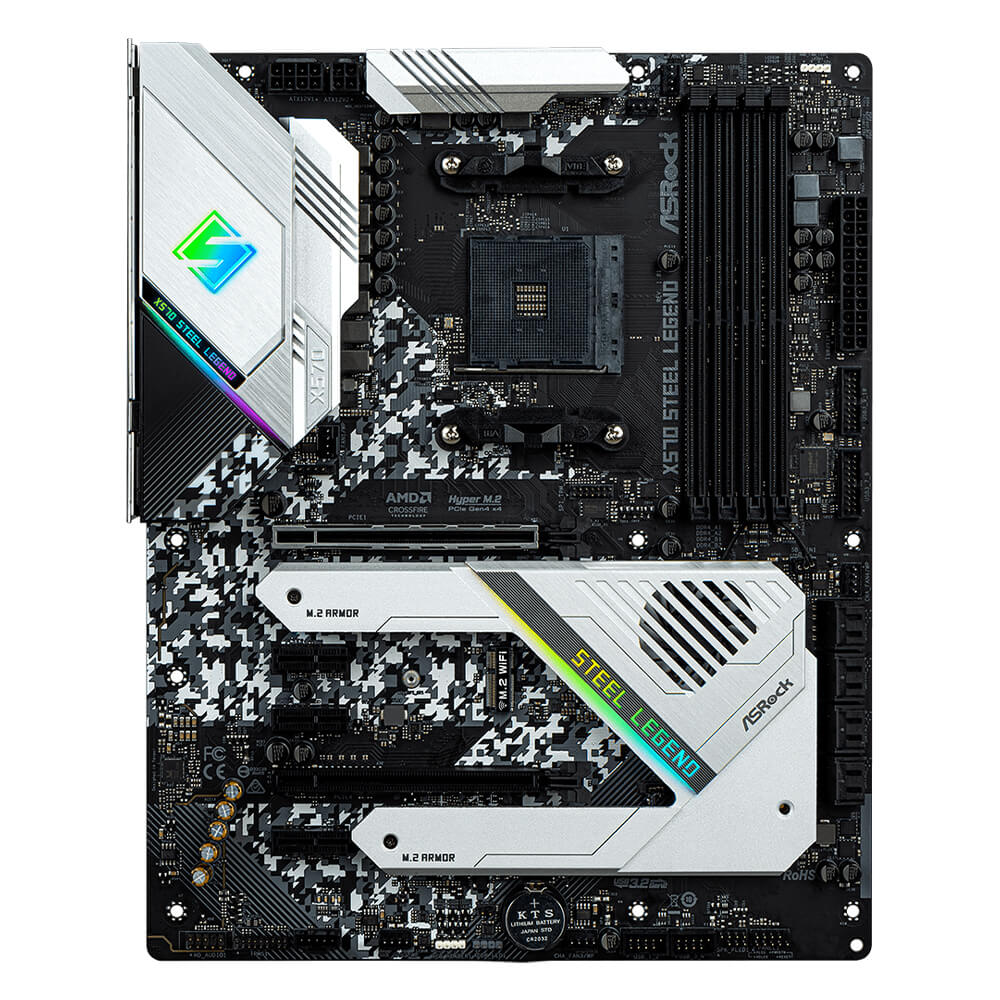

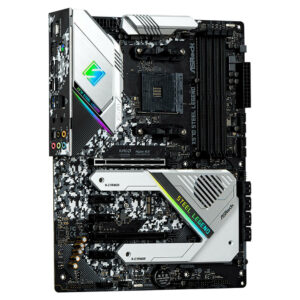

ASRock X570 Steel Legend – SOCKET AM4
Giá Tân Doanh:
3,950,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASROCK
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
| Unique Feature | ASRock USB 3.2 Gen2 – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – 50A Dr.MOS – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – Combo Caps (Nichicon 12K Black Caps) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
CPU
|
– Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
– Intersil Digital PWM – 10 Power Phase design *Please refer to CPU support list for details.
|
|
Chipset
|
– AMD X570
|
|
Memory
|
– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 128GB** – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots |
|
BIOS
|
– 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
|
Graphics
|
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.0 – Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports – Supports Microsoft PlayReady *Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound™ 4 – NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB isolate shielding – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – GigaLAN Intel® I211AT* – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE *To support WOL on I211 LAN “Please refer to FAQ”
|
|
Slots
|
AMD Ryzen series CPUs (Vermeer, Matisse) – 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge) – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))* AMD Ryzen series CPUs (Picasso) – 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* – 3 x PCI Express 4.0 x1 Slots *Supports NVMe SSD as boot disks
|
|
Storage
|
– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* – 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* *If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon™ 3000G Processors Supports ASRock U.2 Kit Support RAID 0/1/10 |
|
RAID
|
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Connector | – 1 x Power LED and Speaker Header – 1 x AMD Fan LED Header* – 1 x RGB LED Header** – 1 x Addressable LED Header*** – 1 x CPU Fan Connector (4-pin)**** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x AMD LED Fan USB Header – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x SPI TPM Header******* *The AMD Fan LED Header is compatible with a regular RGB LED stripe.
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **Supports in total up to 12V/3A, 36W LED Strip ***Supports in total up to 5V/3A, 15W LED Strip ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. *******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI |
|

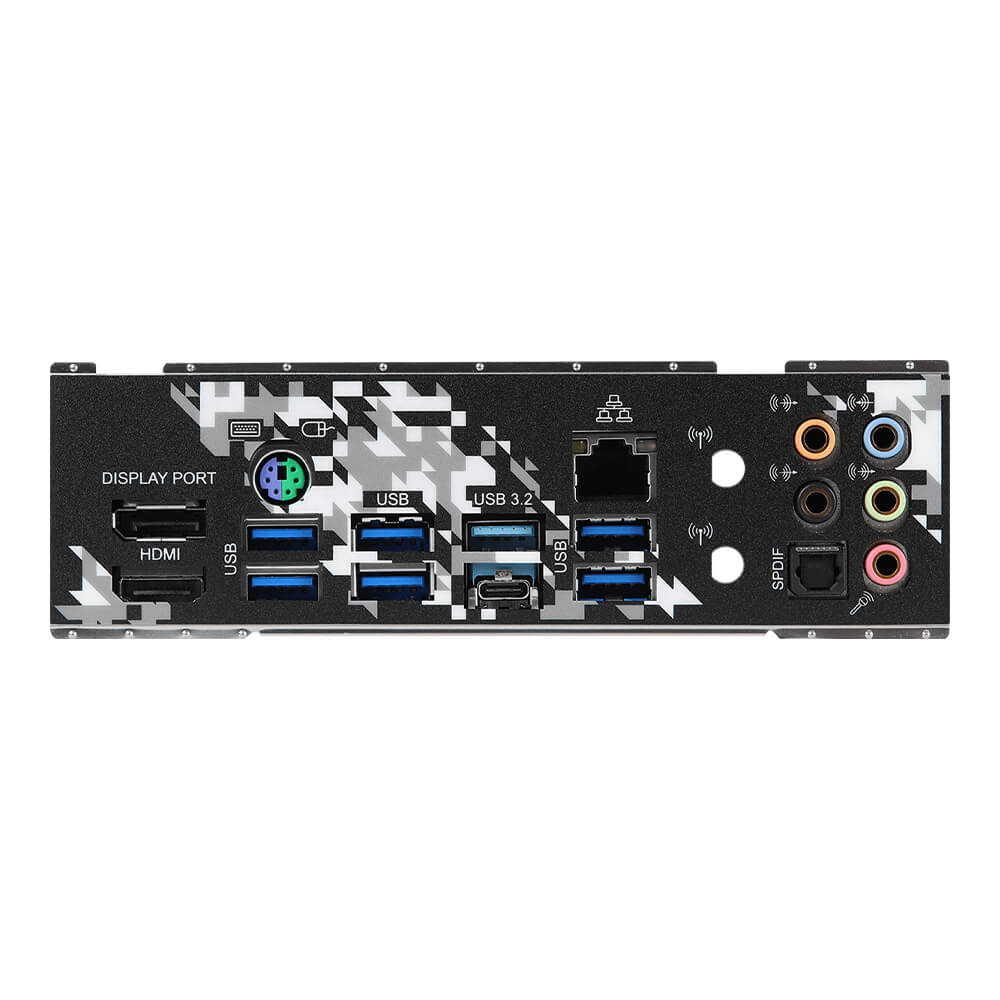

Rear Panel I/O
|
– 2 x Antenna Ports (on I/O Panel Shield) – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.2 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_56 ports.
ACPI wake-up function is not supported on USB3_56 ports. |
|
Software and UEFI
|
Software
– ASRock A-Tuning – ASRock Polychrome SYNC UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
| Accessories |
– Quick Installation Guide, Support CD
– 4 x SATA Data Cables – 3 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
|
Hardware Monitor
|
– Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP |
|
Form Factor
|
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB |
|
OS
|
– Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Certifications |
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |
