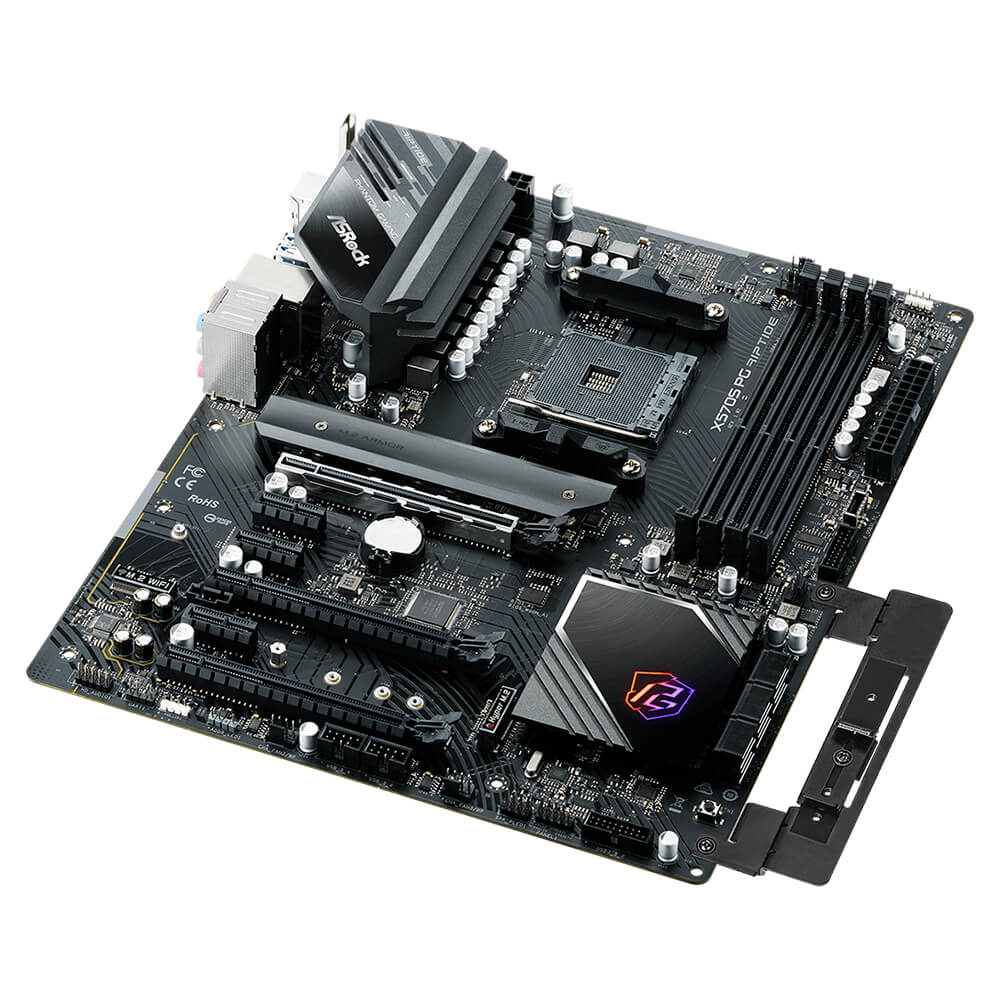

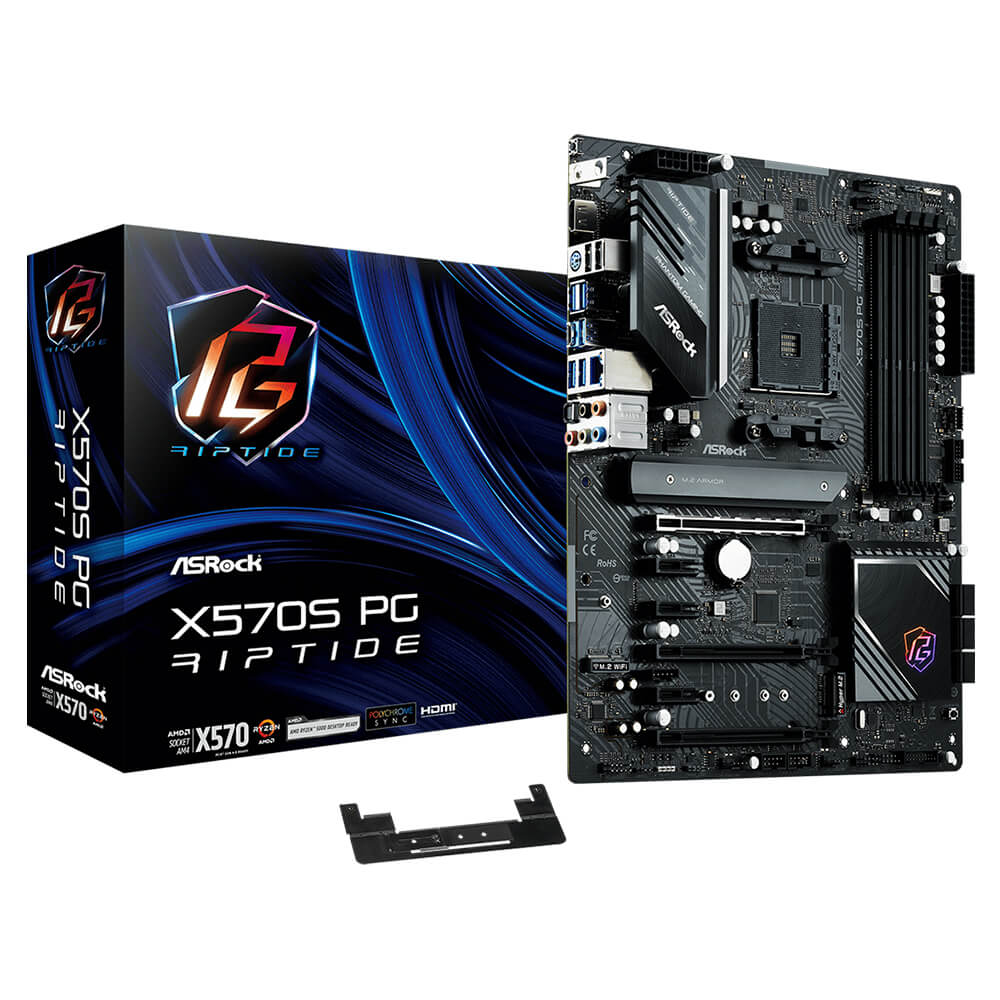

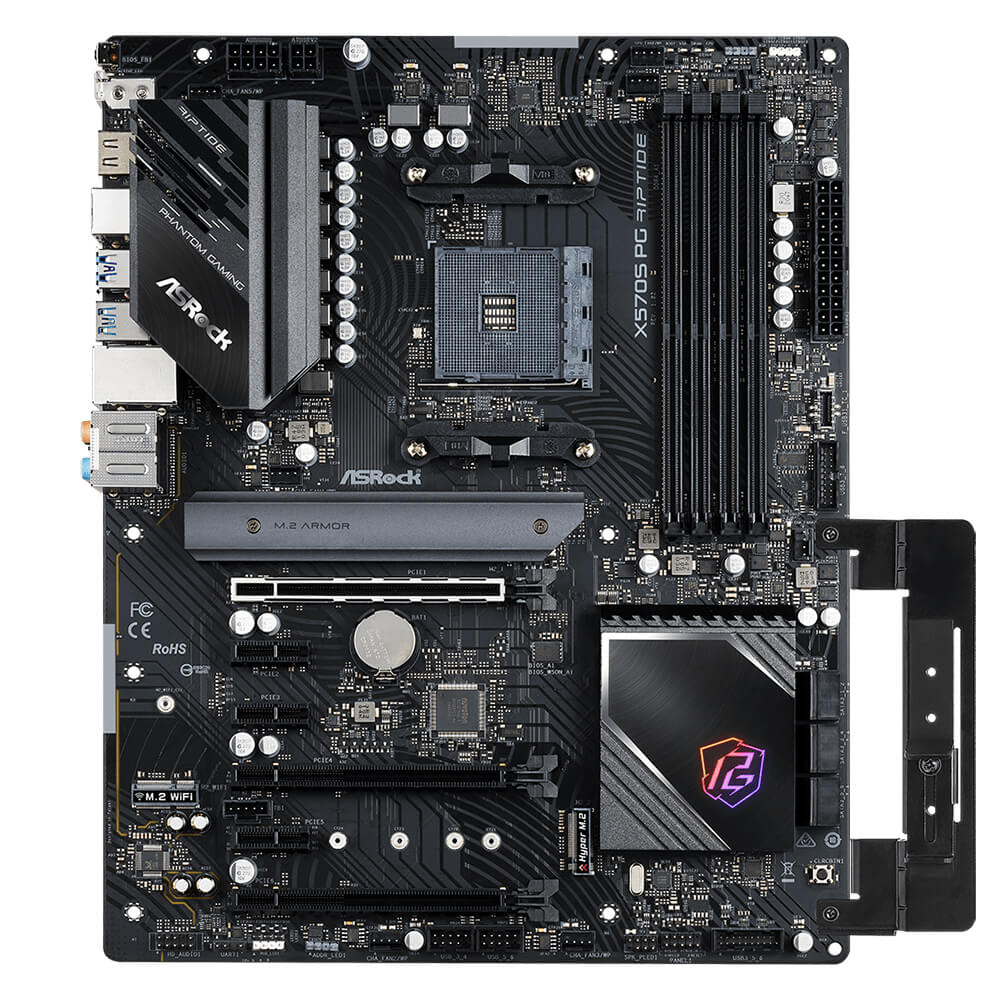

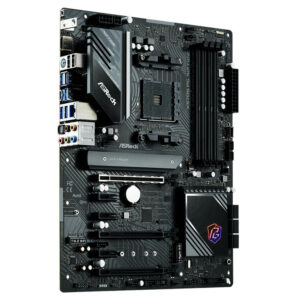

ASRock X570S PG Riptide – Socket AM4
Giá Tân Doanh:2,890,000₫
Giá Thường:2,990,000₫
Tiết Kiệm: 100,000₫ (3%)
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASROCK
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
| Unique Feature | ASRock USB 3.2 Gen2 – ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – 50A Dr.MOS – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB Killer 2.5G LAN ASRock Lightning Gaming Port ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
CPU
|
– Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
– Digi Power design – 10 Power Phase design *Please refer to CPU support list for details.
|
|
Chipset
|
– AMD X570
|
|
Memory
|
– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 128GB* – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso and Renoir), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. |
|
BIOS
|
– 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment |
|
Graphics
|
– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) – Supports HDR (High Dynamic Range) with HDMI 2.1 – Supports HDCP 2.3 with HDMI 2.1 Port – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port – Supports Microsoft PlayReady *Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Gold Audio Jacks – Nahimic Audio |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s) – Supports Killer LAN Software – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
|
Slots
|
AMD Ryzen series CPUs (Vermeer, Matisse) – 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))* AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)* AMD Ryzen series APUs (Picasso) – 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))* AMD X570 Chipset – 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6)) – 3 x PCI Express 4.0 x1 Slots – Supports AMD Quad CrossFireX™ and CrossFireX™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks
|
|
Storage
|
– 6 x SATA3 6.0 Gb/s Connectors – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* – 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* * If M2_2 is occupied by a PCIE-type M.2 device, SATA3_5_6 will be disabled.
If Thunderbolt™ support is enabled, SATA type M.2 will be disabled. Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon™ 3000G Processors Supports ASRock U.2 Kit |
|
RAID
|
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Connector | – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) – 1 x Clear CMOS Button *Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |
|

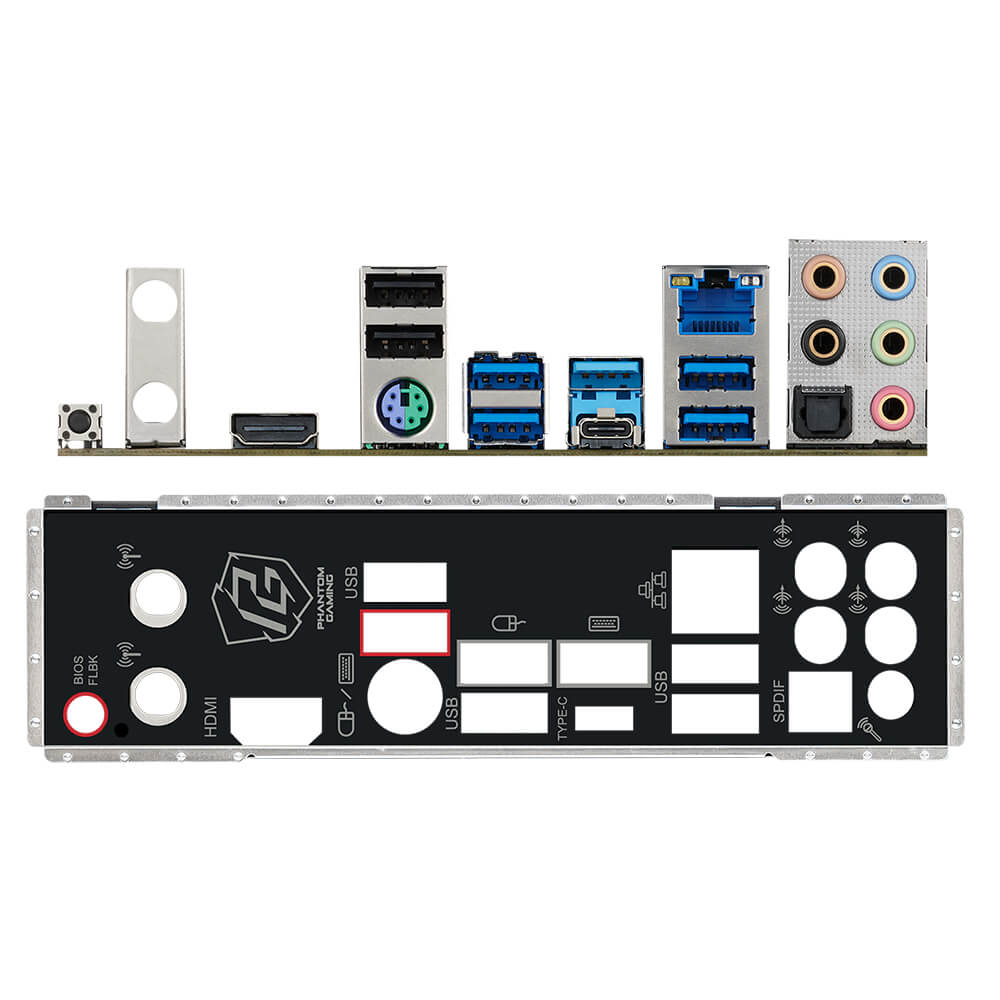

Rear Panel I/O
|
– 1 x Antenna Bracket – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button with LED – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
|
|
Software and UEFI
|
Software
– ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Killer LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
| Accessories |
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables – 1 x Graphics Card Holder – 3 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket |
|
Hardware Monitor
|
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP |
|
Form Factor
|
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– Solid Capacitor design – 2oz Copper PCB |
|
OS
|
– Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Certifications |
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) – CEC Tier II ready |
