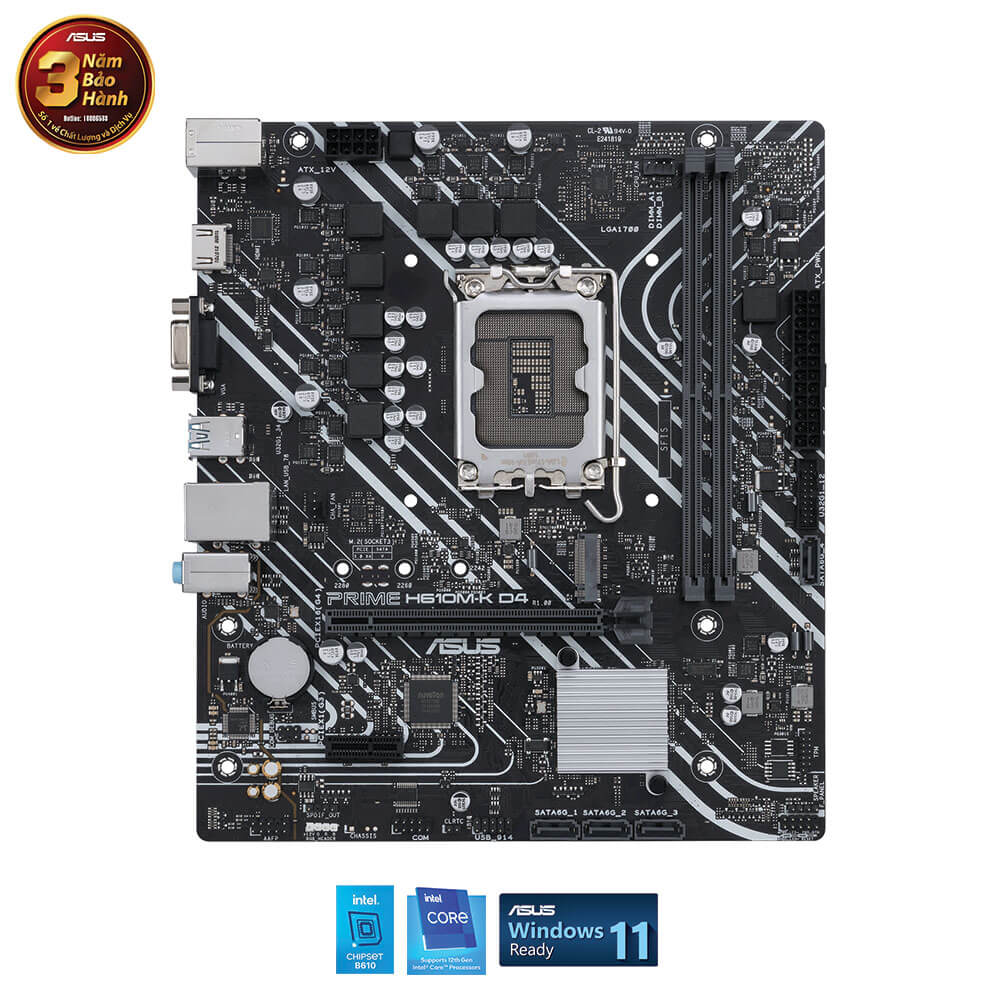

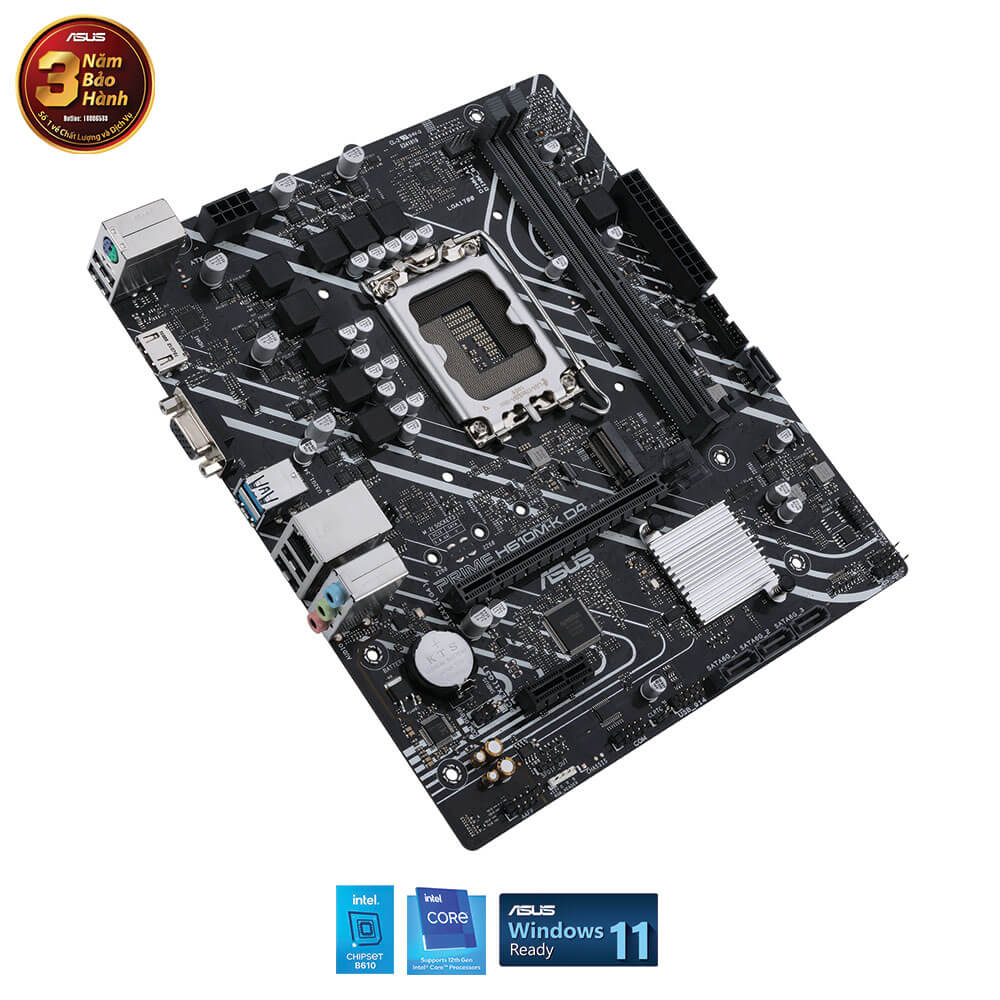

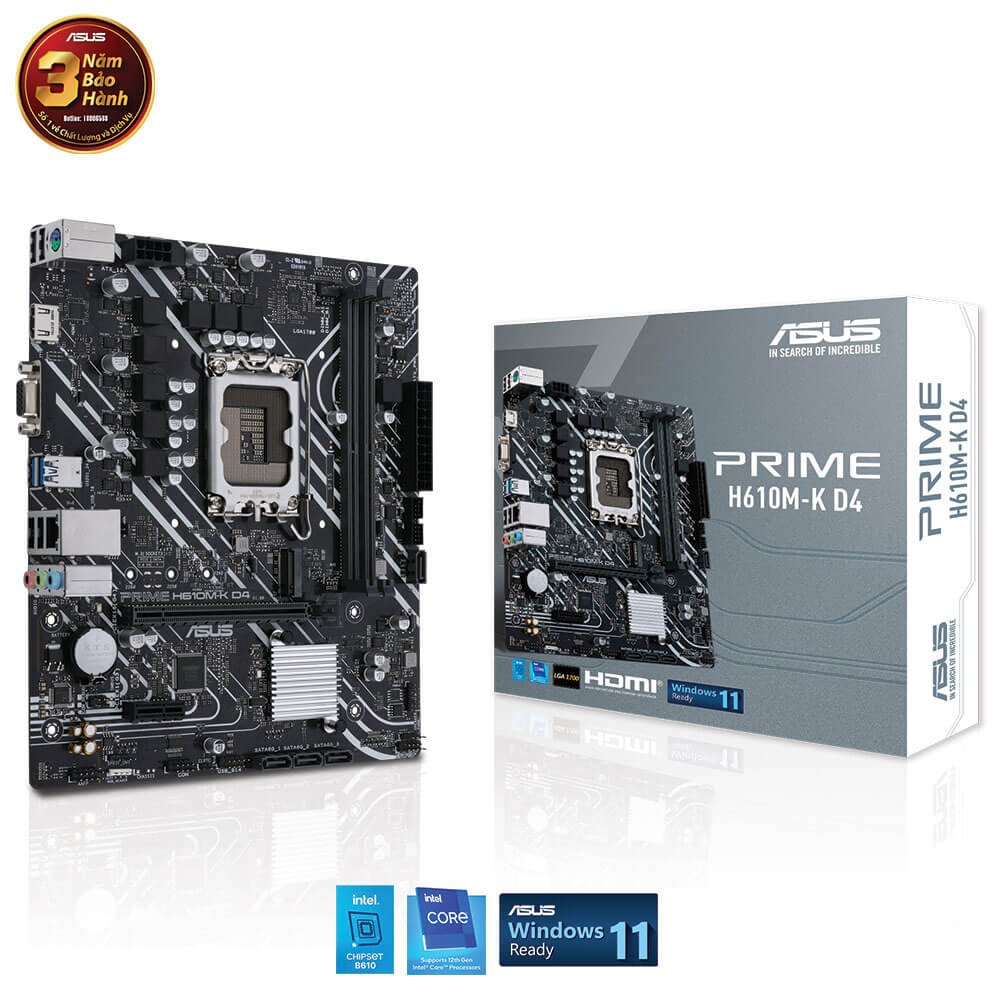

Asus Prime H610M-K D4 – Socket 1700
Thông tin Sản Phẩm
Bo mạch chủ Intel® H610 (LGA 1700) kích cỡ mic-ATX với DDR4, PCIe 4.0, khe M.2, Ethernet Realtek 1 Gb, HDMI®, D-Sub, cổng USB 3.2 Gen 1, SATA 6 Gbps, đầu cắm COM, đầu cắm RGB
- Socket Intel® LGA 1700: Sẵn sàng cho bộ vi xử lý Intel® thế hệ 12
- Làm mát toàn diện: Tản nhiệt PCH heatsink và phần mềm Fan Xpert
- Kết nối cực nhanh: Khe M.2 32Gbps, Ethernet Realtek 1 Gb và hỗ trợ USB 3.2 Gen 1
- 5X Protection III: Nhiều tính năng bảo vệ phần cứng khác nhau cho sự bảo vệ toàn diện
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics | 1 x D-Sub port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

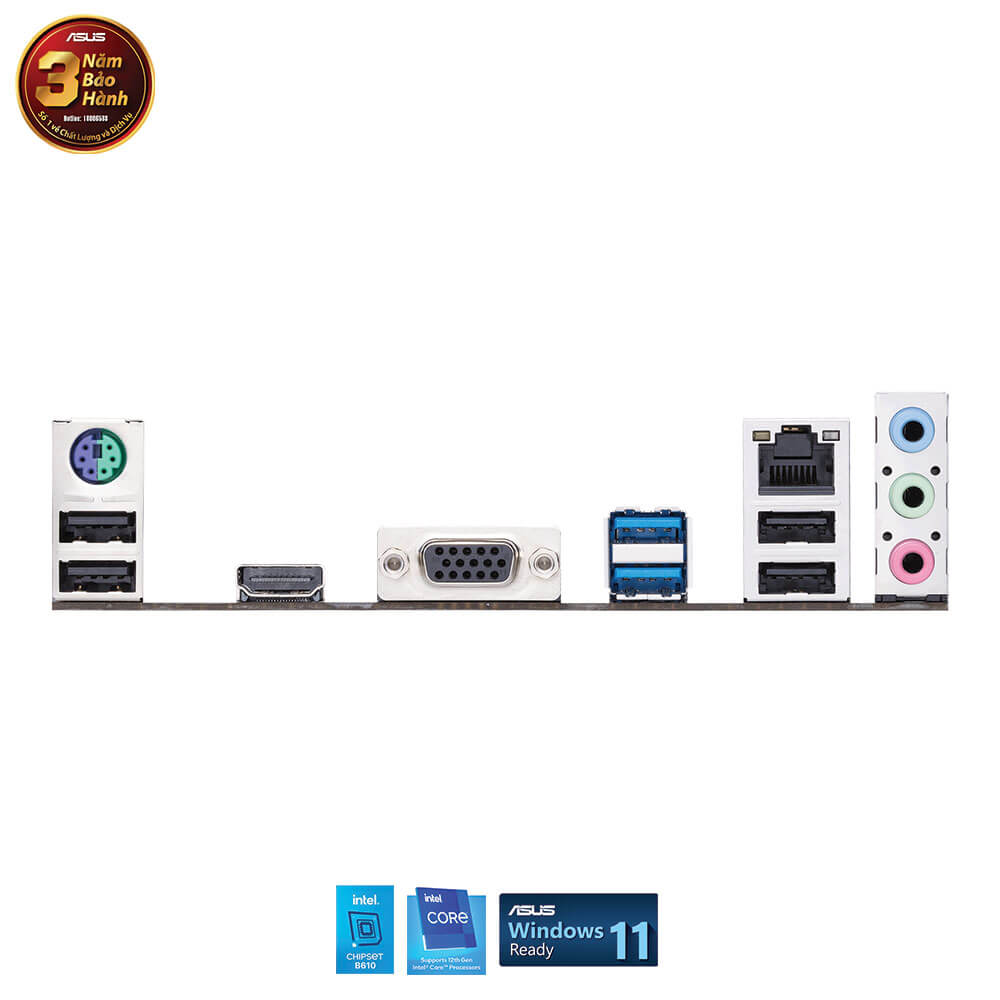

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS Lighting Control – RGB header |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User Guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
