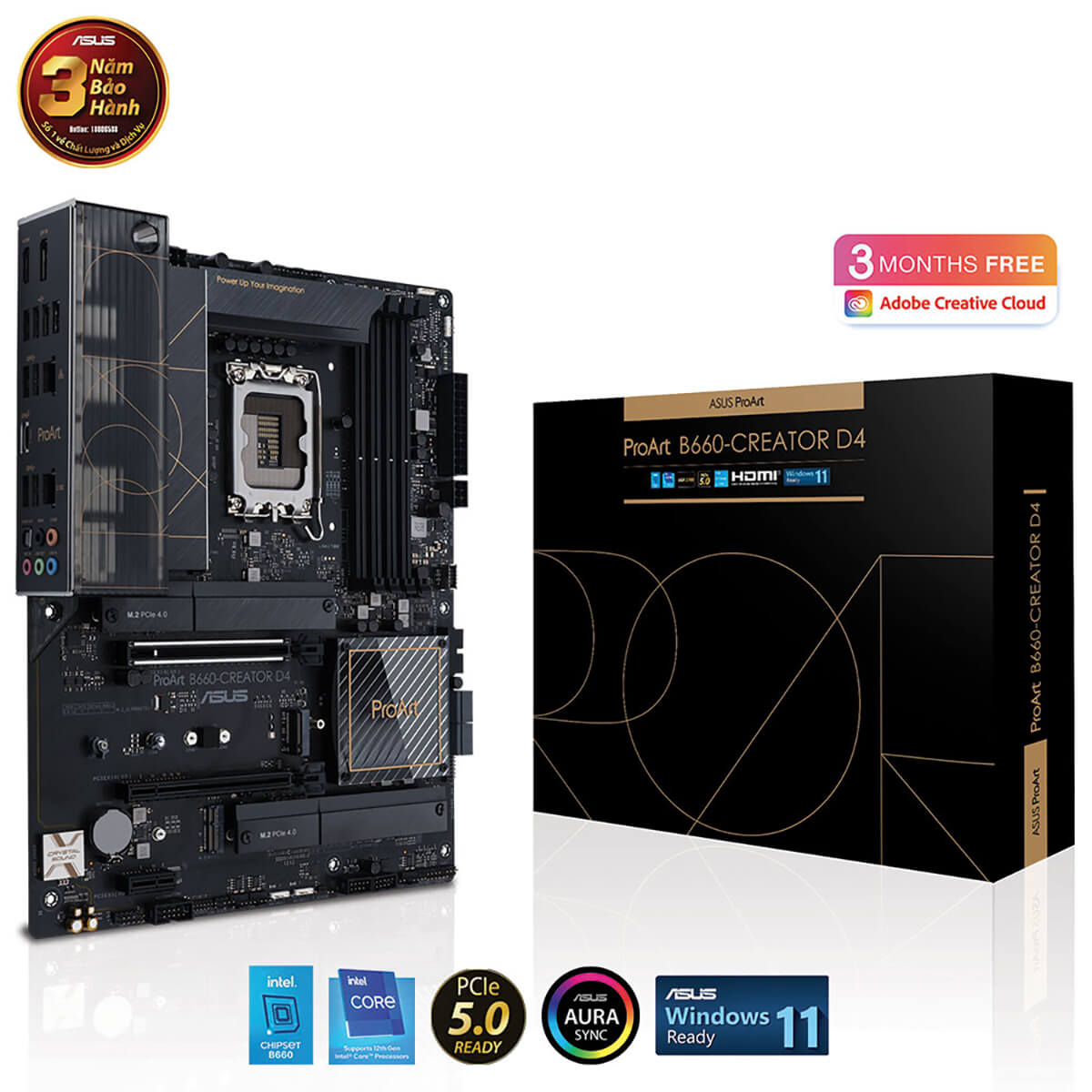

Asus ProArt B660-CREATOR D4 – Socket 1700
Giá Tân Doanh:
5,290,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASUS
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm

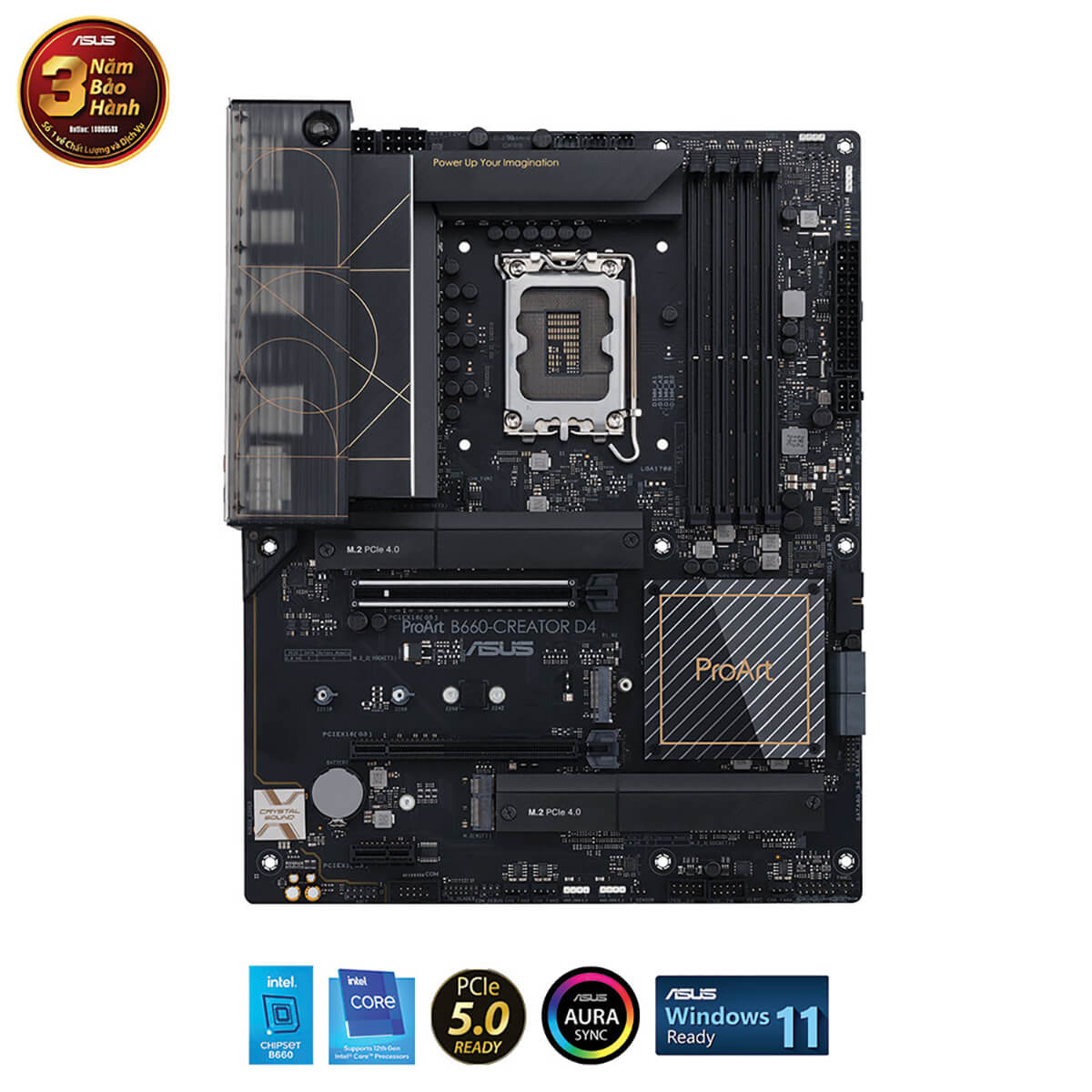

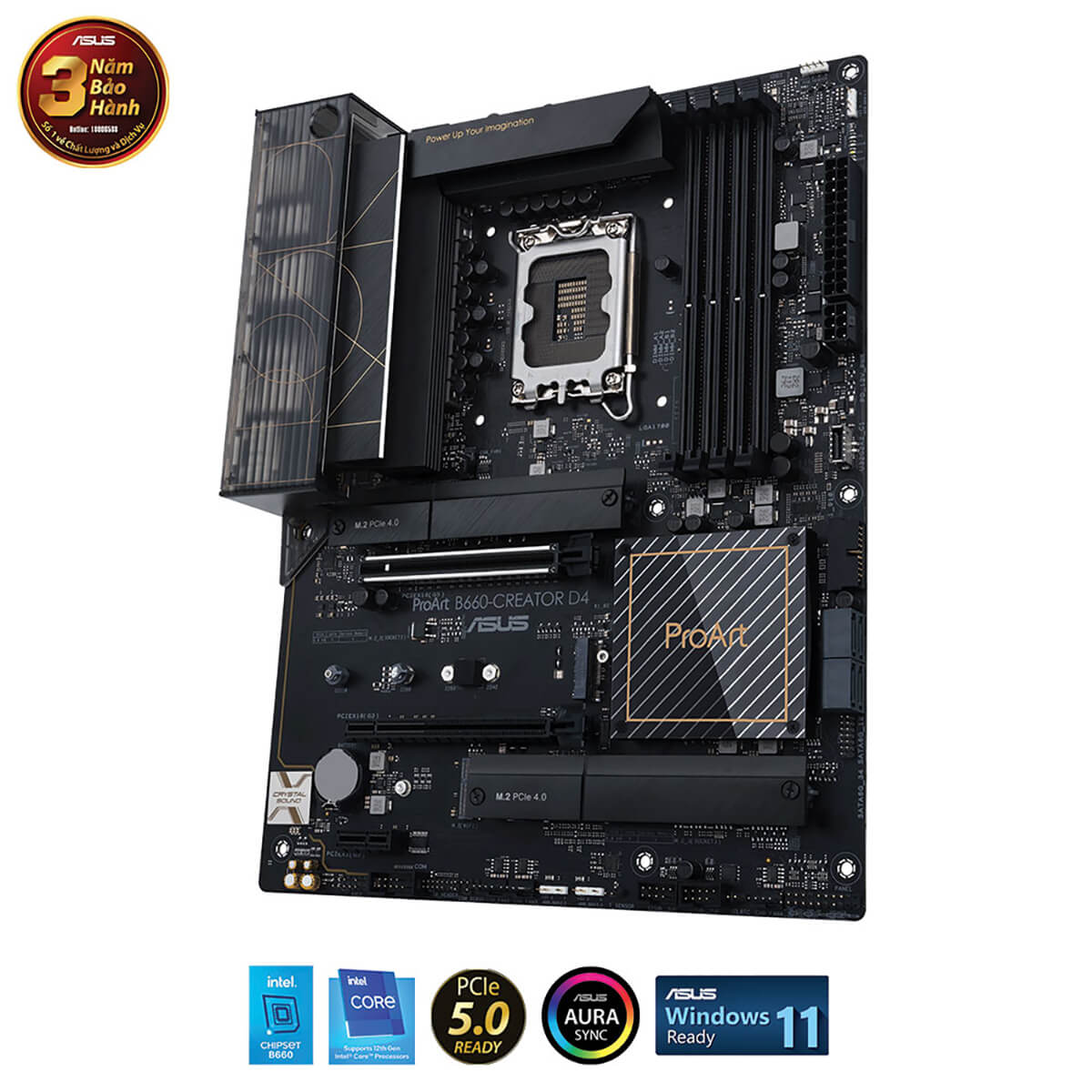

Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2×2 front-panel connector with Quick Charge 4+
- Socket LGA 1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTMheader support, USB-C DisplayPortTM and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+
- Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready
- Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
- Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x HDMI® port** 1 x USB Type-C port supports DisplayPort output*** 1 x DP IN that will have output through USB Type-C port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. **** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal. |
| Expansion Slots | Intel® 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)*** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

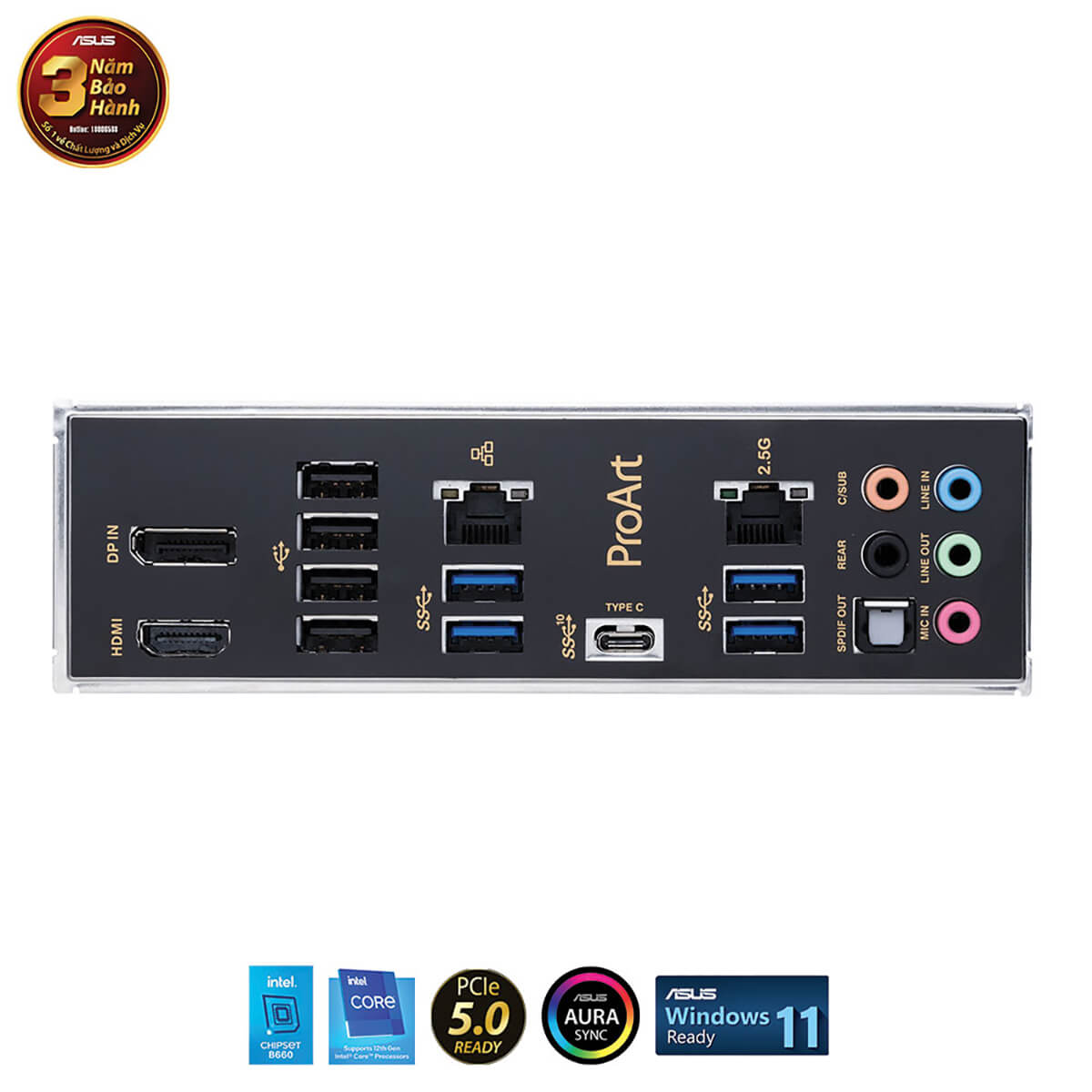

| Back Panel I/O Ports | 1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 1 x Intel® 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield AURA Sync – AURA RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb |
| Manageability | WOL by PME, PXE |

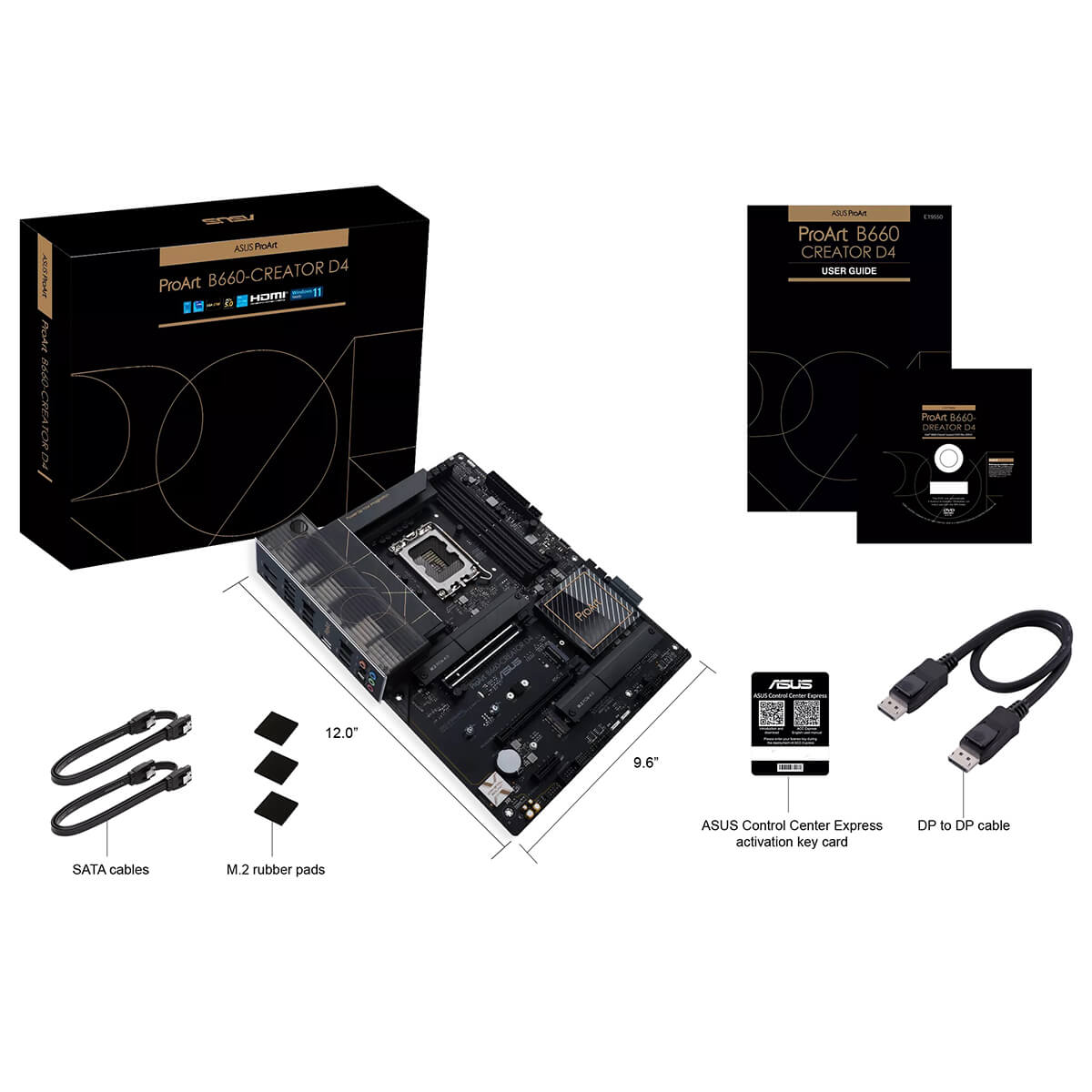

| Accessories | Cables 1 x DisplayPort cable 2 x SATA 6Gb/s cables Miscellaneous 3 x M.2 rubber packages 1 x M.2 SSD Screw Package 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
