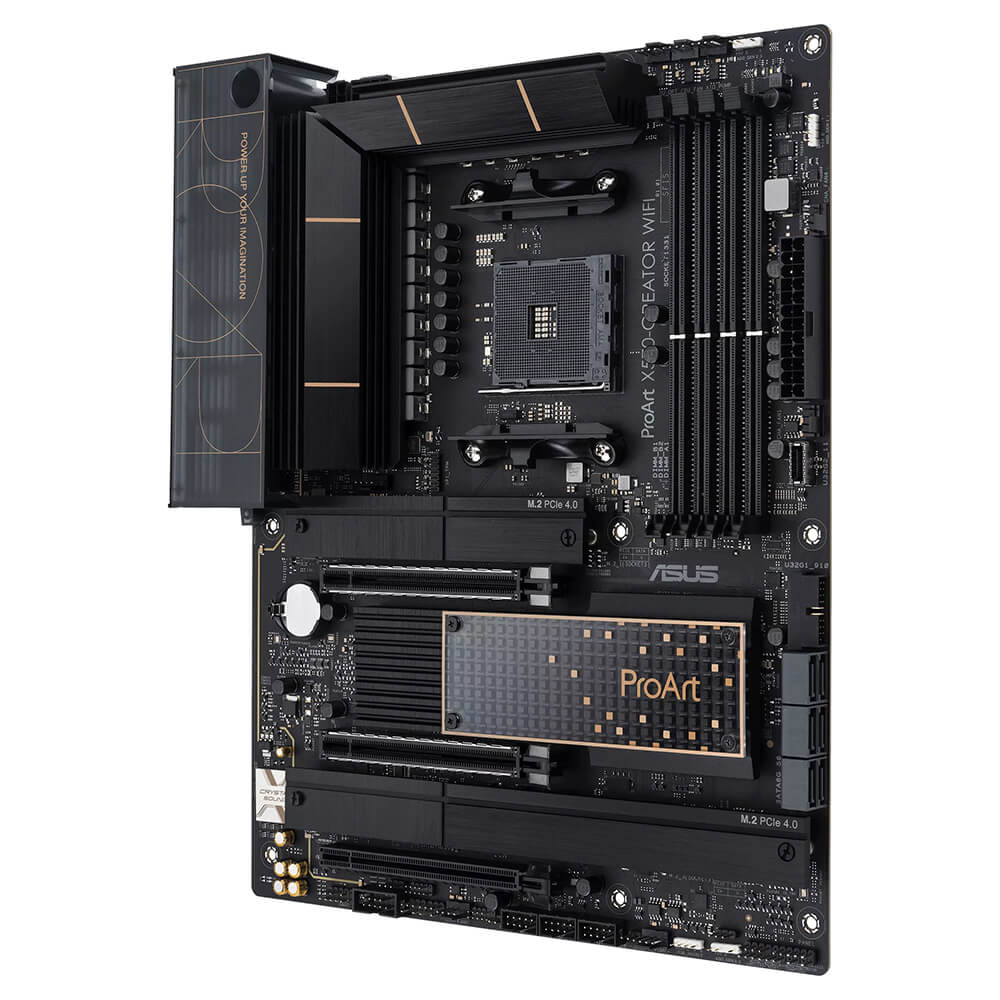

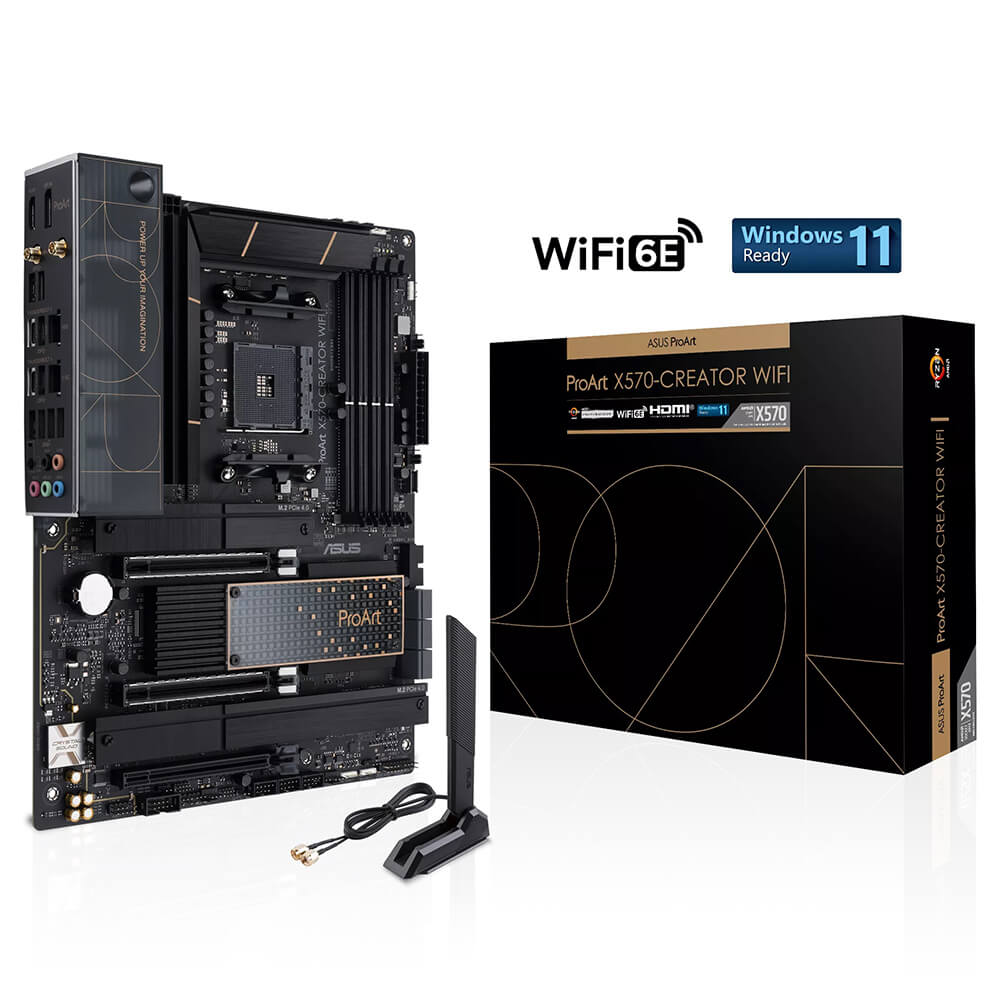

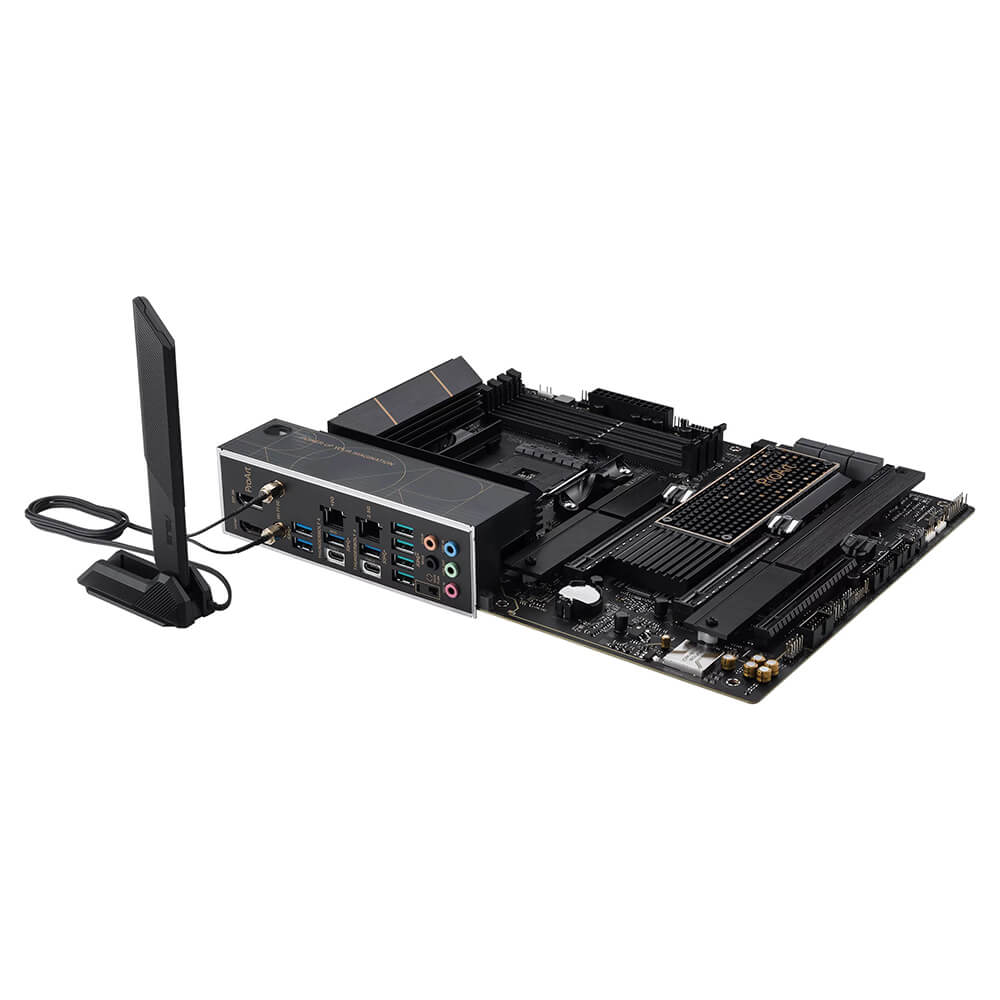

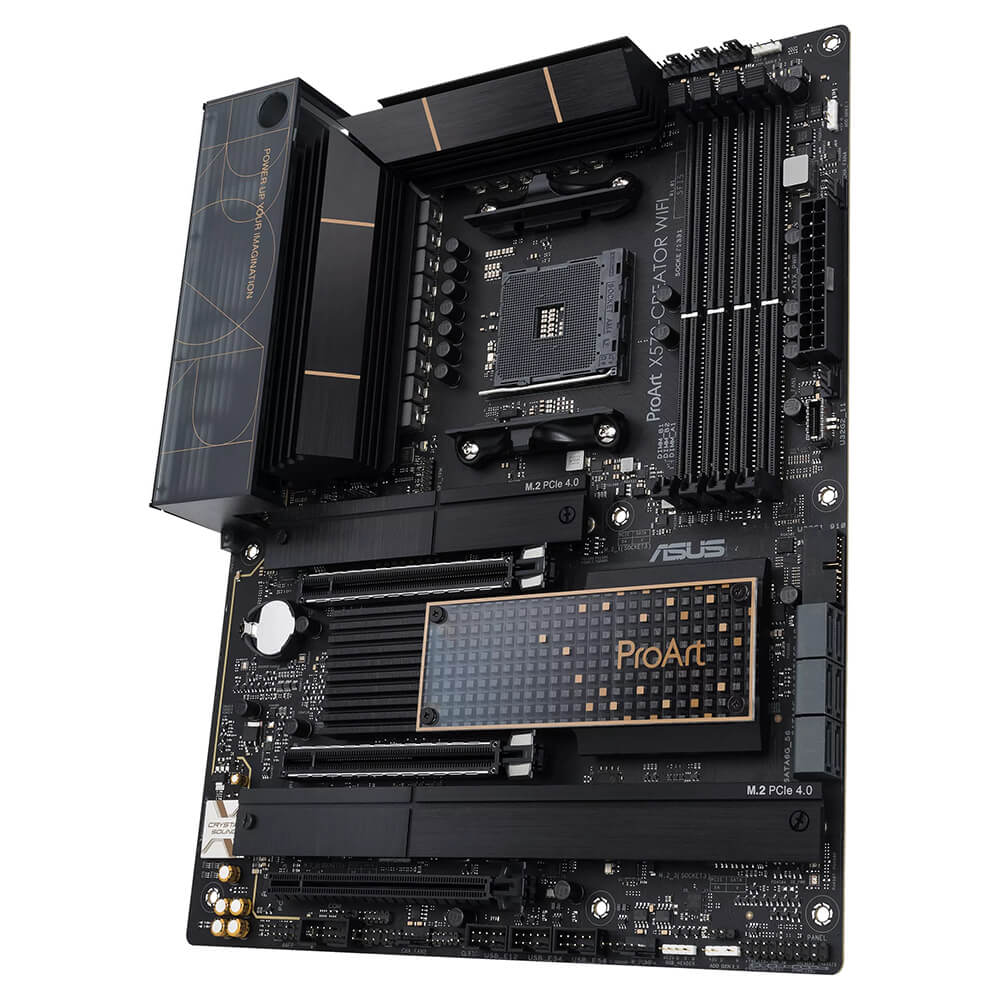

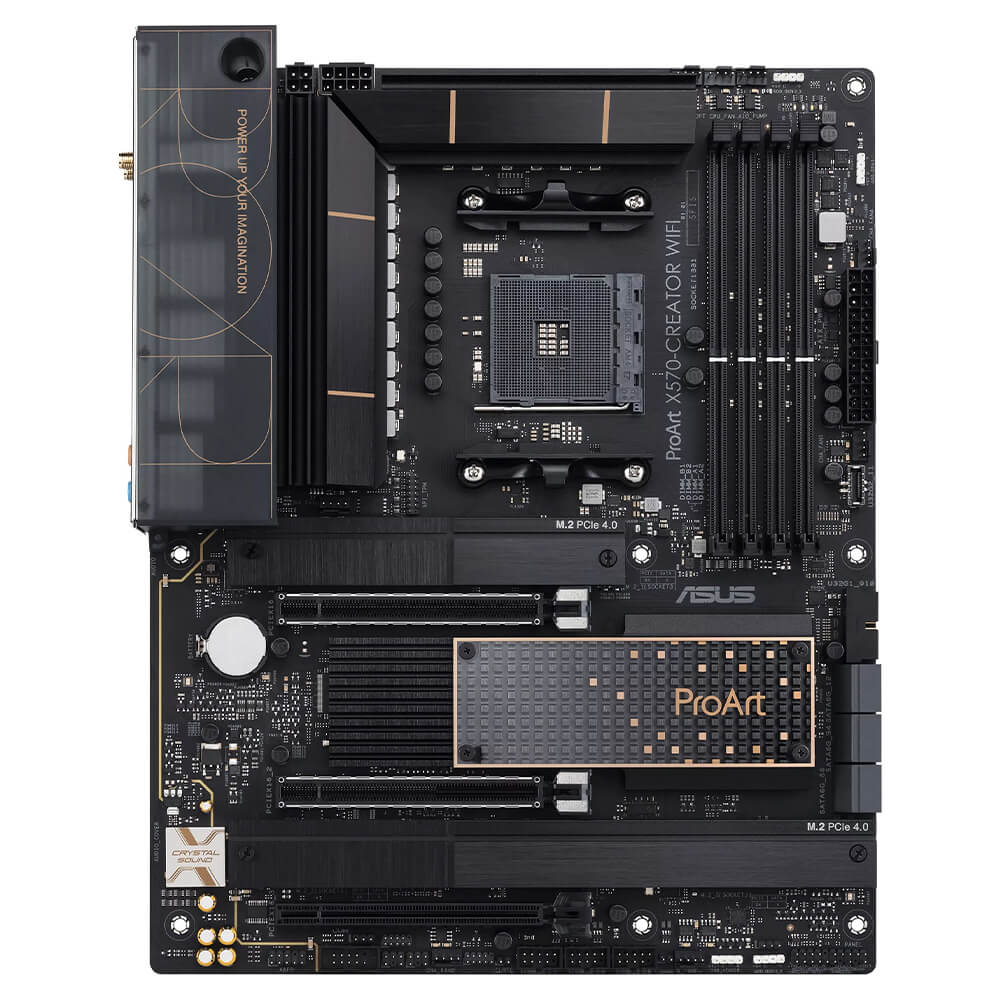

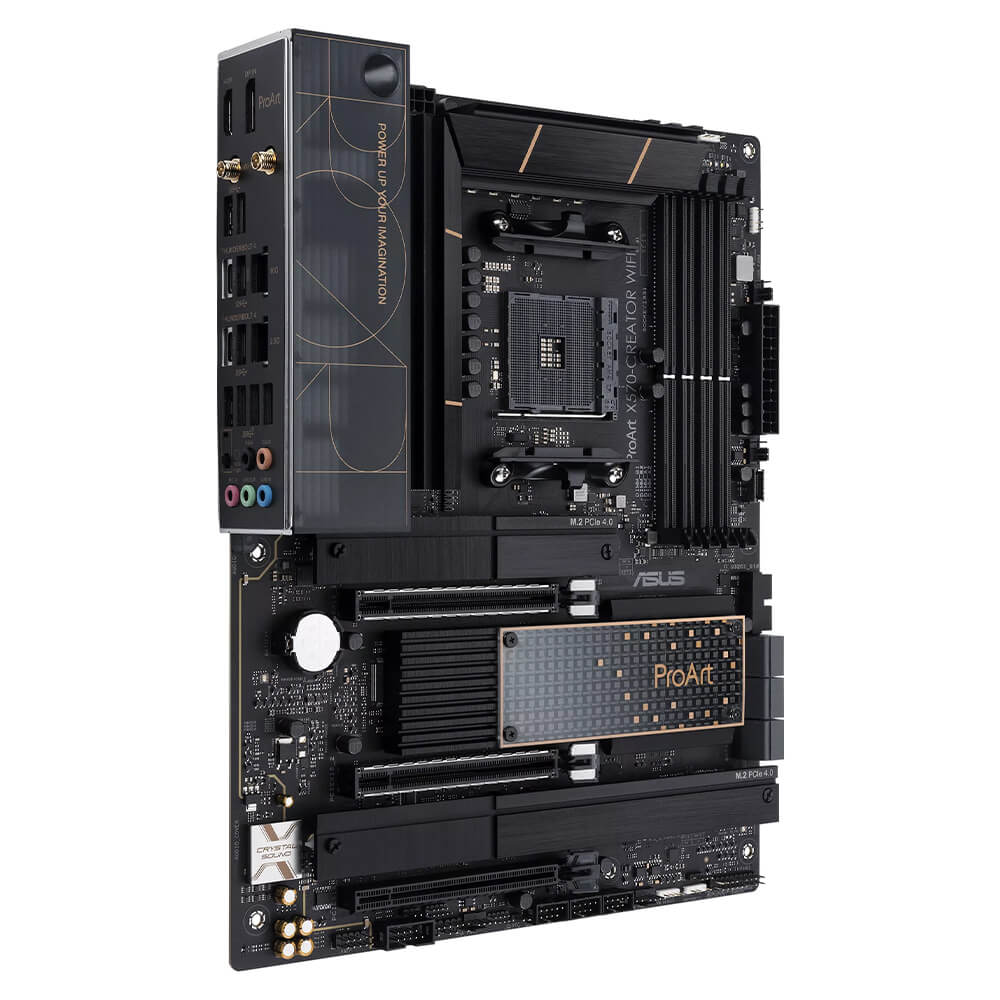

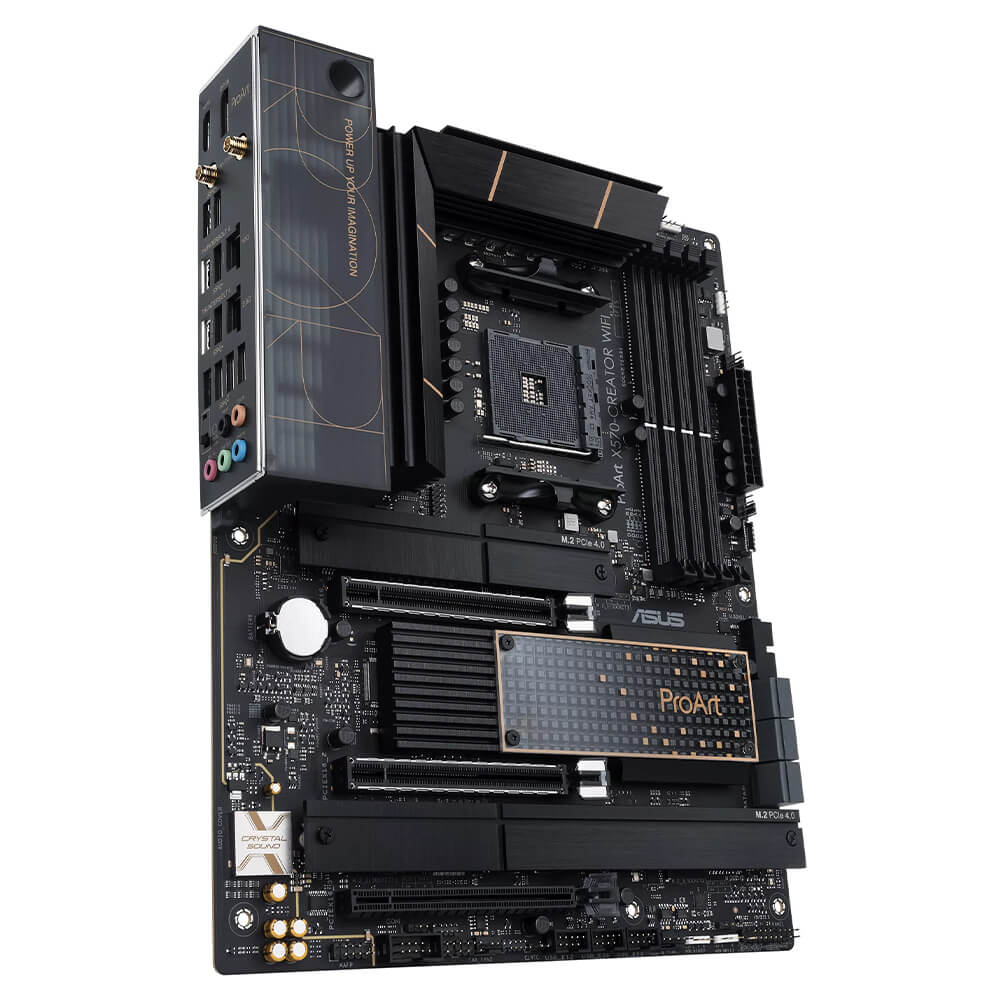

Asus ProArt X570-CREATOR WIFI – Socket AM4
Giá Tân Doanh:
6,500,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASUS
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
AMD X570 Ryzen AM4 ATX content creation motherboard with PCIe® 4.0, passive PCH cooling design, dual Thunderbolt™ 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management
- AM4 socket: Ready for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series CPUs
- Robust performance: 14+2 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors
- Comprehensive thermal design: Massive VRM heatsink, passive chipset heatsink and M.2 aluminum heatsinks
- Extensive connectivity: Dual Thunderbolt™ 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three PCIe® 4.0 M.2 slots and USB 3.2 Gen 2 ports
- Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability
| CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors** Refer to www.asus.com for CPU support list. |
| Chipset | AMD X570 |
| Memory | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen™ 5000 G-Series and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* AMD Ryzen™ 3000 G-Series and 2000-G Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory* OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x HDMI® 2.1(4K@60Hz) 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * * VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual. |
| Expansion Slots | AMD Ryzen™ 5000 Series and 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8**)* AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8**)* AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. |
| Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series and 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)* AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)* AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) Supports RAID 0, 1, 10 6 x SATA 6Gb/s ports * M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. |
| Ethernet | 1 x Marvell® 10Gb Ethernet 1 x Marvell® AQtion AQC113CS 10Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB | Rear USB:Total 10 ports Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

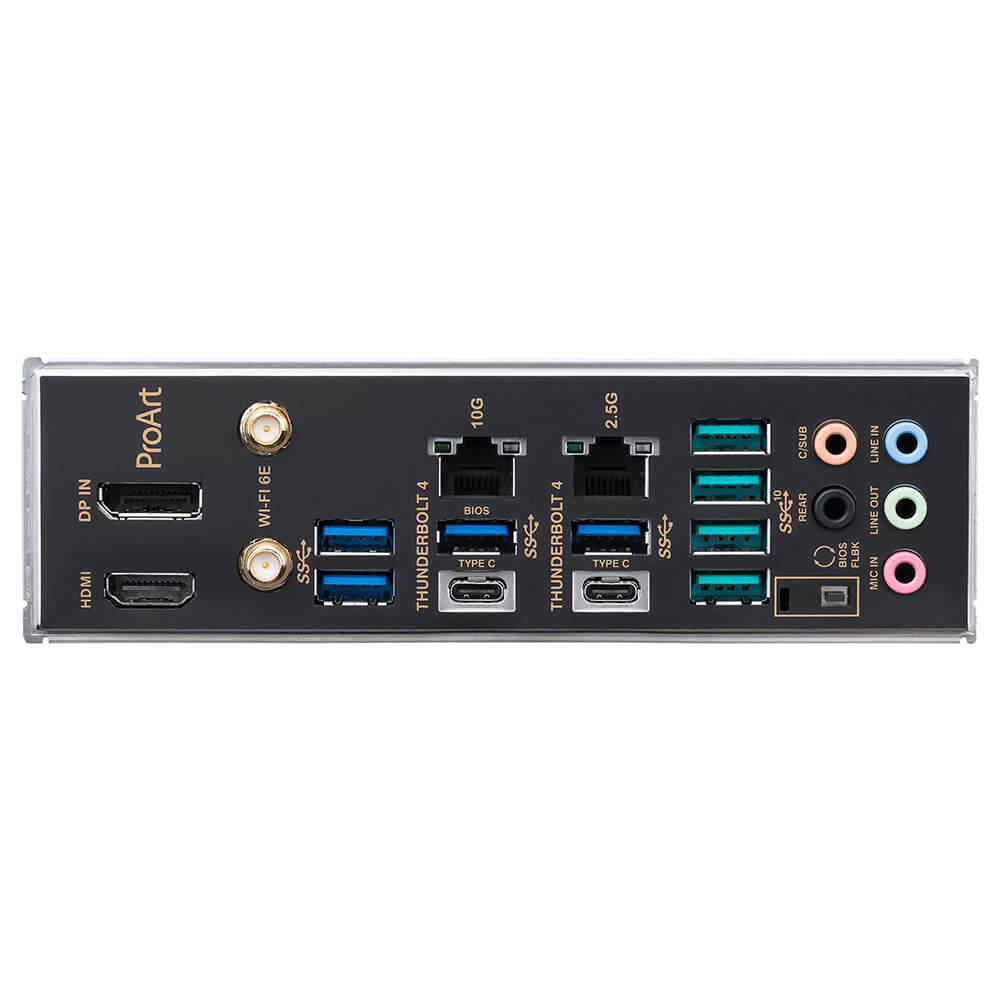

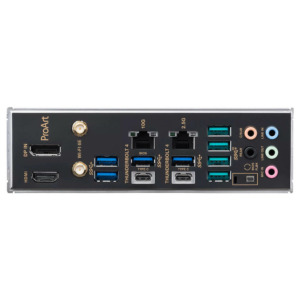

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Intel® I225-V 2.5Gb Ethernet port 1 x Marvell® AQtion AQC113CS 10Gb Ethernet port 1 x ASUS Wi-Fi Module 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x W_PUMP+ header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with Dr. MOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – M.2 Q-Latch – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool II – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s) Bespoke Motherboard Design & Business Focused Features – 24/7 Reliability – Overcurrent Protection |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU Digi+ VRM Fan Xpert 4 Turbo app – EZ update ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

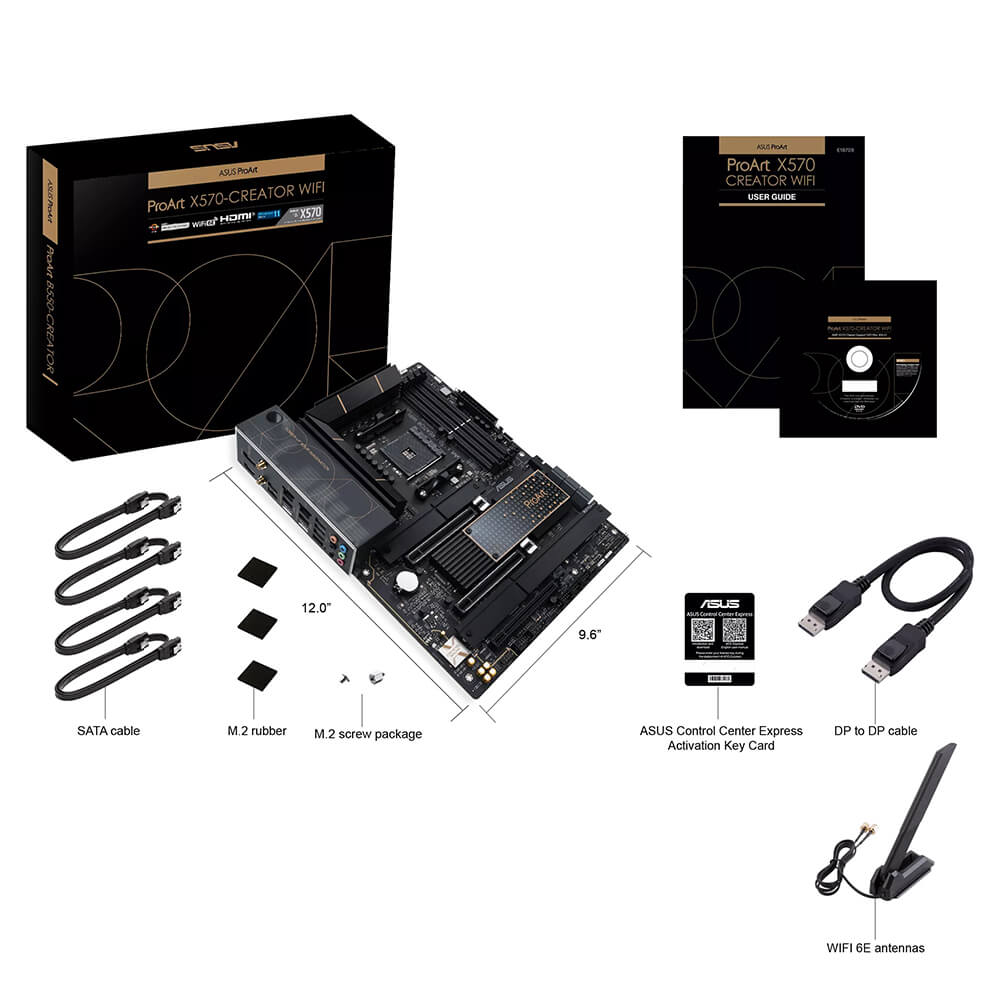

| Accessories | Cables 4 x SATA 6Gb/s cables 1 x DP to DP cable for Thunderbolt™ 4 Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |
| Operating System | Windows® 10 64-bit, Windows® 11 Ready |
| Form Factor | 30.5cm*24.5cm |
