Asus PROART Z690-CREATOR WIFI D5 – Socket 1700
Giá Tân Doanh:
9,790,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: Asus
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm

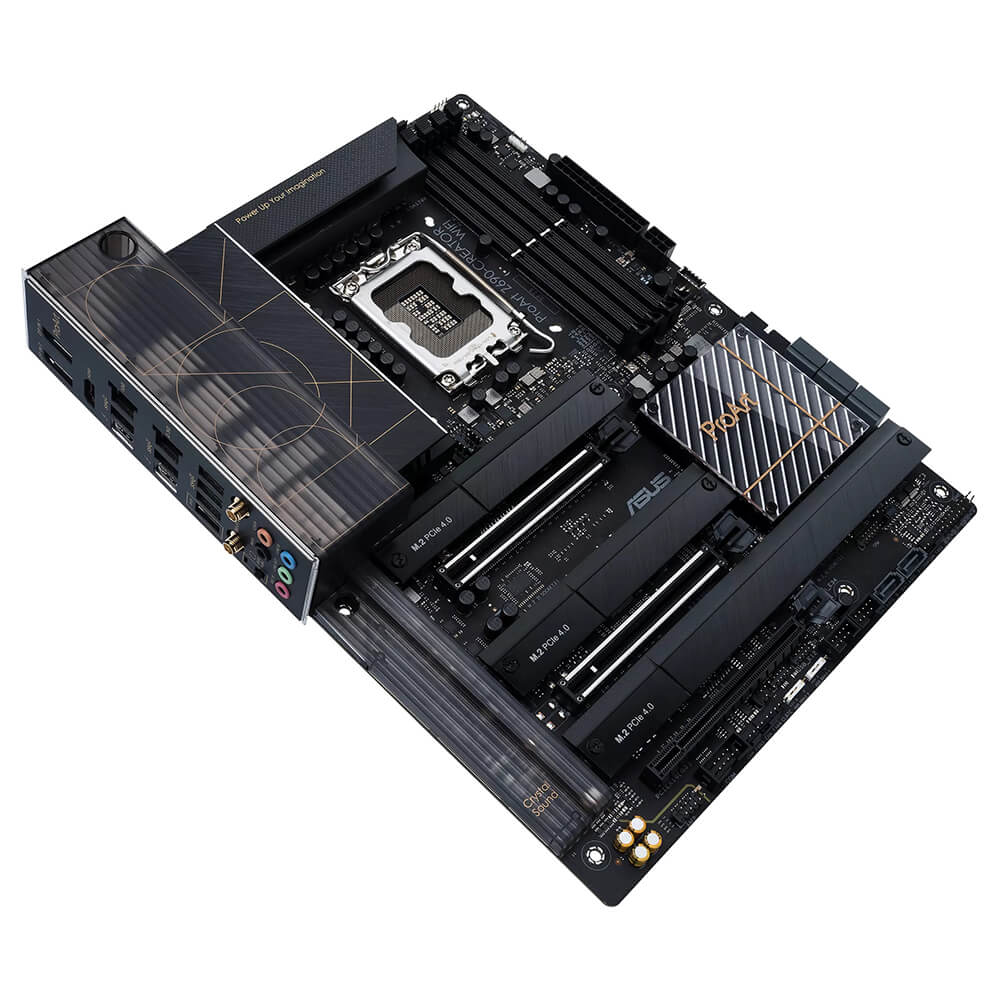

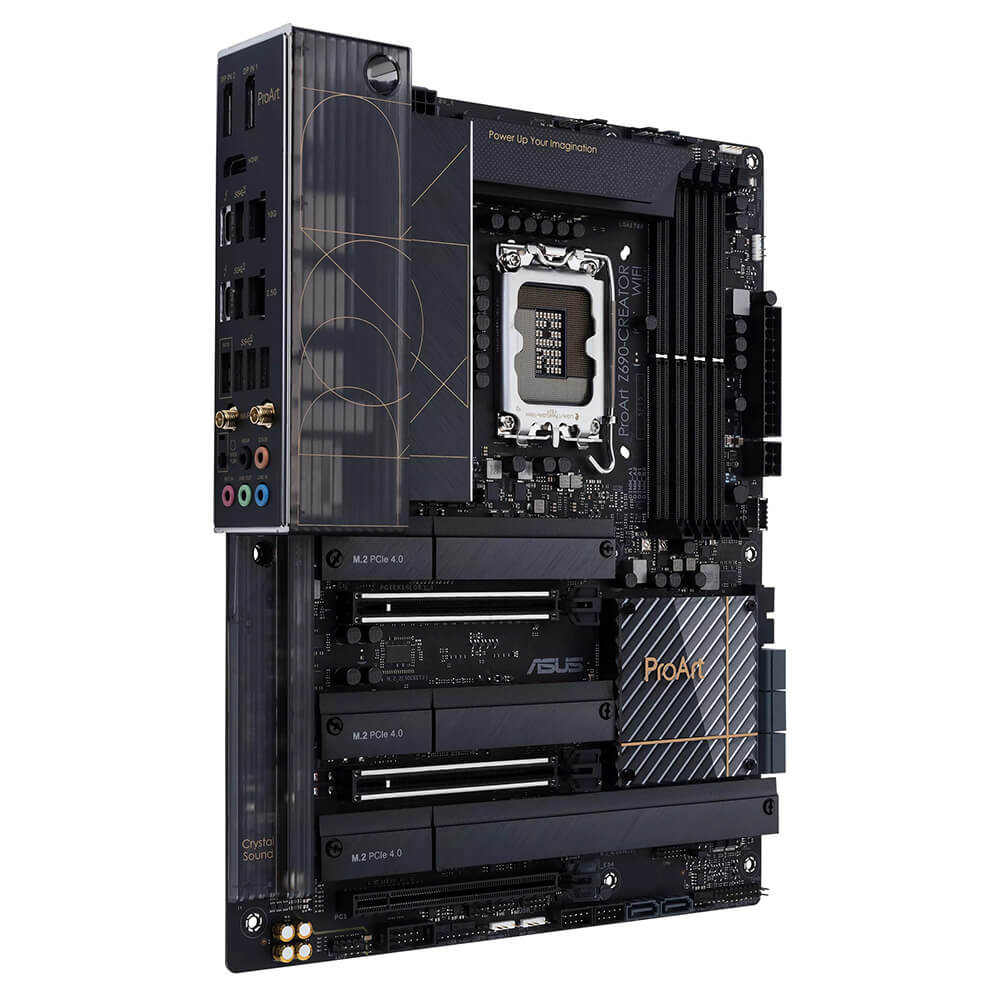

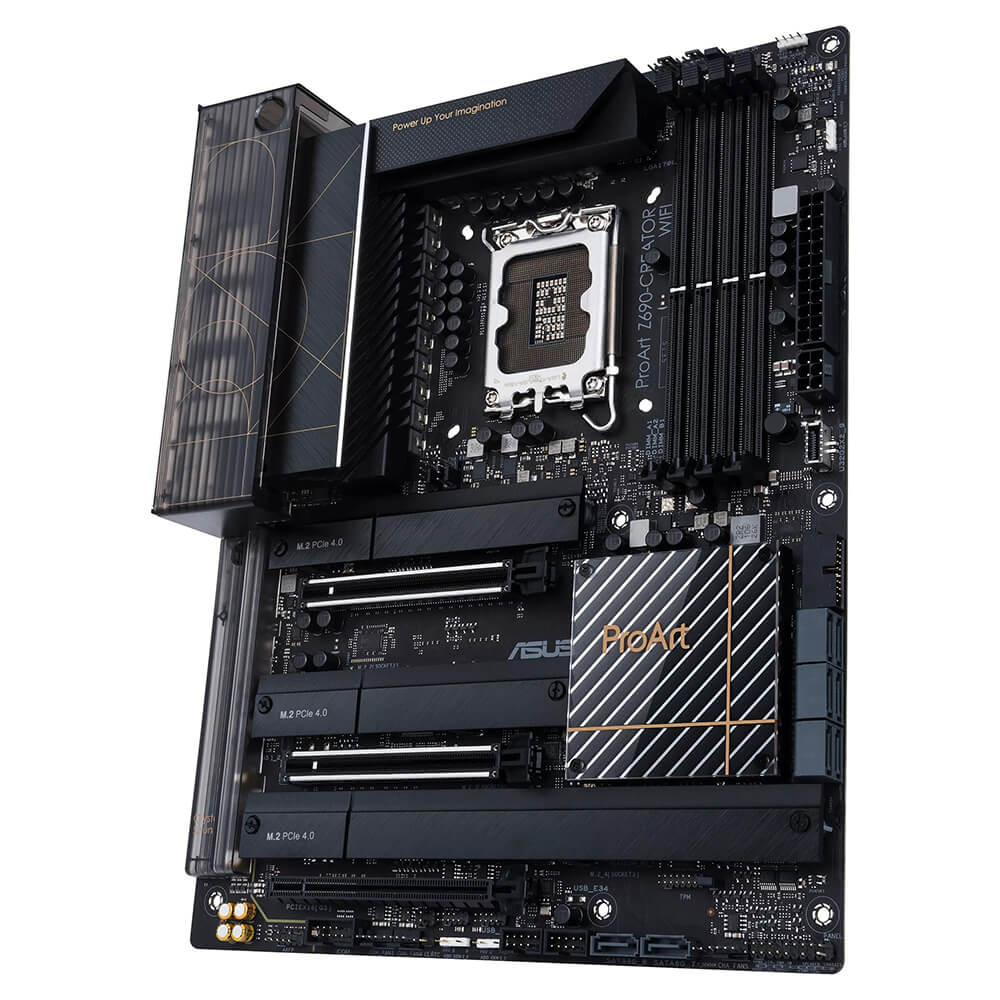

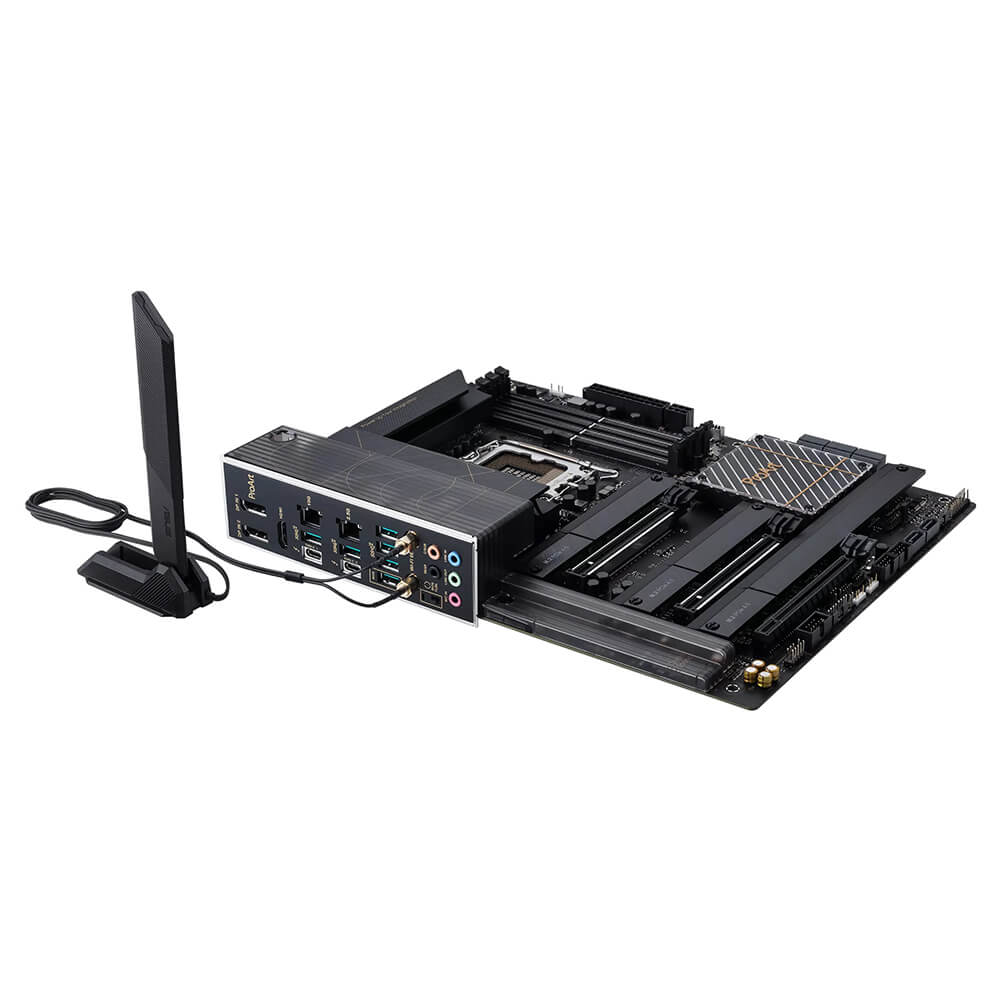

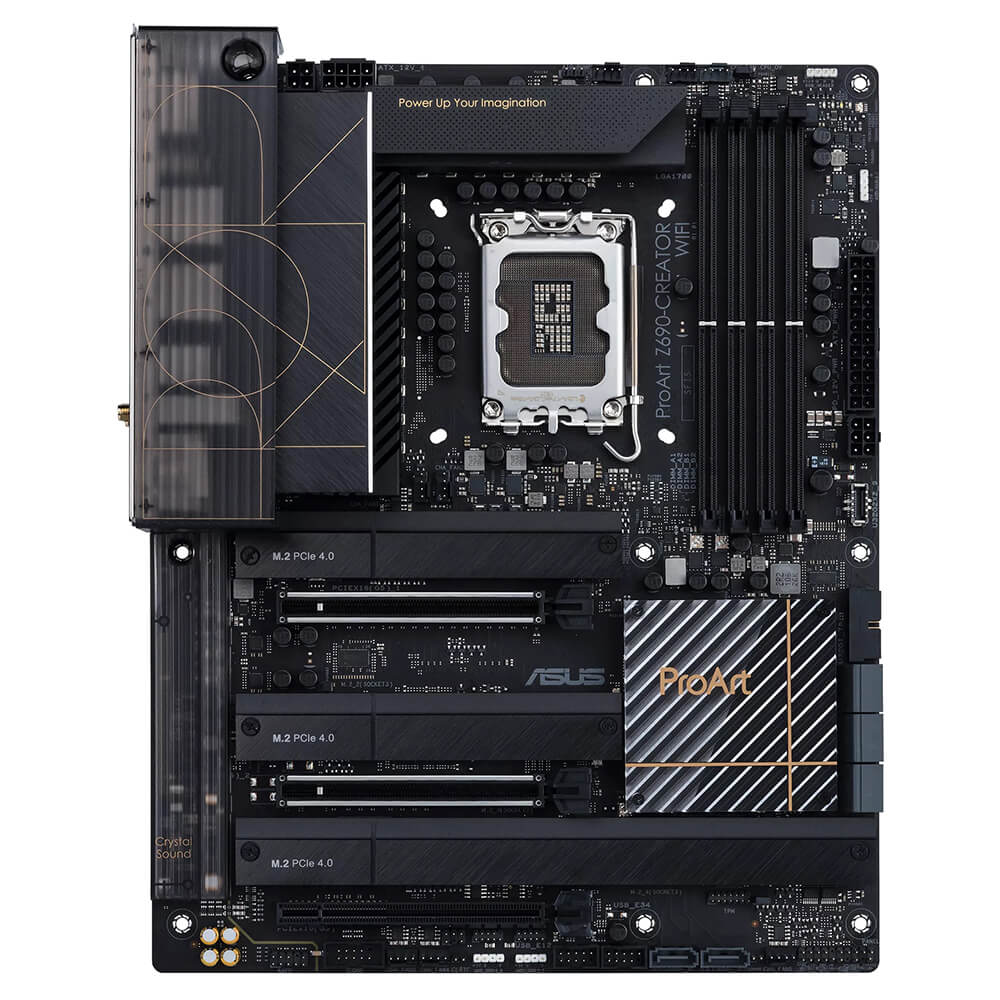

Intel® Z690 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5 support, Thunderbolt™ 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+ support
- Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+
- Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
- Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancelation
- Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
| CPU | Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x DisplayPort** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort*** and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support 8K@60Hz as specified in DisplayPort 1.4. **** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slots | Intel® 12th Gen Processors 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) * Supports PCIe bandwidth bifurcation for RAID on CPU function, please refer to PCIe bifurcation & M.2 setting in PCIe x16 slot (from CPU) table on support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIE slot |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)*** 8 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports |
| Ethernet | ASUS LANGuard 1 x Intel® 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ** Bluetooth v5.2 function will be ready in Windows 11 or later. |
| USB | 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Rear USB:Total 8 ports 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Front USB:Total 7 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

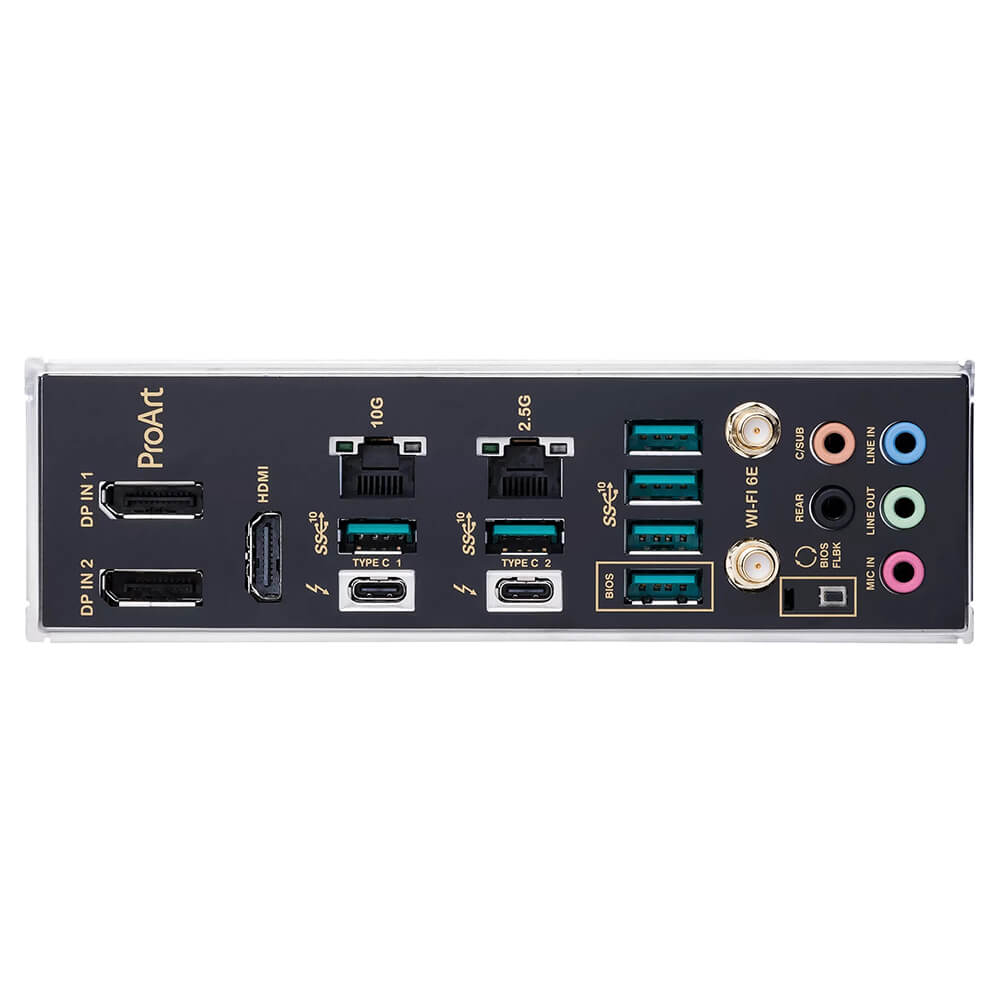

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI® port 1 x ASUS Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box Headers – ProCool II – Pre-mounted I/O shield AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
