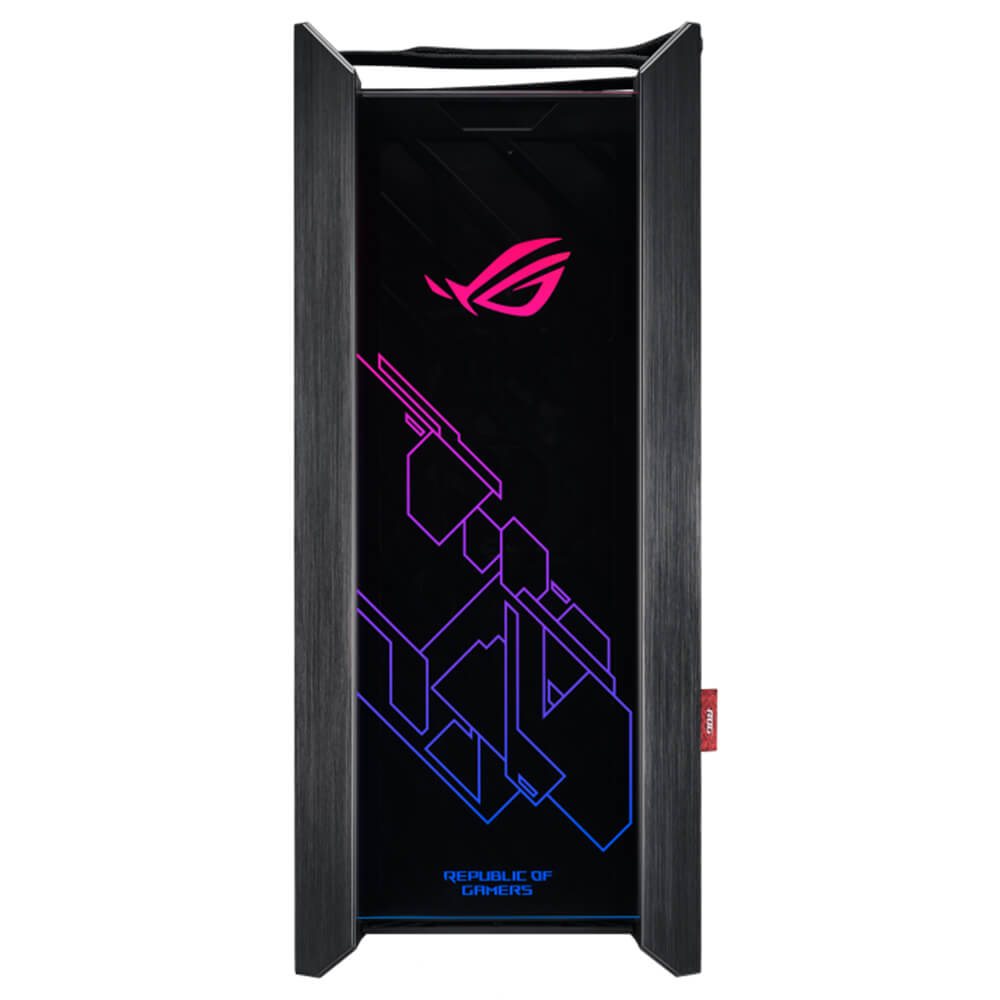

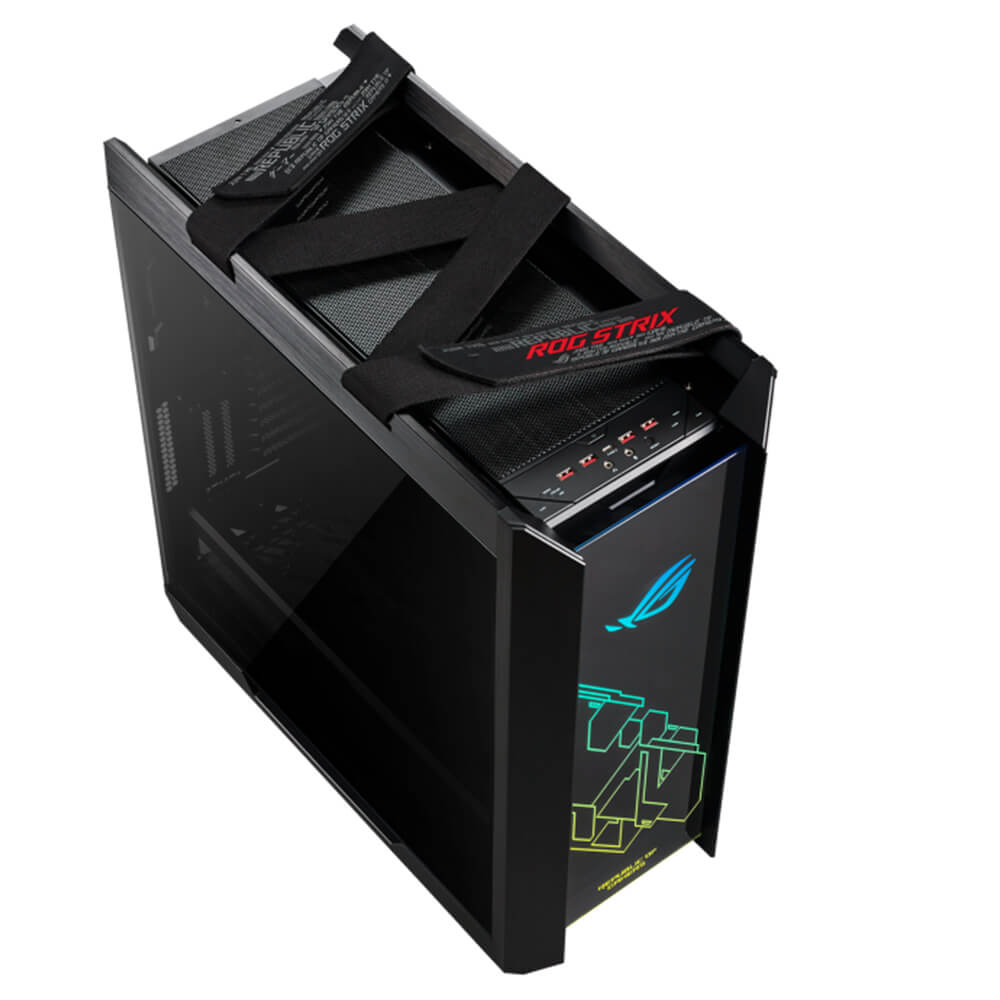

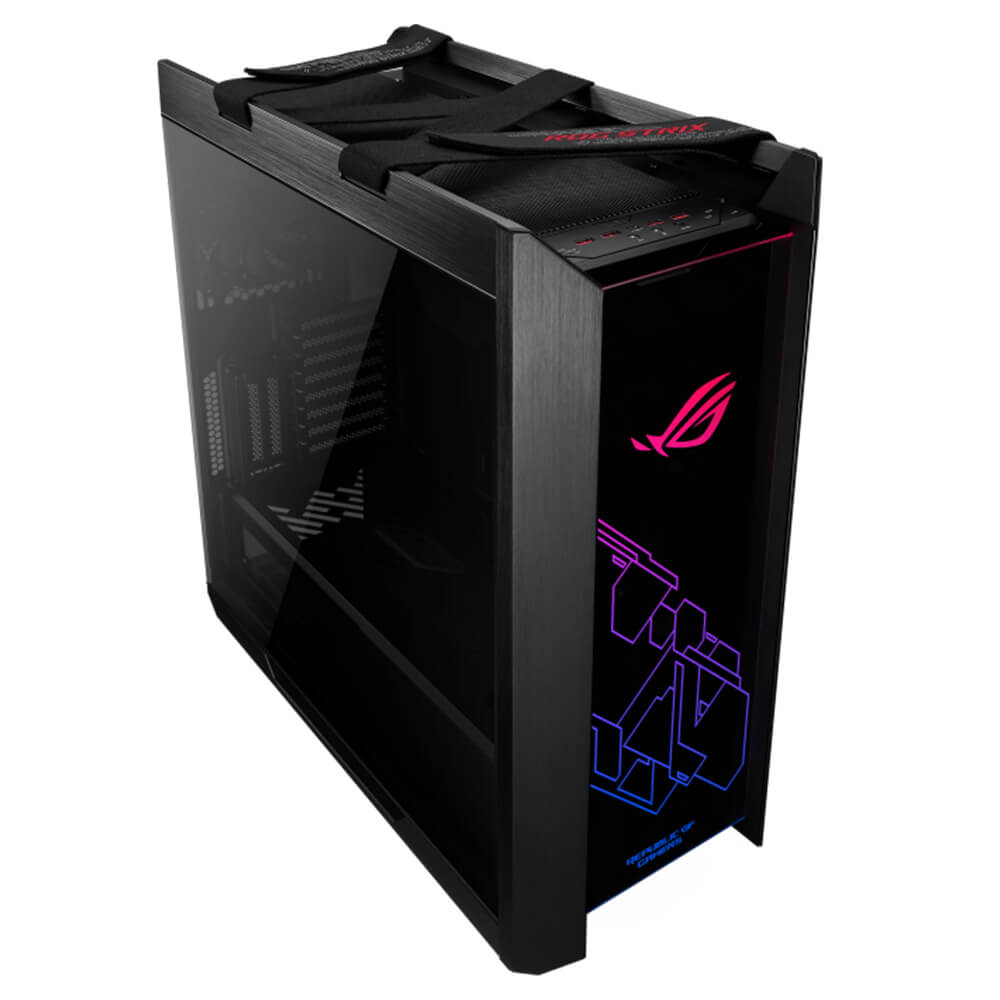

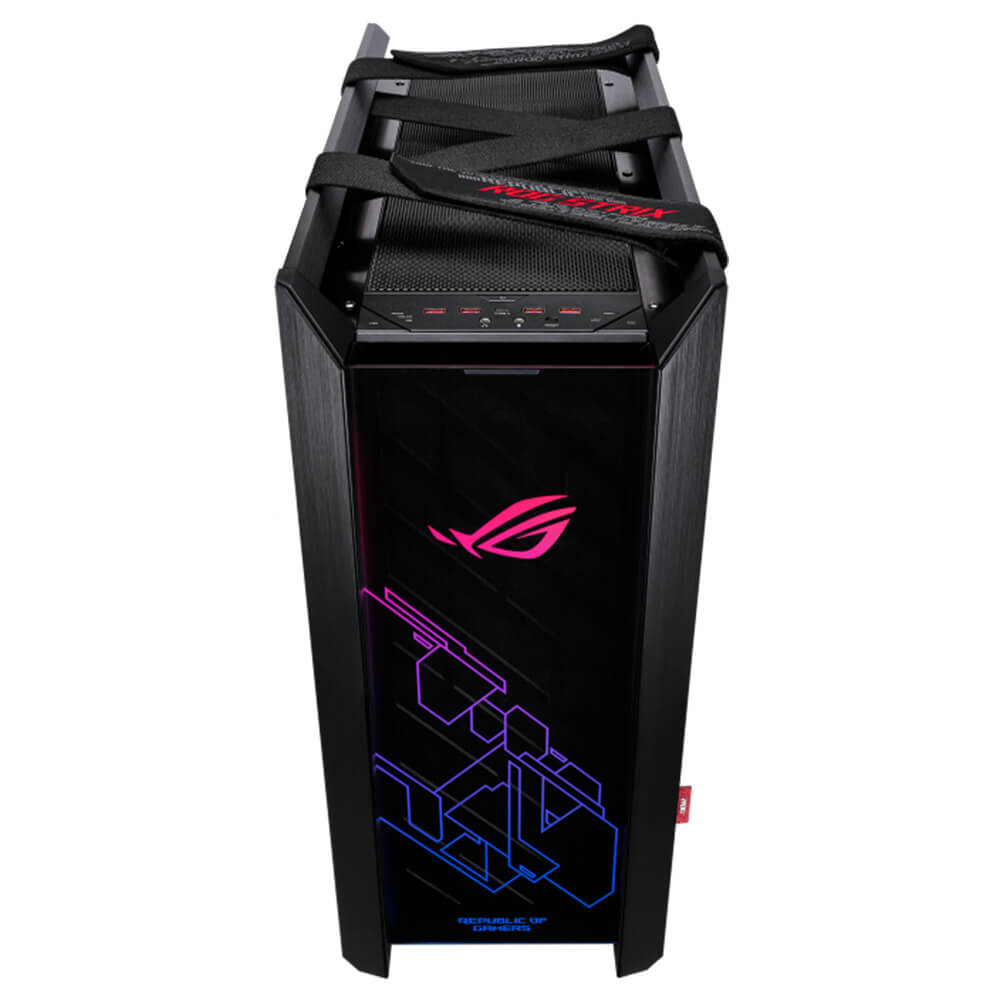

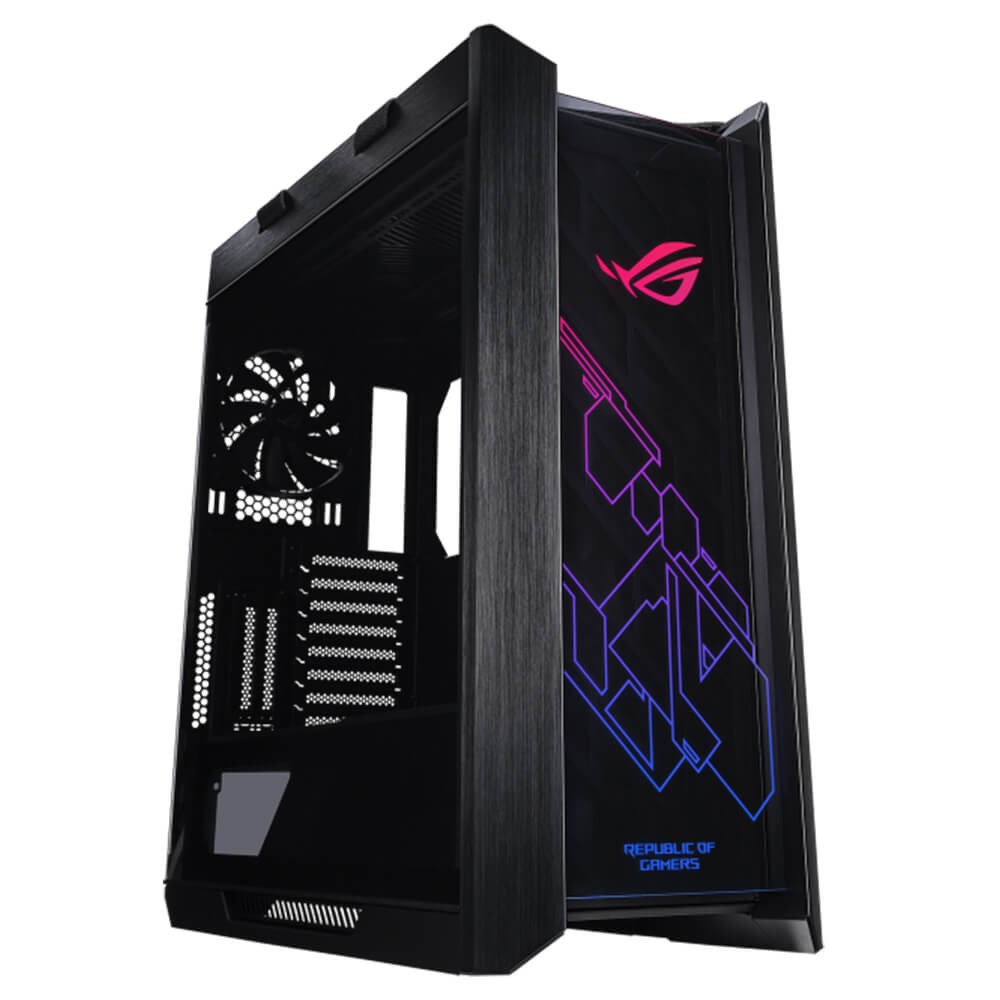

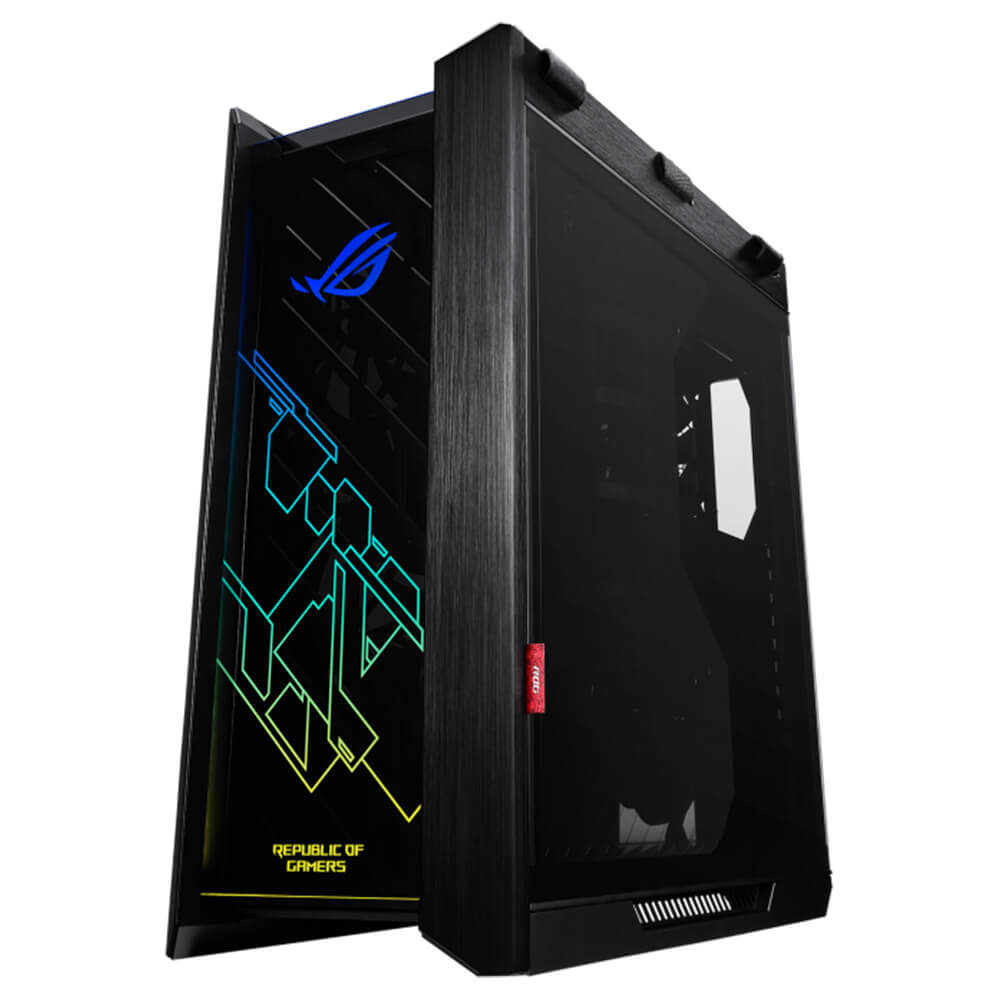

Model | ROG Strix Helios |
Case Size | Mid Tower |
Motherboard Support | EATX (12″x10.9″) ATX Micro-ATX Mini-ITX |
Drive Bays | 4 x 2.5″ Bay 2 x 2.5″/3.5″ Combo Bay |
Expansion Slots | 8 2 (additional vertical) |
Front I/O Port | 1 x Headphone 1 x Microphone 4 x USB 3.1 Gen1 1 x USB 3.1 Gen2 Type C LED Control Button Fan Control Button Reset Button |
Tempered Glass | Front SideLeft SideRight Side |
Radiator Support (Front) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
Radiator Support (Rear) | 120 mm 140 mm |
Cooling Support (Front) | 3 x 120 mm 3 x 140 mm Radiator + Fan Thickness: Max. 90 mm |
Cooling Support (Top) | 3 x 120 mm 2 x 140 mm Radiator + Fan Thickness: Max. 60 mm |
Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
Cooling Support (Rear) | (Rear) 1 x 120 mm 1 x 140 mm |
Pre-installed Fans (Front) | 3 x 140 mm |
Pre-installed Fans (Rear) | 1 x 140 mm |
Maximum CPU Cooler Height | 190 mm |
Maximum GPU Length | 450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position) |
Maximum PSU Length | 220 mm |
Removable Dust Filters | Top Bottom Right |
Maximum Cable Management Space | 33 mm |
Dimensions | 250 x 565 x 591 mm |
Weight | 18Kg |
AURA Sync | ARGB |
