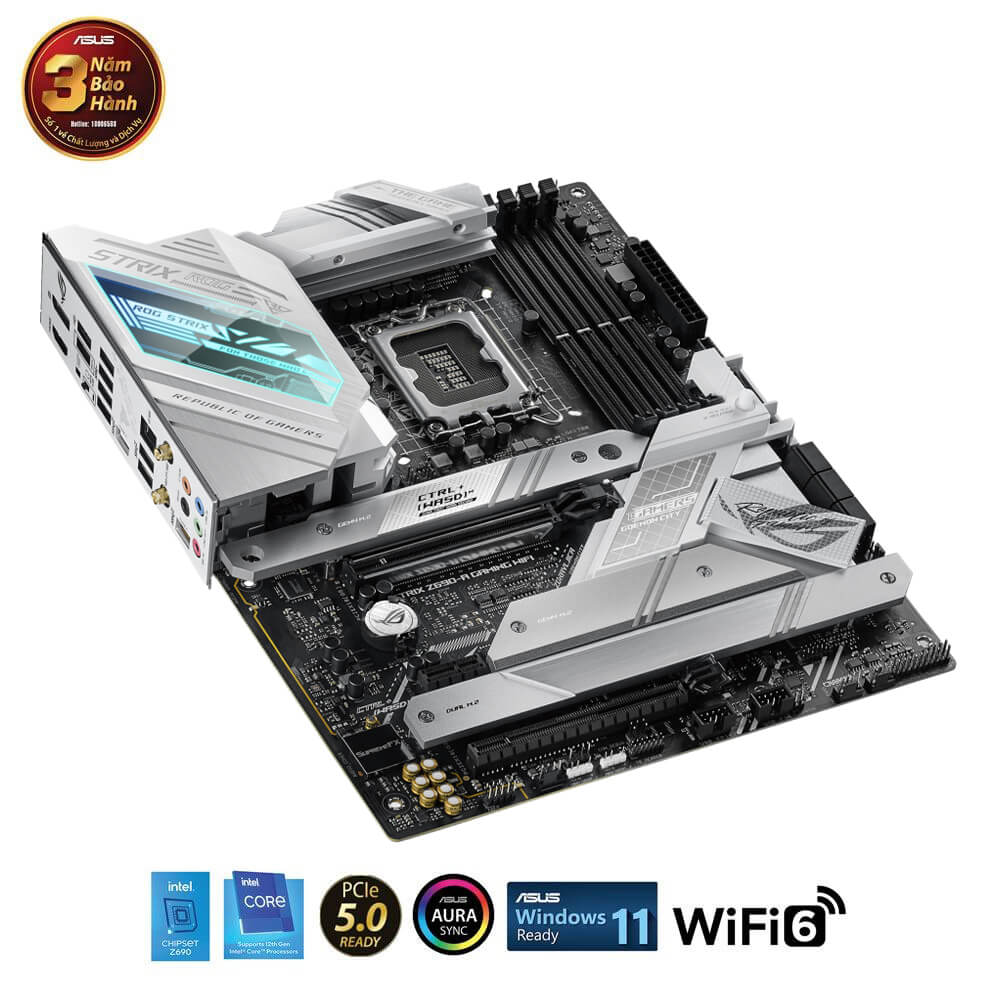

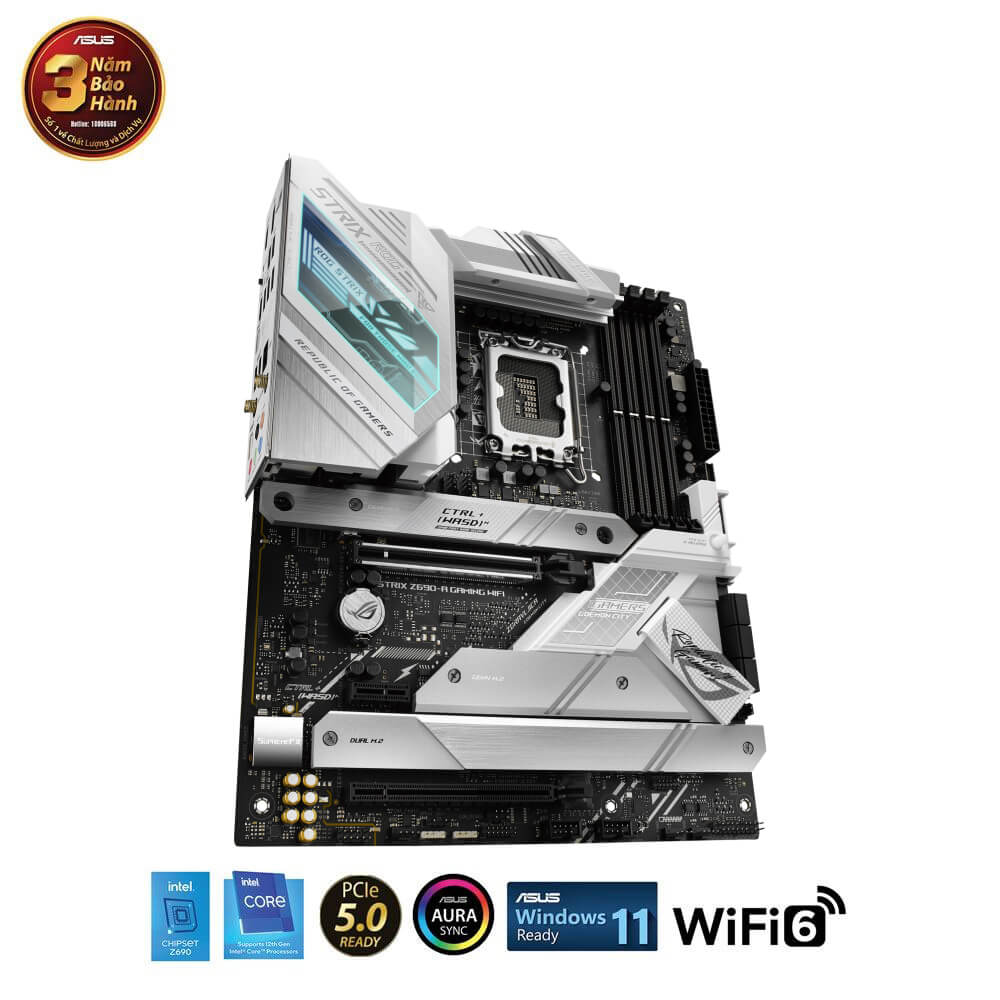

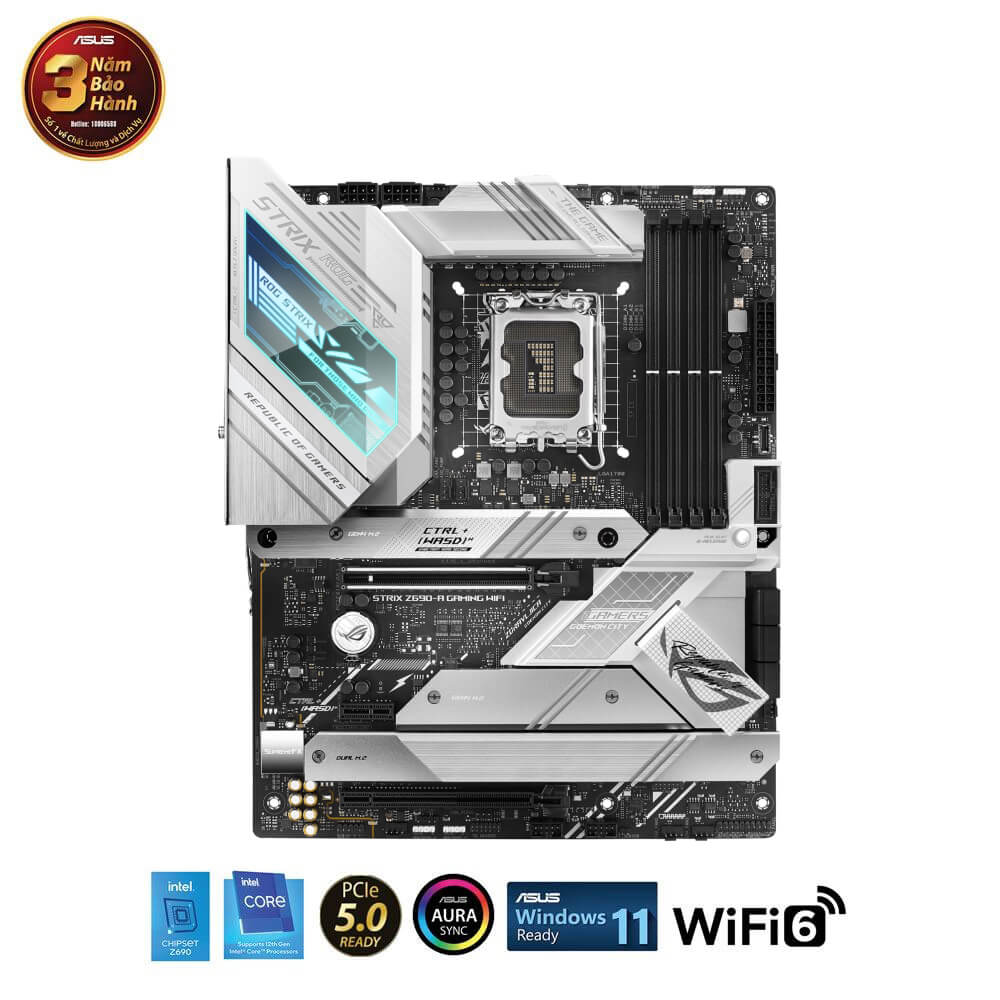

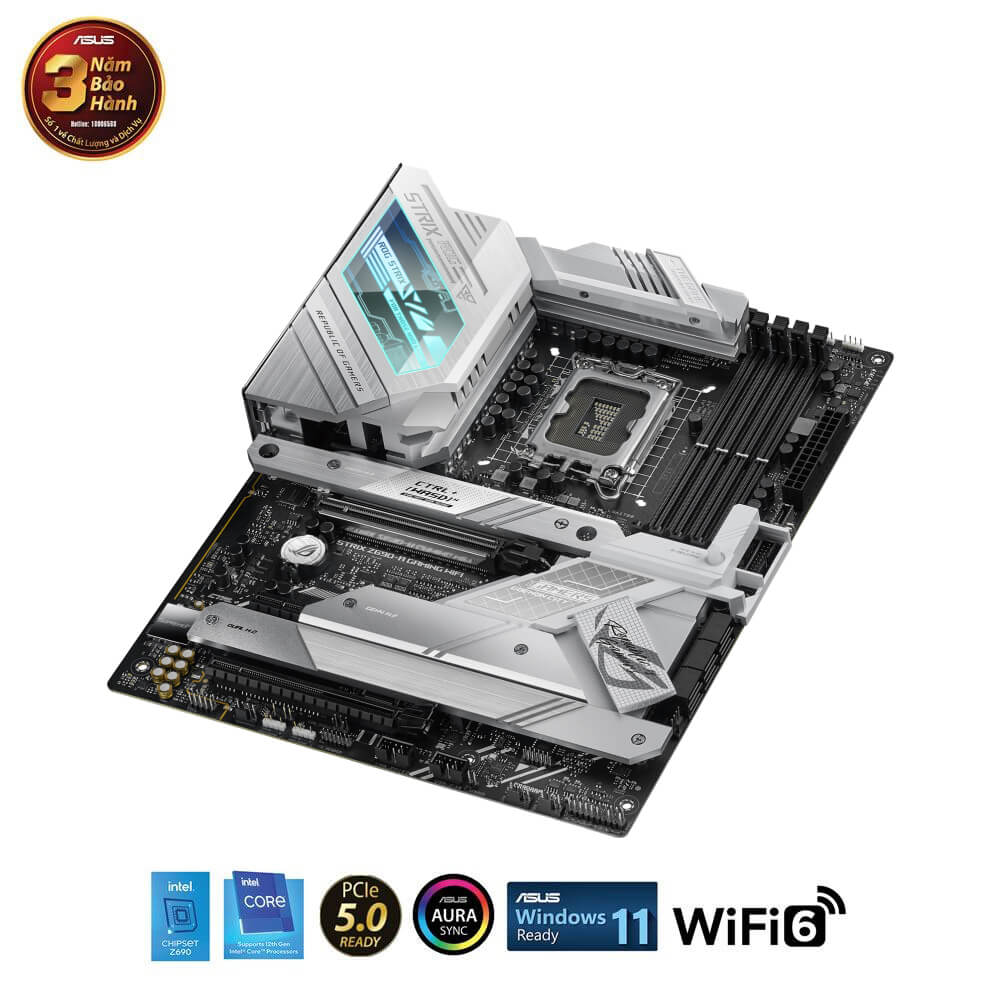

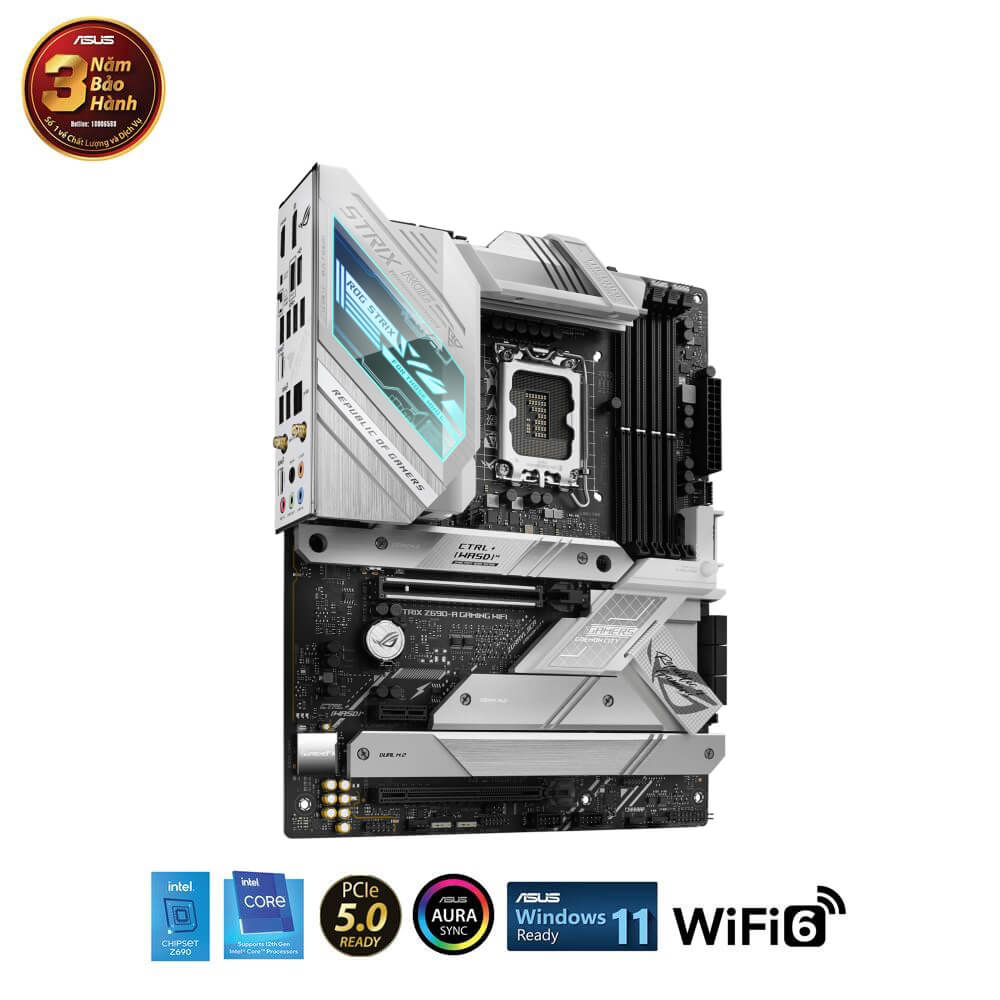

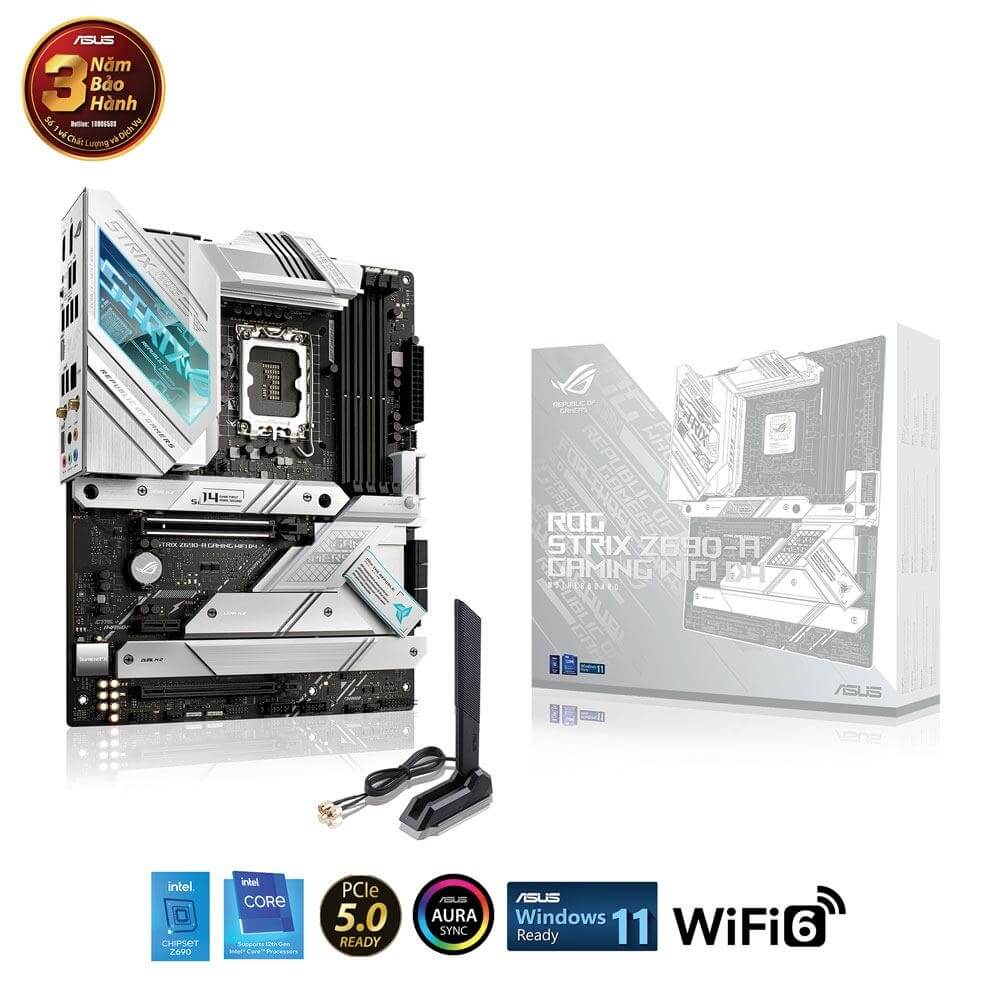

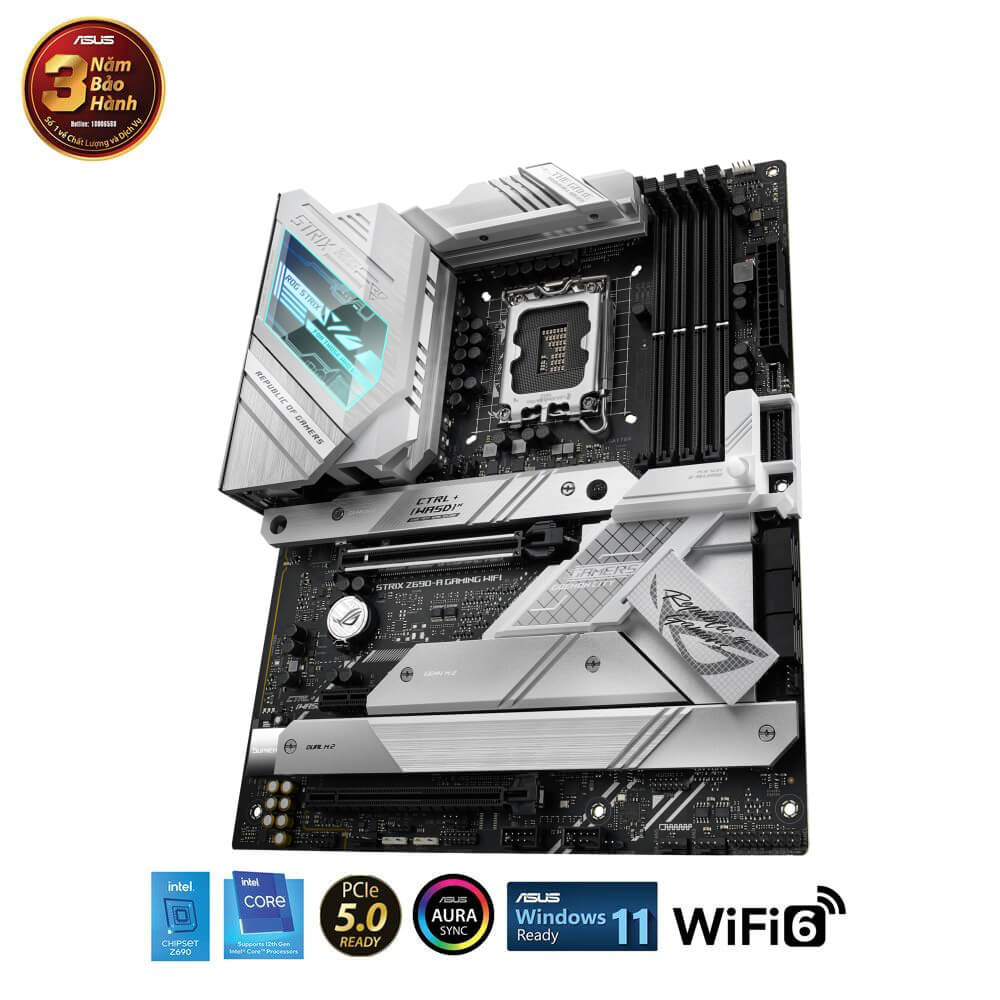

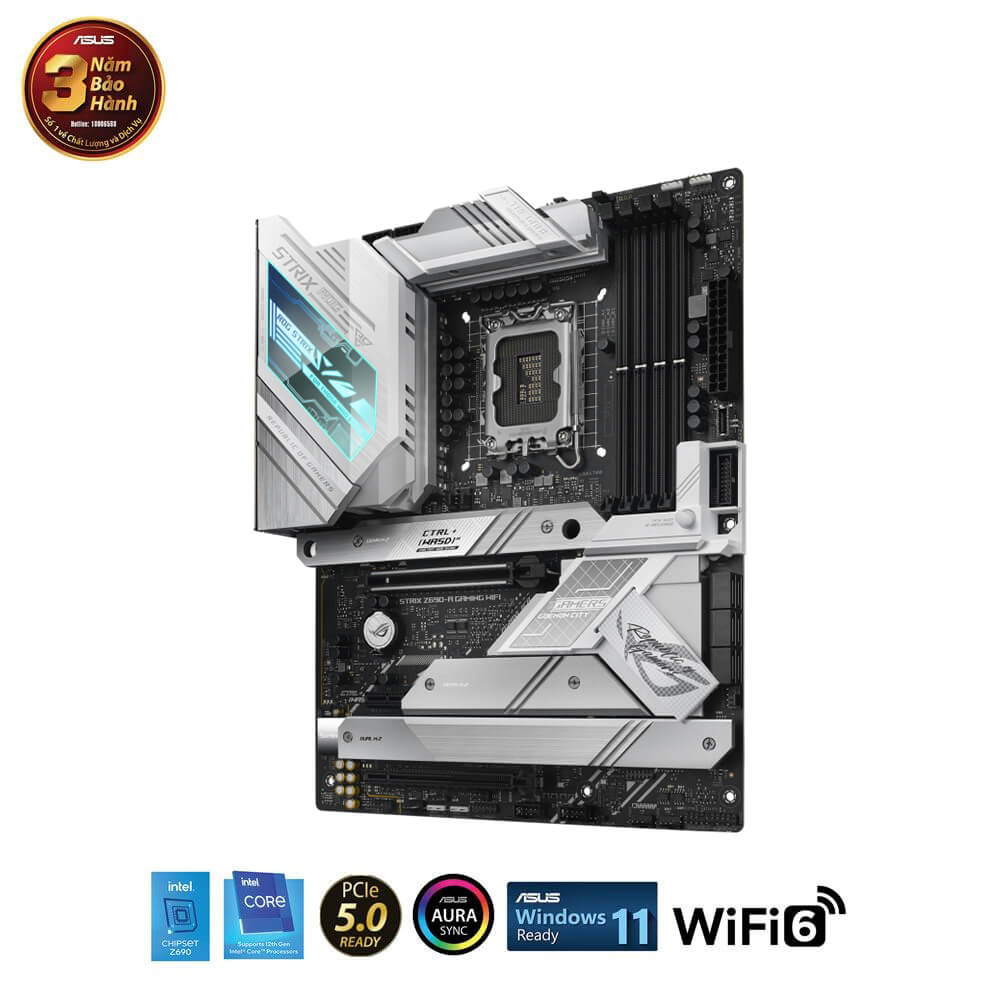

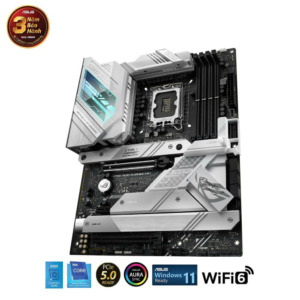

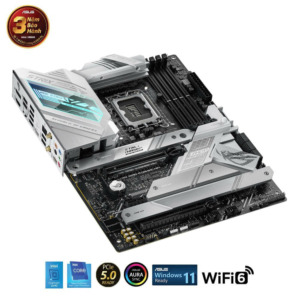

Asus ROG STRIX Z690-A GAMING WIFI – Socket 1700
Giá Tân Doanh:
7,990,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: Asus
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 16+1 DrMos, DDR5, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E, Intel 2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe® SSD support, M.2 backplate, USB 3.2 Gen 2×2 Type-C®, SATA and AURA Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the first M.2 slot
- High-performance Networking: On-board Intel® WiFi 6E and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS®Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x DisplayPort** 1 x HDMI®*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in User Guide Chapter 1 // support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. *** RAID configuration is not supported on the SATA6G_E1-2 ports. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | Intel® Wi-Fi 6E Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. ** Bluetooth v5.2 function will be ready in Windows 11 or later. |
| USB |
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers ASUS HYDRANODE – 1 x 12-1 pin Front Panel Audio header (AAFP) – 1 x Chassis fan support* (CHA_FAN1P) * Visit ASUS Website for the latest compatibility list. |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

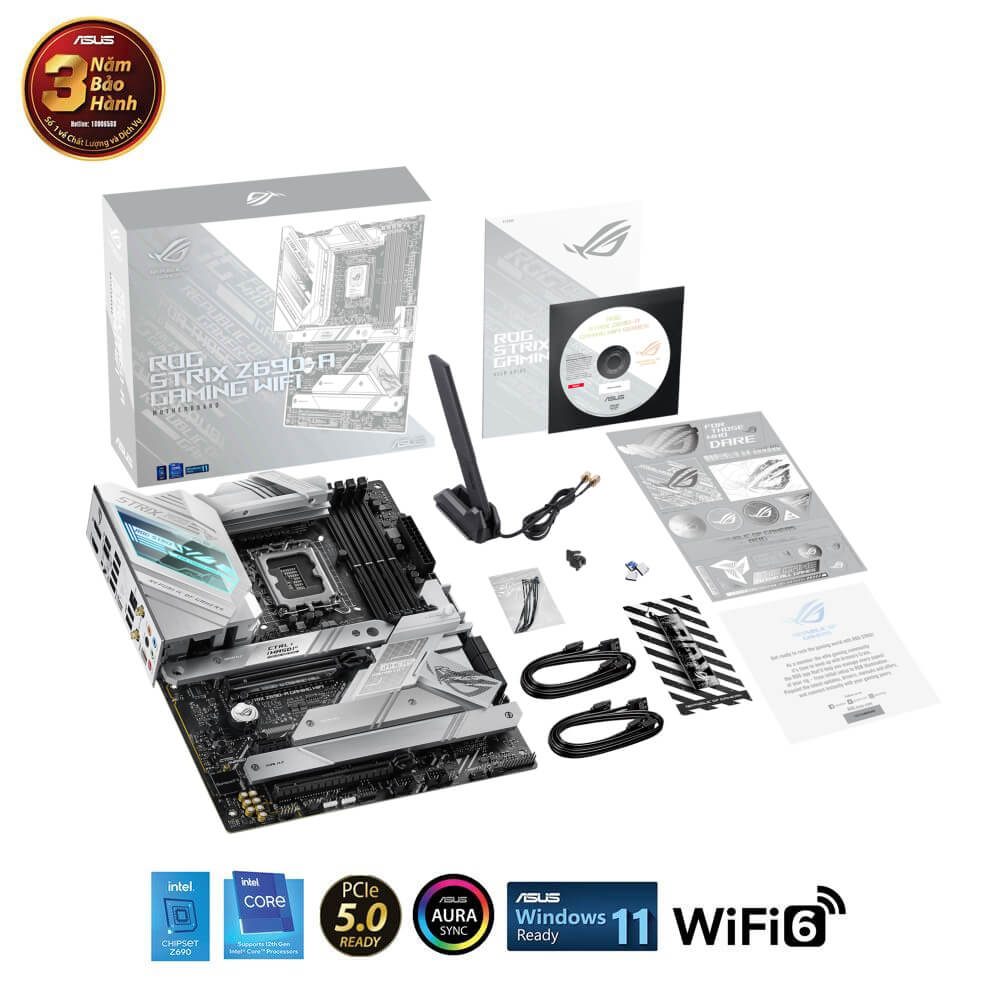

| Accessories | Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide |
| Form Factor | 30.5cm x 24.4cm |
