Tên mẫu | RT-AX59U |
Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
Product Segment | AX4200 ultimate AX performance: 574+3603 Mbps |
WiFi Data Rate
|
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (256QAM) : up to 600 Mbps WiFi 5 (802.11ac) : up to 2600 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
Antenna | Internal antenna x 5 |
Transmit / Receive | MIMO technology 2.4GHz 2×2 5GHz 3×3 |
Processor | 2.0GHz quad-core 64bit processor |
Memory | 128 MB Flash 256 MB RAM |
Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
Operating Frequency | 2.4G Hz / 5 GHz |
Operating Mode | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |

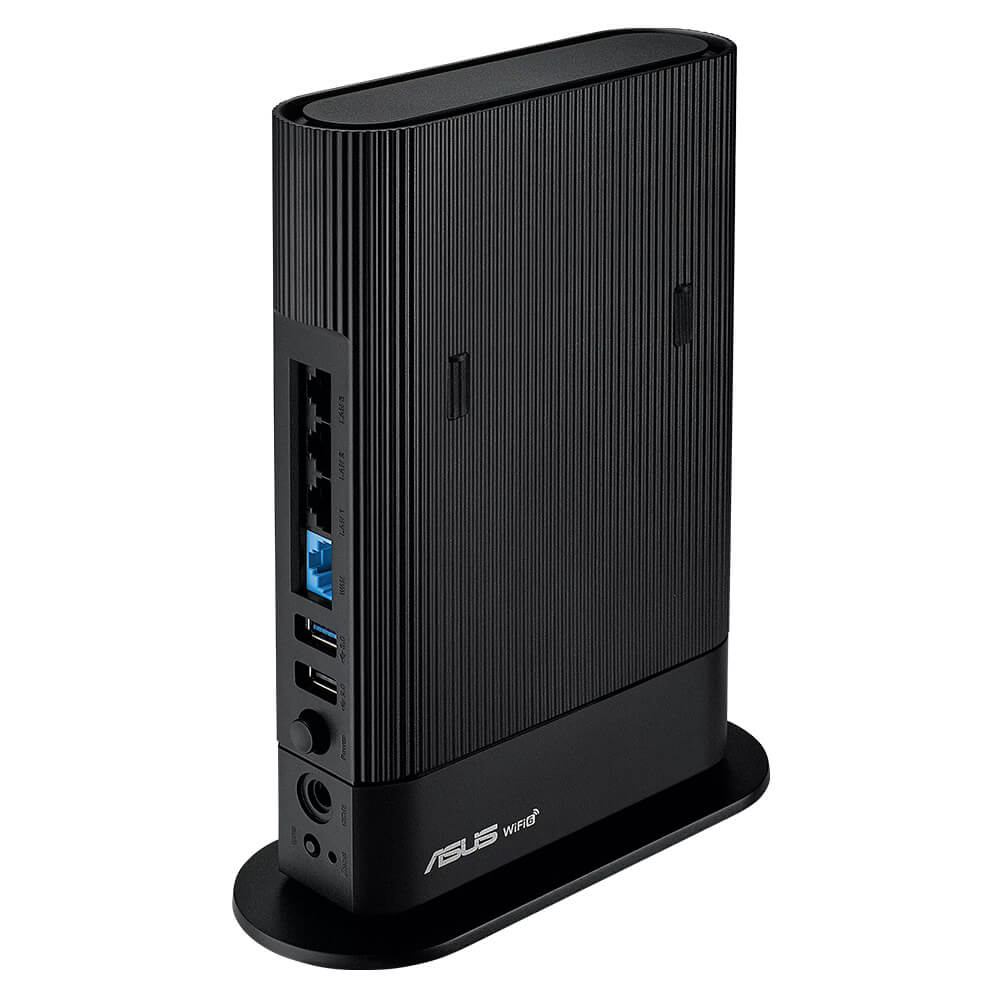

I/O Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1, USB 2.0 x 1 |
Buttons | WPS Button, Reset Button, Power Switch |
LED Indicator | Power & Status Combo LED x 1 |
Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2.5 A current |
Package Content | RT-AX59U Router RJ-45 cable Power adapter Warranty card Quick start guide |
Product Weight (g) | 476 g |
Product Dimensions | 131 x 37.5 x 200 mm (WxDxH) |
Remark | Content and color may vary in different regions and packages. |
AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
Parental Control
|
“Allow you to block access to unwanted websites and apps.” Safe Browsing Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Cilter Rule : 64 |
Guest Network | “The Guest Network provides Internet connection for guests but restricts access to your local network.” • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3 Guest Network Connection Time Limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS |
Security | AiProtection WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support WPS Let’s Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
AiProtection | • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay |
LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Samba Server FTP Server Shared Folder Privileges |
Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
- Thiết kế nhỏ gọn, tối giản và hiện đại, phù hợp với các không gian sống hiện đại. Các ăng-ten có thể tháo rời giúp bạn dễ dàng điều chỉnh để tối ưu hóa vùng phủ sóng.
- Hiệu suất vượt trội với Wi-Fi 6 mang lại tốc độ nhanh hơn và hiệu quả hơn so với Wi-Fi 5 (802.11ac), giúp sử dụng nhiều thiết bị cùng lúc mà không bị giảm tốc độ.
- Được trang bị băng tần kép (dual-band), với tốc độ lên đến 4.2Gbps, trong đó 2.4GHz cung cấp tốc độ lên tới 574Mbps và 5GHz đạt 3,6Gbps, hỗ trợ các tác vụ đòi hỏi băng thông lớn như xem video 4K, chơi game online, và tải dữ liệu tốc độ cao.
- Hỗ trơ các công nghệ xin xò như: MU-MIMO, OFDMA, Mesh (AiMesh) và các công nghệ bảo mật mạnh mẽ như: AiProtection Pro, WPA3 giúp tăng trải nghiệm người dùng lên một tầm cao mới.
