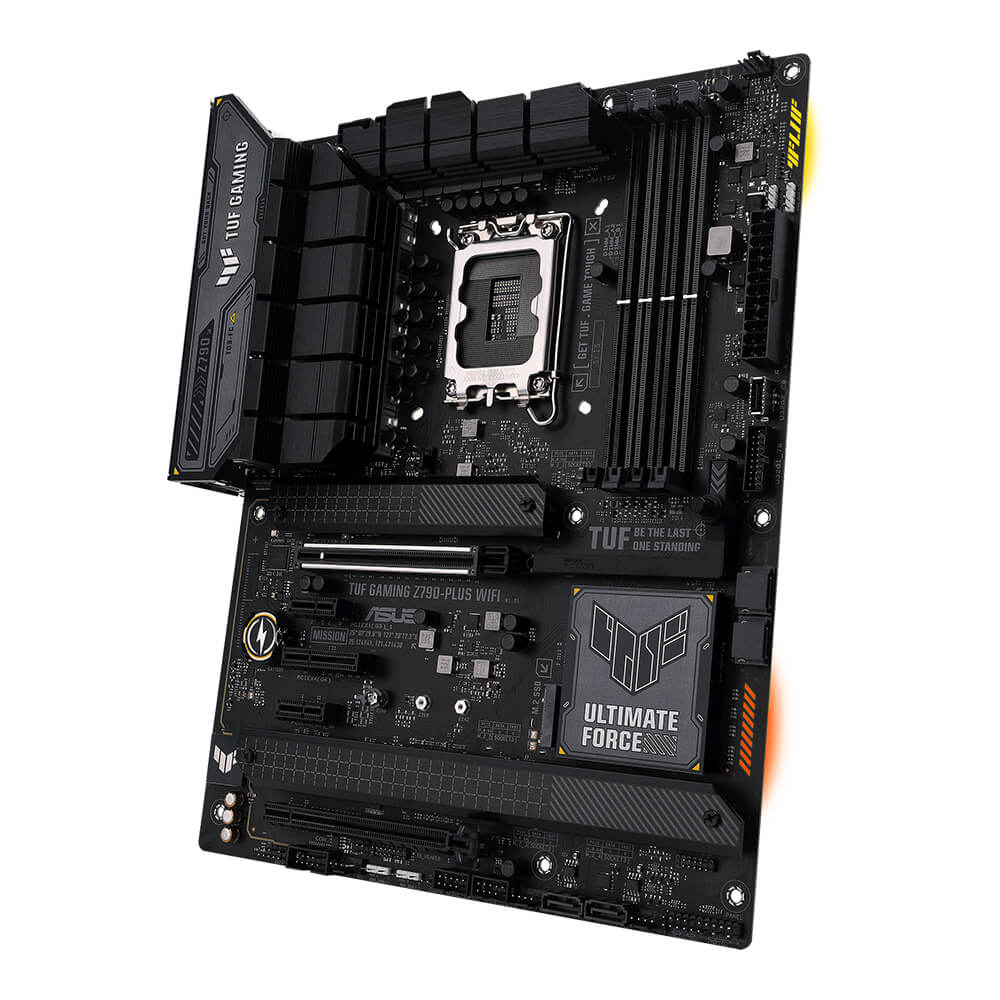

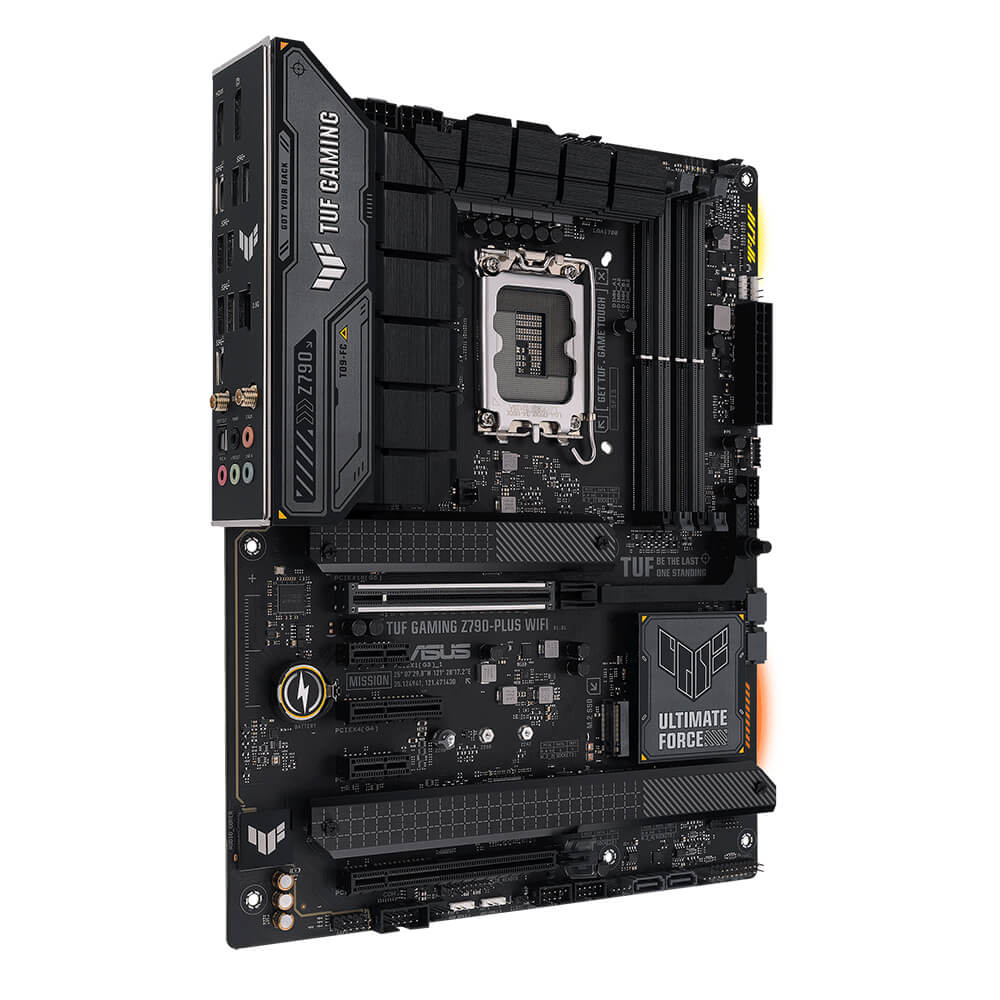

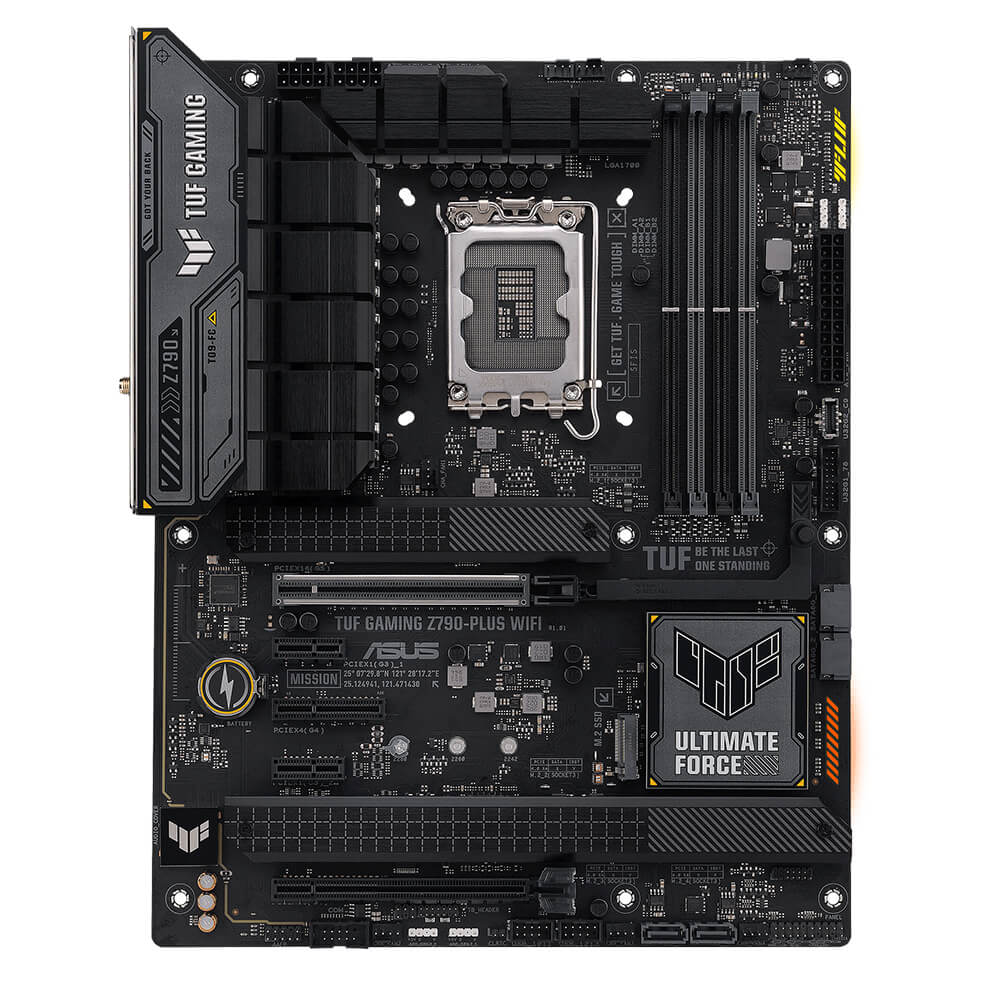

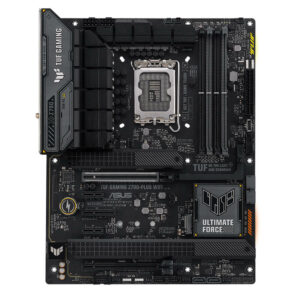

Mainboard Asus TUF GAMING Z790-PLUS WIFI DDR5
- 16(60A)+1(60A)+1 pha công suất với bộ tản nhiệt VRM mở rộng
- PCIe ® 5.0 cho card đồ họa
- Hỗ trợ mô-đun bộ nhớ 7200+ MT/s, AEMP II
- Kết nối: USB 3.2 Gen 2×2 Type-C ® và đầu cắm USB 3.2 Gen 2 Type-C ® ở mặt trước
- PC DIY thân thiện, PCIe Q-Phát hành
- Kết nối Ethernet 2,5 Gb, Wi-Fi 6E
- AI làm mát hoàn hảo
- Khử tiếng ồn AI hai chiều
ĐIỀU KHIỂN THÔNG MINH
Bo mạch chủ TUF GAMING Z790 tích hợp các công cụ linh hoạt để tinh chỉnh mọi khía cạnh trong hệ thống của bạn, cho phép tinh chỉnh hiệu năng để phù hợp một cách chuyên nghiệp với cách bạn chơi.
Hiệu quả năng lượng toàn diện
Chức năng Tiết kiệm năng lượng bao gồm một số cài đặt có thể dễ dàng tối ưu hóa mức tiêu thụ điện năng và tiết kiệm năng lượng tối đa. Bạn có thể bật giới hạn năng lượng CPU, làm tối ánh sáng Aura và đặt cấu hình quạt ở chế độ tiết kiệm năng lượng. Bạn cũng có thể chuyển đổi gói Power Saver được tích hợp trong Microsoft Windows.
HIỆU SUẤT VỮNG CHẮC
Thiết kế bảng mạch in nhiều lớp nhanh chóng tản nhiệt xung quanh bộ điều chỉnh điện áp để cải thiện độ ổn định tổng thể của hệ thống và cung cấp cho CPU nhiều không gian ép xung hơn.
Kết nối THỜI THƯỢNG
TUF-GAMING Z790-PLUS WIFI đạt đến tầm cao mới về tiềm năng hiệu suất với phiên bản PCI Express mới nhất, trong khi kho cổng USB bao gồm ba kết nối Type-C và Thunderbolt 4 còn mở rộng khả năng tương thích và băng thông hơn nữa.
LÀM MÁT THEO THIẾT KẾ
TUF GAMING Z790-PLUS WIFI được trang bị tản nhiệt VRM mở rộng, trong khi ba khe M.2 và PCH có tản nhiệt mang lại sự cân bằng hoàn hảo giữa khối lượng và diện tích bề mặt để tản nhiệt.
WIFI 6E tốc độ cao
Model | TUF GAMING Z790-PLUS WIFI |
CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® Z790 Chipset |
Memory | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
Graphics | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
Expansion Slots | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – Aura RGB header – Addressable Gen 2 headers |
Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Two-Way AI Noise Cancelation – Power Saving AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

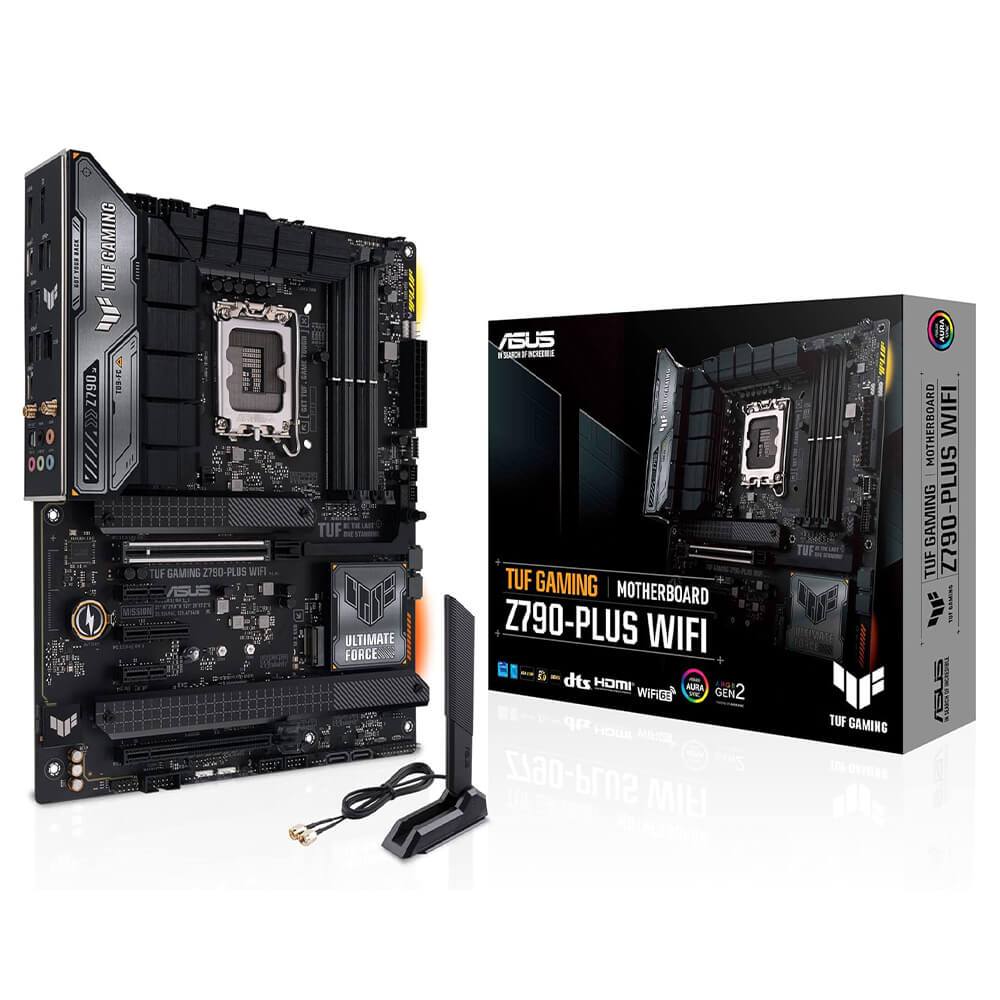

Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
