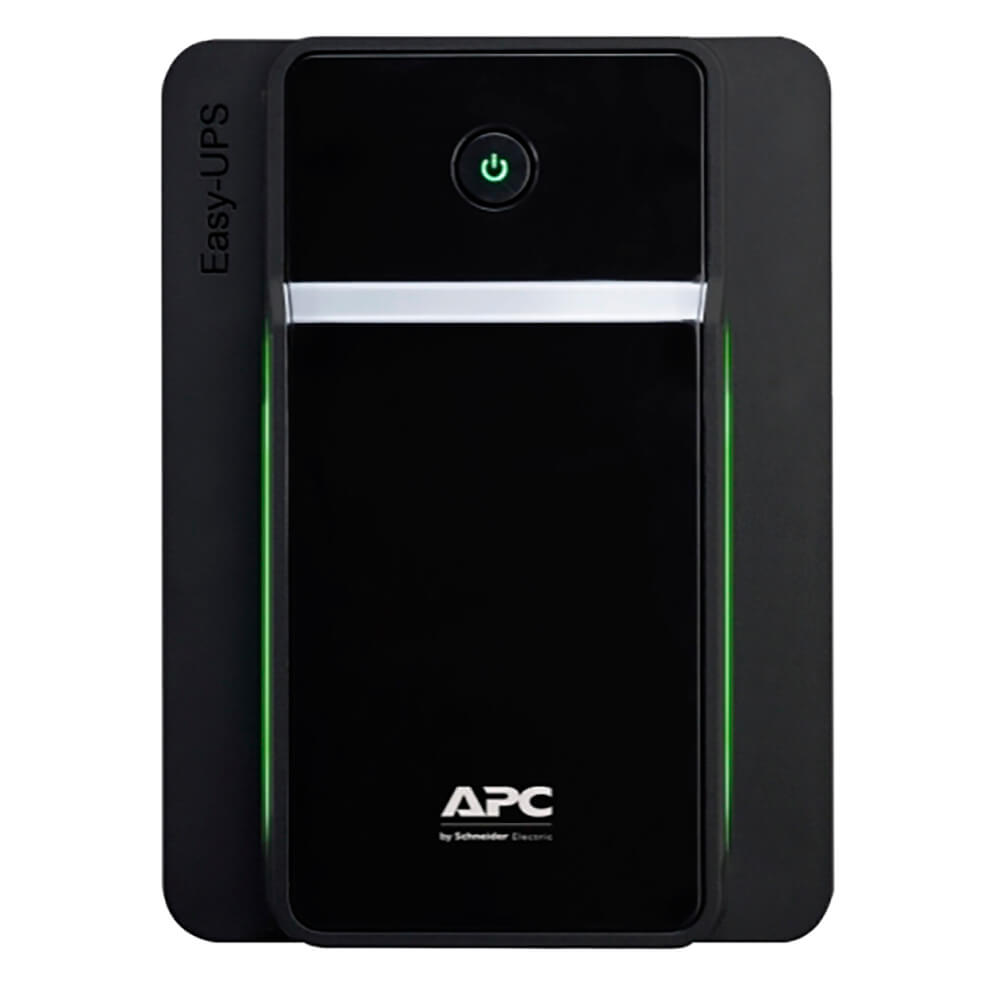

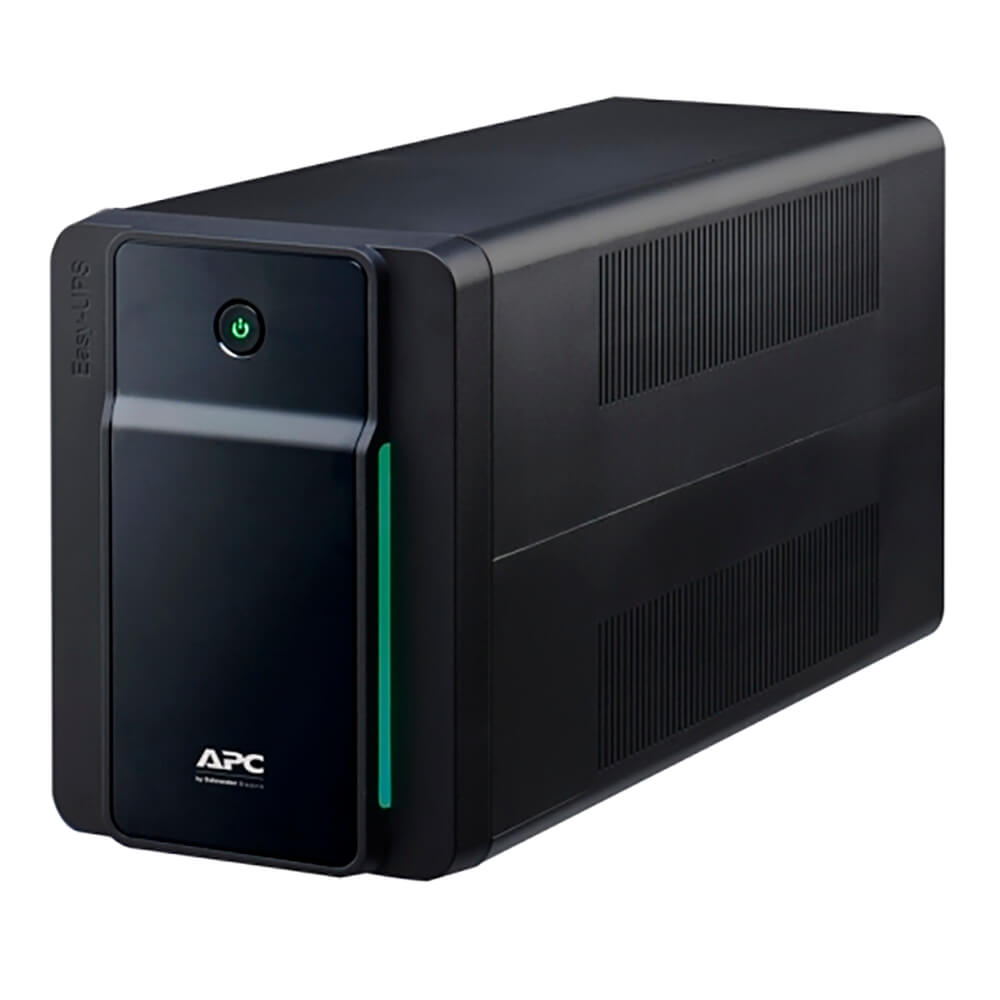

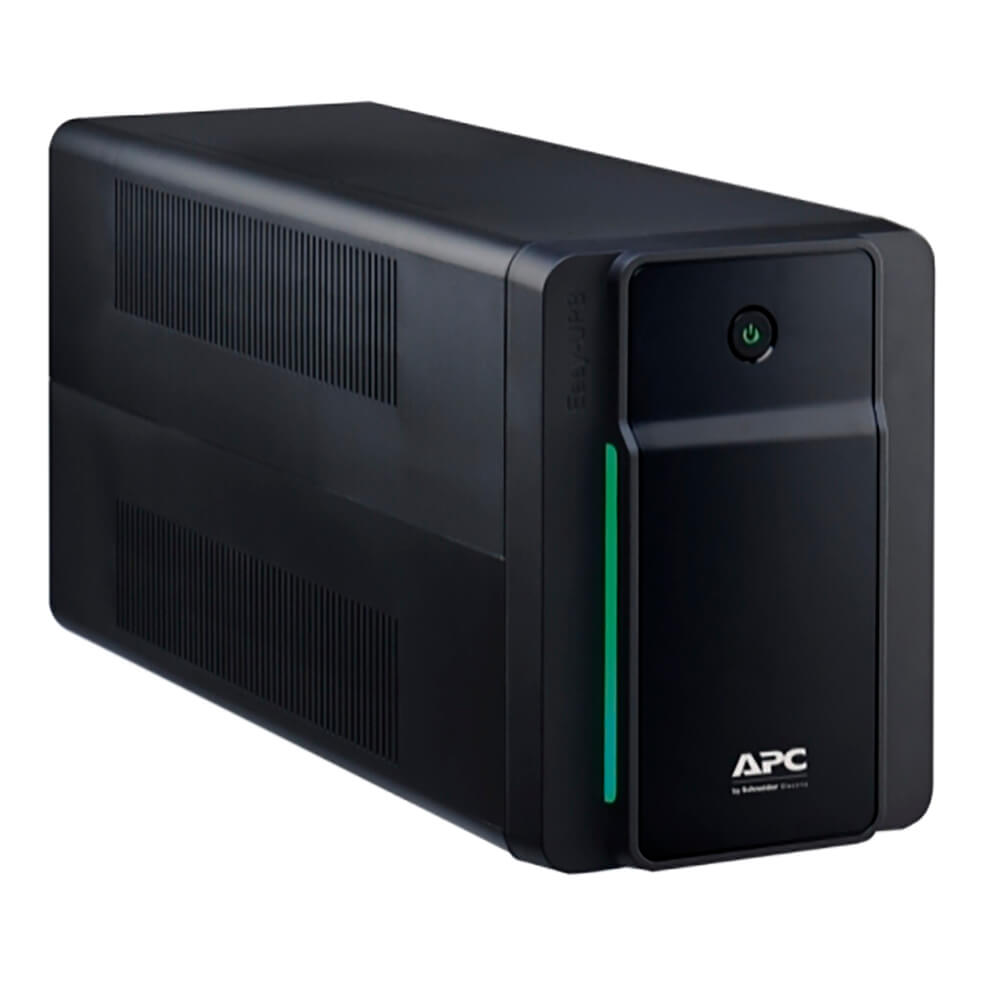

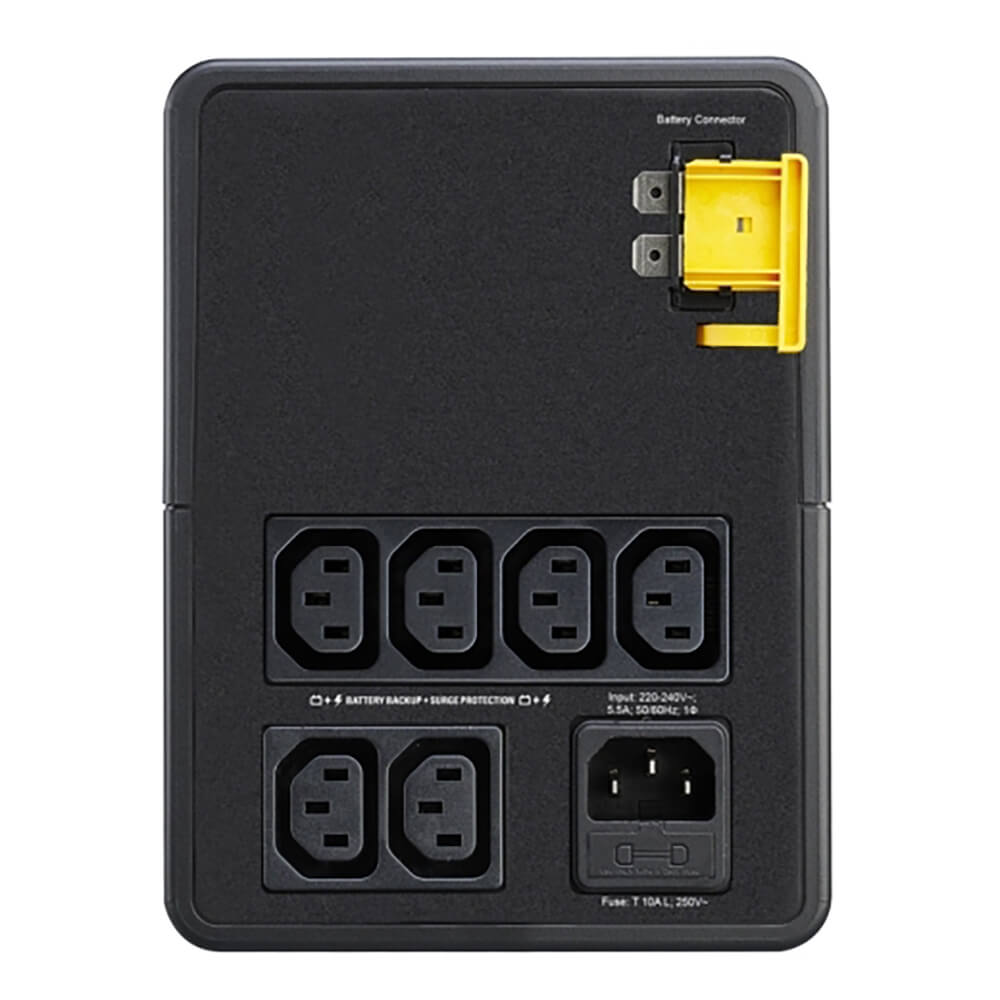

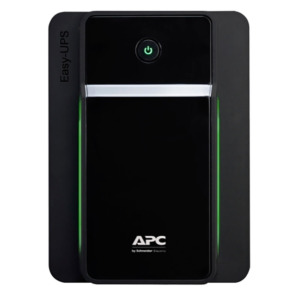

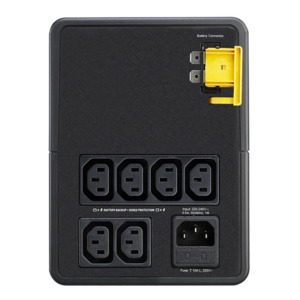

Bộ Lưu Điện UPS APC BVX 1200VA – 230V – AVR – IEC Sockets
Thông tin Sản Phẩm
| Output | |
| Max Configurable Power (Watts) | 650 Watts / 1.2kVA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations140 – 300 (230 V) ACV | 140 – 300 (230 V) ACV |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 0.51 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 8hour(s) |
| Nominal Battery Voltage | 12 V |
| Expected Battery Life (years) | 2 – 3 |
| Battery Volt-Amp-Hour Capacity | 108 |
| Communications & Management | |
| Control panel | LED Status display with on line : on battery |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 273Joules |
| Physical | |
| Maximum Height | 190MM, 19.0CM |
| Maximum Width | 140MM, 14.0CM |
| Maximum Depth | 390MM, 39.0CM |
| Net Weight | 7.5KG |
| Environmental | |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 (Non-condensing) % |
| Operating Elevation | 0 – 3000meters |
| Storage Temperature | -15 – 40 °C |
| Storage Relative Humidity | 0 – 95 (Non-condensing) % |
| Storage Elevation | 0 – 3000meters |
| Audible noise at 1 meter from surface of unit | 40.0dBA |
| Protection Class | IP20 |
