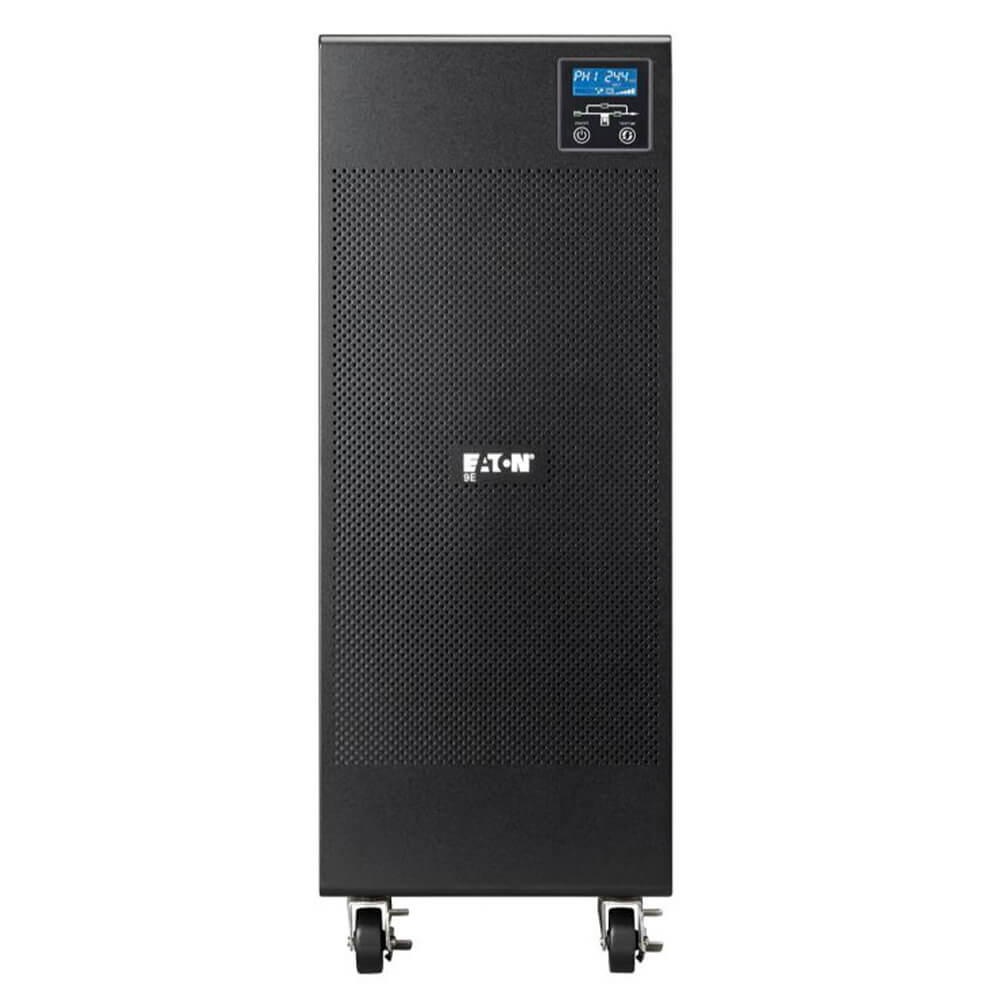

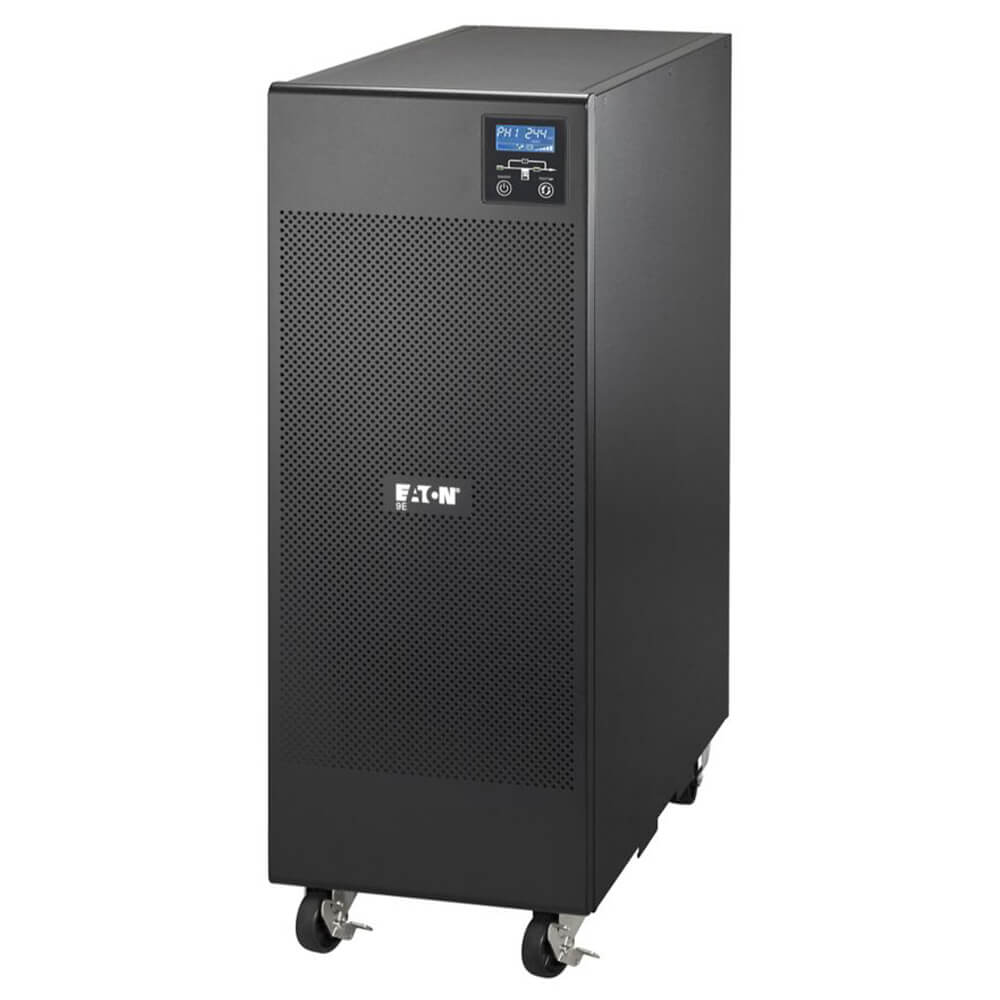

Bộ Lưu Điện UPS Eaton 9E10KI – 10 kVA – 8 kW – Tower
Sale 1%
Giá Tân Doanh:50,490,000₫
Giá Thường:50,990,000₫
Tiết Kiệm: 500,000₫ (1%)
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: Eaton
- Giá bán đã bao gồm VAT.
Thông tin Sản Phẩm
| General specifications | |
| Product Name | Eaton 9E UPS |
| Catalog Number | 9E10KI |
| UPC | 743172067678 |
| Product Length/Depth | 61.29 cm |
| Product Height | 70.85 cm |
| Product Width | 26.24 cm |
| Product Weight | 85.39 kg |
| Warranty | 1 year |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
| Battery | |
| Battery type | Sealed, lead-acid |
| Runtime graph | View runtime graph |
| Battery replacement | Replacable batteries |
| Battery quantity | 20 |
| Battery management | Automatic battery test Deep discharge protection |
| Battery rating | 12 V / 9 Ah |
| Extended battery capability | Yes |
| Electrical output |
|
| Voltage | 230/400V |
| Wattage | 8 kW |
| Output power factor | 0.8 |
| Output voltage range | 220/230/240 V +/- 2% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (220/230/240V) |
| Voltage distortion output (linear load) – max | 3 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
| VA rating | 10 kVA |
| Electrical input |
|
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 230V default (220/230/240V) |
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input voltage range | 176-276 V (110-276 V with derating) |
| Input frequency range | 45-66Hz |
| Expansion slots | One slot for optional communication card |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Type of interface | Other |
| Communications | |
| Includes network card | No |
| Communication | USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off Communication slot |
| Ethernet interface | No |

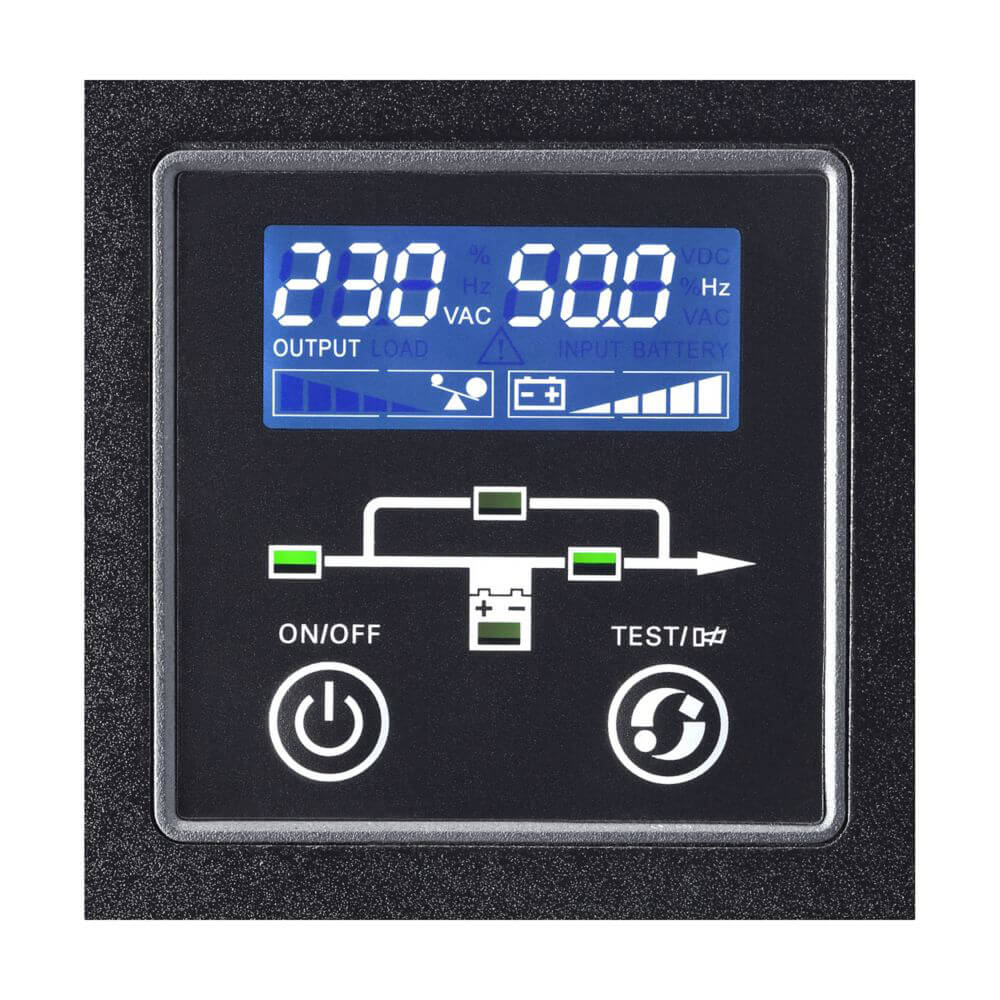

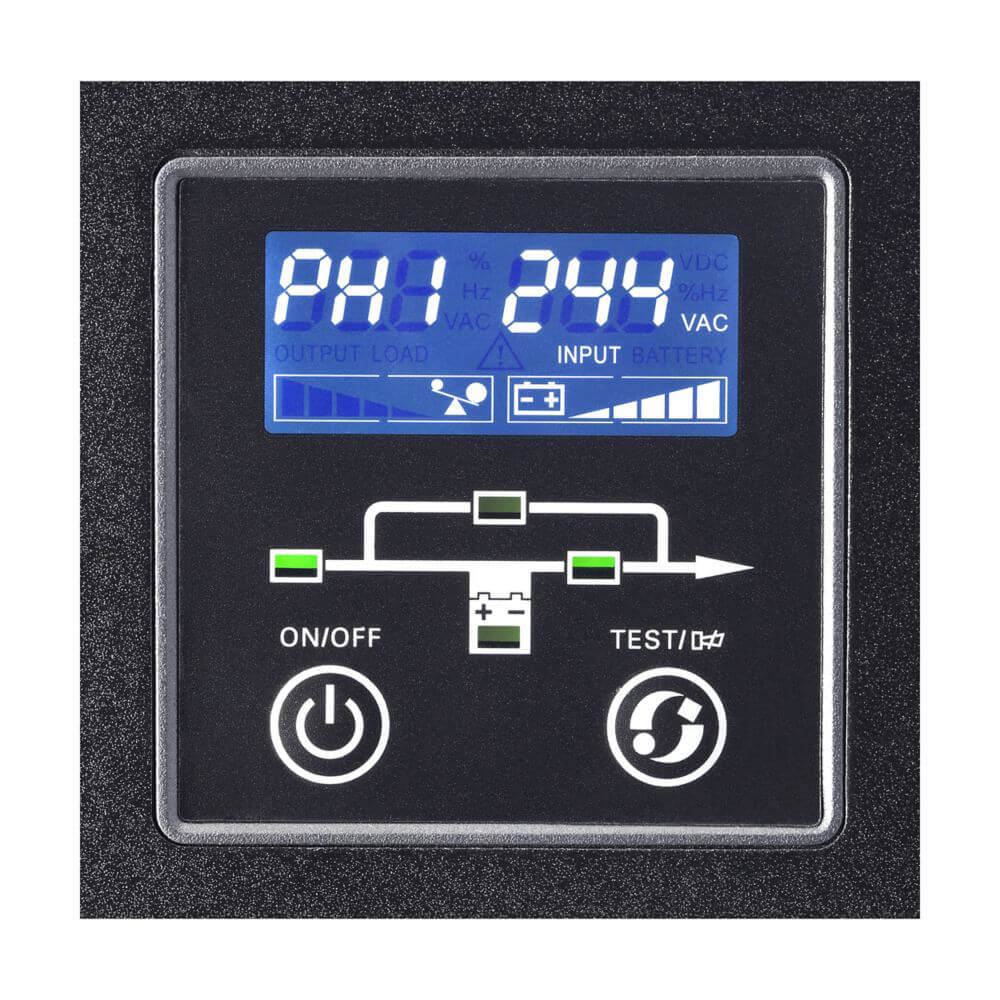

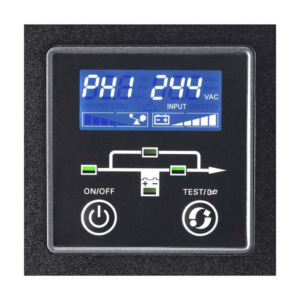

| User interface | LCD Display |
| Potential free switch contact | Yes |
| Environmental | |
| Altitude | 3000 m |
| Noise level | <55 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-95% non-condensing |
| Additional specifications |
|
| Construction type | Free standing model |
| Package contents | UPS USB cable Serial cable User manual |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black |
| Efficiency | 92 |
| Rack mounting kit | No |
| Hot swap power | No |
| Resources | |
| Compliance information | |
| User Guides | |
