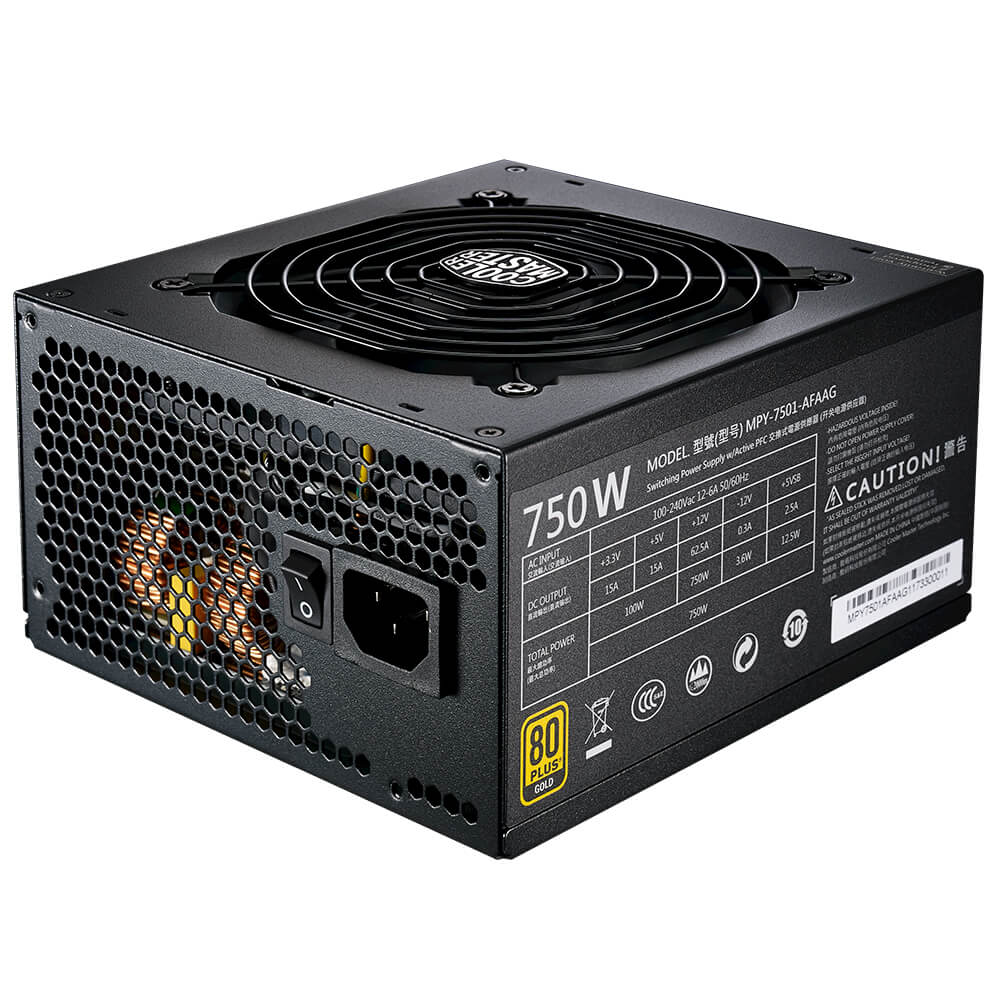

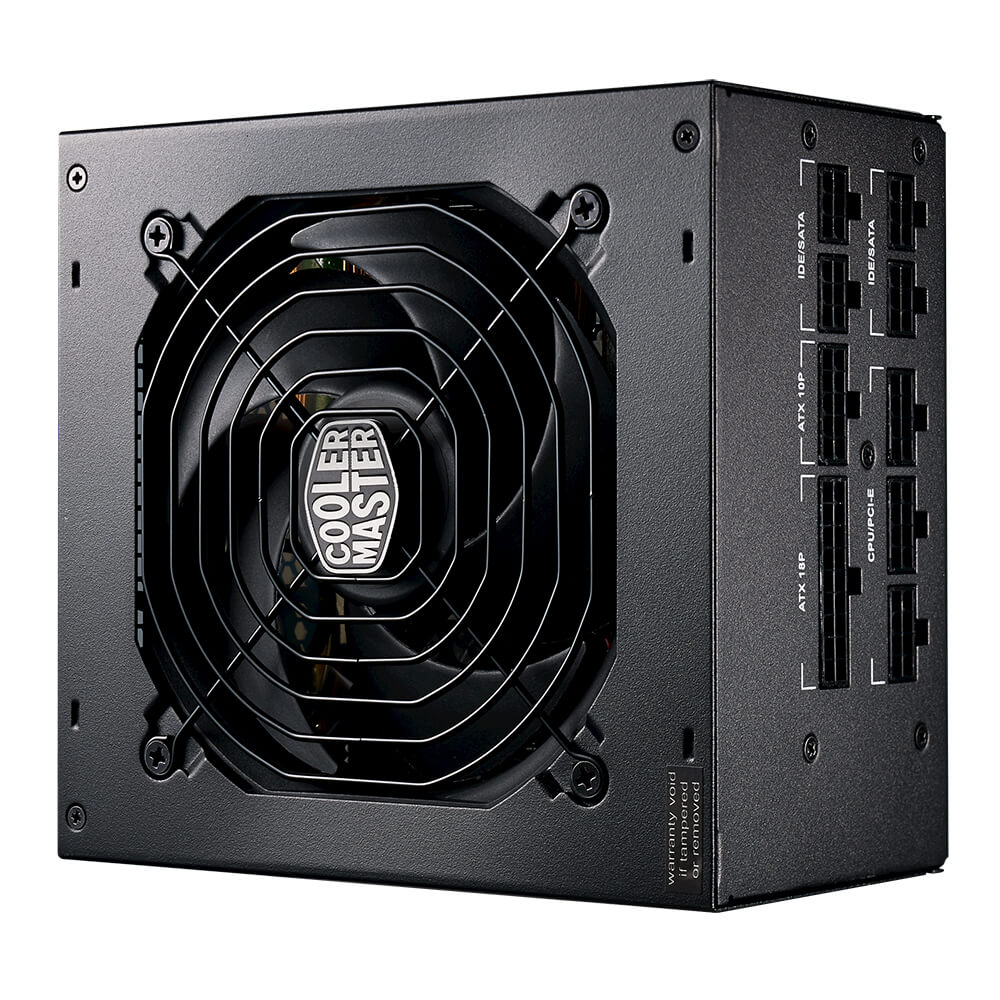

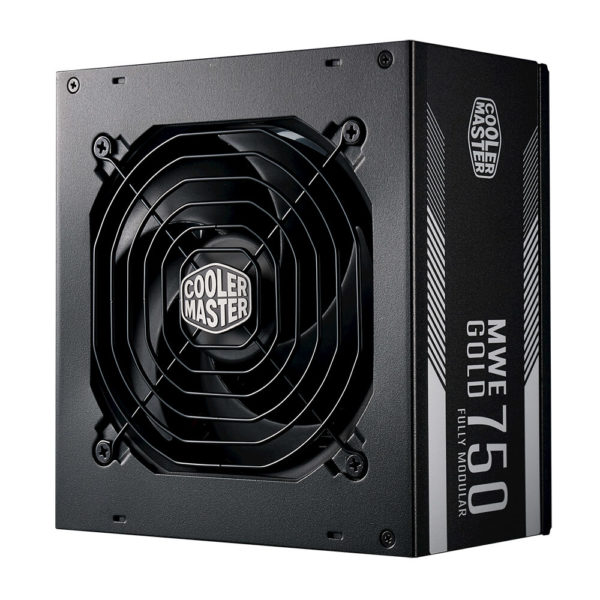

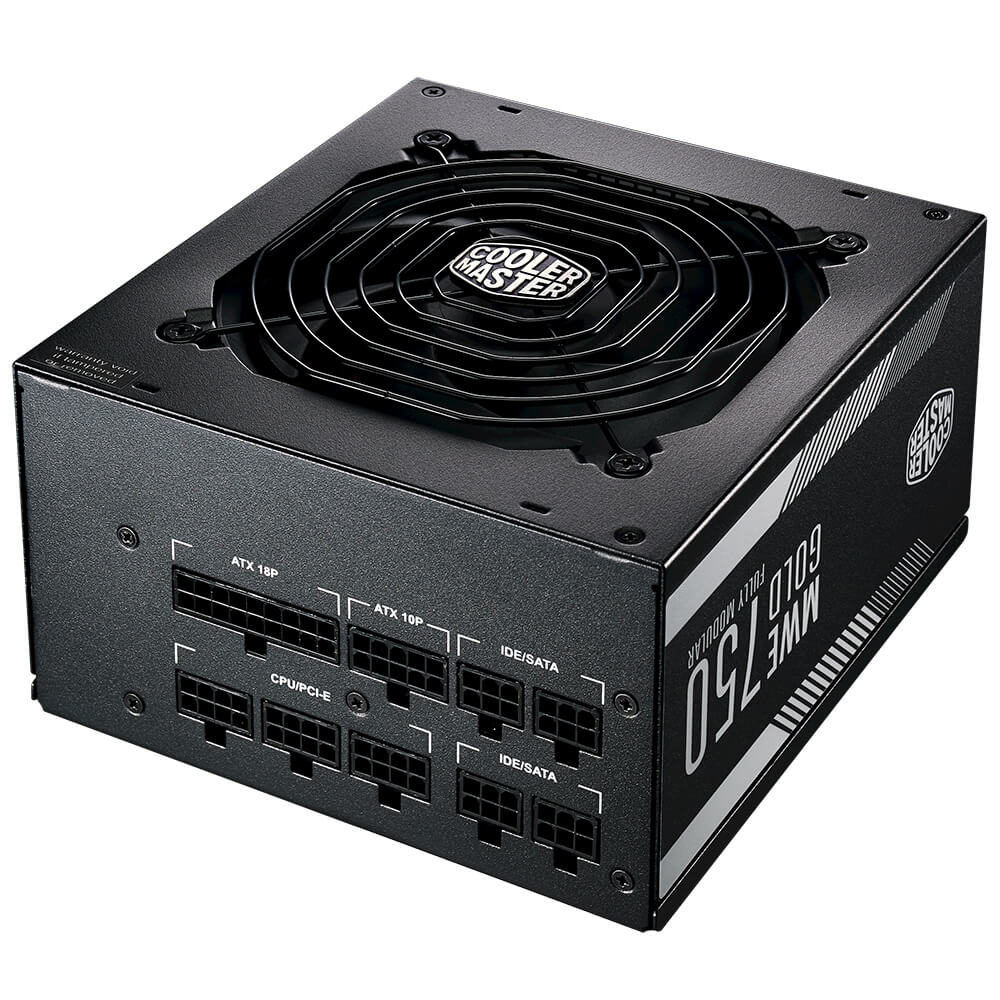

Cooler Master MWE 750W Fully Modular 80Plus Gold PSU
Thông tin Sản Phẩm
THÔNG SỐ KỸ THUẬT
| SERIE | MWE Gold Series |
| PRODUCT NAME | MWE Gold 750 Full Modular |

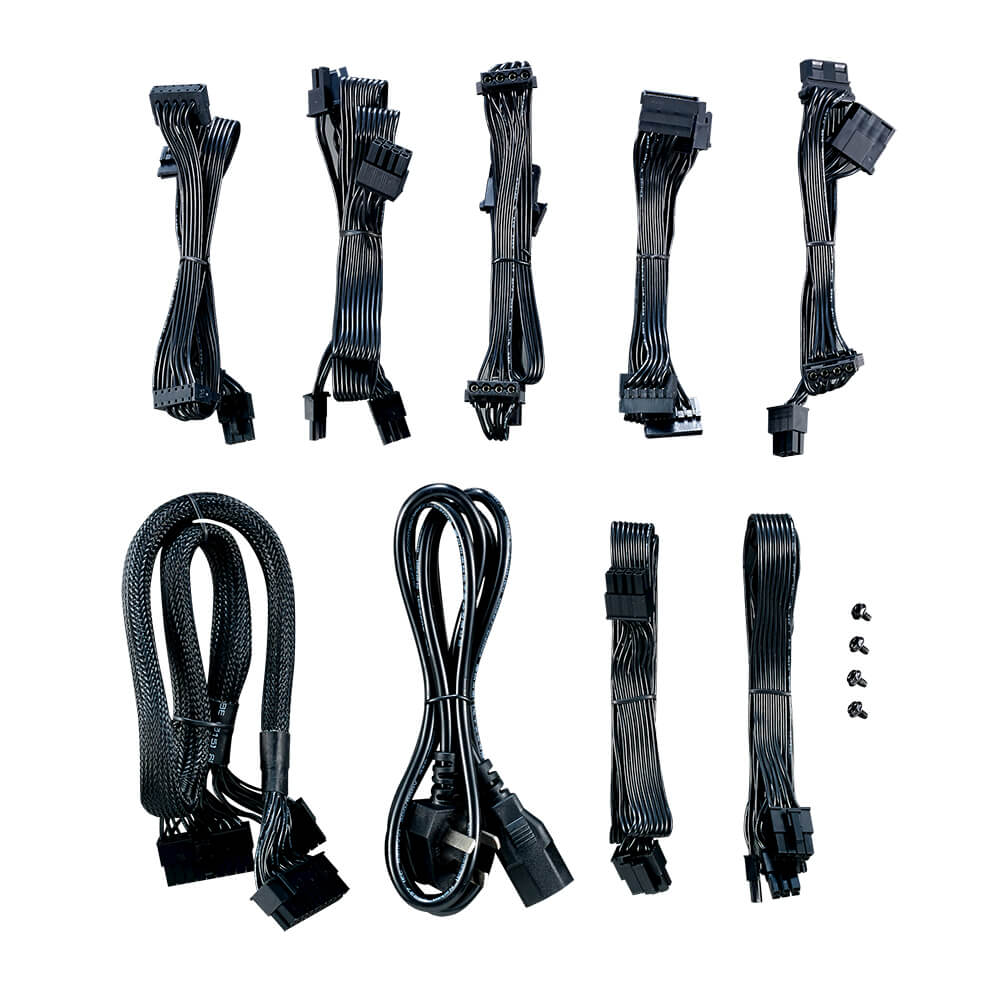

| MODULAR | Full Modular |
| MODEL | MPY-7501-AFAAG |
| ATX VERSION | ATX 12V V2.31 |
| PFC | Active PFC (>0.95 typical) |
| INPUT VOLTAGE | 100-240V |
| INPUT CURRENT | 12-6A |
| INPUT FREQUENCY | 50/60Hz |
| DIMENSIONS (L X W X H) | 160 x 150 x 86 mm |

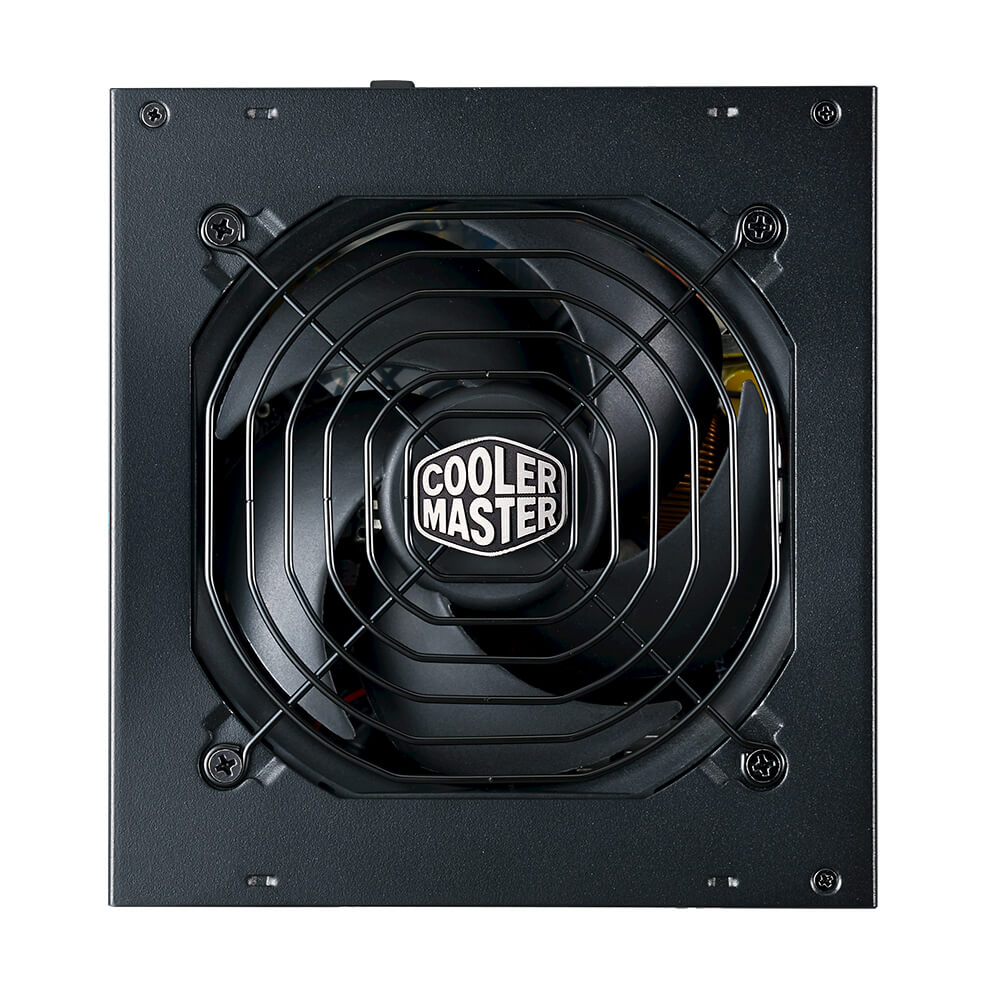

| FAN SIZE | 120mm |
| FAN BEARING | LDB |
| POWER GOOD SIGNAL | 100-500ms |
| HOLD UP TIME | >14ms at 100% load |
| EFFICIENCY | 90% Typically |
| ERP 2013 LOT 6 | Yes |
| MTBF | >100,000 Hours |
| OPERATING TEMPERATURE | 0-45°C |
| PROTECTIONS | OVP, OPP, UVP, SCP, OTP, OCP |
| REGULATORY | CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |

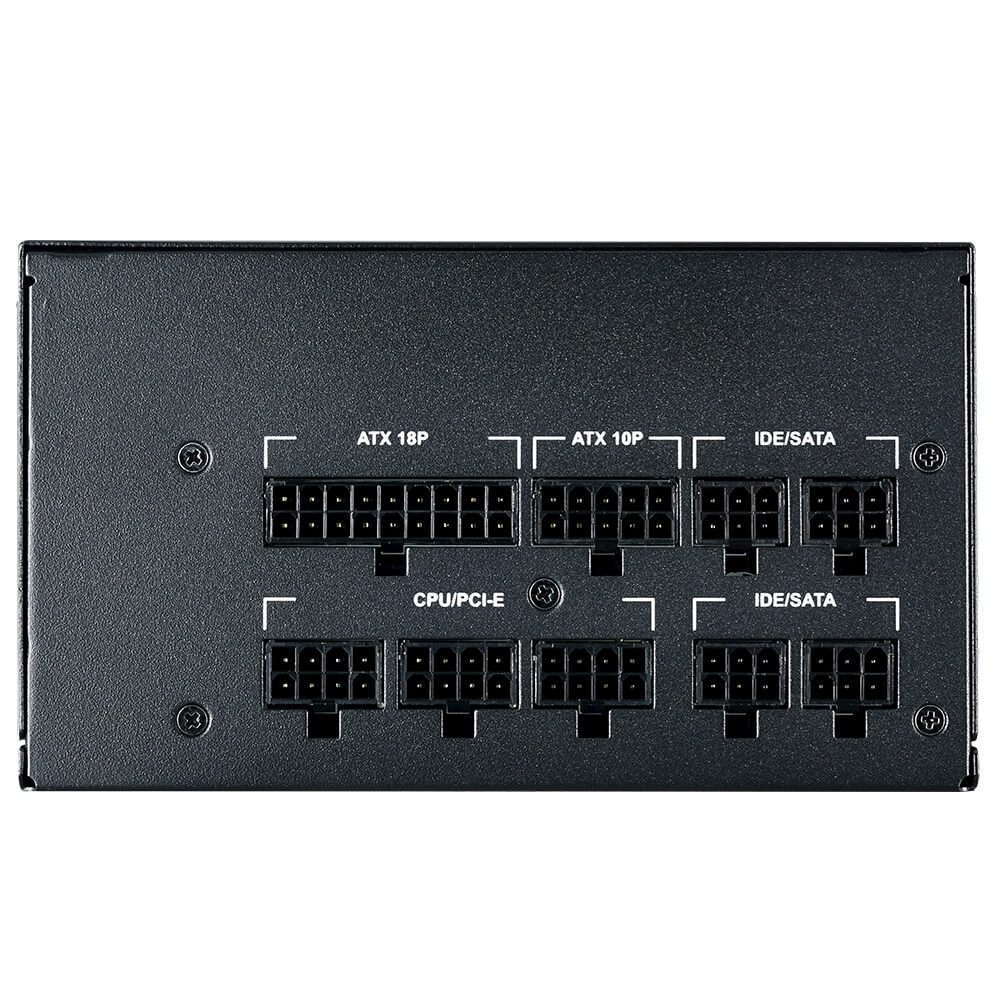

| MB 24-PIN CONNECTORS | 1 |
| CPU 12V 4+4 PIN CONNECTORS | 1 |
| CPU 12V 8 PIN CONNECTORS | 1 |
| SATA CONNECTORS | 8 |
| PERIPHERAL 4-PIN CONNECTORS | 6 |
| FDD CABLE 4-PIN CONNECTORS | 1 |
| PCI-E 6+2 PIN CONNECTORS | 4 |
| 80 PLUS | Gold |
| WATTAGE | 500 to 750W |
