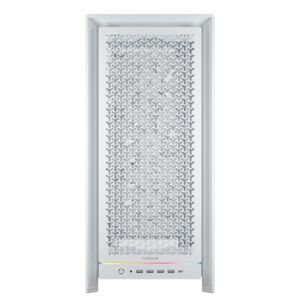

Corsair FRAME 5000D RS White – Modular Mid-Tower PC Case

Dimensions

H 556mm x W 250mm x L 542mm

Material

Steel, Tempered Glass

Included Fans

4x RS140 Fans

Included Controllers

None

Fan Compatibility

Front: 3x 120mm, 3x 140mm, 2x 200mm

Top: 3x 120mm, 3x 140mm

Side: 3x 120mm, 3x 140mm

Bottom: 2x 120mm

Rear 1x 120mm, 1x 140mm

PSU Shroud: 2x 120mm

Radiator Compatibility

Front: 360mm, 280mm, 240mm

Top: 420mm, 360mm, 280mm, 240mm

Side: 360mm, 280mm, 240mm

Bottom: None

Rear: 120mm, 140mm

PSU Shroud: None

Expansion Slots

8 Horizontal or 3 Vertical

Motherboard

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Compatible with reverse connector motherboards: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth

Storage

6x 2.5″ SSDs

2x 3.5″ HDDs

Clearances

PSU: 250mm

CPU Cooler: 175mm

GPU: 450mm

Dust Filters

Front, Bottom, Right Side, Left Side

Front I/O

USB 3.2 Gen1 Type-A (x4)

USB 3.2 Gen2 Type-C (x1)

Headphone/Microphone Combo (x1)

Power

Power Supply

ATX (Not included)

Warranty

2 Year
