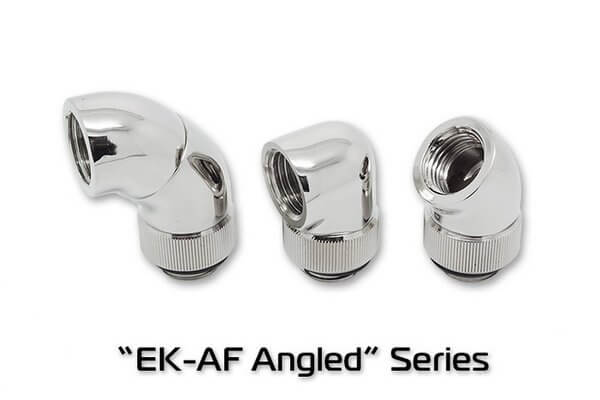

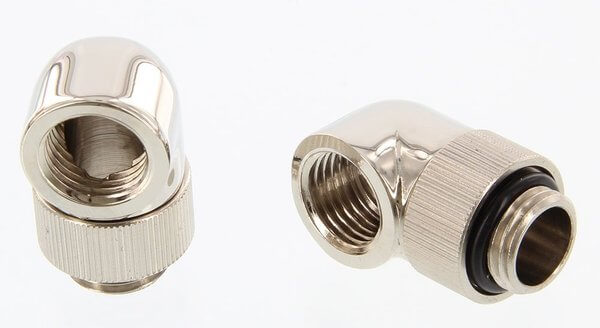

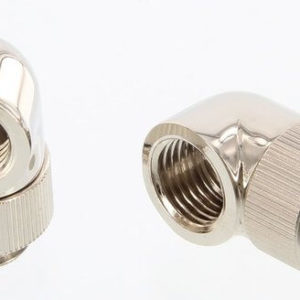

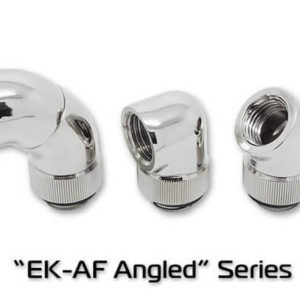

EK-AF Angled 90° G1/4 Nickel – Fitting

EK-AF (Adapter Fitting) is a revolvable angled (90°) adapter fitting with G1/4″ threads.
Details
EK-AF (Adapter Fitting) is a revolvable angled (90°) adapter fitting with G1/4″ threads.

Adapter allows connection of fitting with G1/4″ threads to extend tubing possibilites in your water cooled system.

Technical specifications:
– Material: made of nickel plated brass
– Threads:
* G1/4″ BSP; 4,5mm male thread lenght
* G1/4″ BSP, 6mm female thread lenght
– Outer diameter of a knurled part: 19,8mm
– Installed height: 28mm
– Sealed with high quality NBR oring.

ROHS compliant!

PLEASE NOTE:

All AF Angled adapters are hand polished and rounded therefore minor geometrical imperfections are to be expected. This fact does not fall under warranty terms and RMA rights!
