EK Full Block Nickel For Nvidia GTX 690

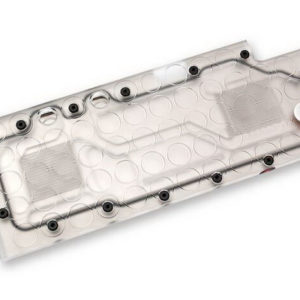

EK-FC690 GTX is a high performance full-cover water block for nVidia reference design GeForce GTX 690 series graphics card. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it’s VRM to remain stable under high overclocks. EK-FC690 GTX water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

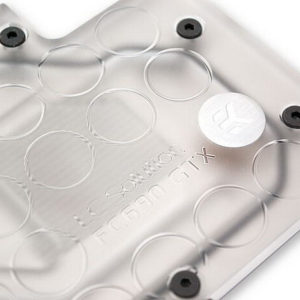

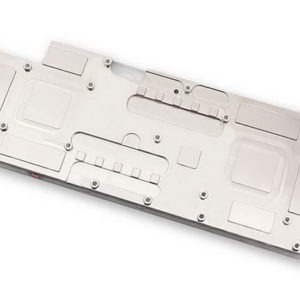

Base is made of nickel plated electrolytic copper while the top is made of quality cast, satin finished acrylic material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC690 GTX Backplate – Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

Any G1/4″ threaded opening can be used as inlet or outlet.

Up to four EK-FC690 GTX series water blocks can be interconnected with EK-FC Bridge & Link system. The EK-FC Link is already enclosed.

Enclosed:
– EK-FC690 GTX series water block
– mounting mechanism with screw-in brass standoffs
– thermal pads
– link

Please note: Thermal paste is not included and needs to be purchased separately. EKWB recommends Gelid GC-Extreme for best performance. Torx T6 screwdriver needed for dissasembly of the factory heatsink/fan solution is also not included.

Made in Slovenia – Europe!

PLEASE NOTE:
– Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
