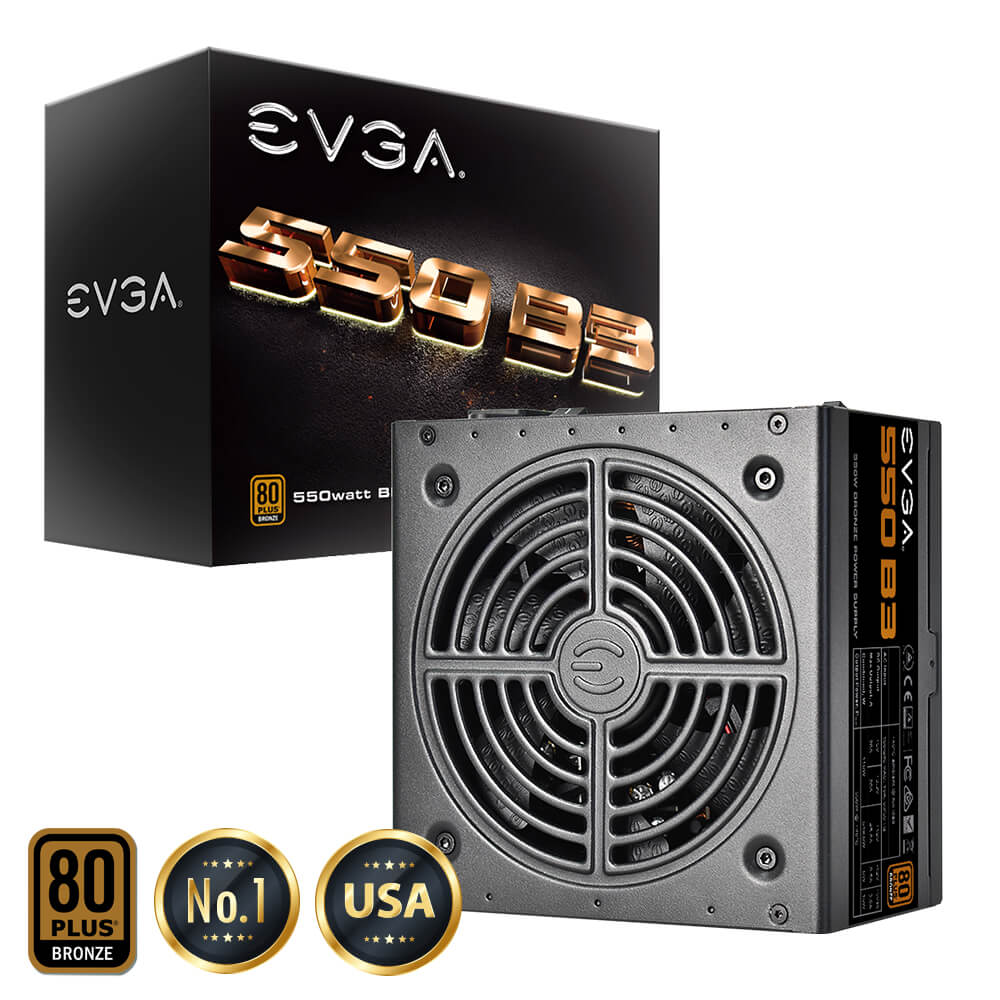

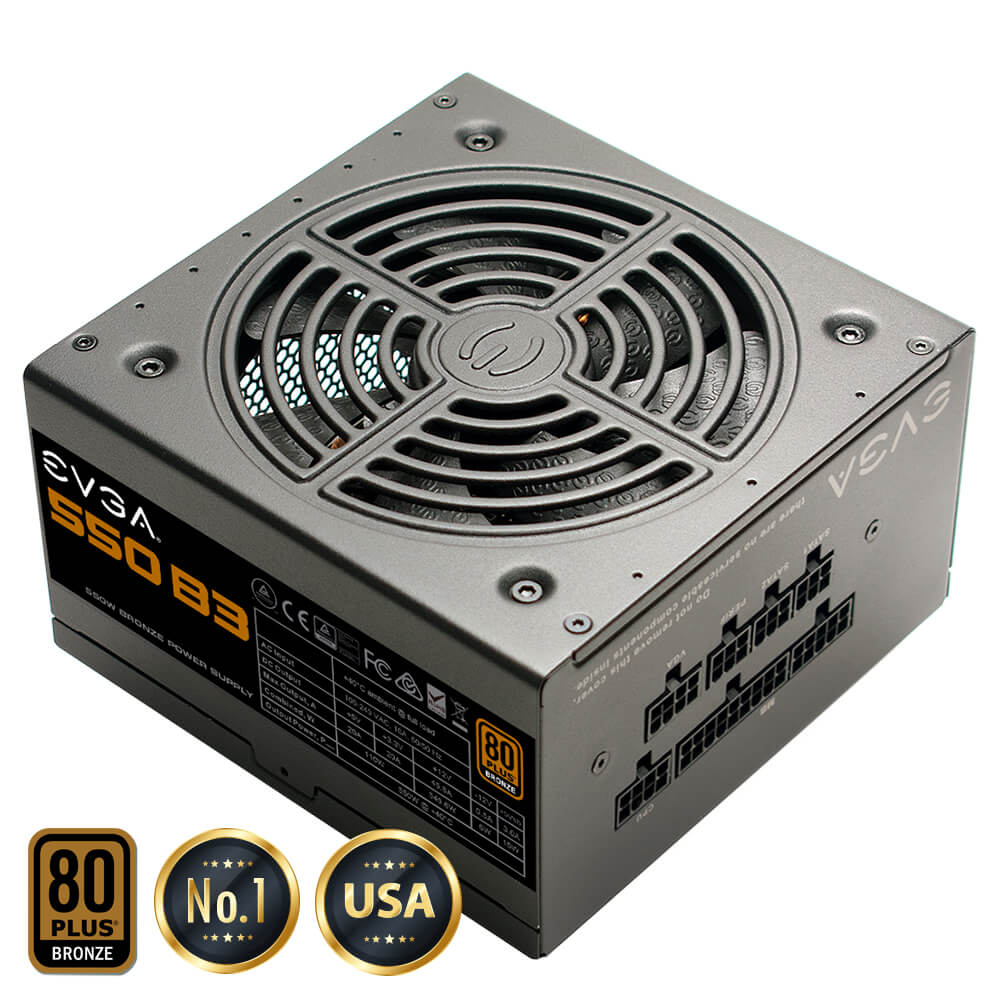

EVGA 550 B3 – 80+ BRONZE 550W – Fully Modular
Thông tin Sản Phẩm

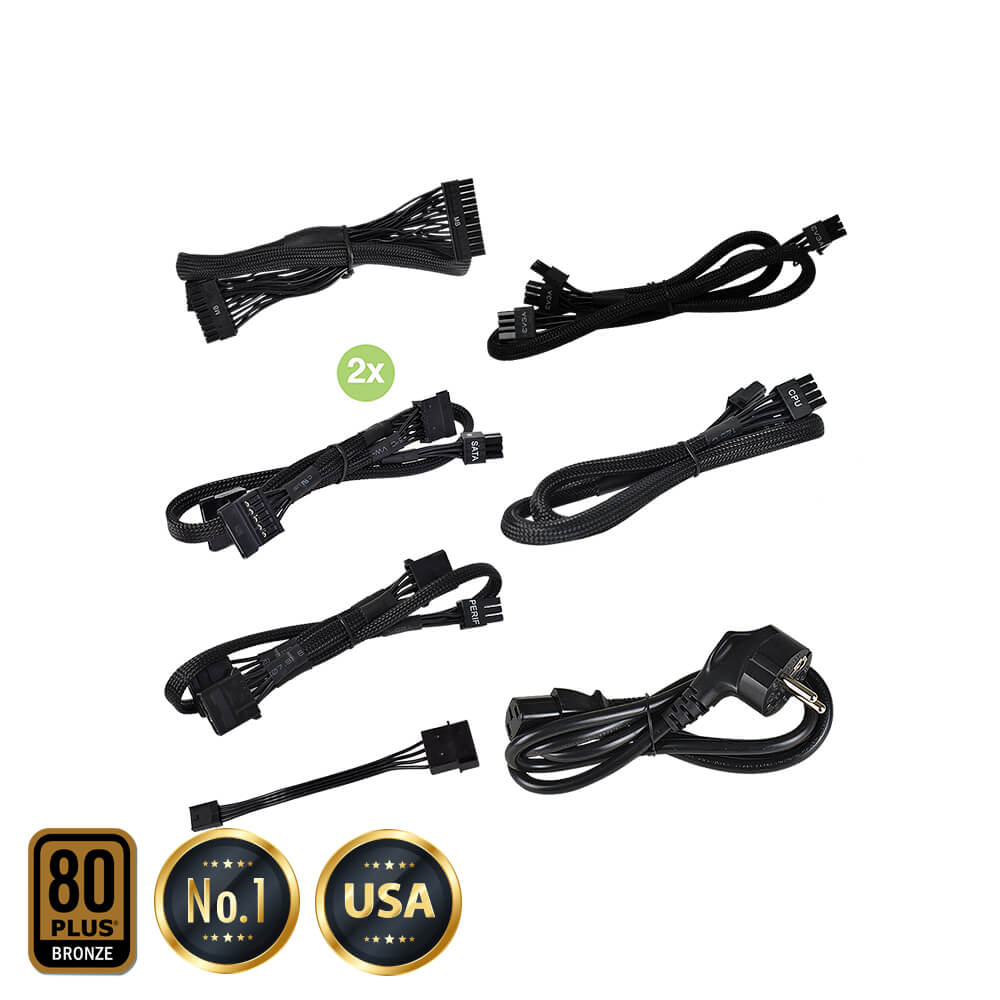

CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 1x 600mm (m) |
| PCIE Cable | 1x 550mm, 700mm (m) |
| SATA Cable | 2x 500mm, 600mm, 700mm (m) |
| Four-Pin Peripheral Cable | 1x 500mm, 600mm, 700mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| Molex to FDD | 1x |

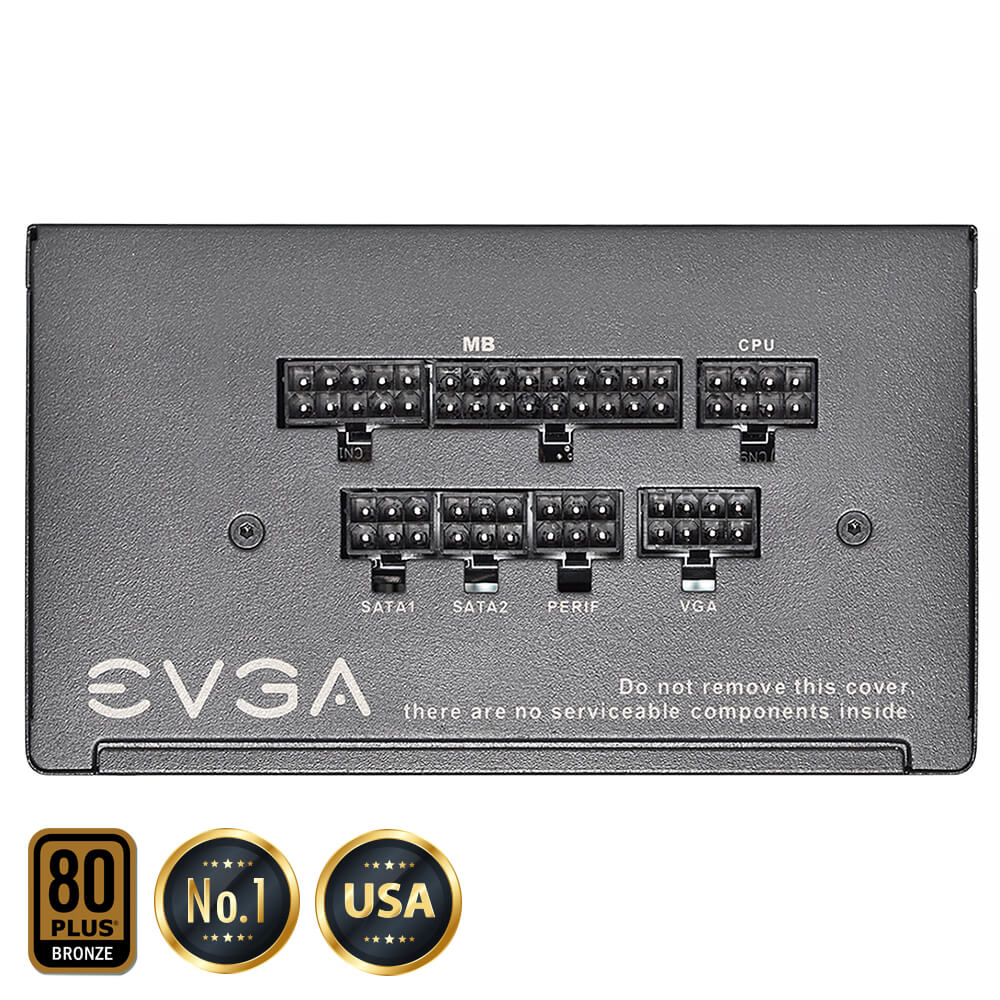

CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 2x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

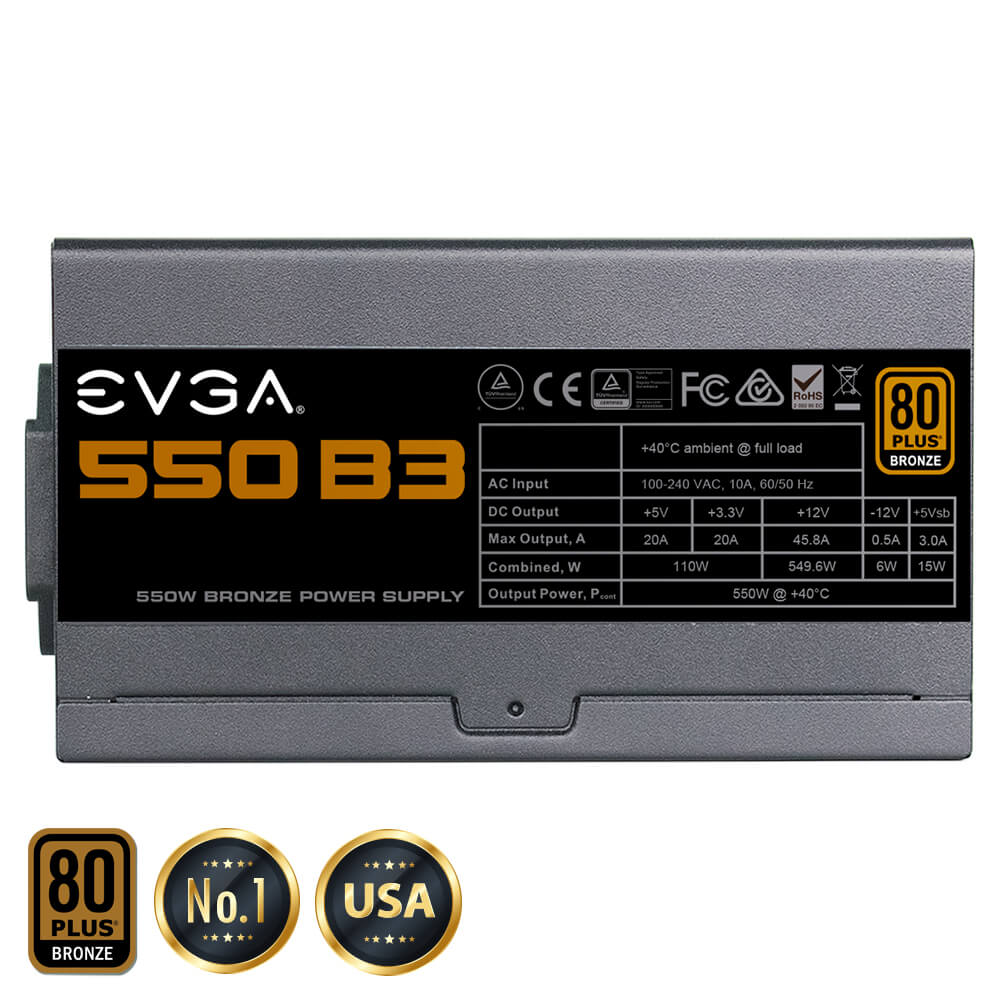

POWER SPECS
| AC Input | 100 – 240 VAC, 10A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 45.8A | 3.0A | 0.5A |
| 549.6W | |||||
| 110W | 549.6W | 15W | 6W | ||
| Total | 550W @ +40C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main PCB |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 4 lbs |
| Size | 85mm (H) x 0mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 130mm Long Life Sleeve Bearing |
