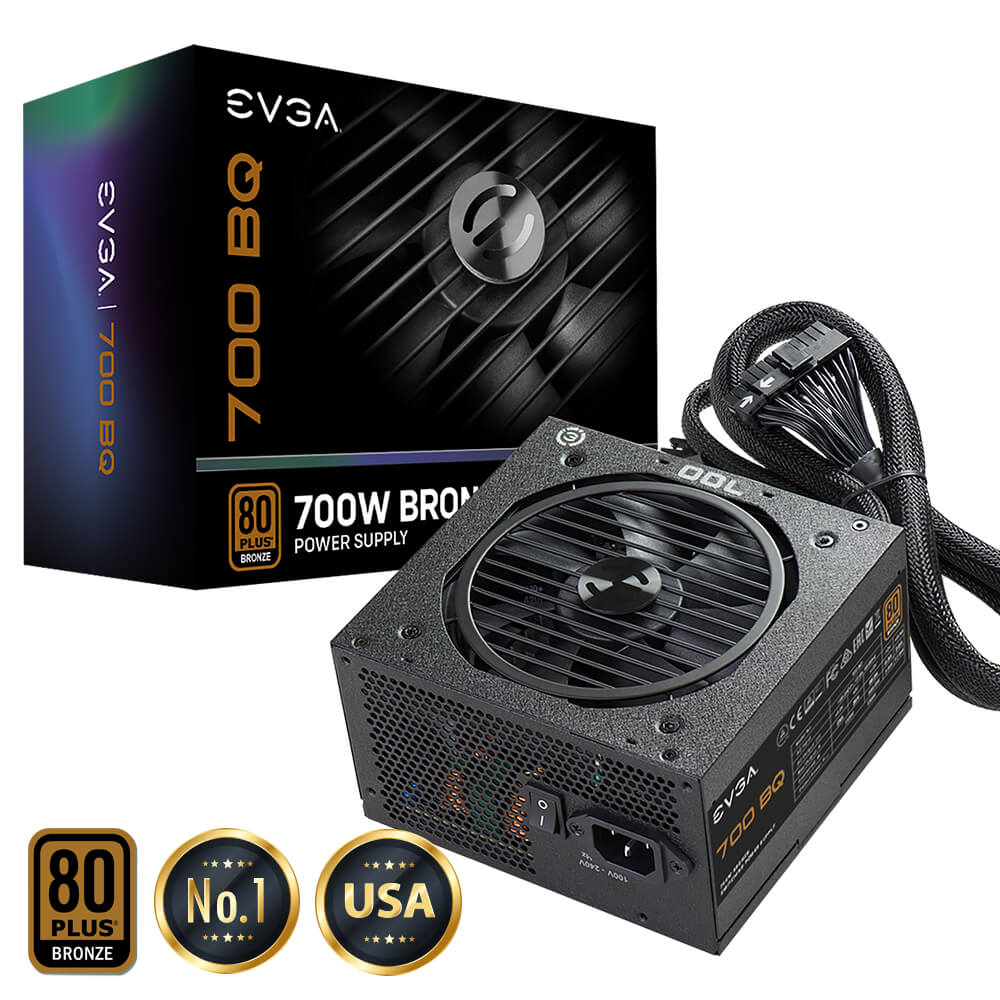

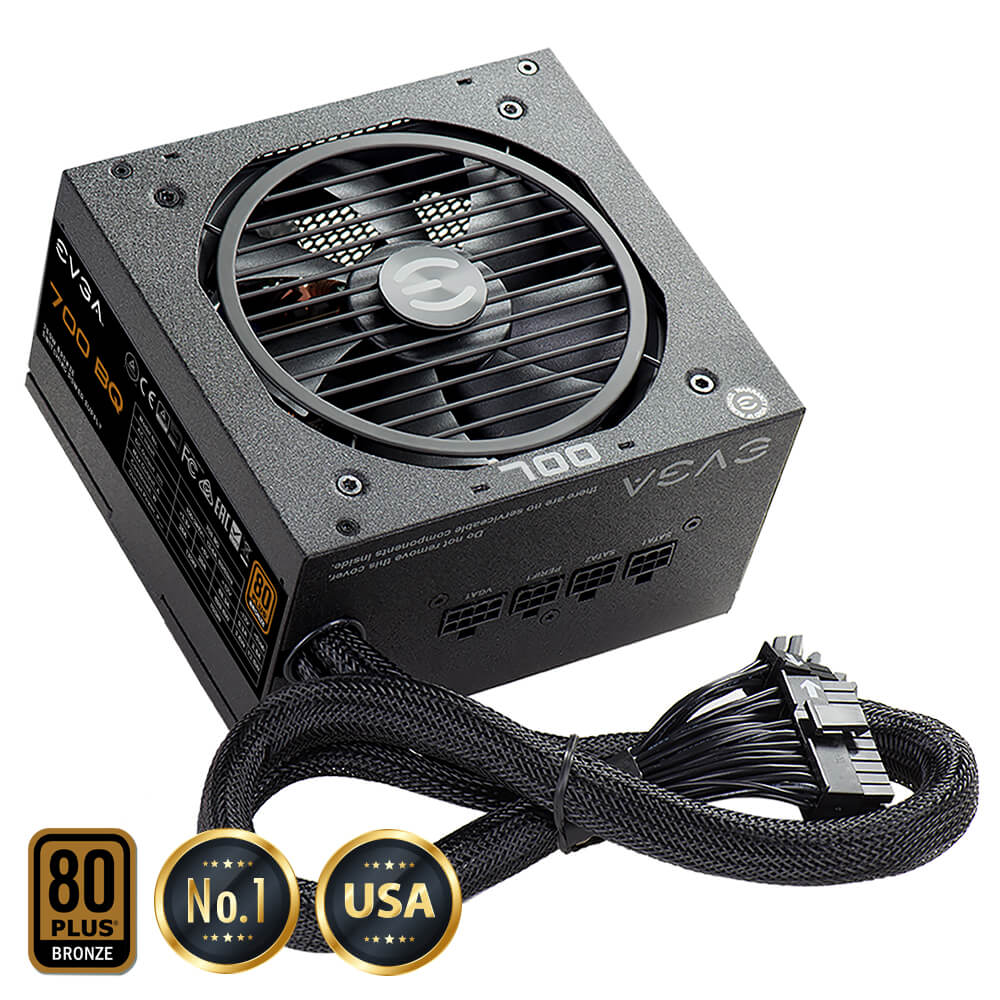

EVGA 700 BQ – 80+ BRONZE 700W – Semi Modular
Thông tin Sản Phẩm

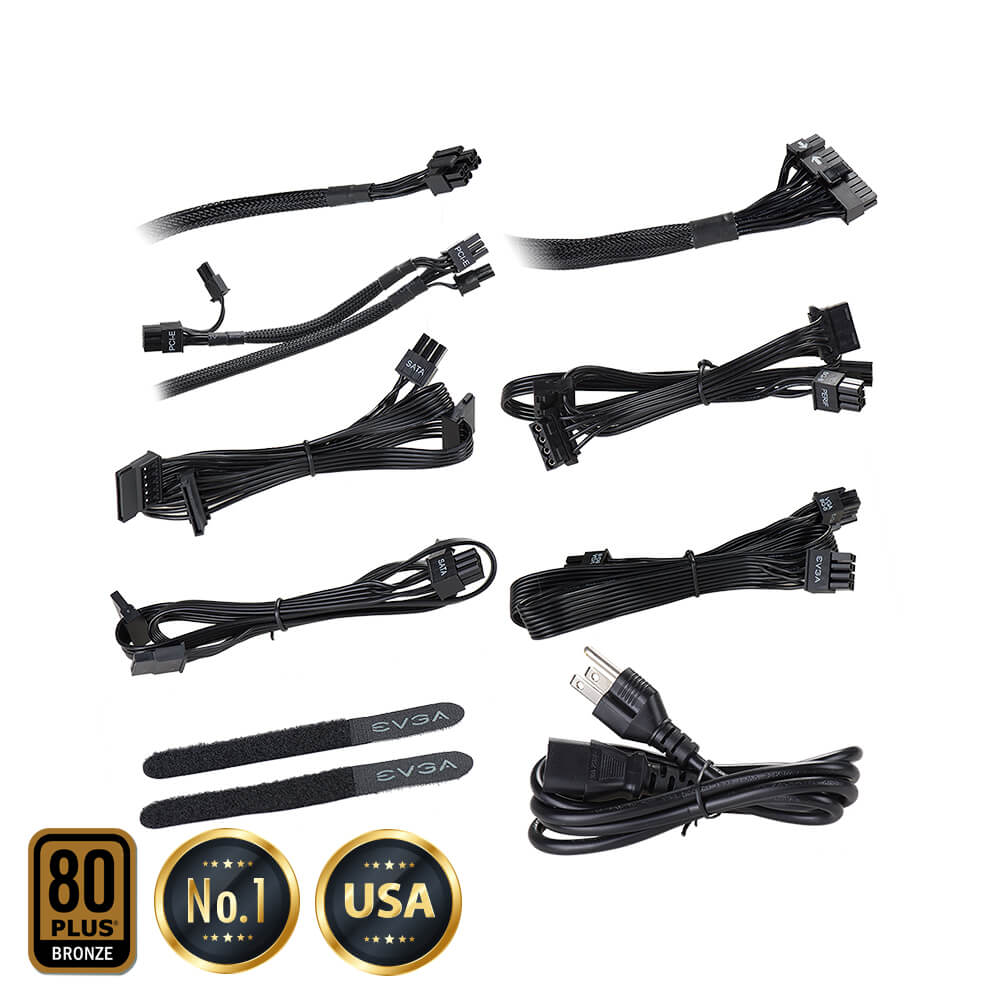

CABLE LENGTH
| ATX Cable | 1x 600mm |
| EPS Cable | 1x 600mm |
| PCIE Cable | 1x 600mm, 700mm (m), 1x 600mm, 700mm |
| SATA Cable | 2x 450mm, 570mm, 690mm (m) |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) (m) |
| AC Power | 1x 1500mm |
| Modular Cable Type | Semi-Modular |

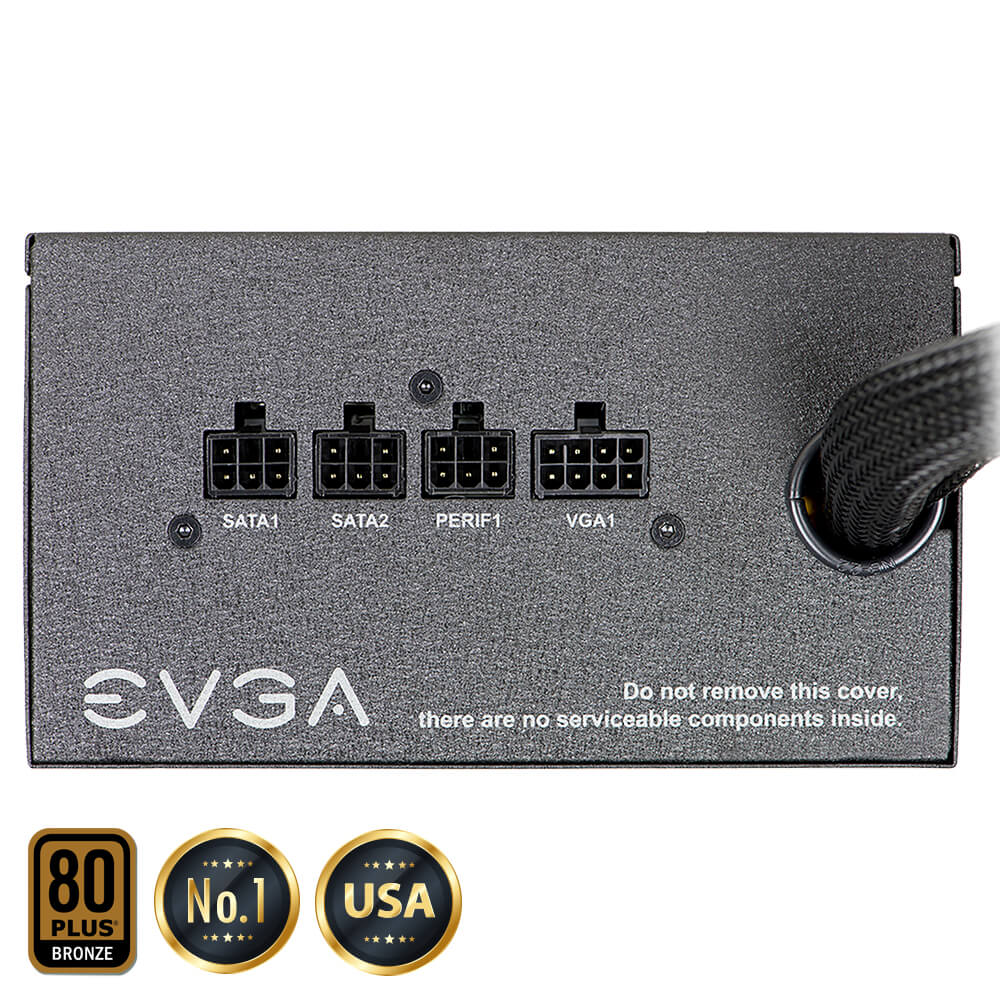

CONNECTOR QUANTITY
| 24 Pin ATX | 1x 24pin (20+4) |
| EPS (CPU) | 1x 8pin(4+4) |
| PCIE | 4x 8pin (6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

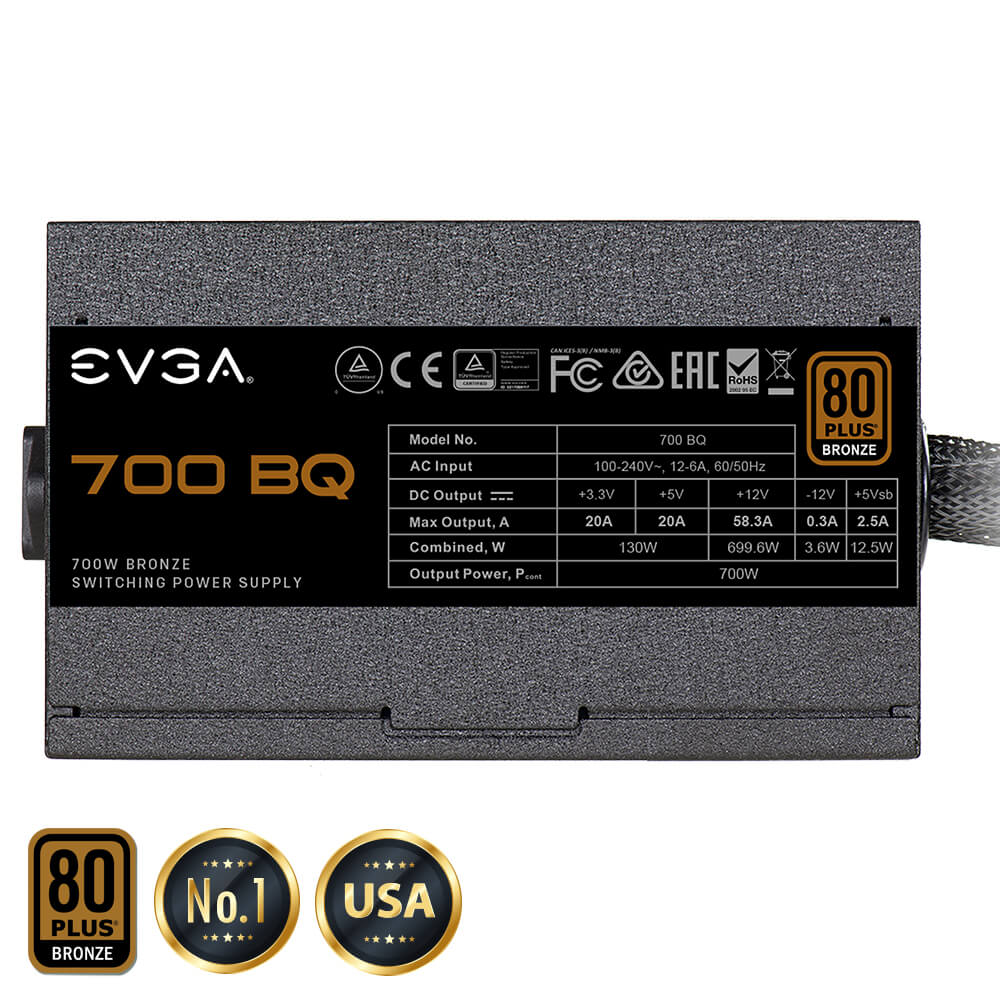

POWER SPECS

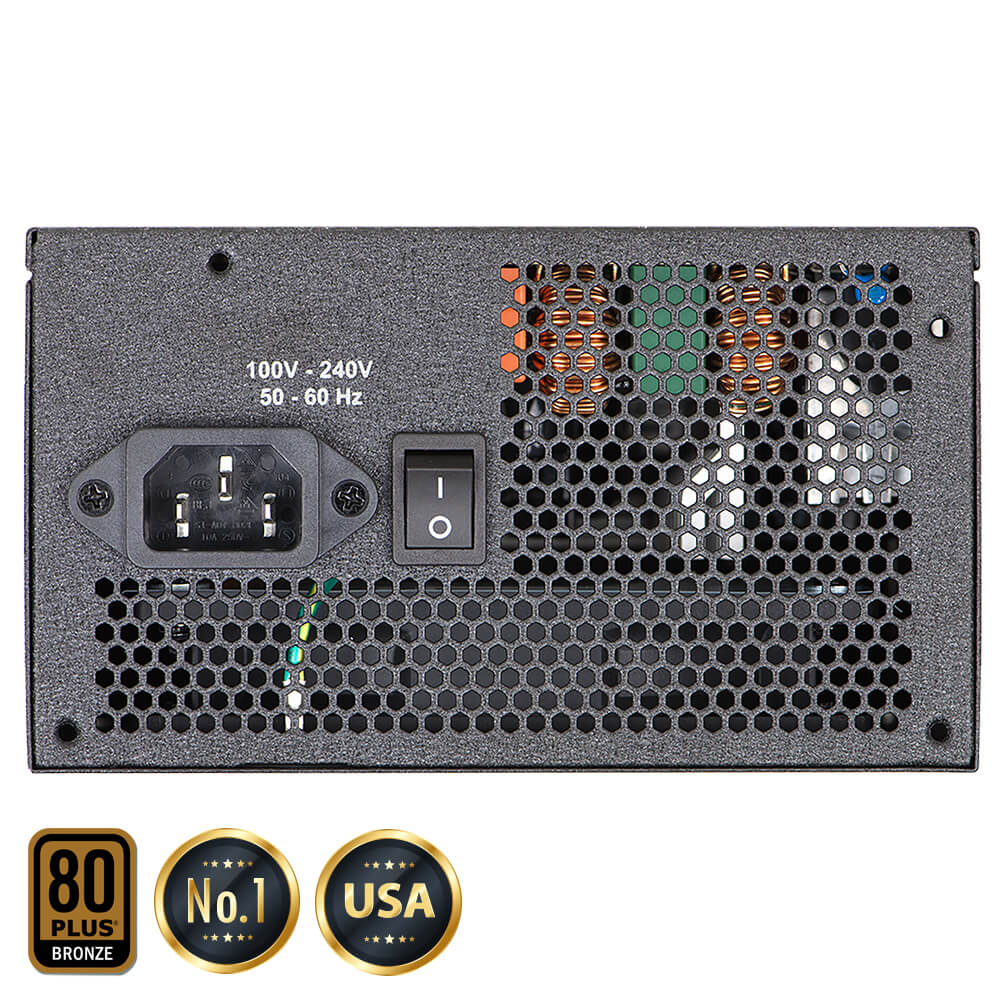

| AC Input | 100 – 240 VAC, 12-6A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 58.3A | 2.5A | 0.3A |
| 58.3A | |||||
| 130W | 699.6W | 12.5W | 3.6W | ||
| Total | 700W | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 5 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Teflon Nano-Steel Bearing |
