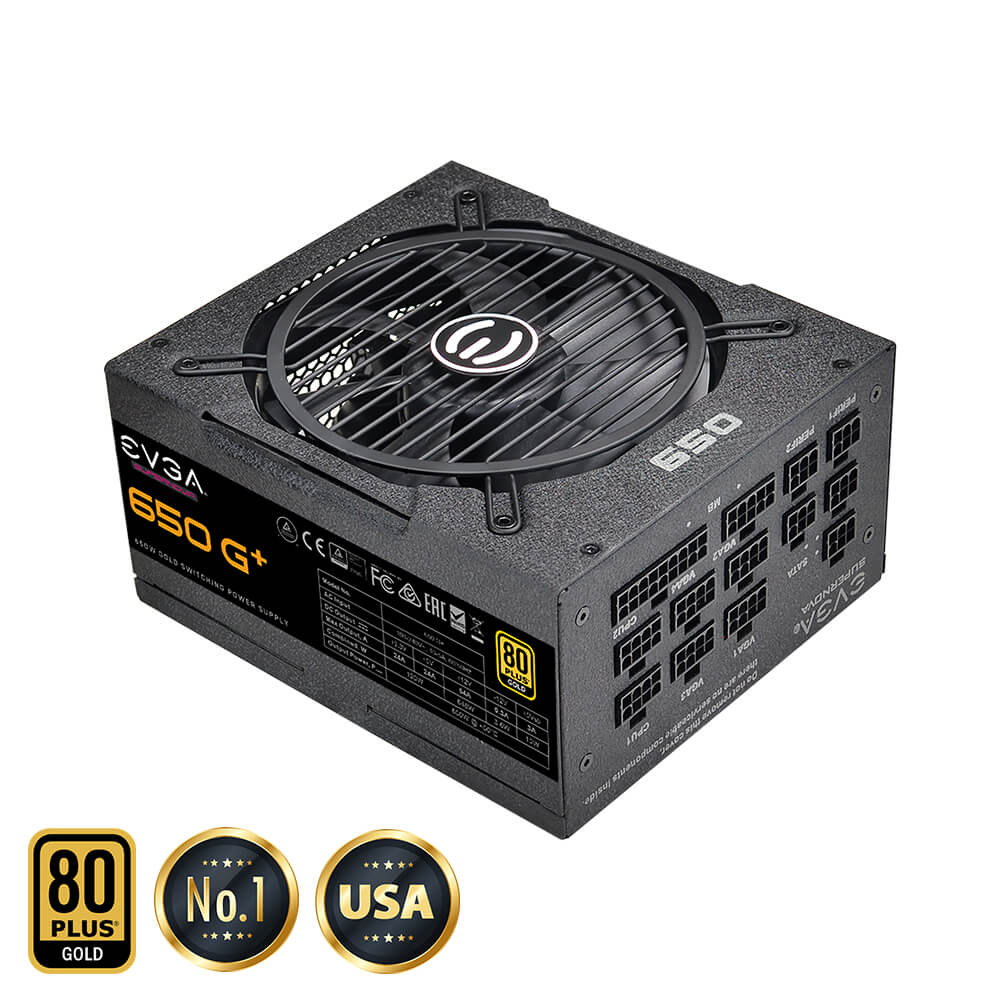

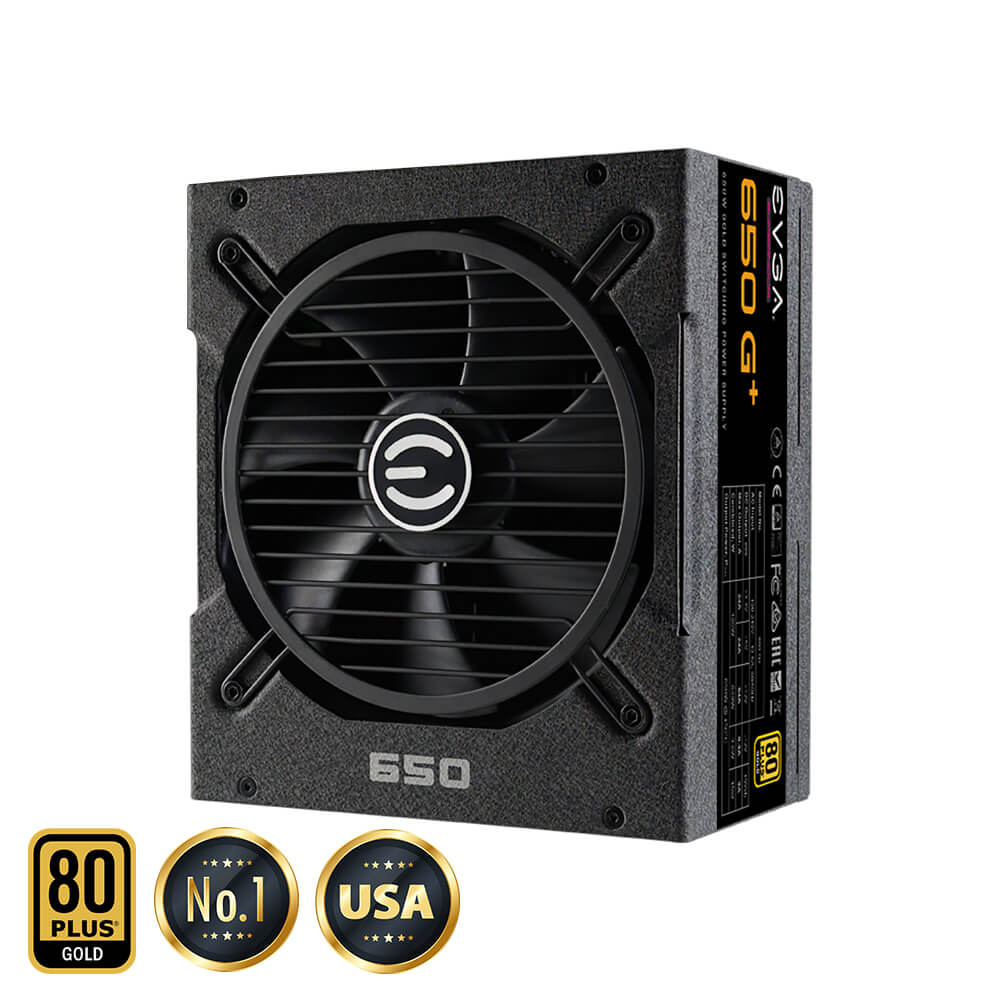

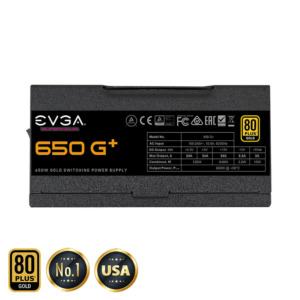

EVGA SuperNOVA 650 G+ – 80+ GOLD 650W – Fully Modular (TRAY)
Thông tin Sản Phẩm

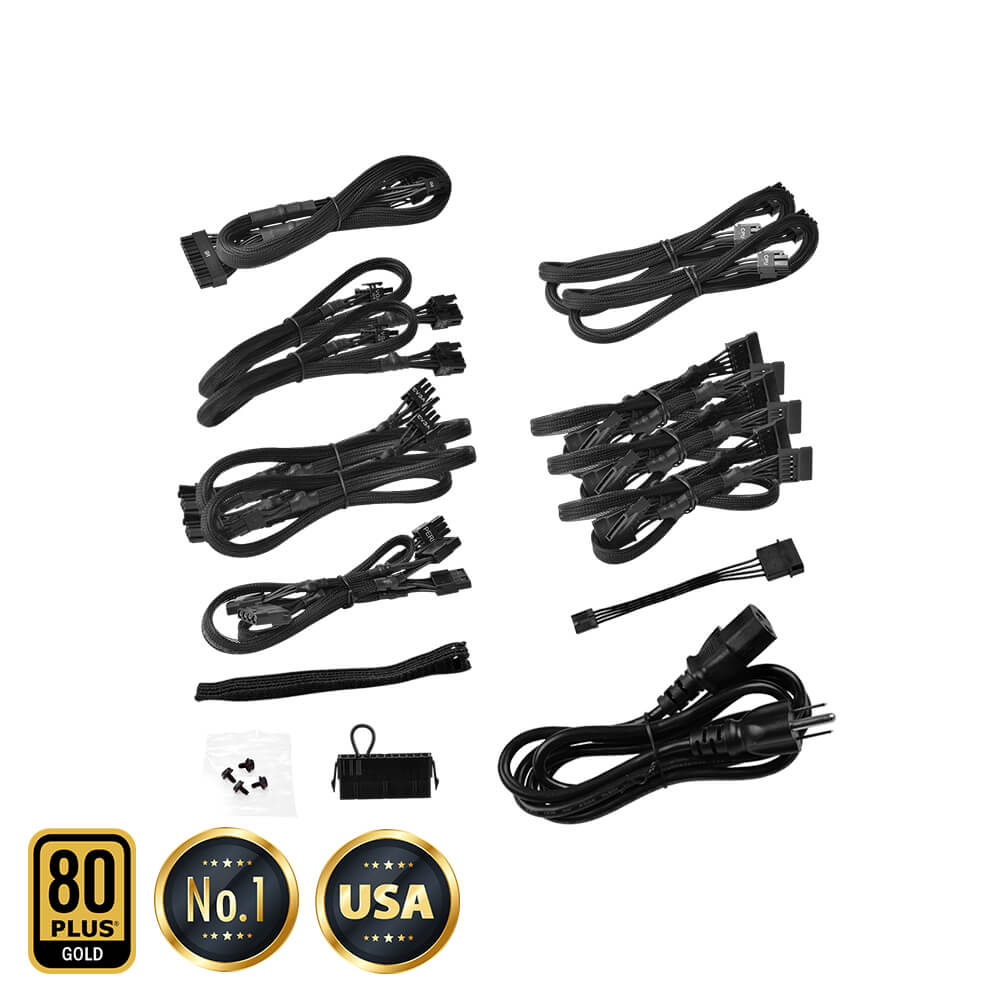

Cable Length
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 650mm (m) |
| PCIe Cable | 4x 650mm (m) |
| SATA Cable | 3x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| Molex to FDD | 1x |

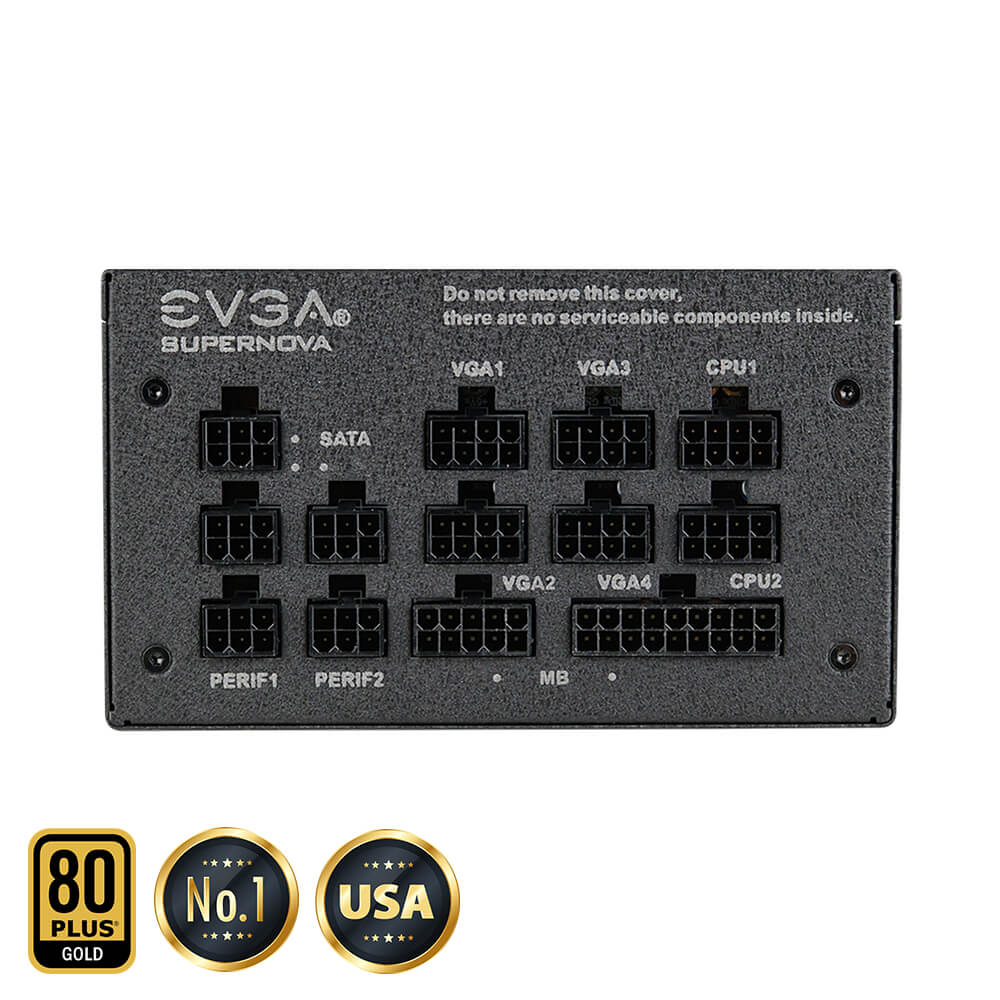

Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x8pin(4+4) |
| PCIe | 4x8pin(6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 6x |
| Floppy | 2x |
Power Specs

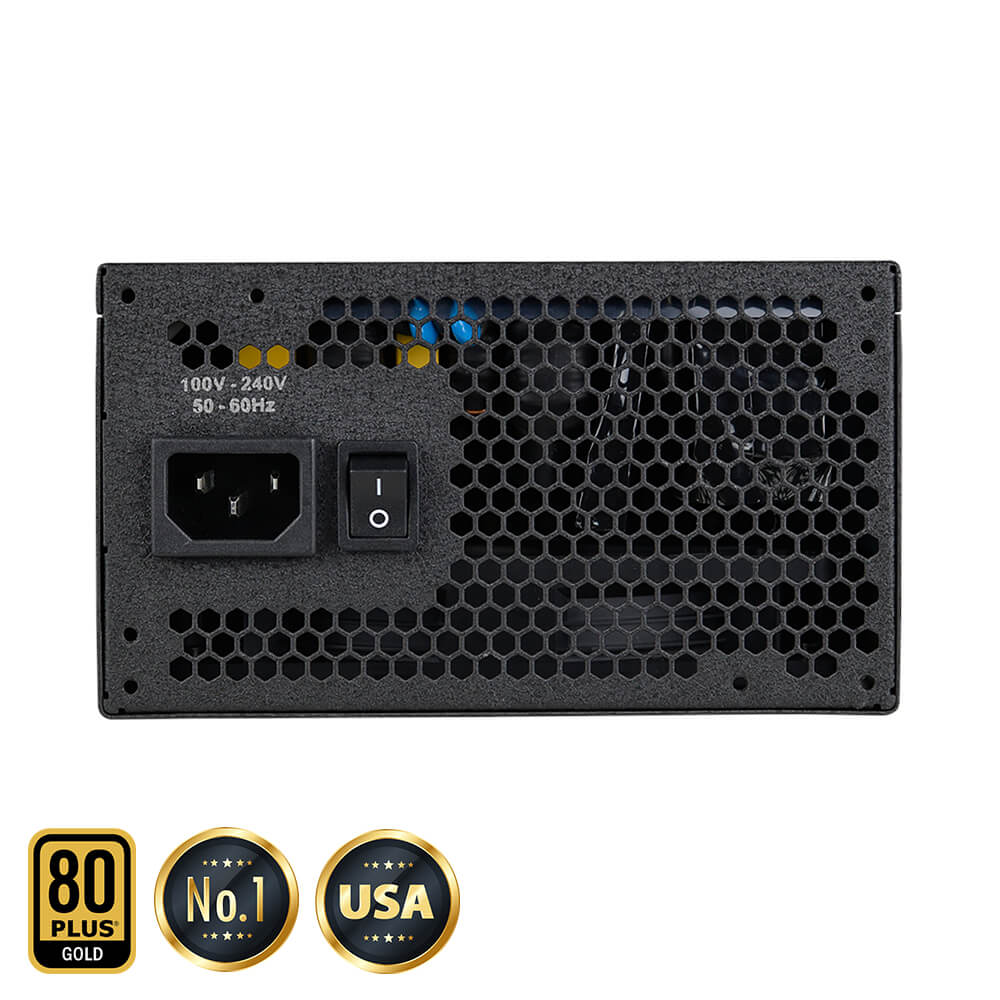

| AC Input | 100-240 VAC, 10-5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 24A | 54A | 3.0A | 0.3A |
| 648W | |||||
| 120W | 648W | 15W | 3.6W | ||
| Total | 650W@50°C | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 7 lbs |
| Size | 85mm (H) x 150mm (W) x 170mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
