EVGA SuperNOVA 750 G1 – 80+ GOLD 750W – Fully Modular (TRAY)
Thông tin Sản Phẩm

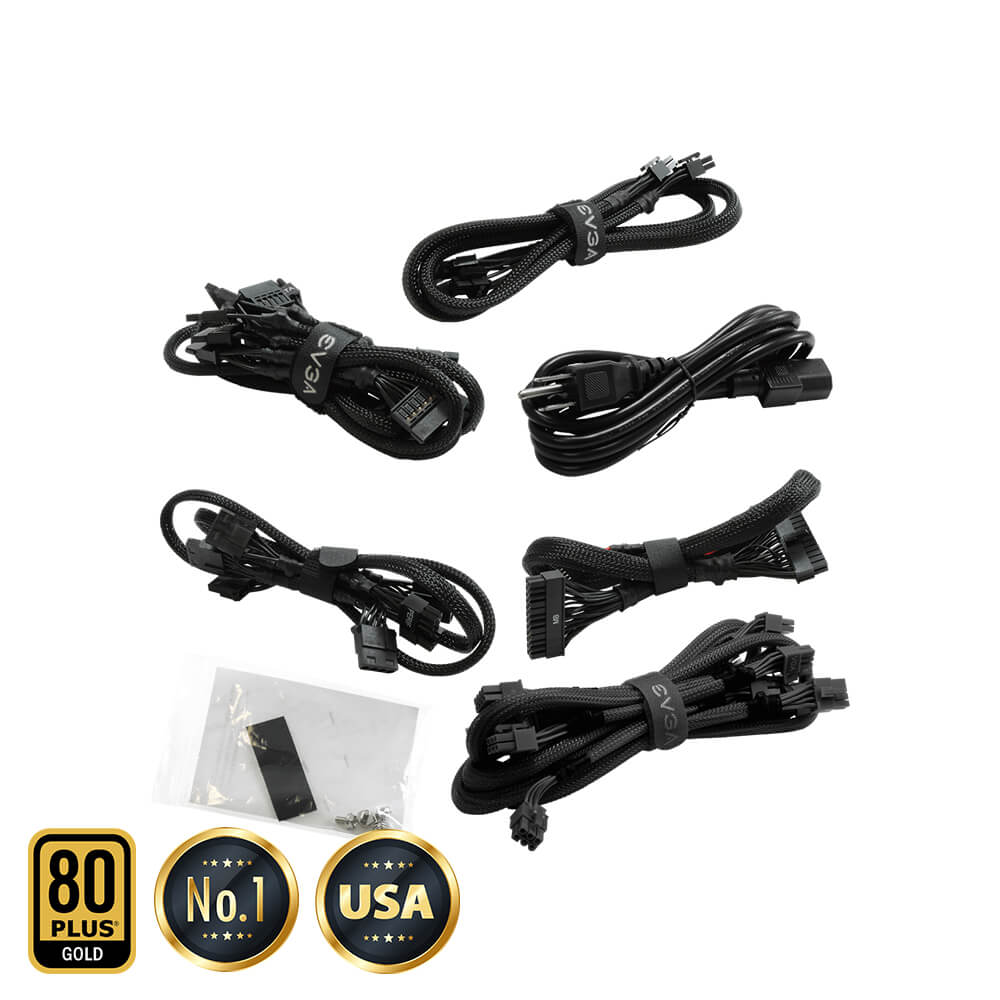

Cable Length
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 600mm (m) |
| PCIE Cable | 4x 600mm |
| SATA Cable | 1x 450mm, 550mm, 650mm (m), 2x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm (m), 1x 500mm, 650mm, 750mm +850mm (Floppy) |
| AC Power | 1x 1800mm (m) |
| Modular Cable Type | Full |

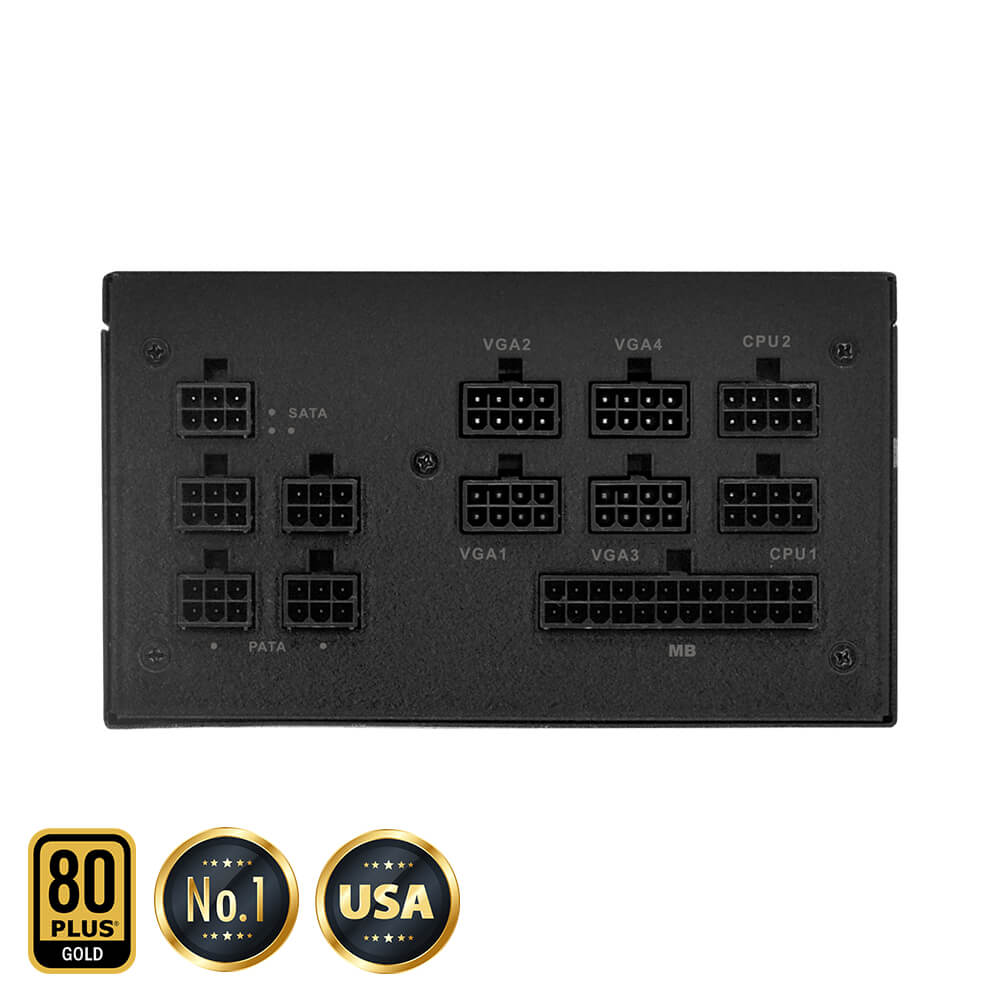

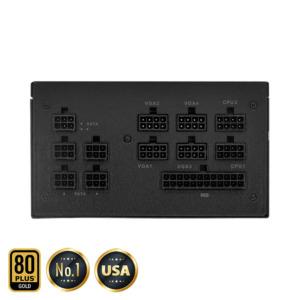

Connector Quantity
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIE | 4x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 6x |
| Floppy | 1x |

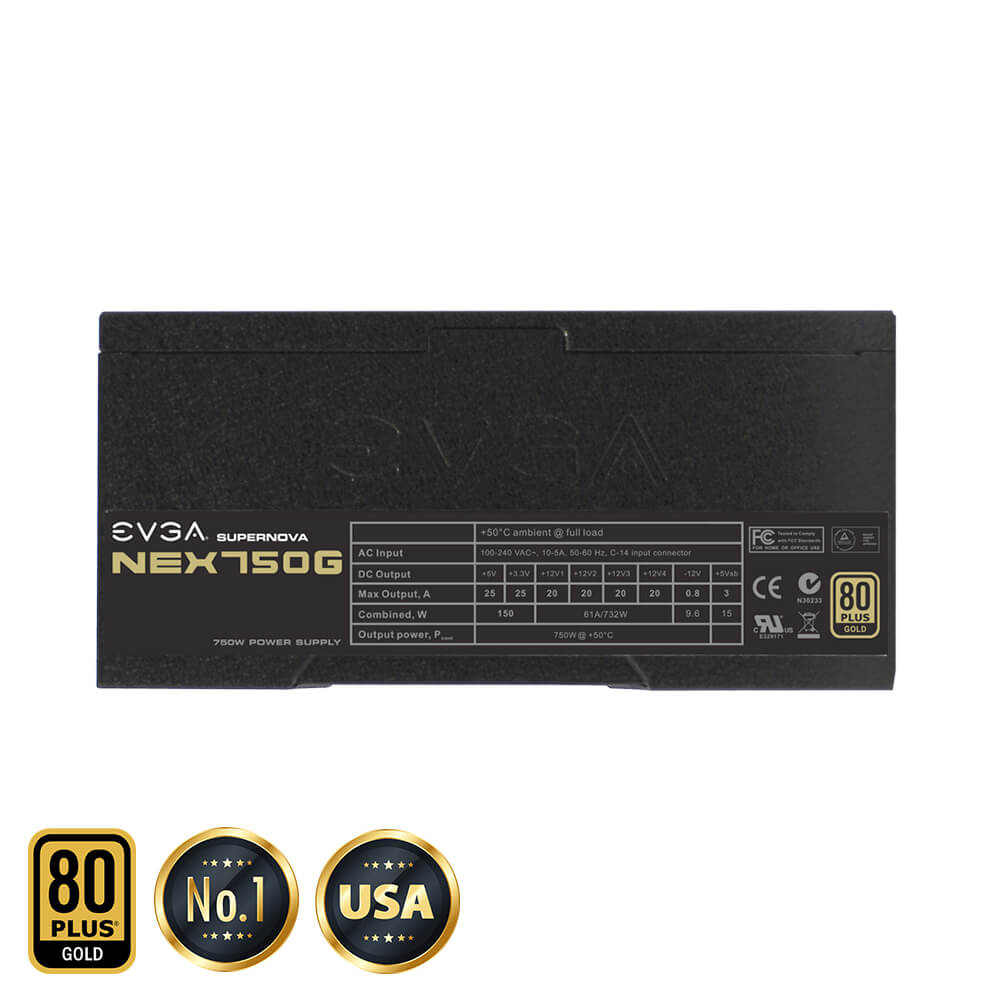

Power Specs
| AC Input | 100 – 240 VAC, 10-5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V1 / +12V2 / +12V3 / +12V4 | +5Vsb | -12V |
| Max Output | 25A | 25A | 61A (4 +12V Rails) | 3A | 0.8A |
| 61A | |||||
| 150W | 732W | 15W | 9.6W | ||
| Total | 750W @ +50C | ||||
Additional Details
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | Main PCB |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 6 lbs |
| Size | 85mm (H) x 150mm (W) x 180mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 135mm Double Ball Bearing |
