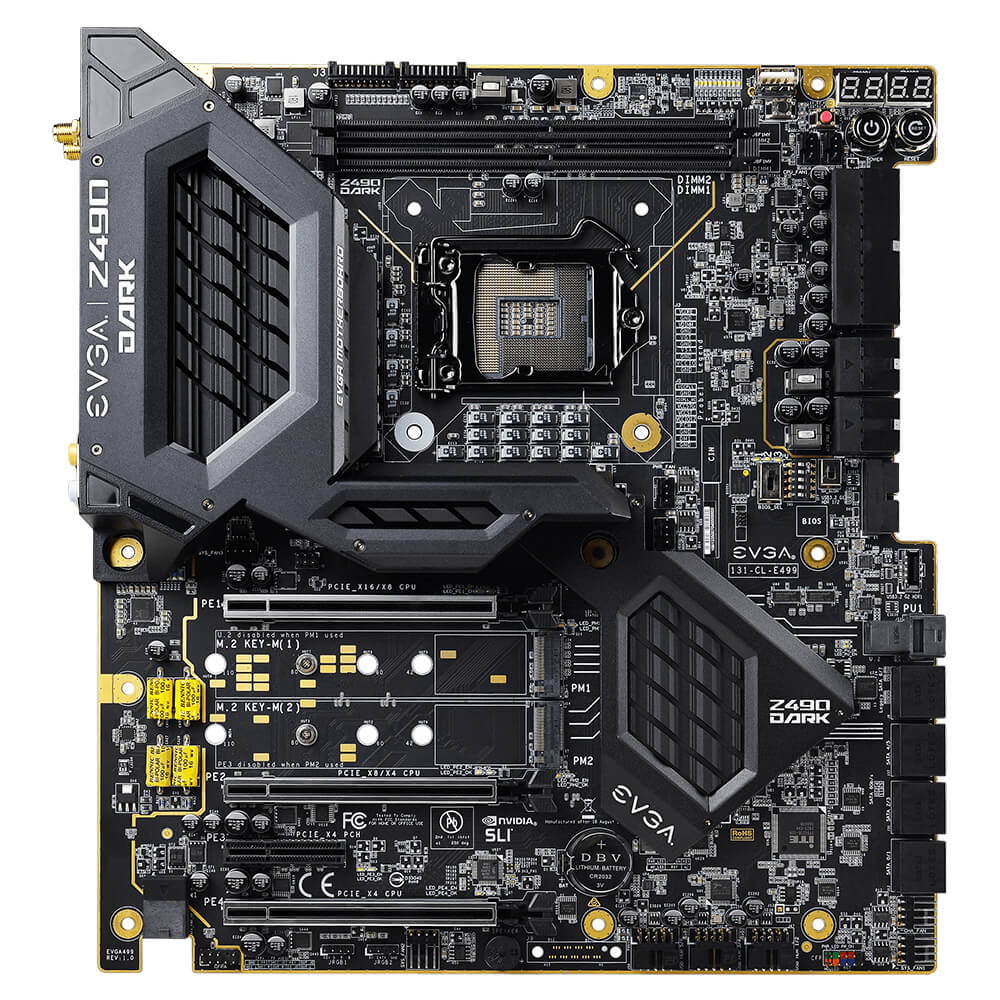

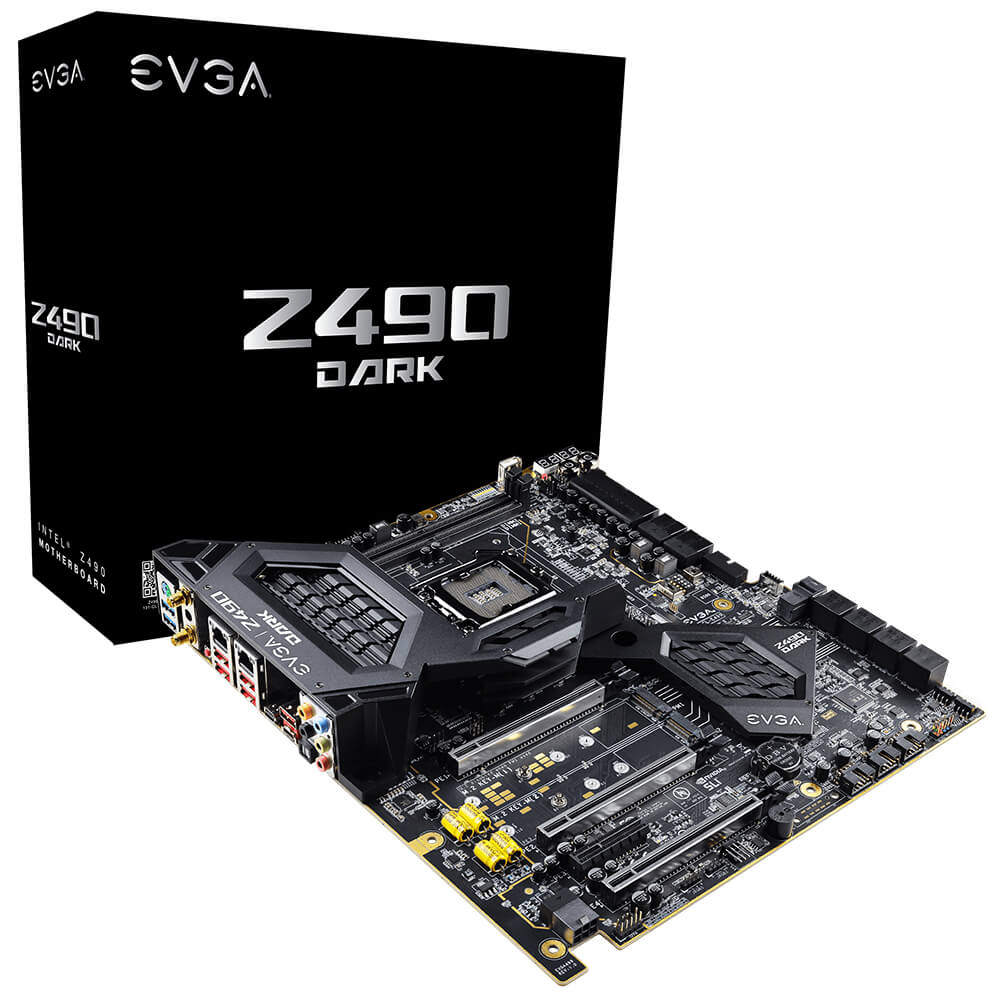

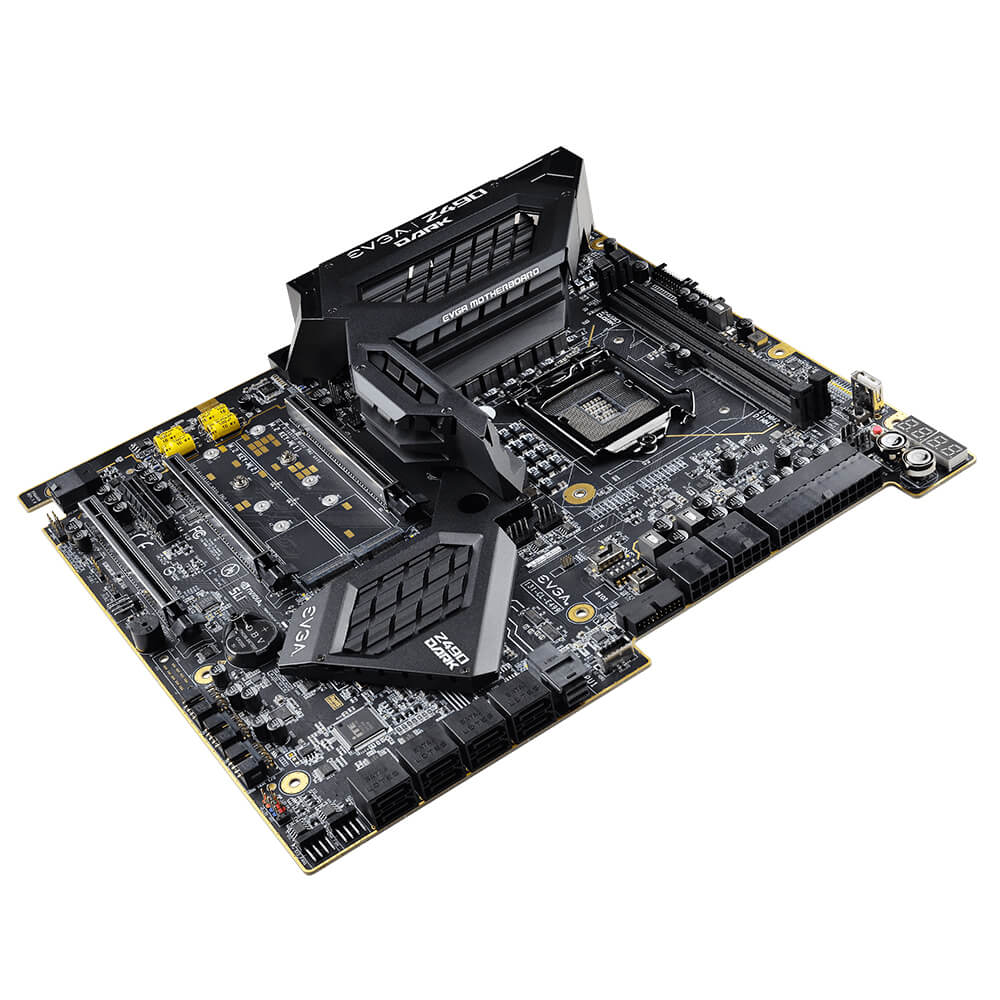

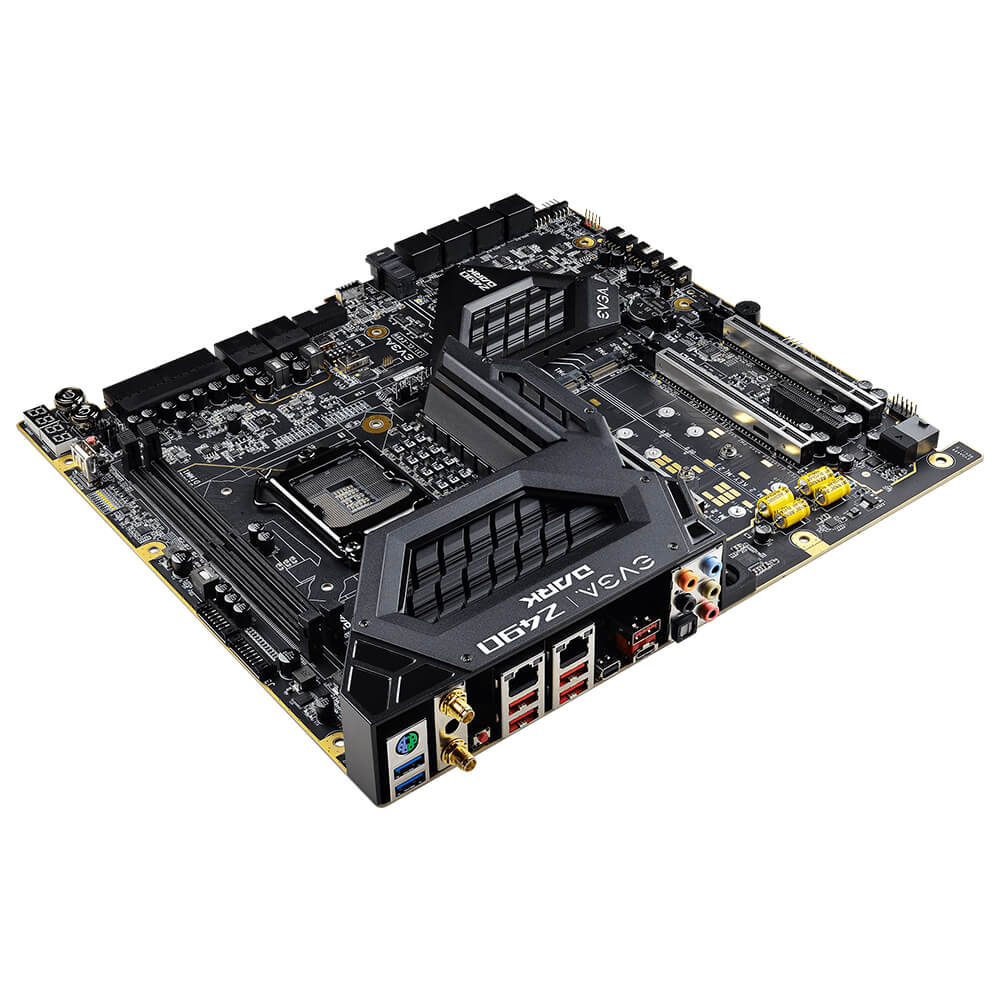

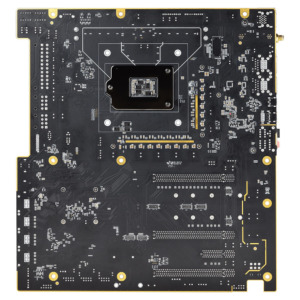

EVGA Z490 DARK – Socket 1200
Thông tin Sản Phẩm
The EVGA Z490 DARK sets the standard for motherboards based on the Intel® Z490 chipset. Designed for ultra-enthusiasts looking to pull every last ounce of performance from the new 10th Gen Intel® 10-Core CPUs, the Z490 DARK features an 18-Phase VRM design, along with two right-angle 8pin High Current connectors to provide maximum power for overclocking. Two SMT DIMMs enable high-frequency and low latency RAM overclocking. The 10-layer PCB is studded with multiple sensors to track a variety of temperatures and voltages across the board, which can be displayed on the dual-LED displays. The Z490 DARK also contains one Intel® 2.5 GbE NIC, one Intel® Gigabit NIC, a mini-Display Port, PCIe disable switches, triple BIOS support, 8 smart fan headers, and many more premium features. Lastly, a motherboard is only as good as its BIOS, and the EVGA Z490 DARK features EVGA’s newest UEFI/BIOS GUI with a focus on overclocking and functionality in a lean, straightforward package.
DESIGN DETAILS
| Supported CPUs | 10th Generation Intel® Core i9/i7/i5 Processors |
| Socket Type | Intel® SocketLGA1200 |
| PCH | Intel® Z490 |
| DIMM QTY | 2 DIMM Dual-Channel |
| Memory Type | DDR4 4800MHz+ |
| Memory Capacity | 64GB |
| SATA6.0Gb/sPorts/Controller | 6/Intel® Z490PCH |
| RAID Support | RAID 0, 1, 5, and 10 |
| SATA 6.0Gb/s Ports/Controller | 2 /ASMedia ASM1061 |
| USB 2.0 Ports/Controller | 7 Ports (6 from internal headers / 1 from Update Port for flashingBIOS)/Intel® Z490USBHub |
| USB 3.2 Gen1 Ports/Controller | 4 (2 from internal header)/Intel® Z490PCH |
| USB 3.2 Gen2 Ports/Controller | 5x USB3.2 Gen2 Type-A/1x USB3.2 Gen2 Type-C (external)/ 1x USB3.2 Gen2 Type-C (internal header) |
| Network Speed | 10/100/1000/2500 + 10/100/1000 |
| Network Ports/Controller | Intel i225V PHY + Intel® i219V PHY |
| WiFi/BT | Intel® AX201 WiFi 6 /BT 5.1 module, preinstalled in the M.2 Key-E 32mm Slot |
| Audio | 7.1 Channel Realtek + EVGA NU Audio |
| Audio Controller | Realtek ALC1220 + SV3H615 |
| Display Output | mini-DisplayPort |
| PCIe Slot Arrangement | 3×16, 1×4 |
| PCIe x16 Mechanical Slots | 3 |
| PCIe x16 Mechanical Arrangement | 1×16/8, 1×8/4, 1×4 |
| PCIe x4 Mechanical Slots | 1 |
| U.2 | 1x U.2 Port |
| M.2 Key-M | 2x 110mm (Up to 32Gbps) |
| M.2 Key-E | 1x 32mm (Vertical) |
| Fan Headers | 8x 4-Pin (2x CPU PWM, 6x PWM/DC) |
| BIOS Type | Latest UEFI BIOS with mouse/ keyboard control, OC Robot, In-BIOS Stress Test |
| Software | EVGA ELEET X1 Tuning Utility |
DIMENSIONS
| Width | 10.9in – 277mm |
| Length | 12in – 305mm |
| Form Factor | E-ATX Form Factor |
ACCESSORIES

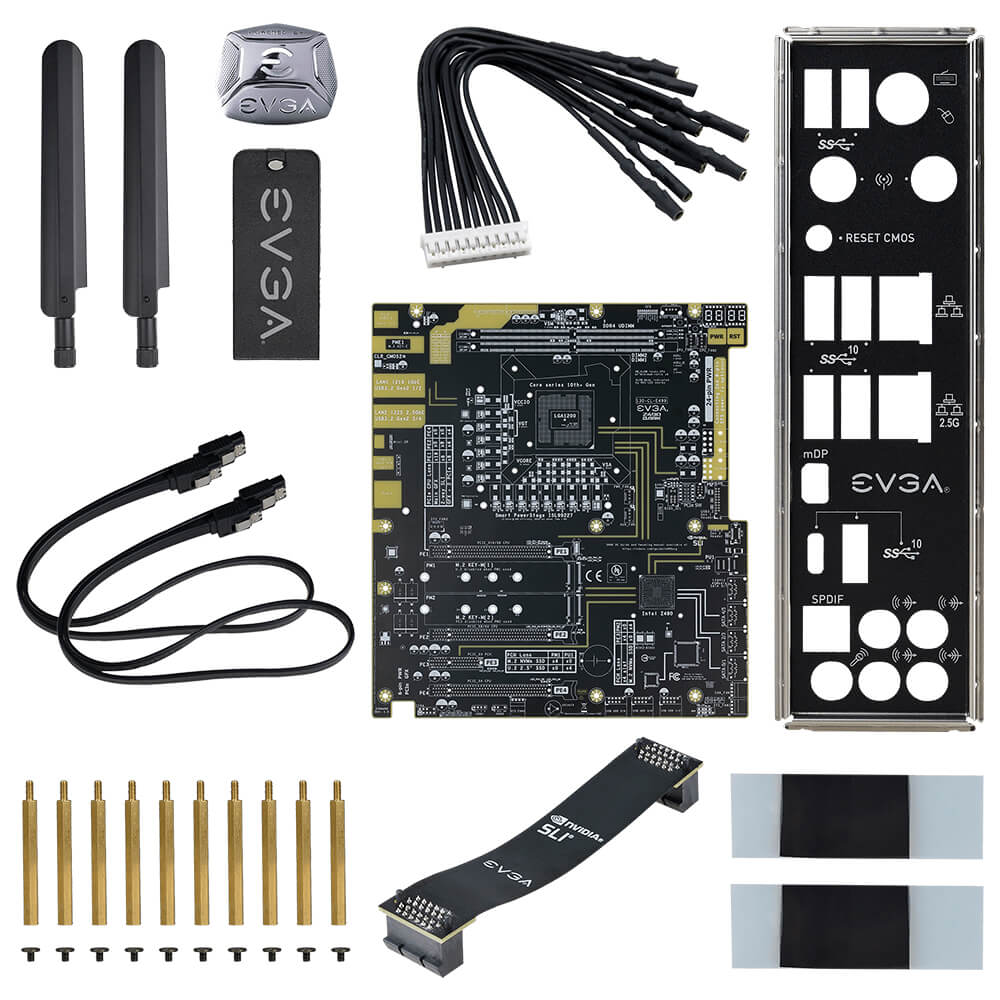

| ACCESSORIES | EVGA Quick Installation Guide Rear Case I/O Panel 2 SATA 6G Data Cables 2x M.2 Thermal Pad 2x Antenna for WiFi Benchstand + Screws/Standoffs 2x ProbeIt Connectors Flexible SLI® Bridge Case Badge USB Flash Drive Contains Driver and Manual |
