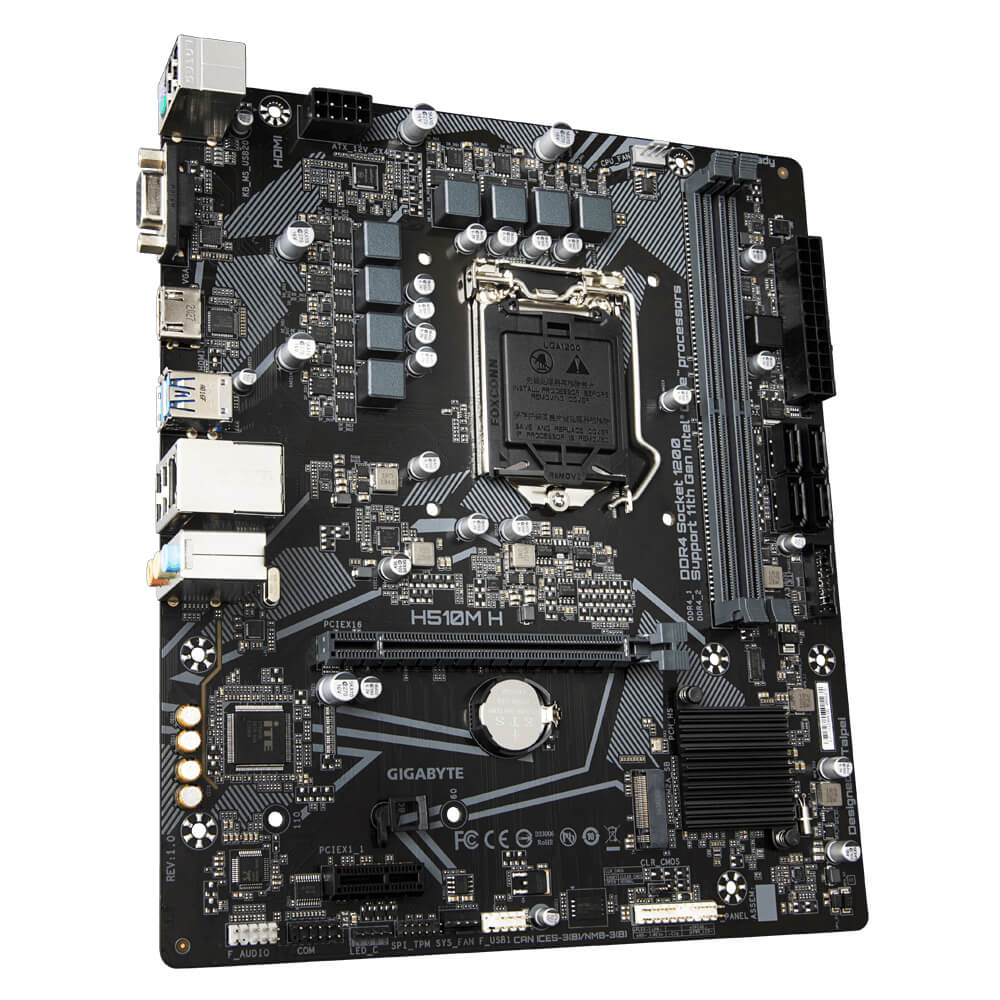

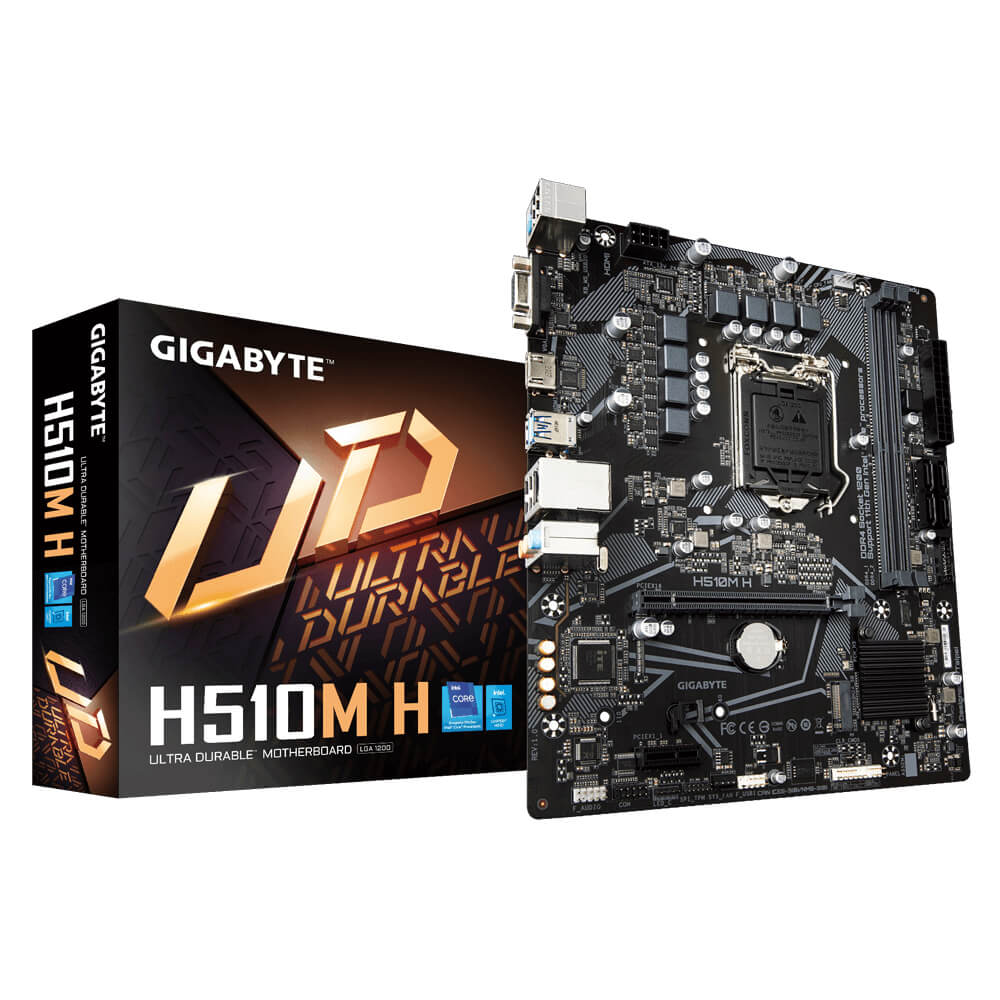

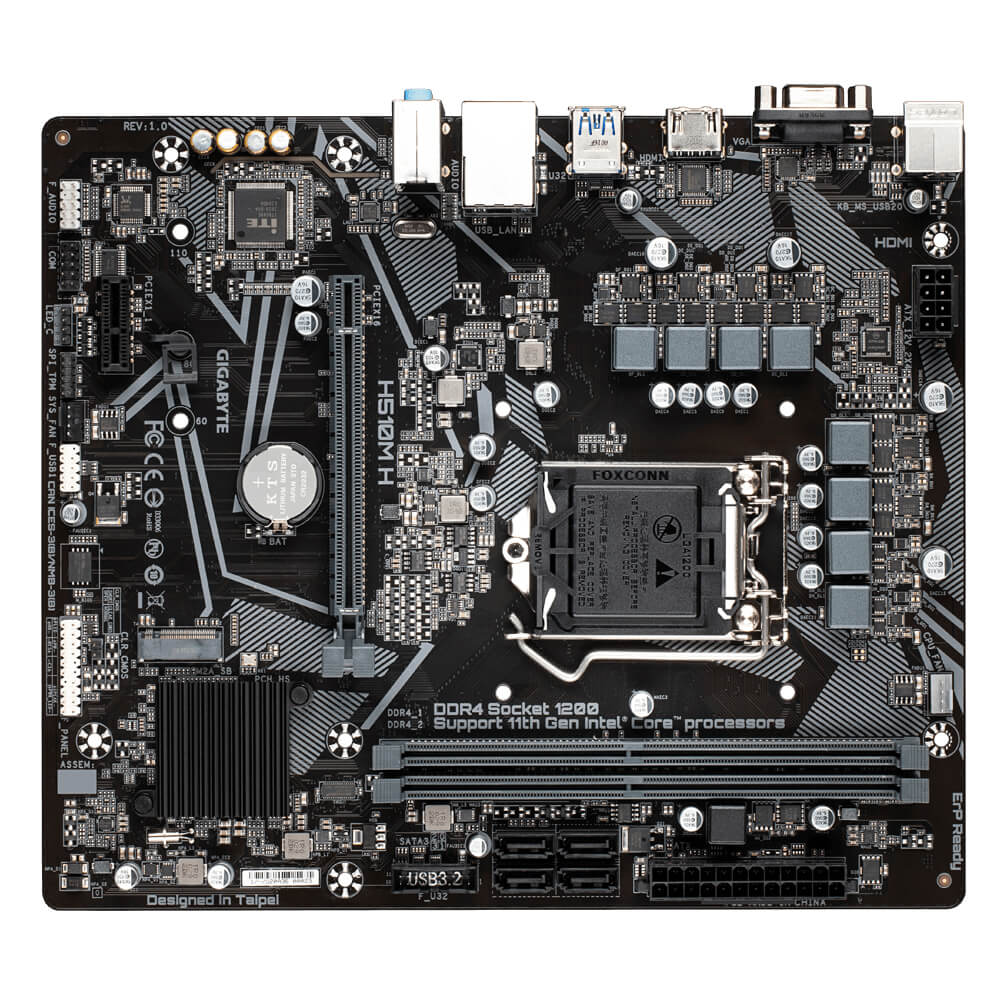

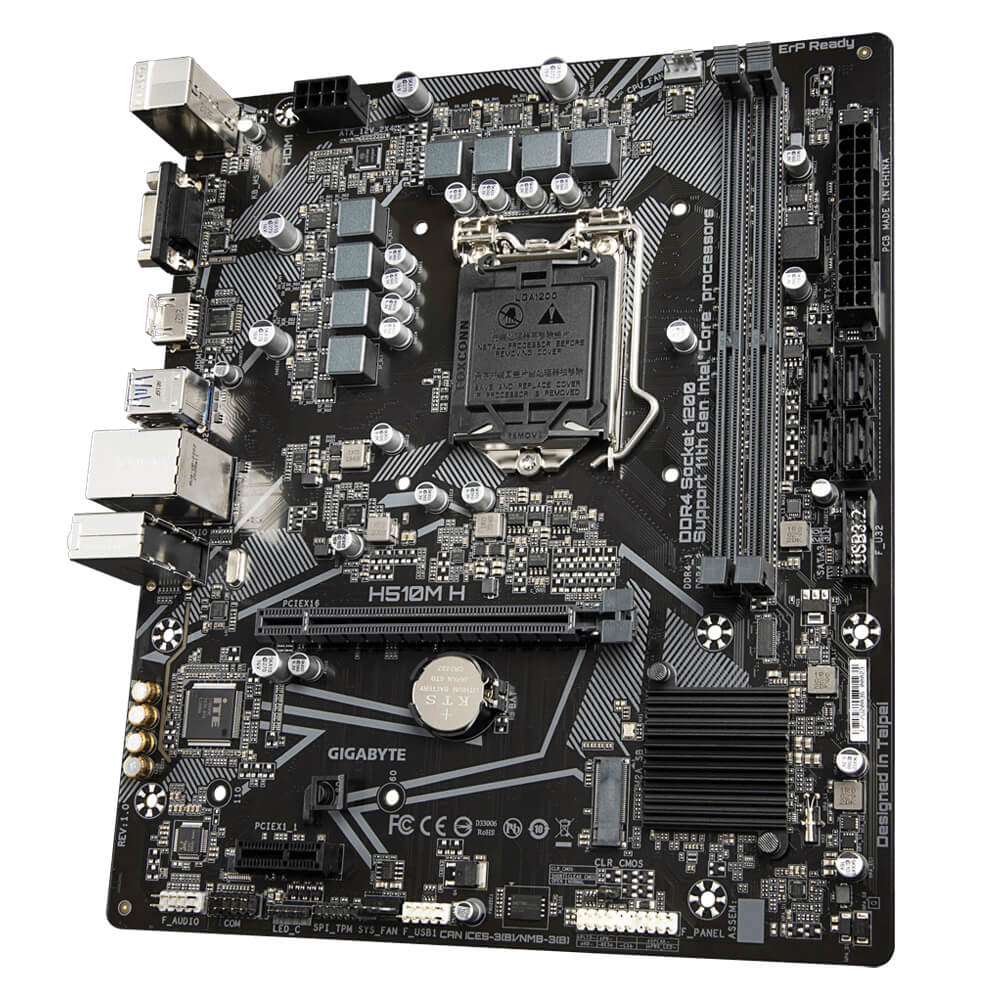

Gigabyte H510M H – Socket 1200
Thông tin Sản Phẩm
| CPU hỗ trợ | LGA1200 package: – 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors – 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® process |
| Chipset | H510 |
| Bộ nhớ trong | – 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Card đồ họa tích hợp | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
| Khe mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16). 1 x PCI Express x1 slot (PCIEX1_1) |
| Chuẩn lưu trữ | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Mạng | |
| Âm Thanh | – Realtek® ALC1220-VB codec – Support for DTS:X® Ultra – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out |

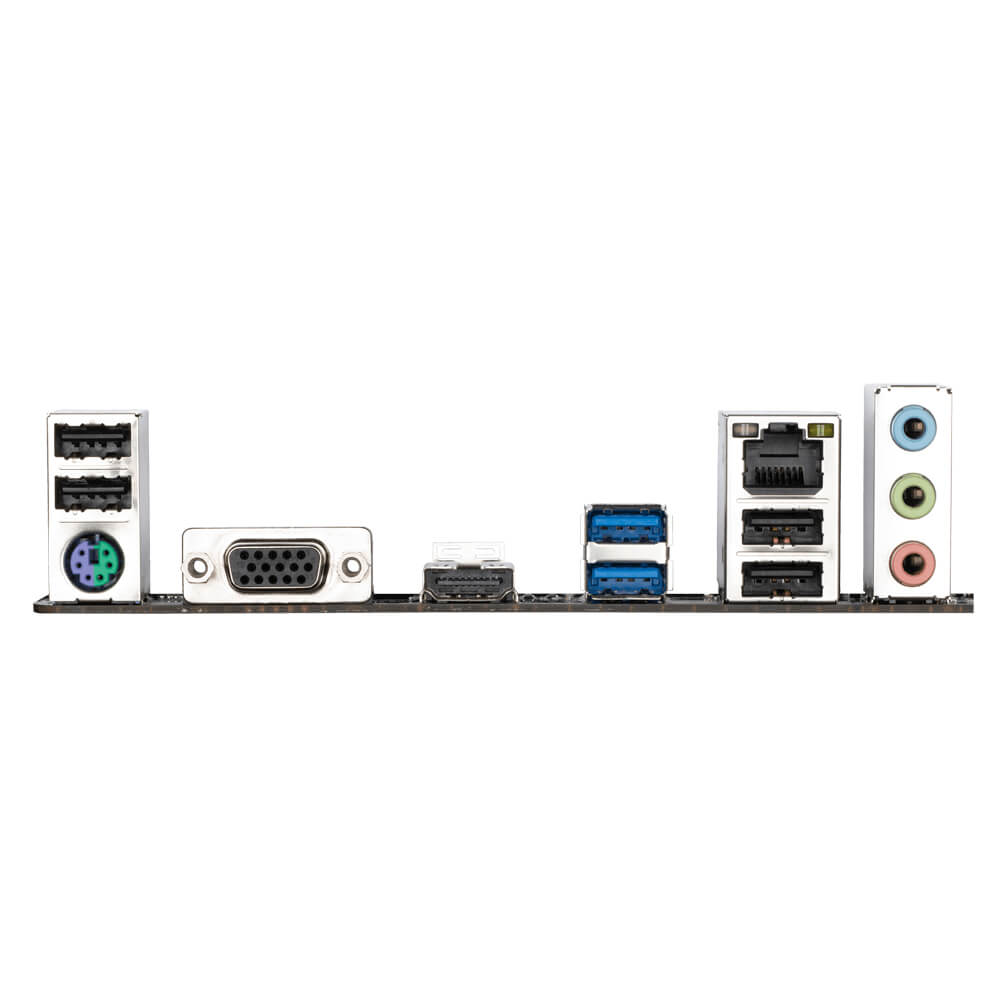

| Kết nối ngoài | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jac |
| Kết nối trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Kích thước | Micro ATX Form Factor; 24.4cm x 21.0cm |
