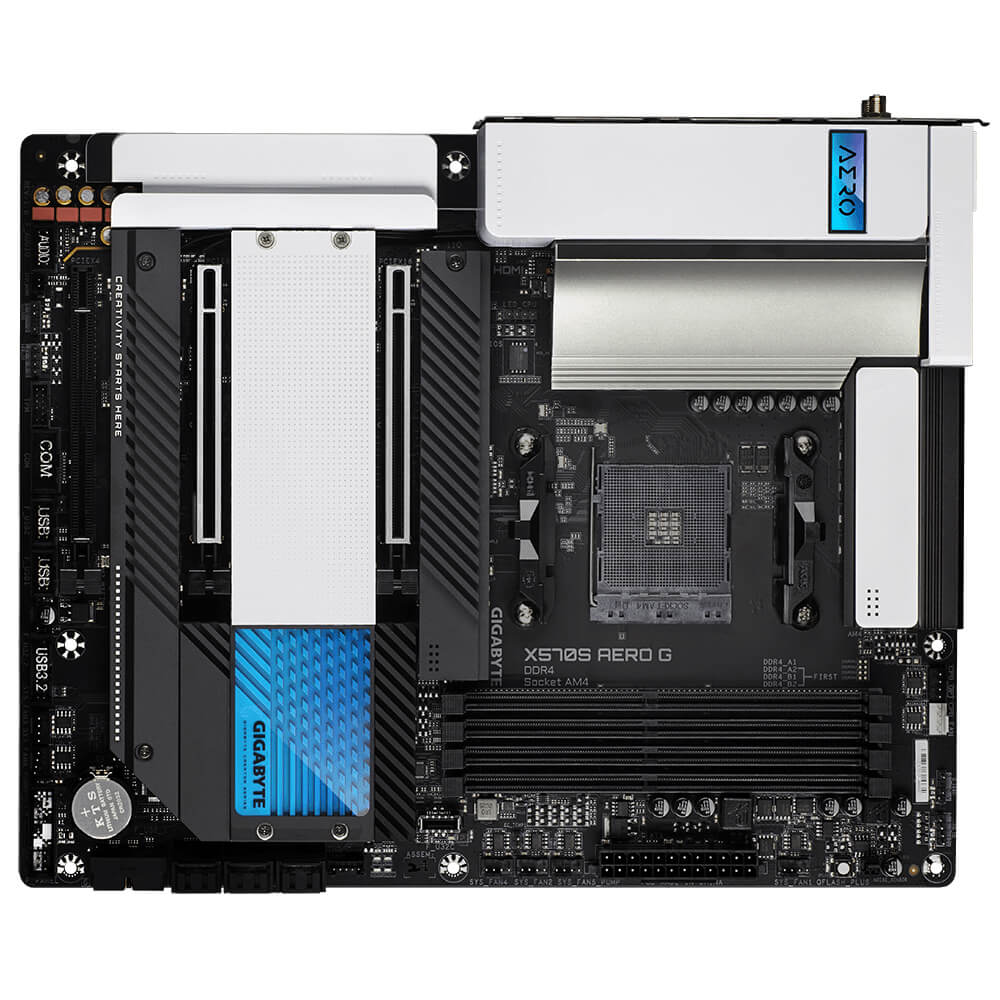

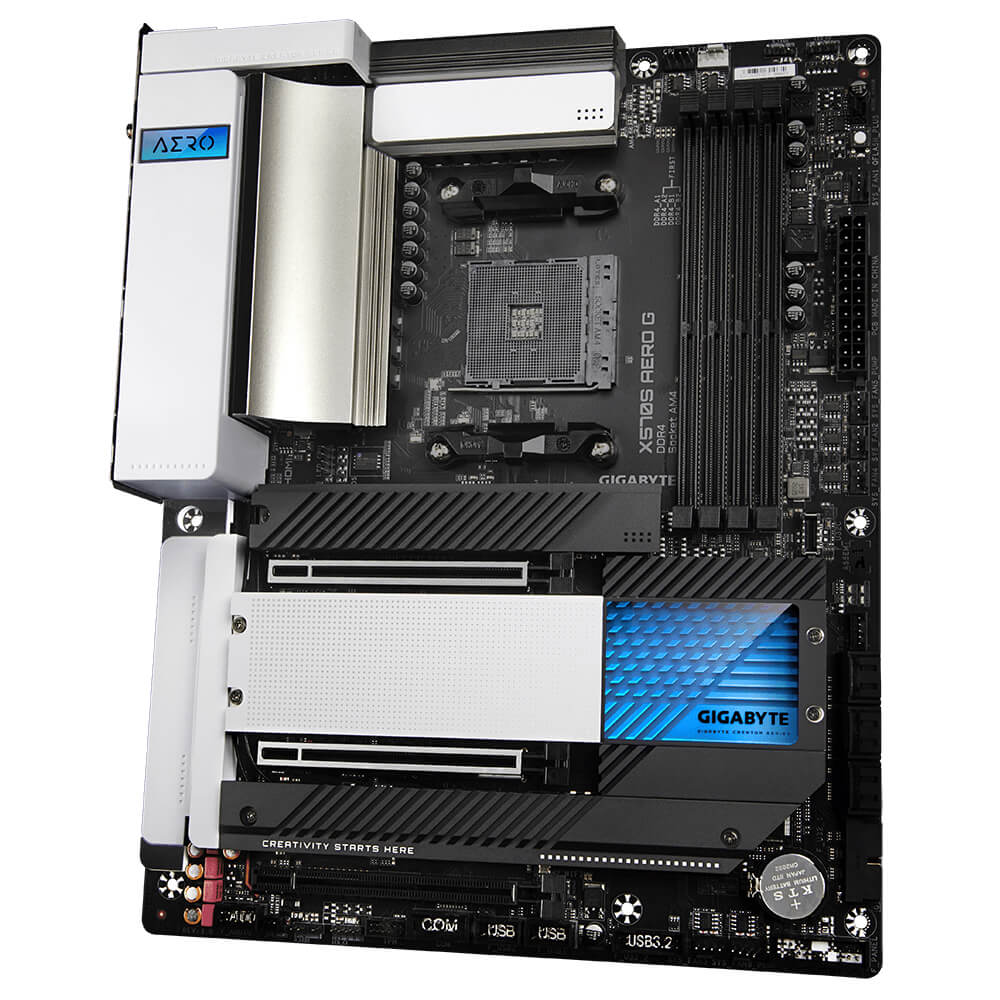

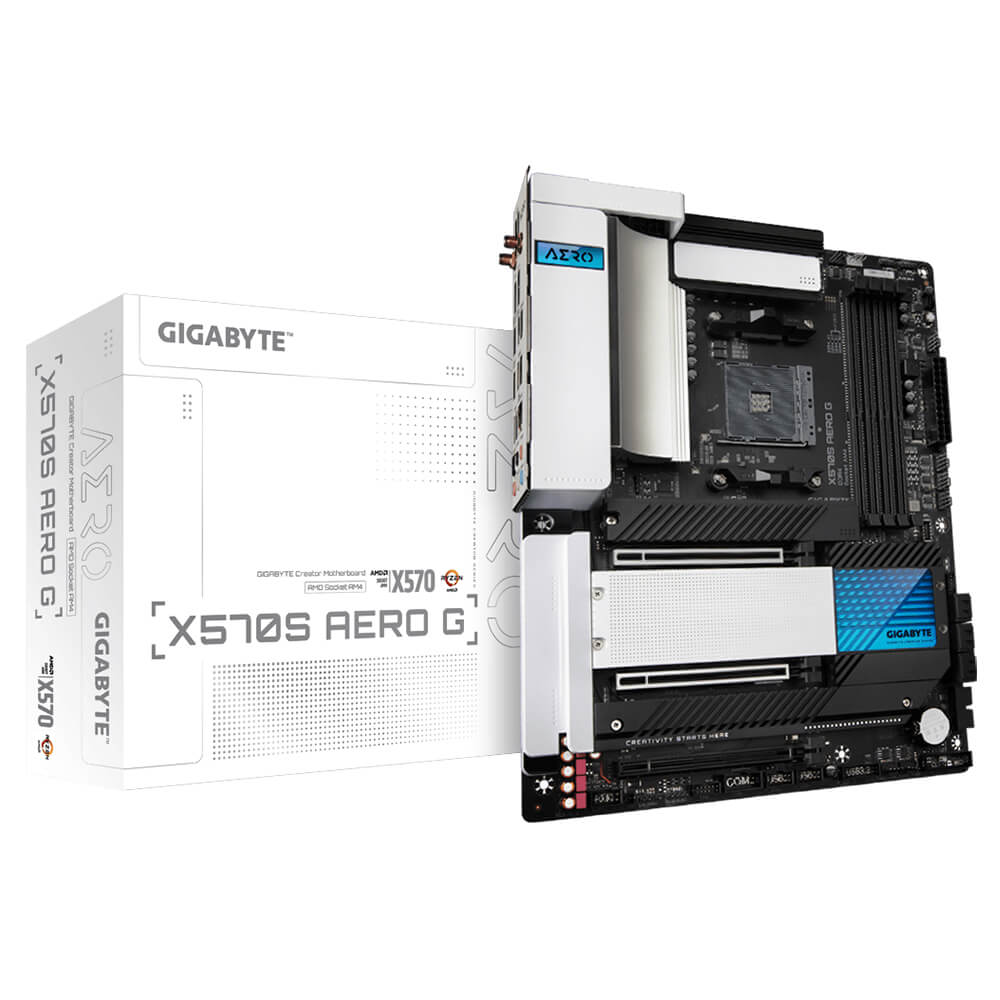

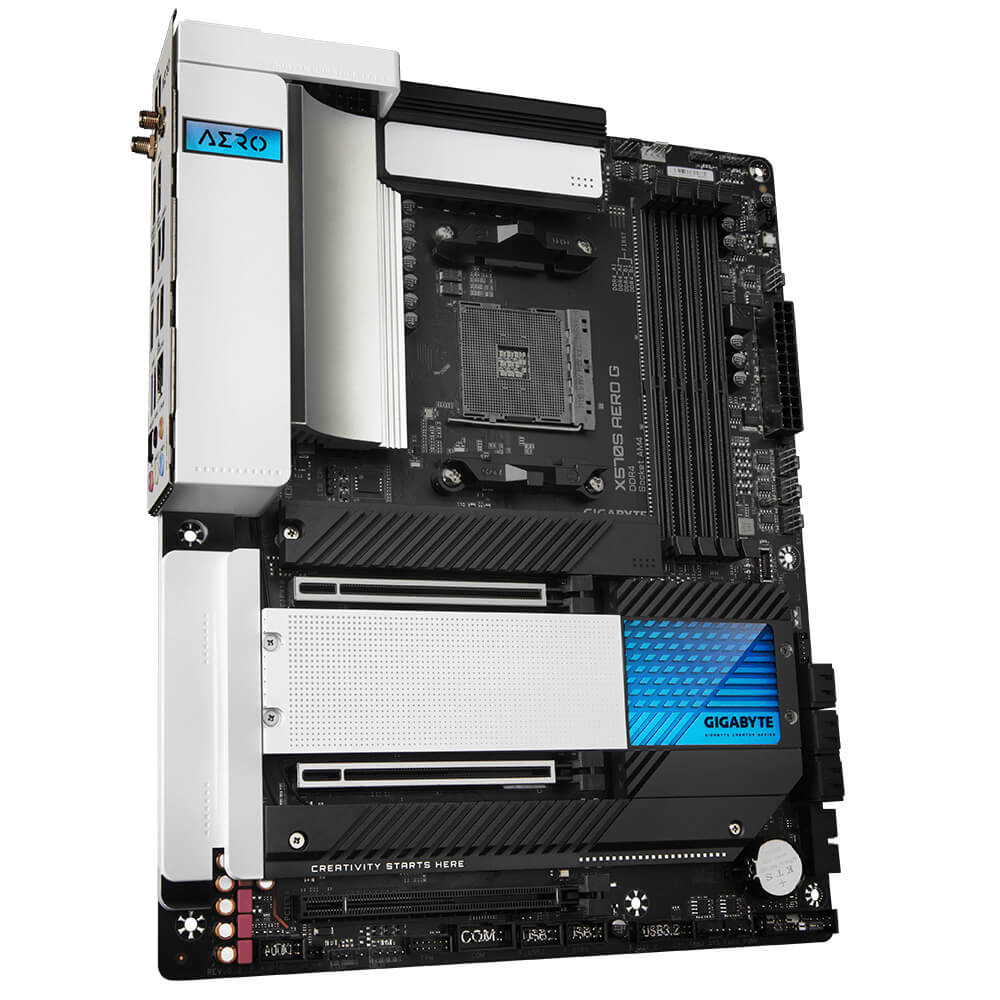

Gigabyte X570S Aero G (Rev 1.x) – Socket AM4

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x USB Type-C^® port, supporting USB Type-C^® and DisplayPort video outputs and a maximum resolution of 4096×2304@60 Hz
  * Support for drawing tablets and 20V@3A of power delivery.
  * Support for DisplayPort 1.4 version and HDCP 2.3
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

• Realtek^® ALC1220-VB Audio CODEC
  * The back panel line out jack supports DSD audio.
• Support for DTS:X^® Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

• AMD Ryzen™ 5000 Series/3000 Series Processors
  support PCIe 4.0 x16 mode
• AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
  support PCIe 3.0 x16 mode
• AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
  support PCIe 3.0 x8 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

• AMD Ryzen™ 5000 Series/3000 Series Processors
  support PCIe 4.0 x8 mode
• AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
  support PCIe 3.0 x8 mode
• AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

• Supporting PCIe 4.0* /3.0 x4 mode
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.
  * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

* For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.

• AMD Ryzen™ 5000-Series/3000 Series Processors
  support SATA and PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
  support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

• Supporting PCIe 4.0* /3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

• Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:

• Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
  * For AMD Ryzen™ 5000 Series/3000 Series Processors only.

6 x SATA 6Gb/s connectors, integrated in the Chipset:

• Support for RAID 0, RAID 1, and RAID 10
  * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

• 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports on the back panel

Chipset+ASMedia^® USB 3.2 Gen 2×2 Controller:

• 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support

Chipset:

• 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
• 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x serial port header
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• 1 x Q-Flash Plus button

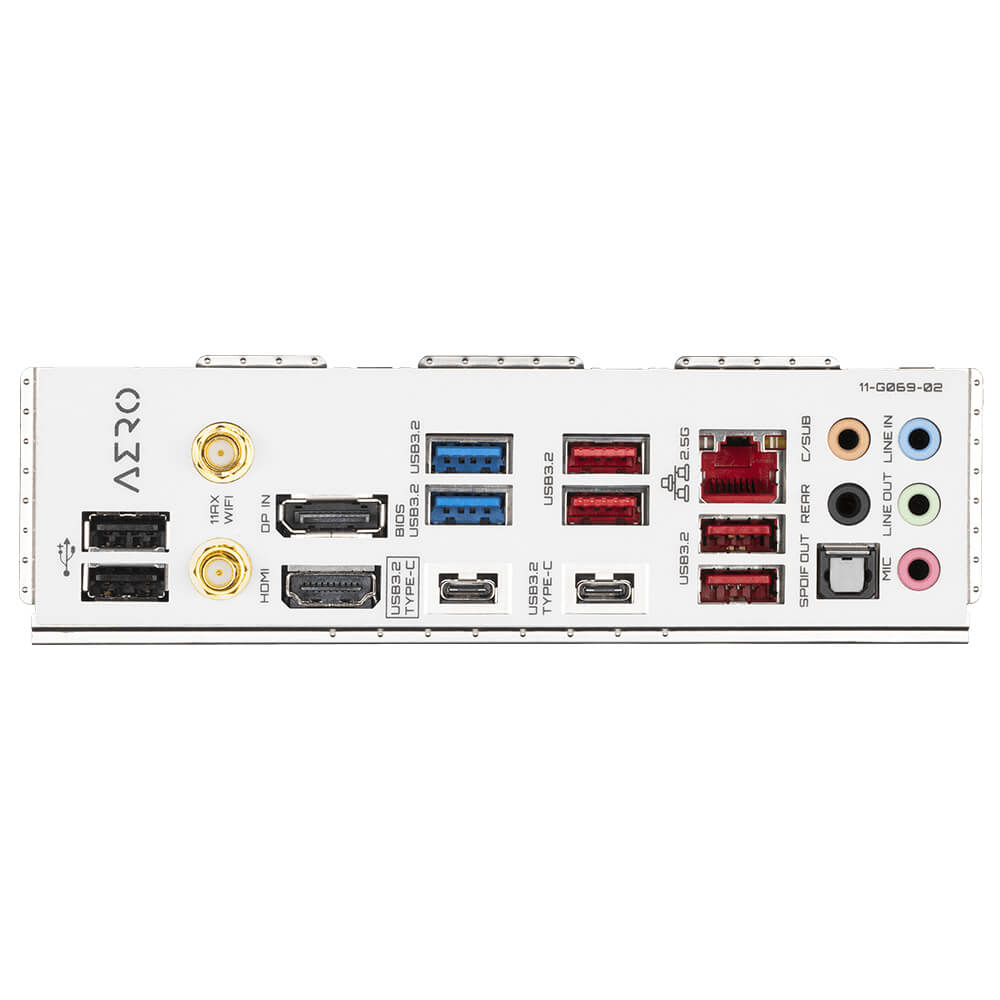

• 2 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port
• 1 x DisplayPort In port
• 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
• 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
• 4 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton^® Internet Security (OEM version)
• cFosSpeed
