Model | D-Frame 2.0 |
Color | Black/Gold Platinum, White/Blue, Black/Green |

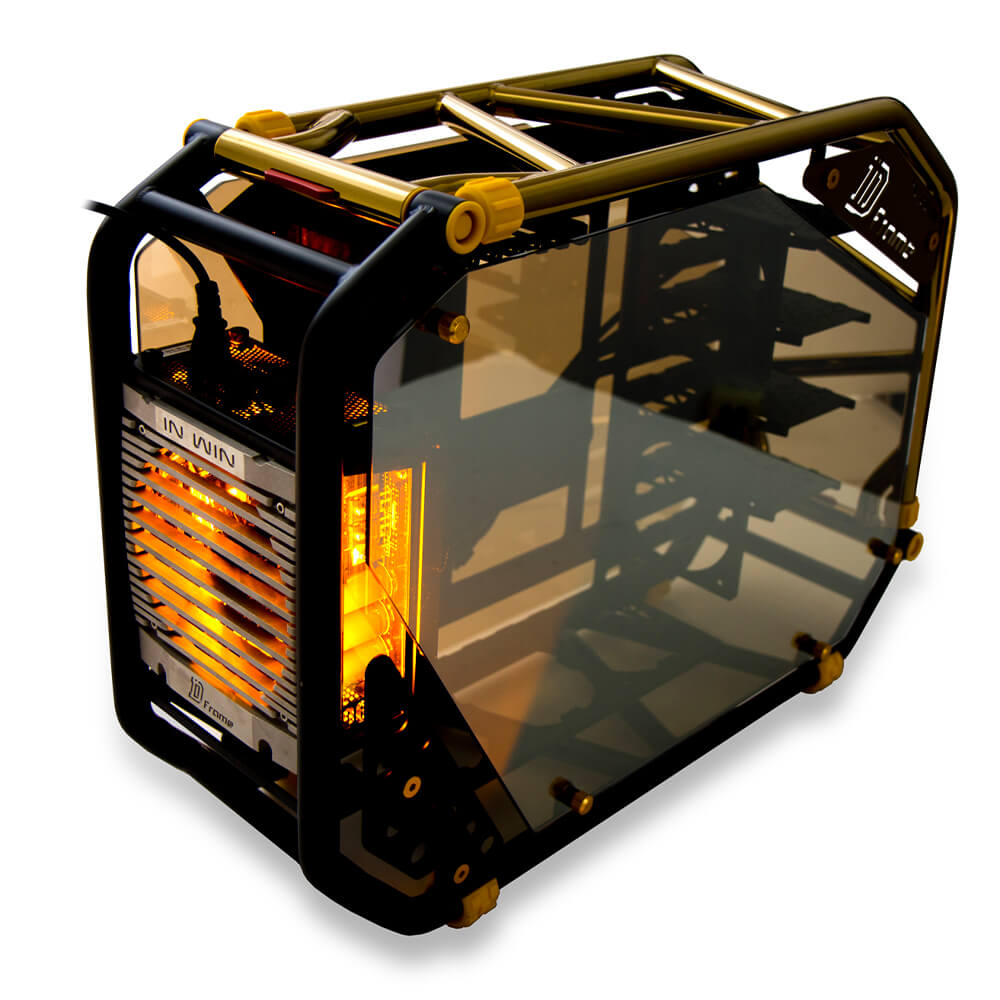

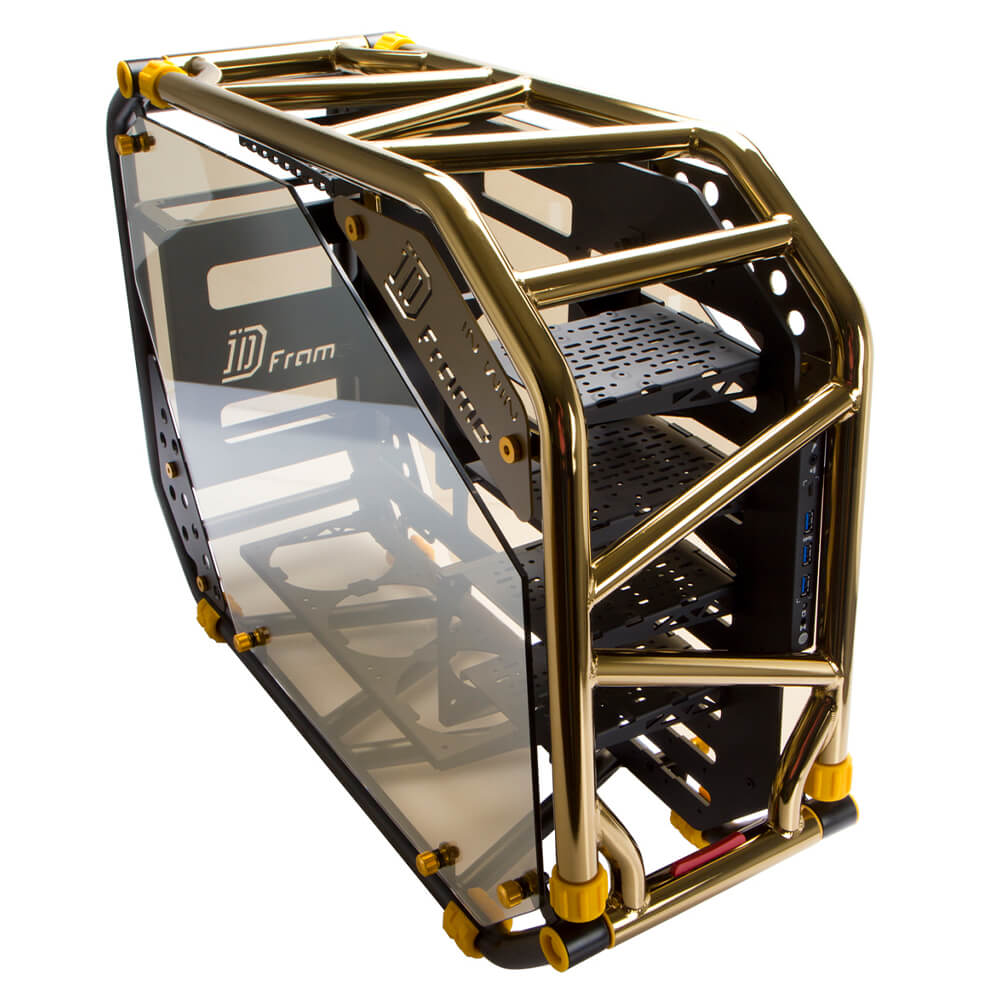

Case Type | Open-Air Chassis |

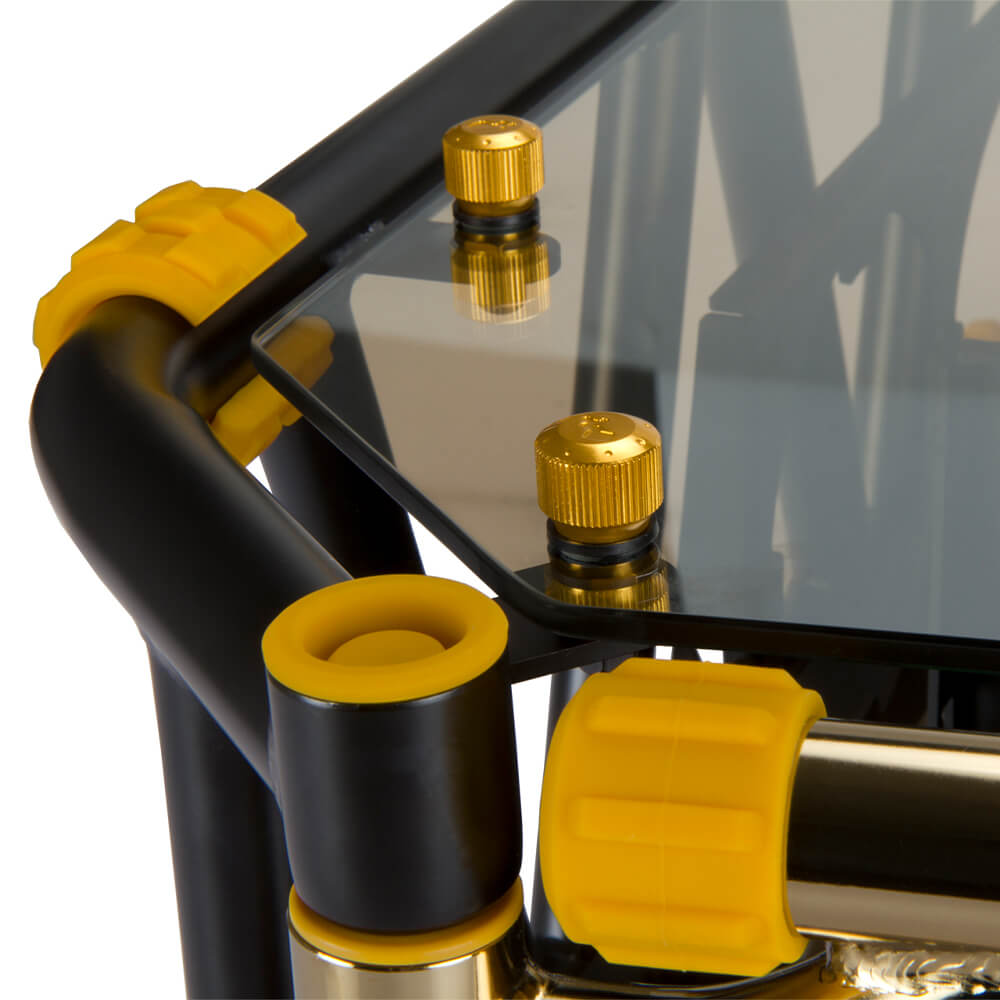

Case Material | Reinforced Steel Tube, Aluminium, Tempered Glass |
M/B Compatibility | 12″ x 13″ E-ATX, ATX, Micro-ATX |
Expansion Slots | 8 x PCI-E Slots |
Maximum Compatibility | VGA Card Length: 350-415mm (Depends on Mounting Configuration) VGA Card Height: 173mm (Motherboard Die Surface to Side Panel) CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel) |

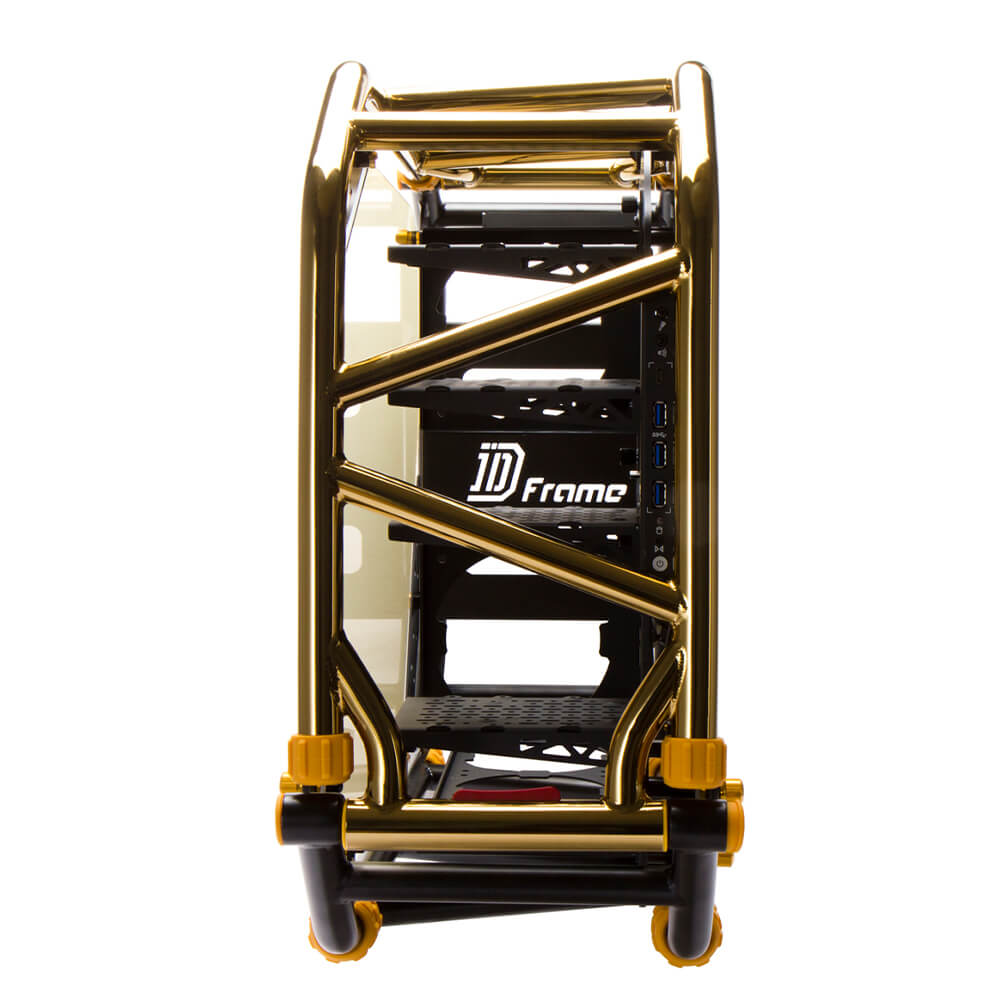

Front Ports | 1 x USB 3.1 Type-C 3 x USB 3.0 HD Audio |
Internal Drive Bays | 4 x 2.5“/3.5” Multifunctional Brackets |
Thermal Solution Compatibility | 2 x 120mm Fan Brackets (Supports 2 x 120mm Fans) 1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans) Supports 1 x 360mm Radiator – Front: 90mm Maximum Height including Fans – Bottom: 65mm Maximum Height including Fans |

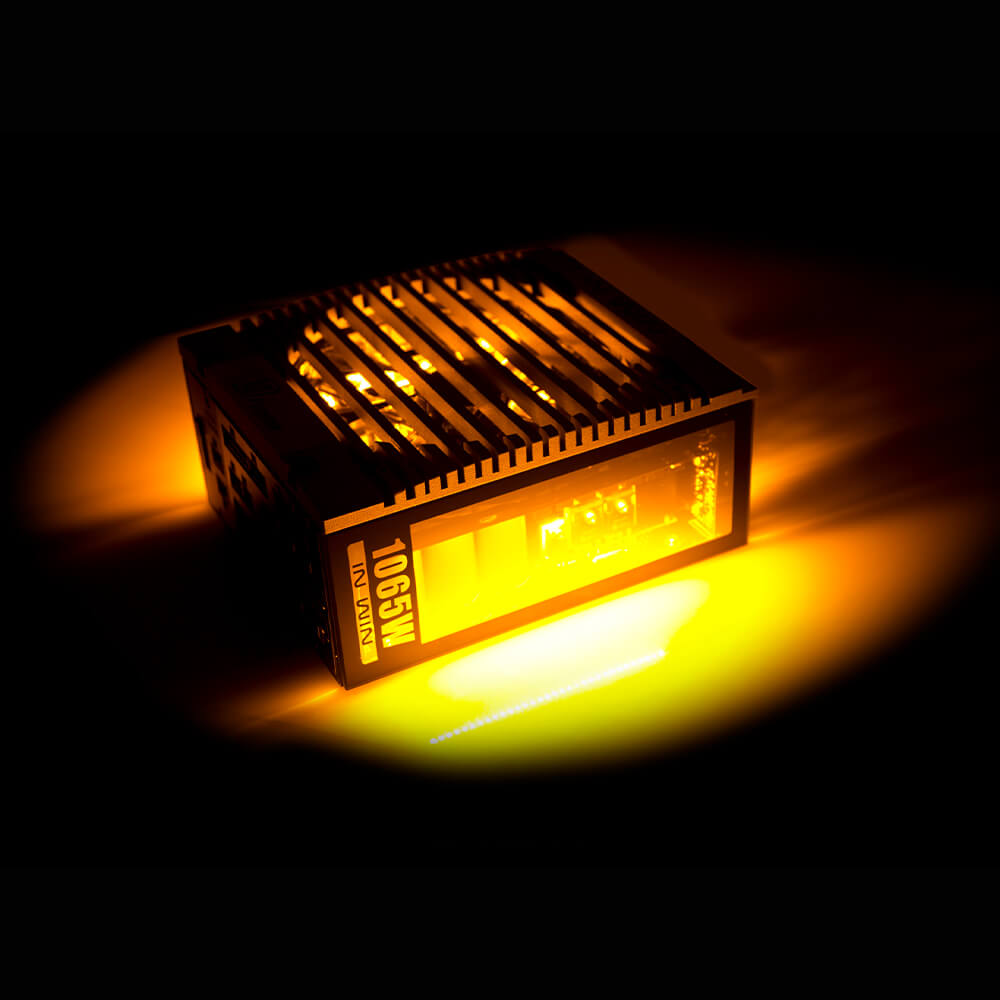

Power Supply Compatibility | SIII-1065W Internal PSU Included ATX12V and EPS12V – Dimension(L x W x H): 210 x 180 x 96 mm |
Product Dimension (H x W x D) |
548 x 264 x 726 mm 21.6” x 10.4” x 28.6” |
Product Dimension (H x W x D) with screw height |
548 x 291 x 726 mm
21.6″ x 11.5″ x 28.6″ |
Package Dimension (H x W x D) |
760 x 346 x 842 mm 29.9″ x 13.6″ x 33.1″ |
Net Weight | 22.5kg/49.5lbs |
Gross Weight | 25.5kg/56.1lbs |
* In Win products comply with RoHS regulations * Specifications may vary based on different regions |
