MATERIAL

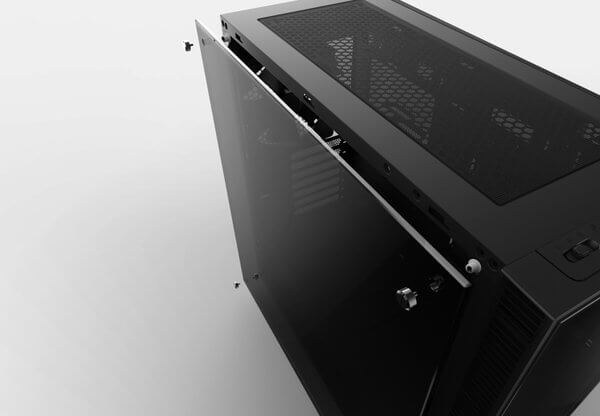

Steel body / Plastic / 5mm thickness Tempered Glass
DIMENSION (D / W /H )
475*216*497mm / 18.7*8.5*19.6 inches
WEIGHT
Net Weight: 10.9 kg / 24 lbs
MOTHERBOARD TYPE
M-ITX,M-ATX,ATX,E-ATX(12″x13″) SSI-EEB
5.25” DRIVE BAY
N/S
3.5” HIDDEN
3
3.5” EXPOSED
N/A
2.5” DRIVE BAY
5 (2 from 3.5″HDD bracket)

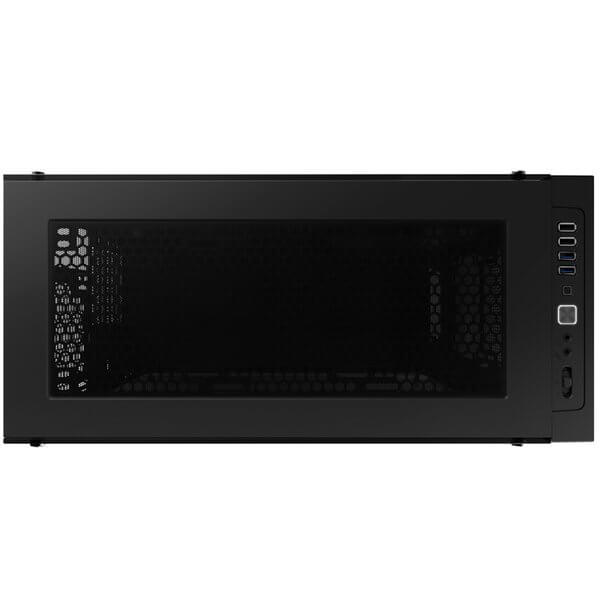

I/O PANEL
USB3.0 x 2, USB2.0 x 2 ,3 steps Fan Controller, Audio* 1,Mic *1
EXPANSION
7
FAN CONTROL
H Mode=12V, S mode=0V, L Mode=5V
COOLING SYSTEM
Front:140mm /120mm Fan x 3 (optional)
Rear:140mm/120 x 1 (optional)
Top:140mm x2 /120mm x 3 (optional)
POWER SUPPLY
Standard ATX PS2 / EPS (optional)
MAXIMUM COMPATIBILITY
Graphics Card Length: 410mm /16.1 inches
CPU Cooler Height: 175mm /6,9 inches

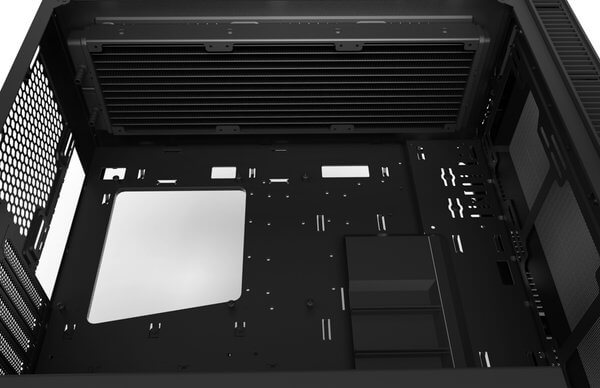

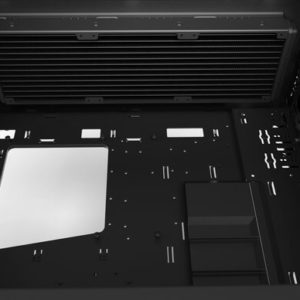

Water Cooling : 240/280/360 mm Rad on top 60mm total clearance for Fan and Rad (Optional)

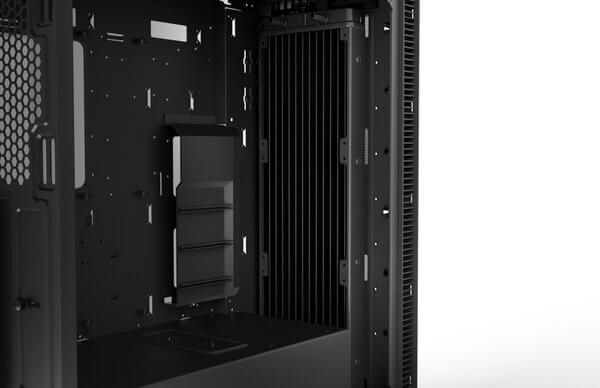

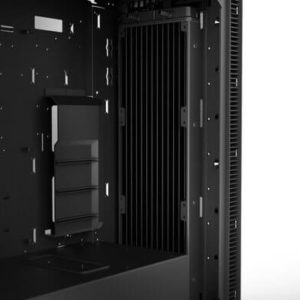

240/280/360 mm Rad in the front 63mm total clearance for Fan and Rad (Optional)
120/140 mm Rad in the rear (Optional)
