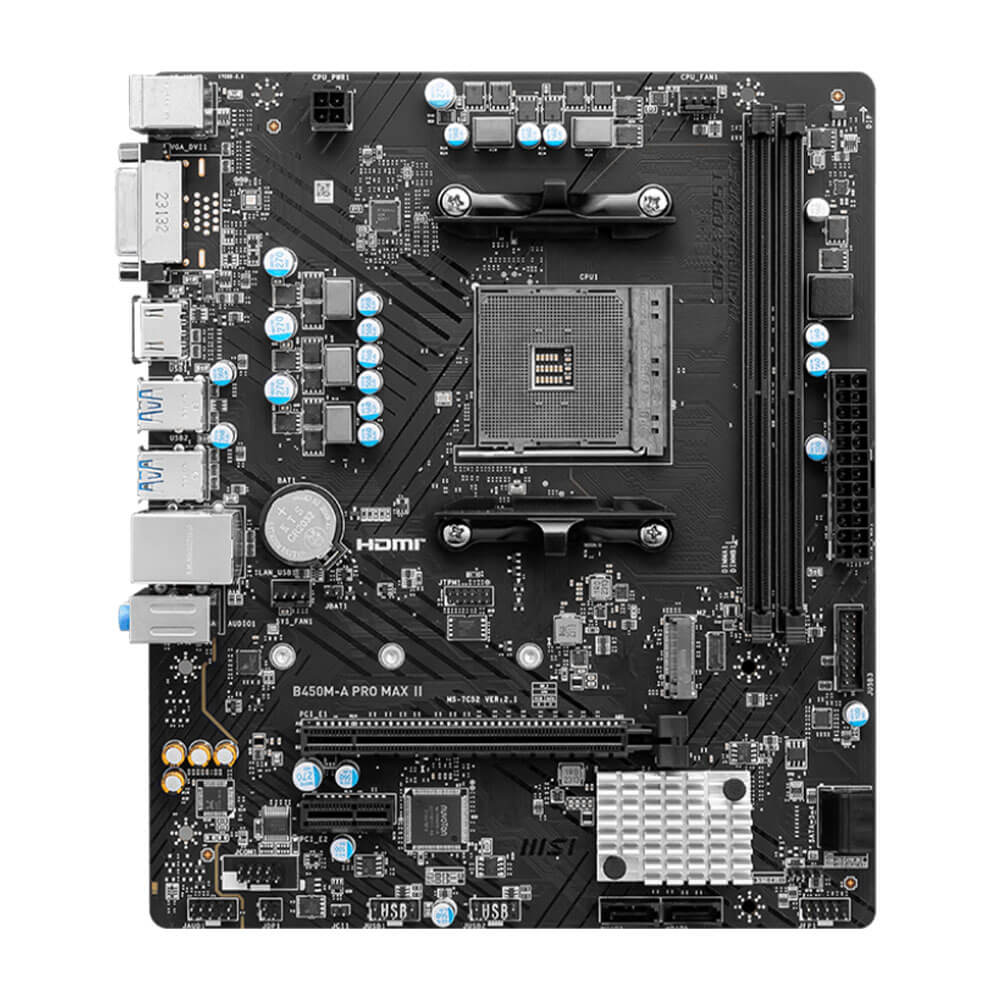

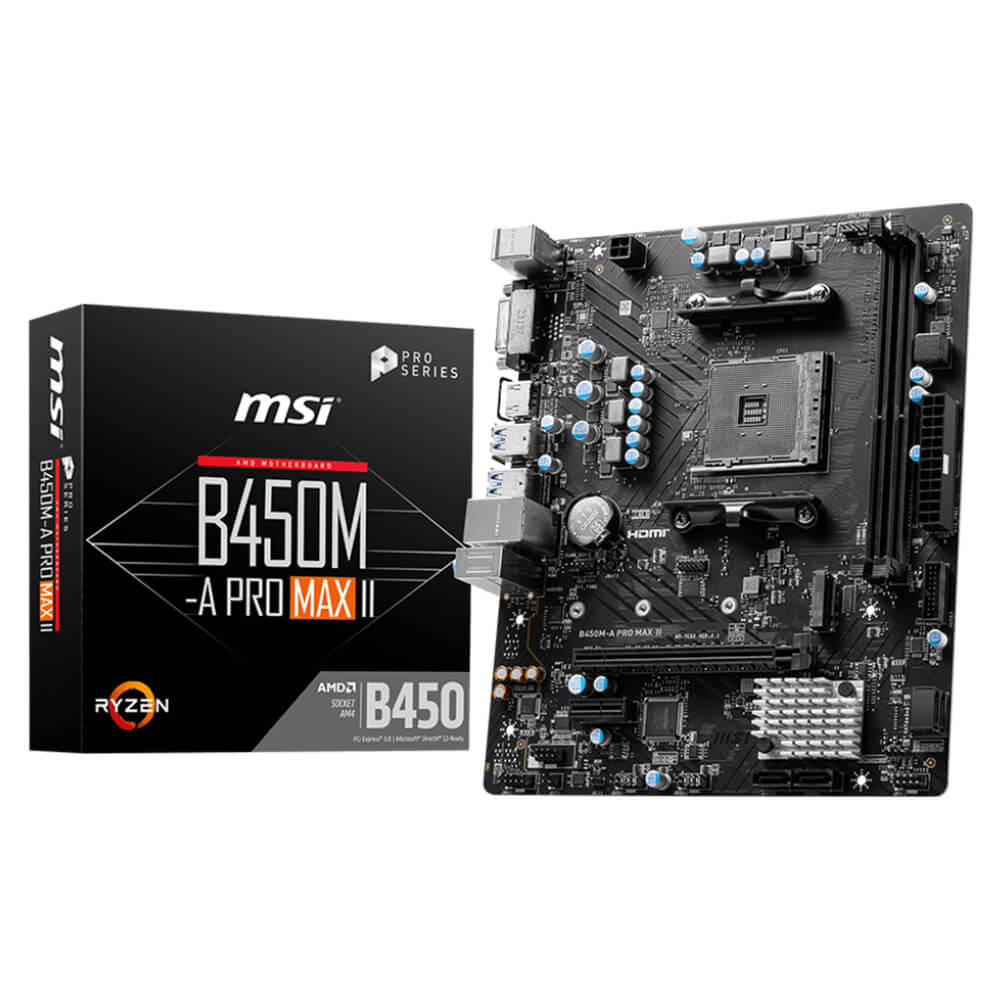

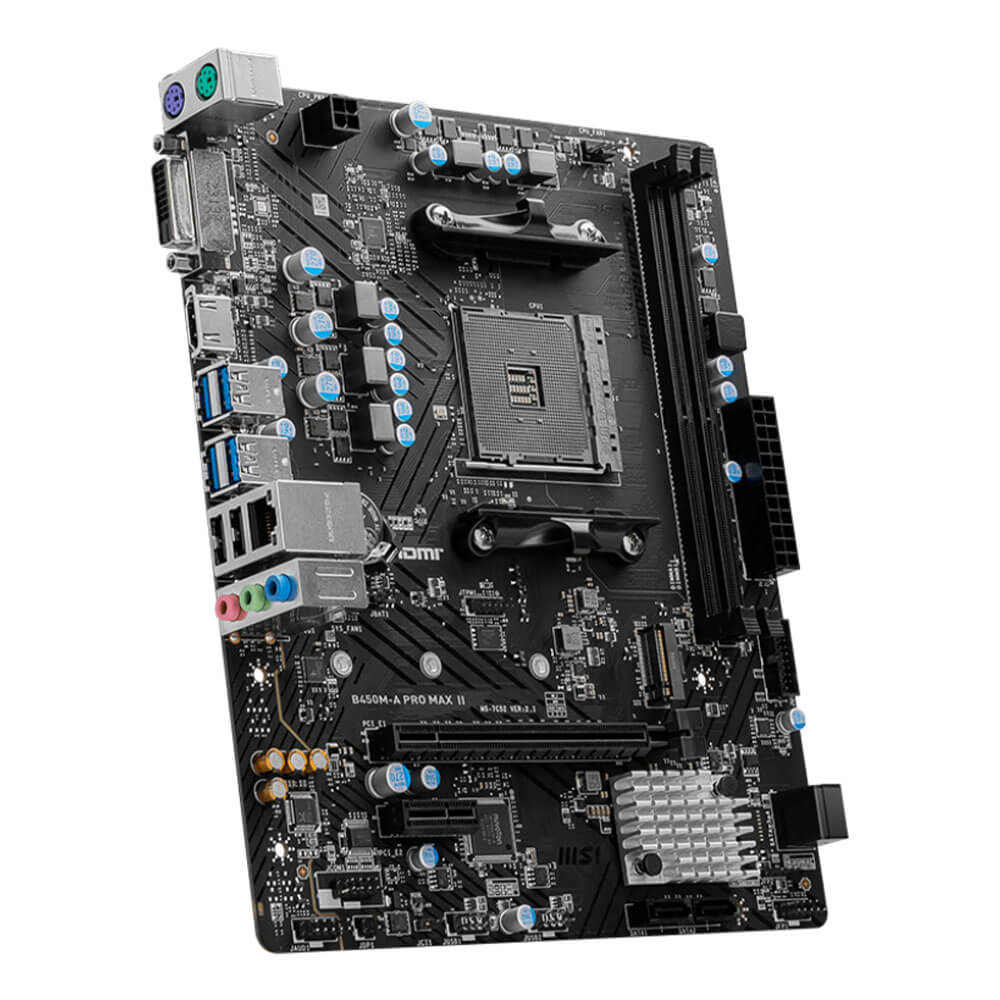

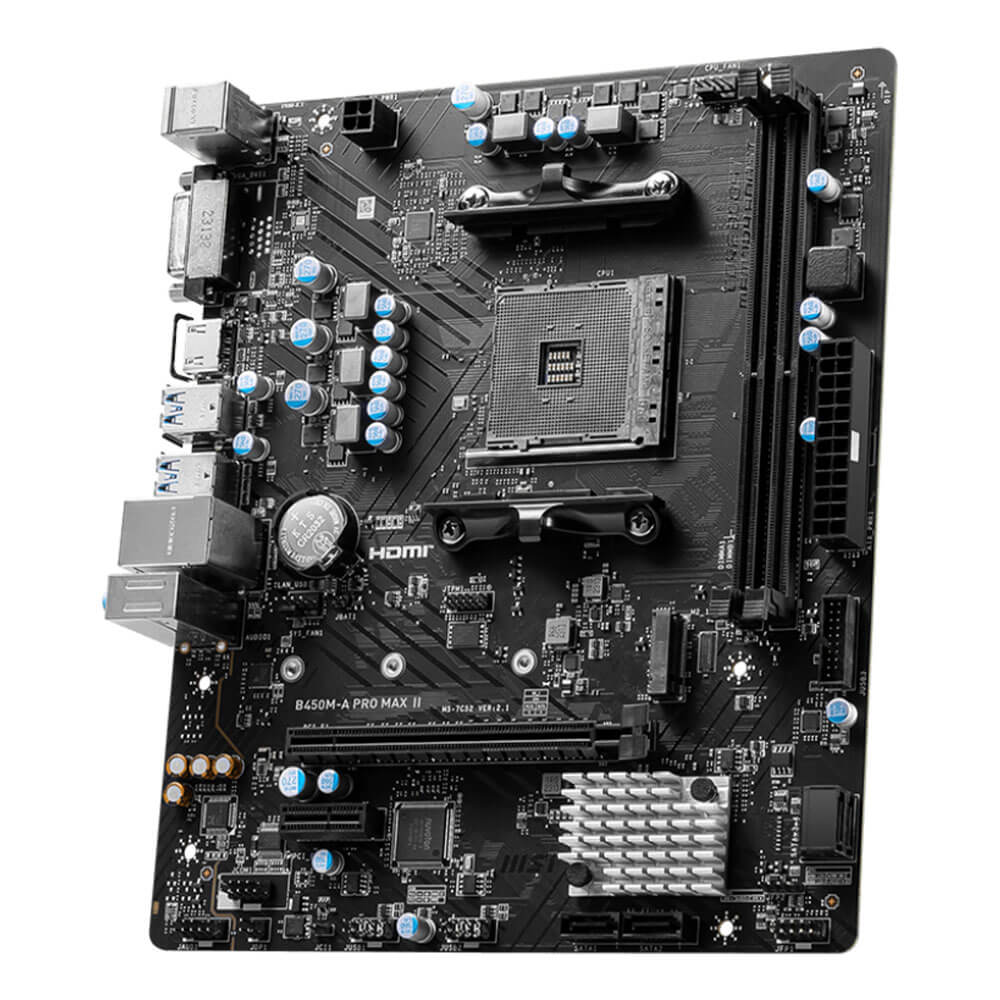

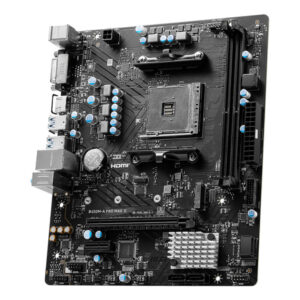

MSI B450M-A PRO MAX II – Socket AM4
Thông tin Sản Phẩm
| PROROCESSOR | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
Socket AM4 |
| CHIPSET |
AMD B450 Chipset
|
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.0b, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) |
| AUDIO |
Realtek® ALC897 Codec |
| STORAGE | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN |
Realtek® 8125 2.5Gbps LAN controller
|
| INTERNAL CONNECTORS | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |

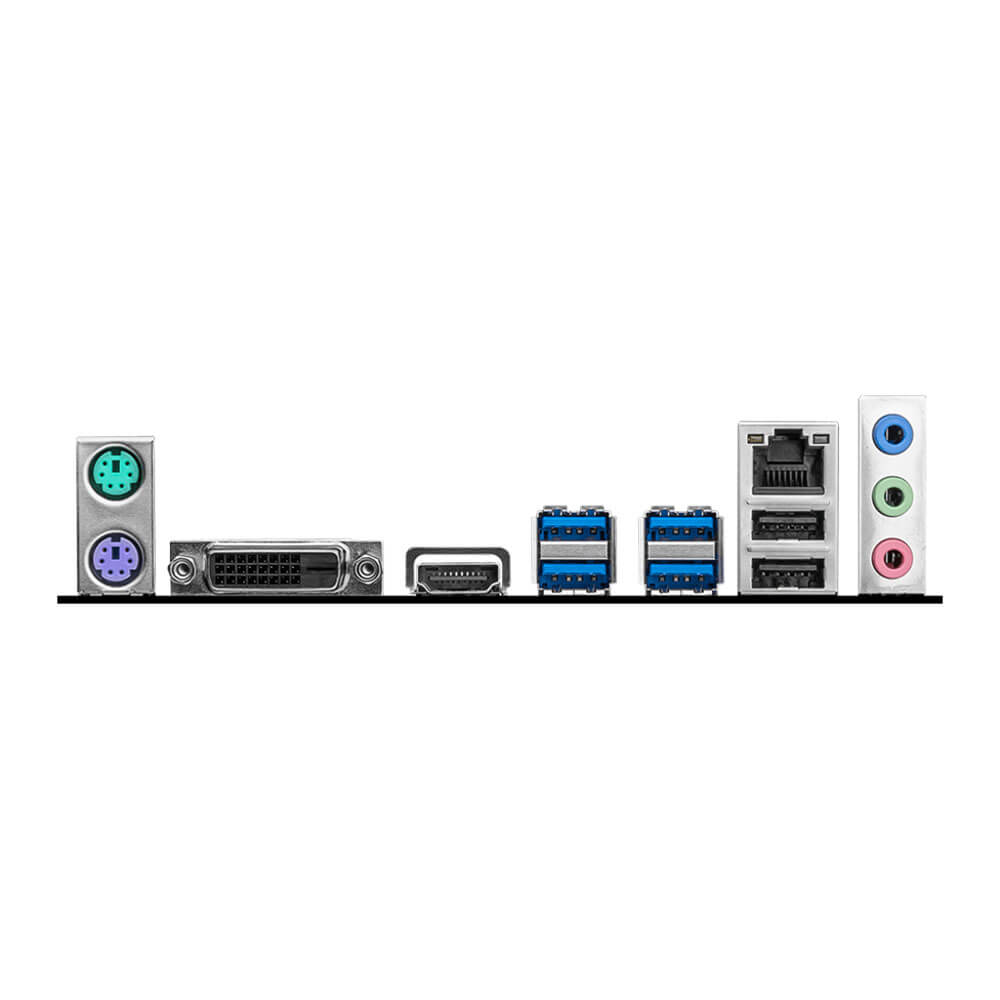

| BACK PANEL PORTS | Keyboard/Mouse DVI-D HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0 |
| DIMENSIONS | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |

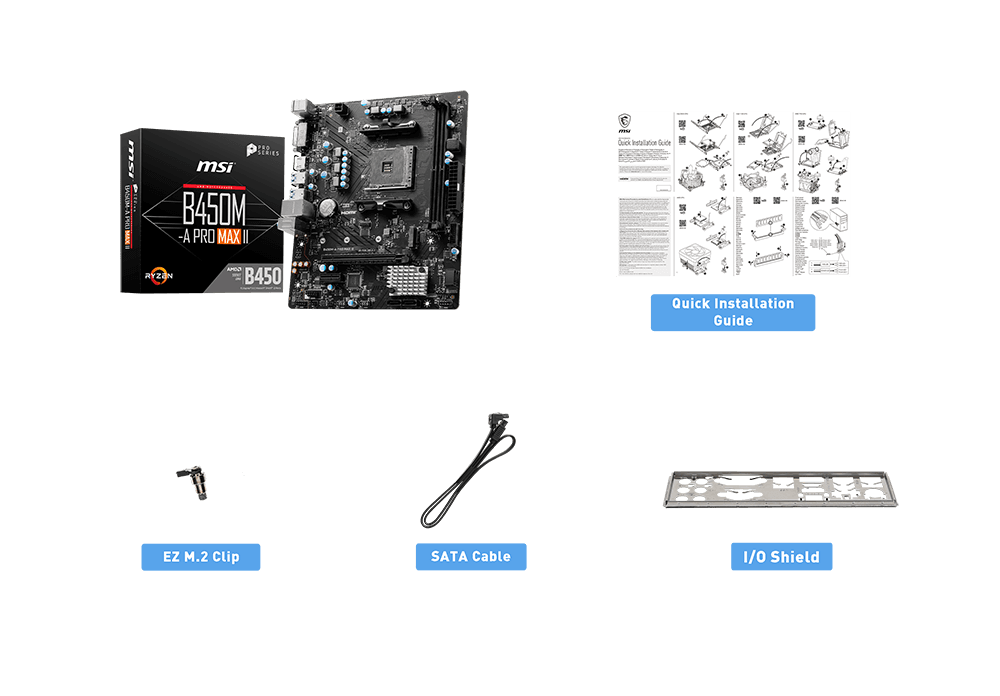

| BOX CONTENT |  |
