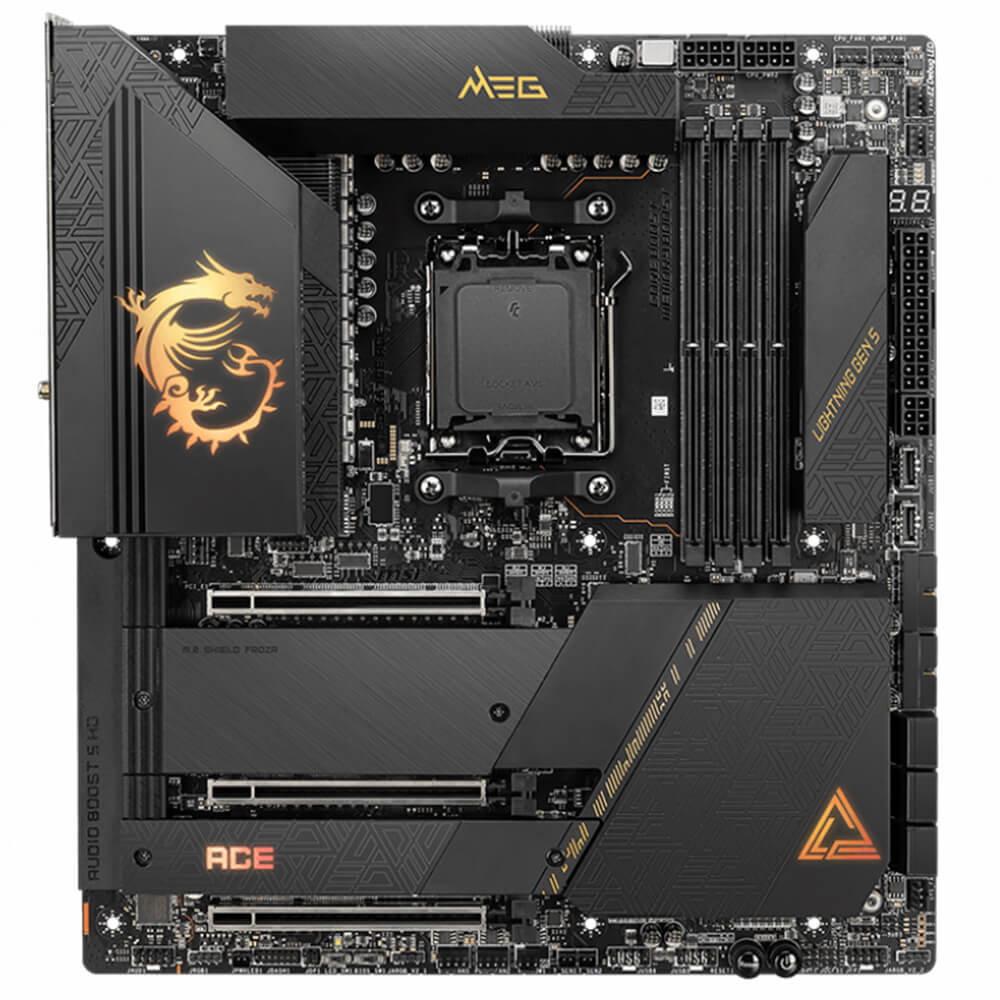

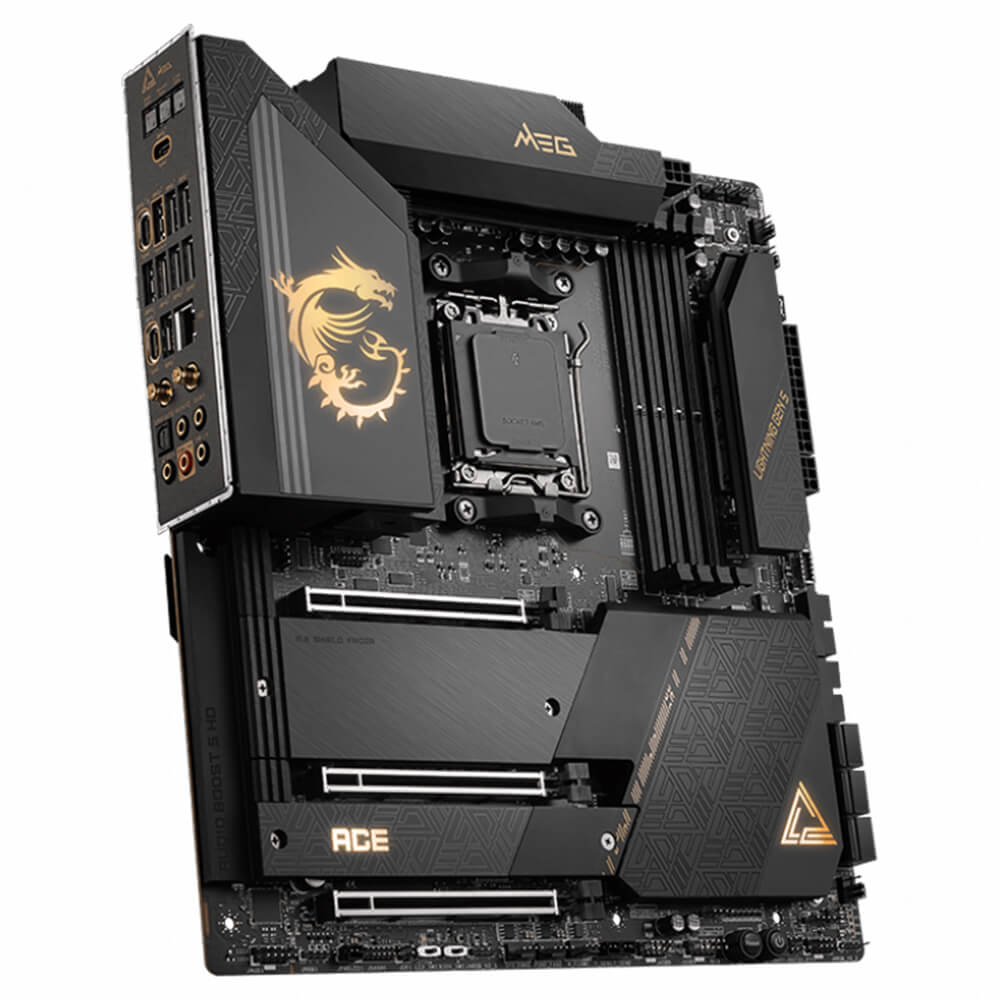

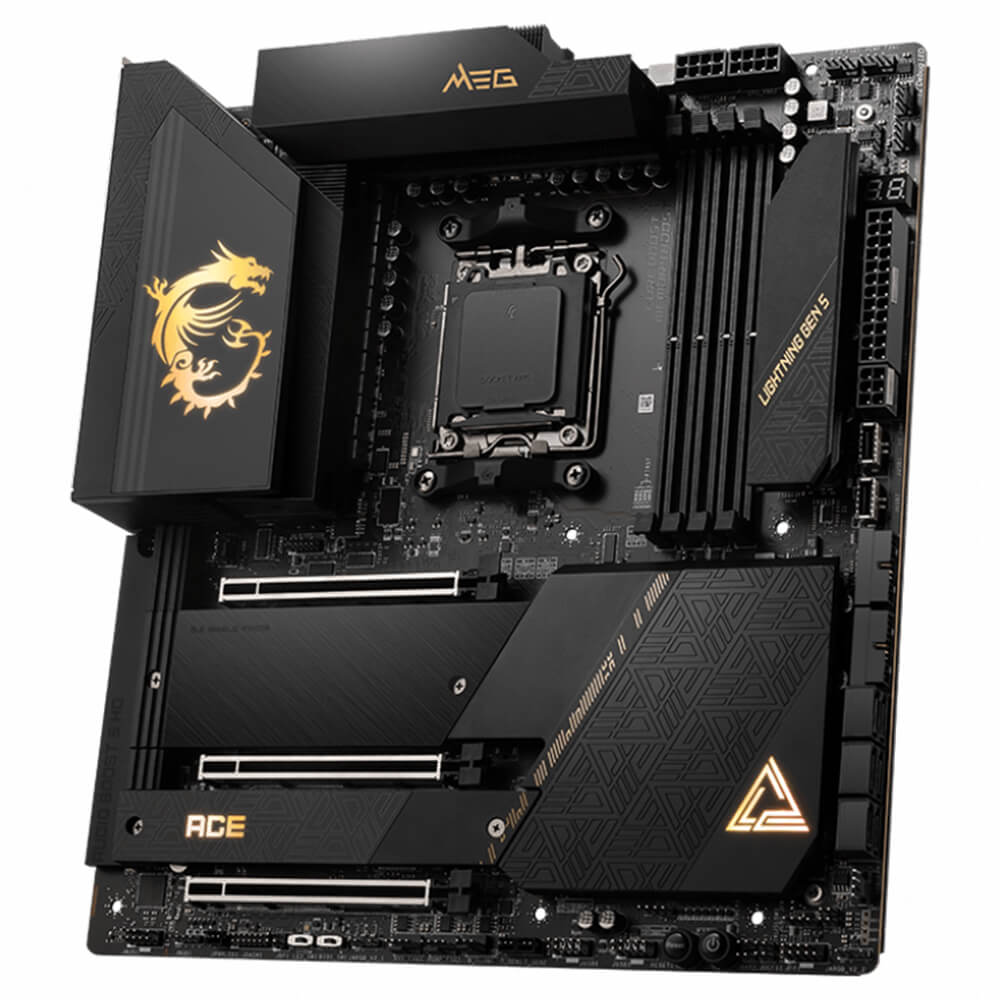

MSI MEG X670E ACE – Socket AM5
Thông tin Sản Phẩm
| CHIPSET | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz |
| ONBOARD GRAPHICS | 1x Type-C DisplayPort 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU) |
| MULTI-GPU | Supports AMD MULTI-GPU |
| STORAGE | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 8x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| LAN | Marvell® AQC113-B1-C 10Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C 1x USB 3.2 Gen 2×2 Type-C 1x USB 3.2 Gen 2×2 Type C V-check point |
| LED FEATURE | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |

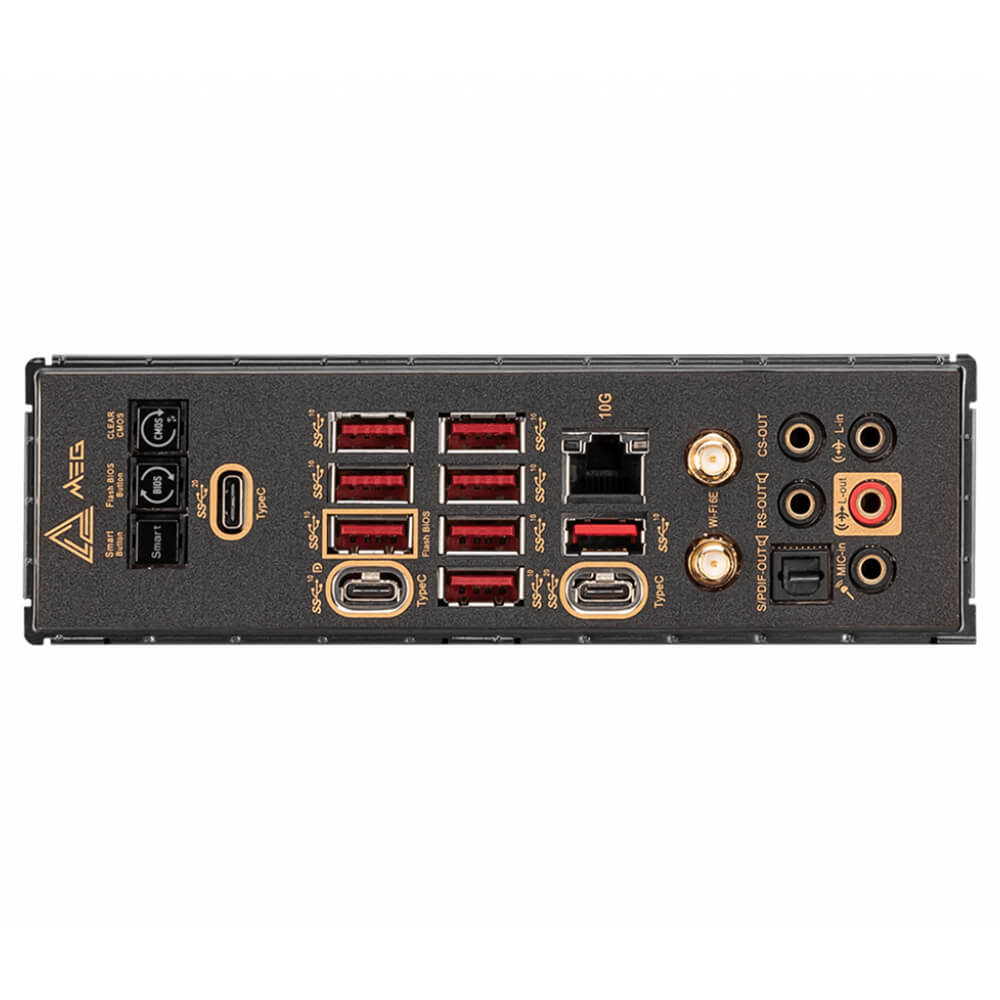

| BACK PANEL PORTS | Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) 10G Super LAN Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2×2 20Gbps (Type-C) Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION | E-ATX 277mmx304.8mm |

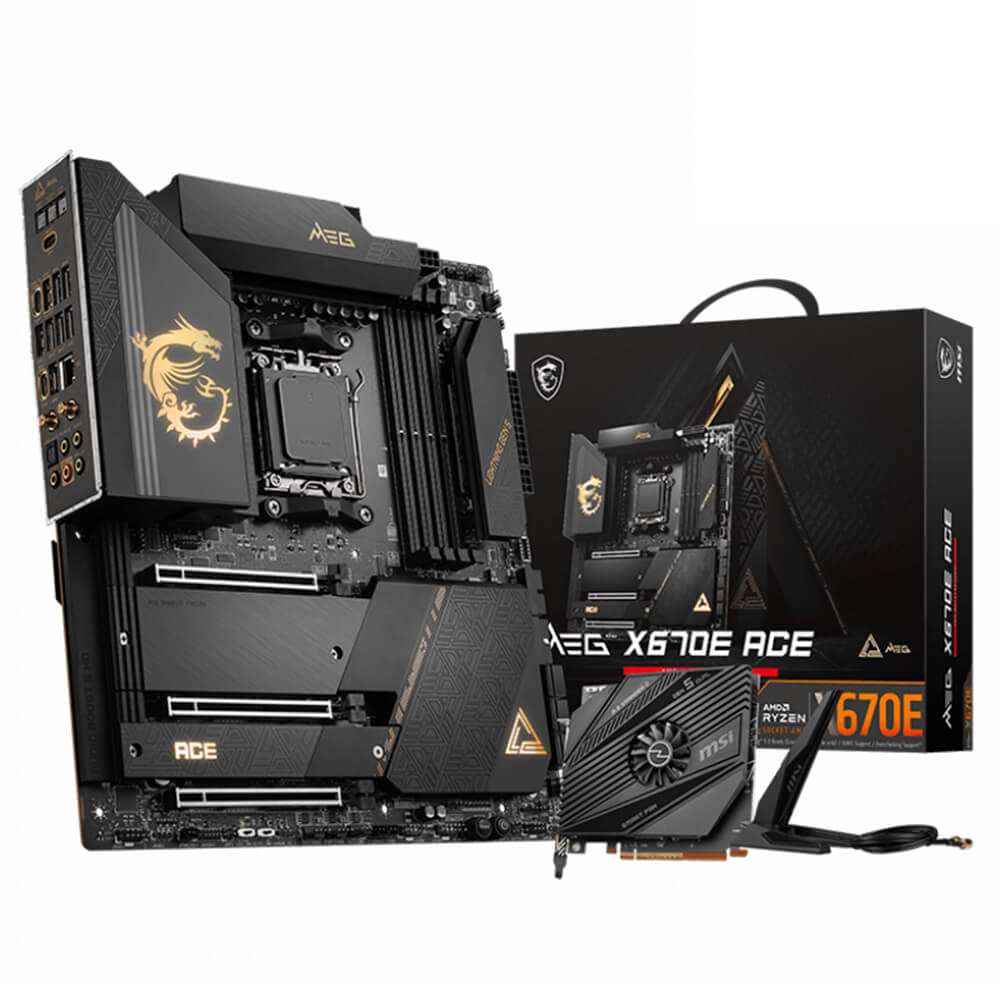

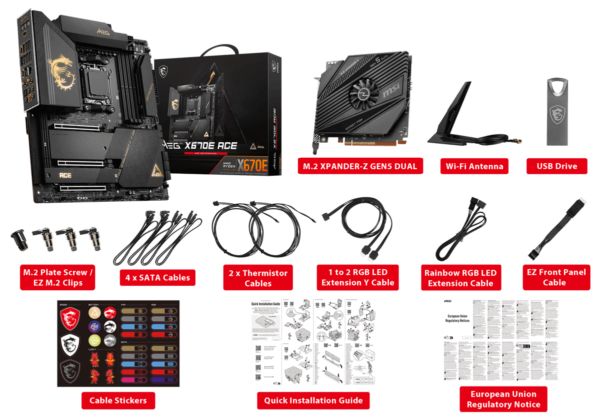

| BOX CONTENT |  |
