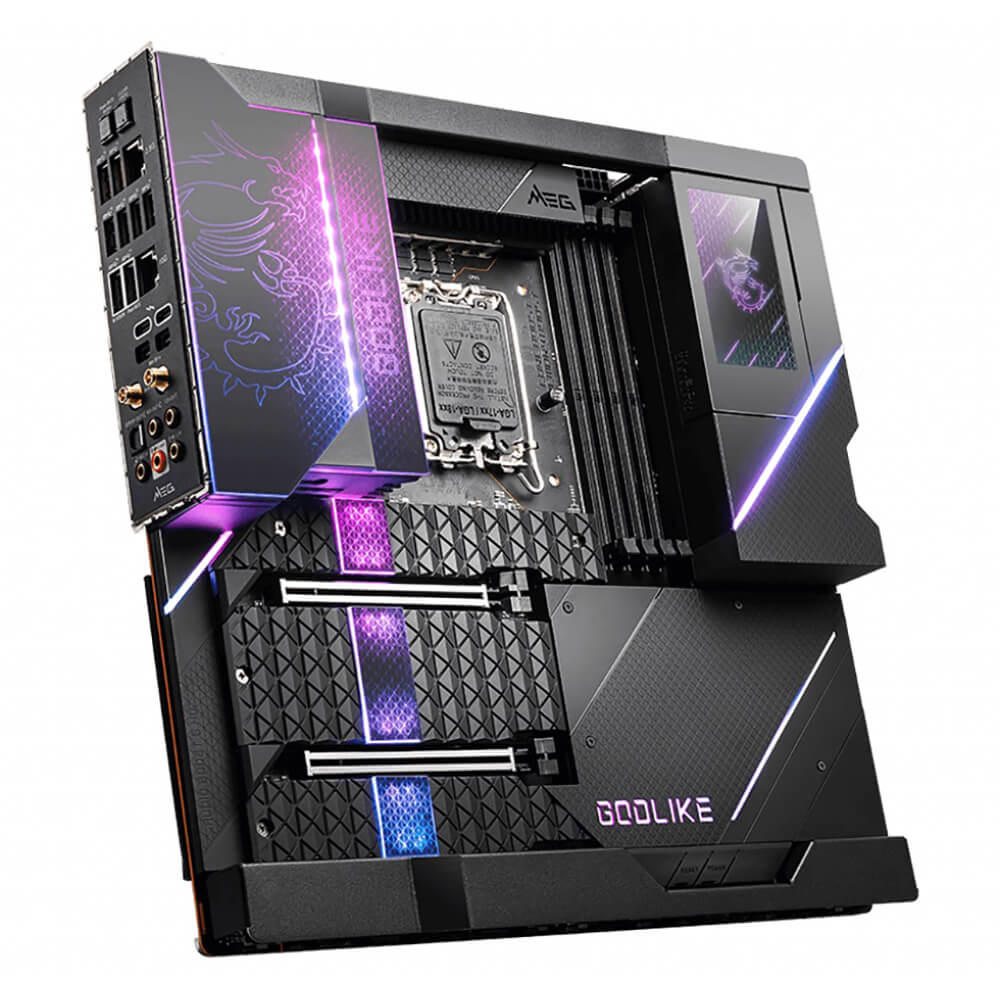

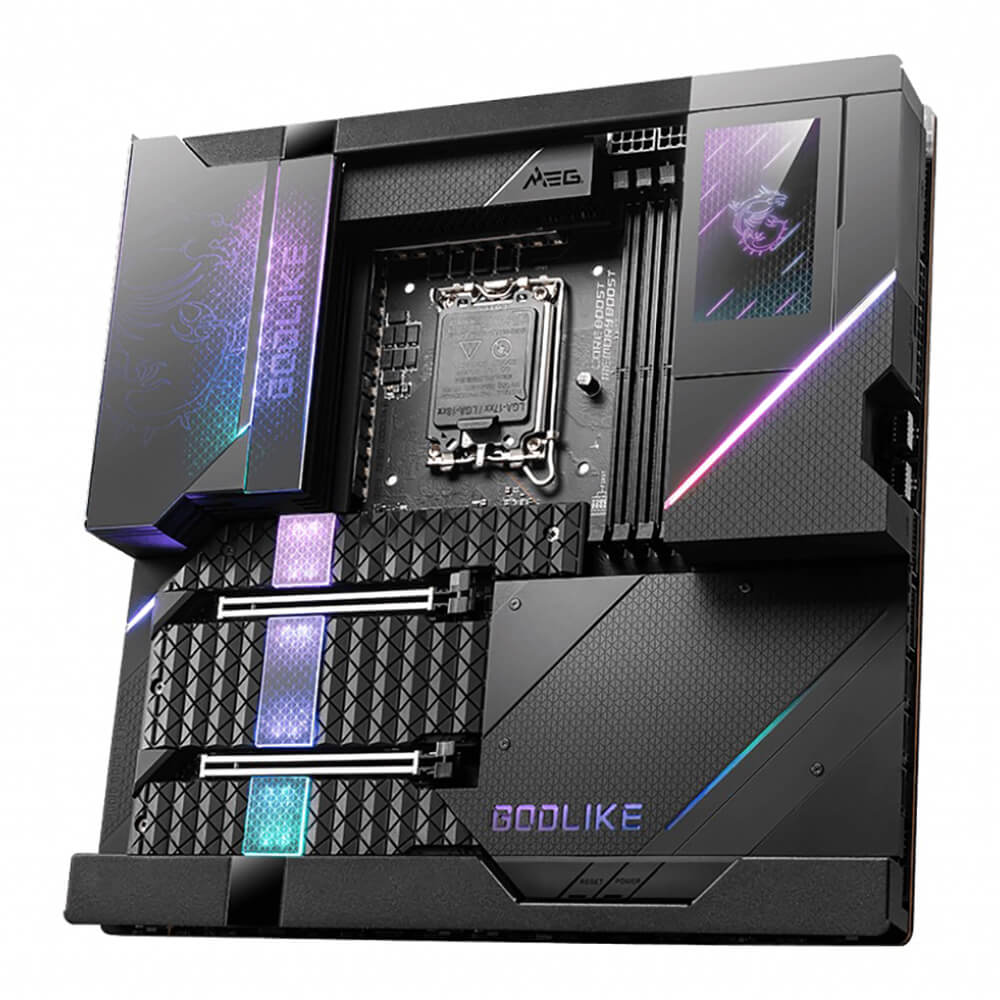

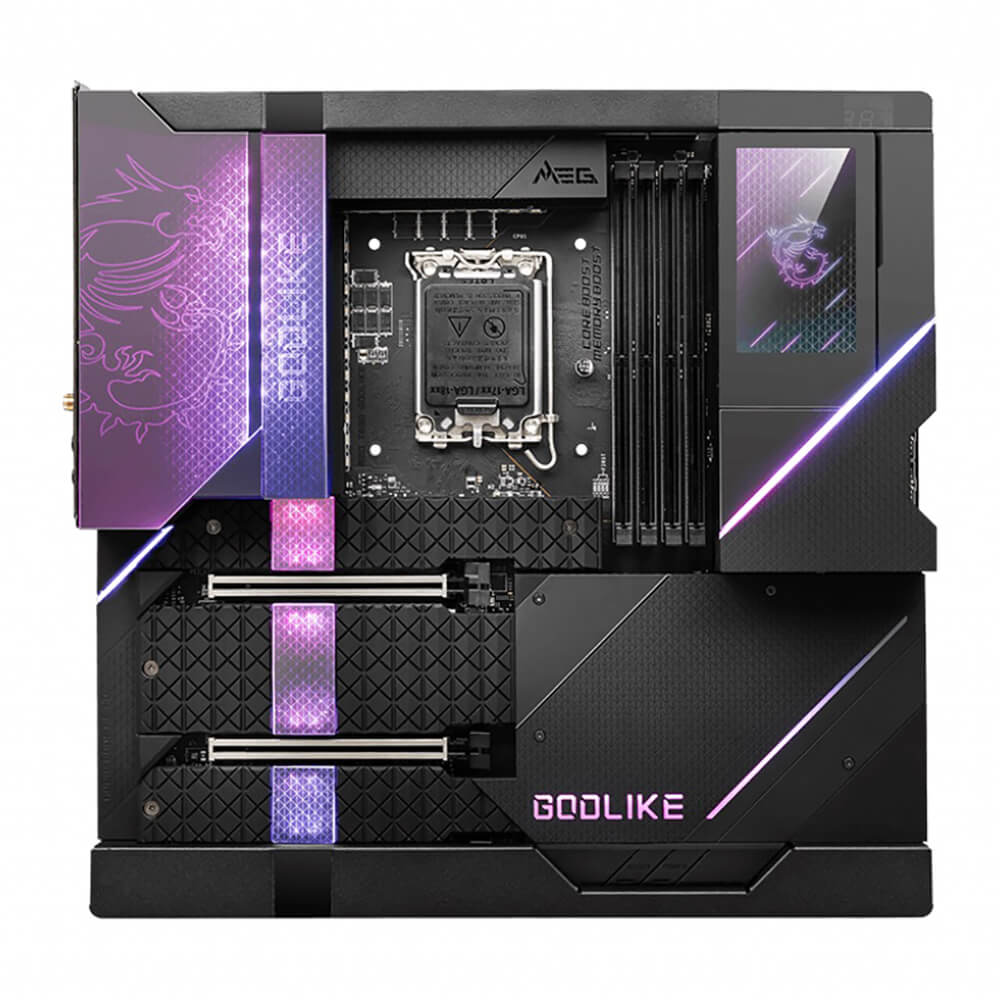

| PROCESSOR |
- Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
|
| CHIPSET |
|
| MEMORY |
- 4x DDR5 memory slots, supporting up to 128GB 1
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 6666+ MHz
- 1DPC 2R Max speed up to 5600+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
|
| EXPANSION SLOTS |
- 3x PCIe x16 slots
- Supports x16/x0/x4, x8/x8/x4
- PCI_E1 & PCI_E2 slots (From CPU)
- PCI_E1 supports up to PCIe 5.0 x16
- PCI_E2 supports up to PCIe 5.0 x8 1
- PCI_E3 (From Z690 chipset)
- ▫Supports up to PCIe 4.0 x4 2
- M2_3 will be unavailable when installing device in the PCI_E2 slot.
- PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.
|
| MULTI-GPU |
- Supports AMD® CrossFire™ Technology
- Supports NVIDIA® SLI™ Technology
|
| THUNDERBOLT 4 |
Intel®JHL8540 Thunderbolt™ 4 Controller
- 2x Thunderbolt™ 4 (USB-C) ports on the back panel
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A ,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
|
| STORAGE |
- 6x SATA 6Gb/s ports (From Z690 chipset)
- SATA5~8 (From Z690 chipset)
- SATAA~B (From ASM1061)
- 6x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280/ 22110 storage devices
- M2_2 slot (From Z690 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280 storage devices
- M2_3 slot (From CPU) 2
- Supports up to PCIe 5.0 x4
- Supports 2260/ 2280/ 22110 storage devices
- M2_4 slot (From Z690 chipset) 3
- Supports up to PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2260/ 2280 storage devices
- M2_5 slot (From Z690 chipset) 1
- Supports up to PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2260/ 2280 storage devices
- M2_6 slot (From Z690 chipset)
- Supports up to PCIe 3.0 x4
- Supports 2260/ 2280/ 22110 storage devices
- M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
- M2_3 will be unavailable when installing device in the PCI_E2 slot.
- PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.
|
| RAID |
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
- Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
- SATAA & SATAB do not support RAID function.
|
| USB |
- Intel® Z690 Chipset
- 2x USB 3.2 Gen 2×2 20Gbps Type-C internal connectors
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
- Hub-GL3590
- 4x USB 3.2 Gen 2 10Gbps ports on the back panel
- ASM1074
- 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
- Hub-GL850G
- 4x USB 2.0 ports through internal USB connectors
|
| AUDIO |
- Realtek® ALC4082 Codec + ES9218PQ Combo DAC/HPA
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN |
- 1x Aquantia® AQC113CS 10Gbps LAN controller
- 1x Intel® I225-V 2.5Gbps LAN controller
|
| WIFI & BLUETOOTH |
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2 2, FIPS, FISMA
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
- Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
|
| INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 6x M.2 slots (M-Key)
- 2x USB 3.2 Gen 2×2 20Gbps Type-C ports
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 8x 4-pin system fan connectors
- 1x Water Flow meter connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 2-pin Thermal Sensors connectors
- 1xTPM module connector
- 1x Tuning Controller connector
|
| LED FEATURE |
- 1x 2-Digit Debug Code LED
- 4x EZ Debug LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
|

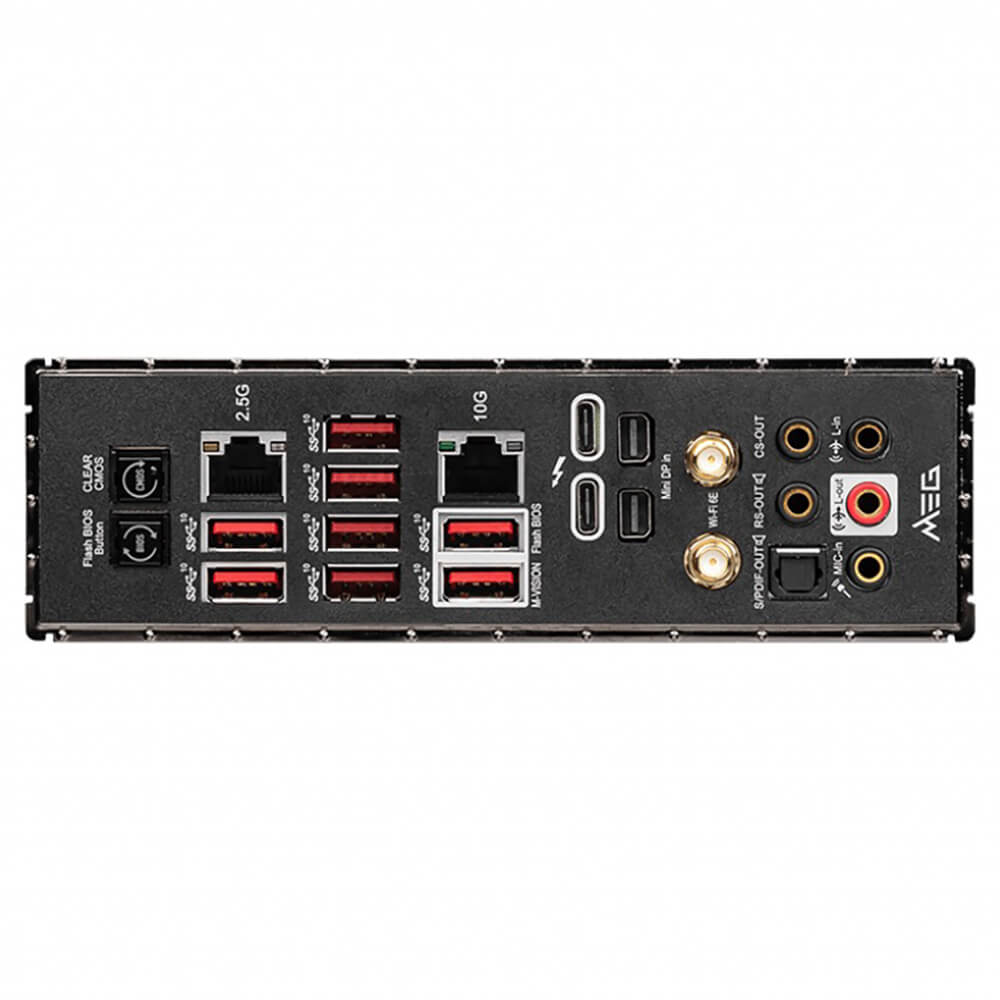

| BACK PANEL PORTS |
- Clear CMOS Button
- 2.5G LAN
- 10G Super LAN
- Thunderbolt 4 40Gbps (Type-C)
- Wi-Fi / Bluetooth
- HD Audio Connectors
- Flash BIOS Button
- USB 3.2 Gen2 10Gbps (Type-A)
- M-VISION Dashboard Port
- Mini DisplayPort Input (for Thunderbolt passthrough)
- Optical S/PDIF-Out
|

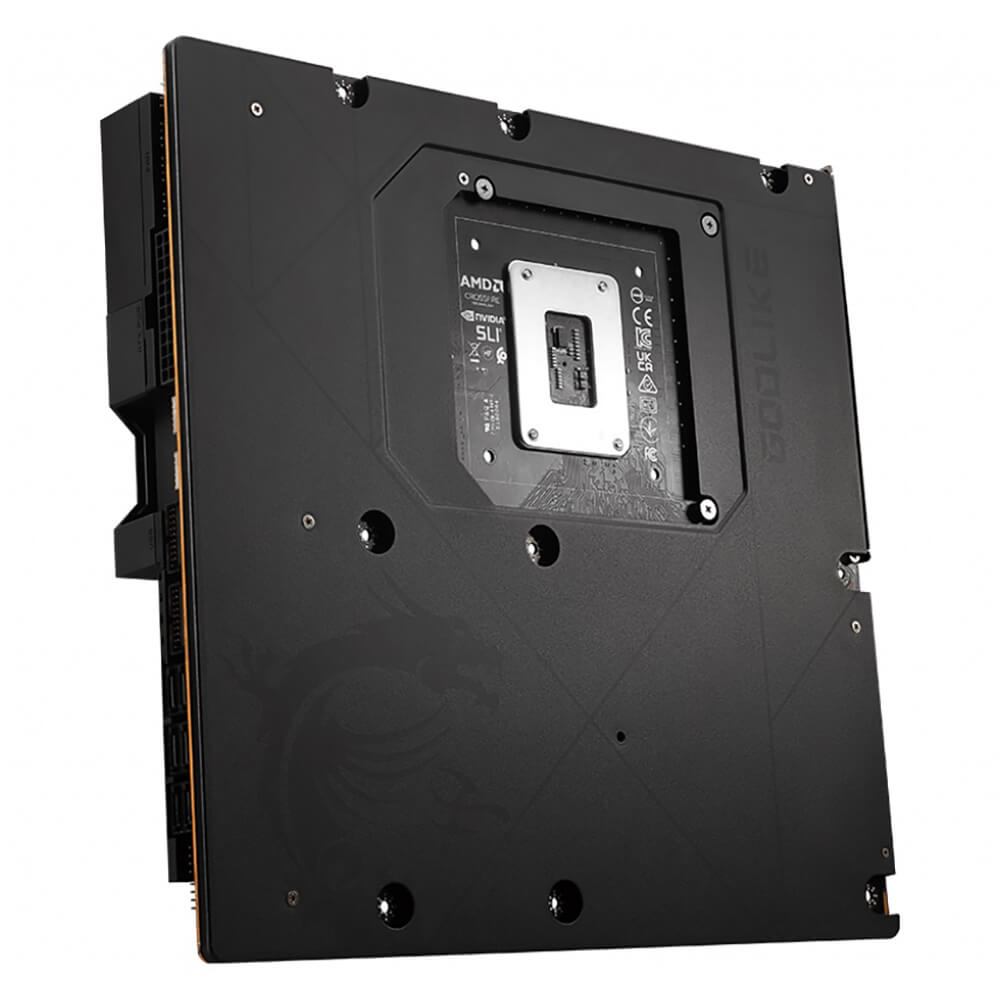

| DIMENSIONS |
- 12 in. x 12 in. (30.5 cm x 31.0 cm)
- E-ATX Form Factor
|
| MOUNTING |
|
| OPERATING SYSTEM |
- Support for Windows® 11 64-bit, Windows® 10 64-bit
|
