Cooler Specification
Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM),LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 |
Height (without fan) Width (without fan) Depth (without fan) |
160 mm 150 mm 135 mm |
Height (with fan) Width (with fan) Depth (with fan) |
165 mm 150 mm 161 mm |
Weight | 1320g |
Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |

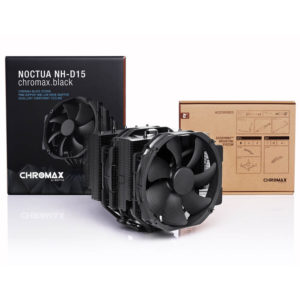

Scope of delivery | Black NH-D15 heatsink 2x NF-A15 HS-PWM chromax.black premium fan 2x Low-Noise Adaptor (L.N.A.) 4-pin PWM Y-cable NT-H1 high-grade thermal compound Black SecuFirm2™ Mounting Kit Noctua Metal Case-Badge |
Warranty | 60 Months |
FAN Specification
Model | 2x Noctua NF-A15 HS-PWM chromax.black |
Bearing | SSO2 |
Max. rotational speed (+/- 10%) | 1500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
Min. rotational speed (PWM, +/-20%) | 300 RPM |
Max. airflow | 140,2 m³/h |
Max. airflow with L.N.A. | 115,5 m³/h |
Max. acoustical noise | 24,6 dB(A) |
Max. acoustical noise with L.N.A. | 19,2 dB(A) |
Voltage range | 12 V |
MTTF | > 150.000 h |
