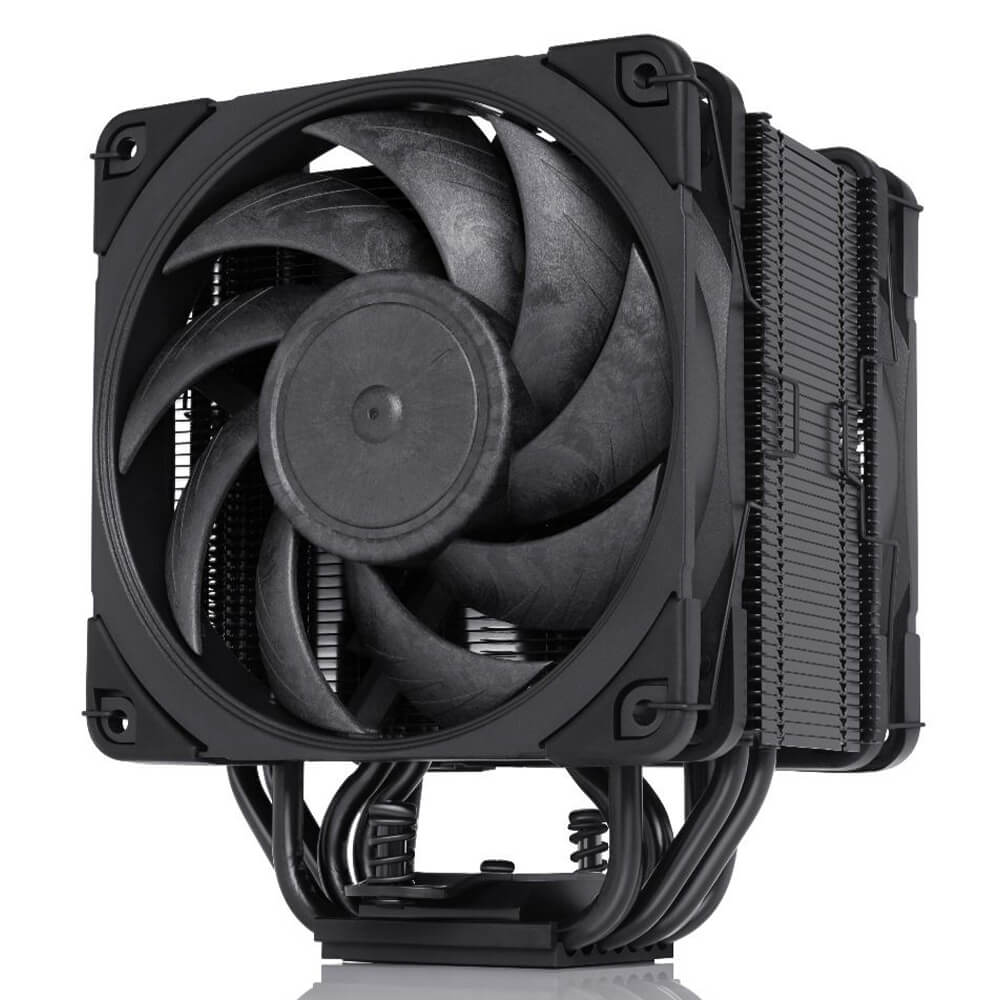

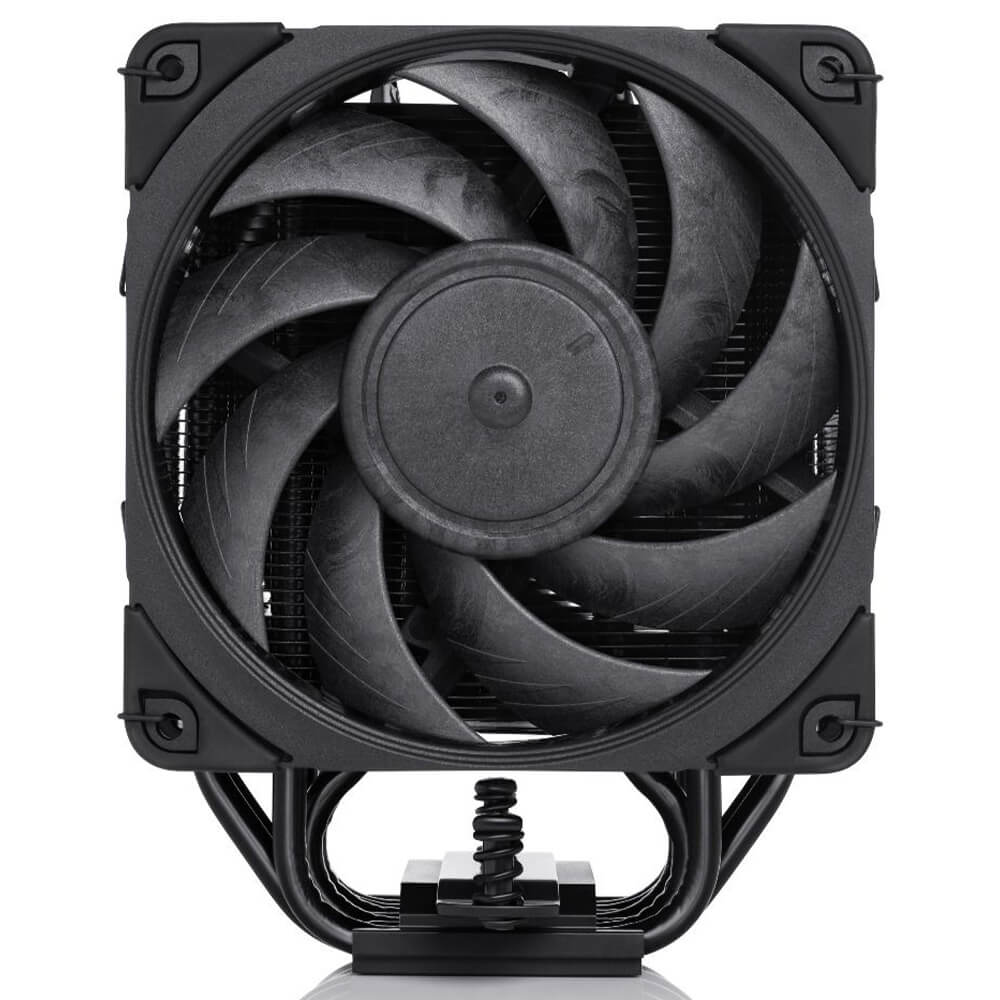

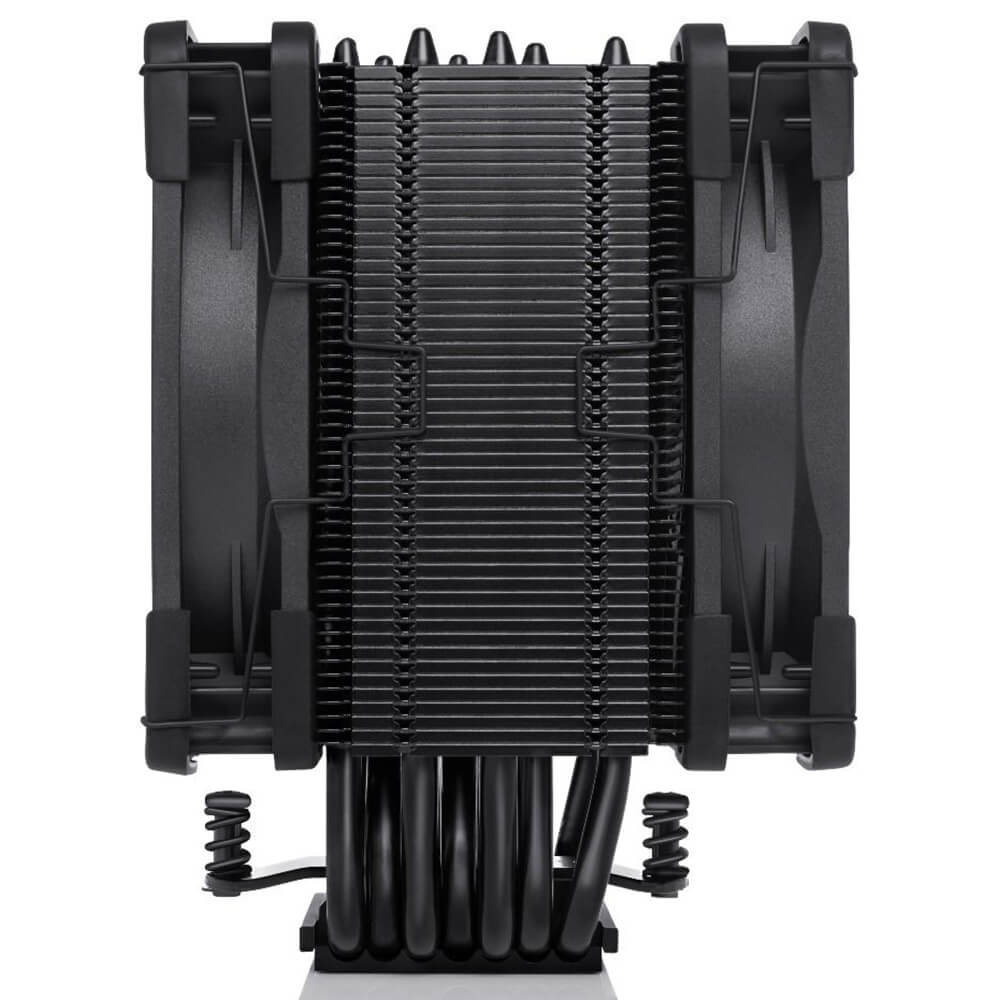

Cooler Specification
:
Socket compatibility |
|
Height (without fan) | 158 mm |
Width (without fan) | 125 mm |
Depth (without fan) | 58 mm |
Weight (without fan) | 760 g |
Height (with fan) | 158 mm |
Width (with fan) | 125 mm |
Depth (with fan) | 112 mm |
Weight (with fan) | 1220 g |

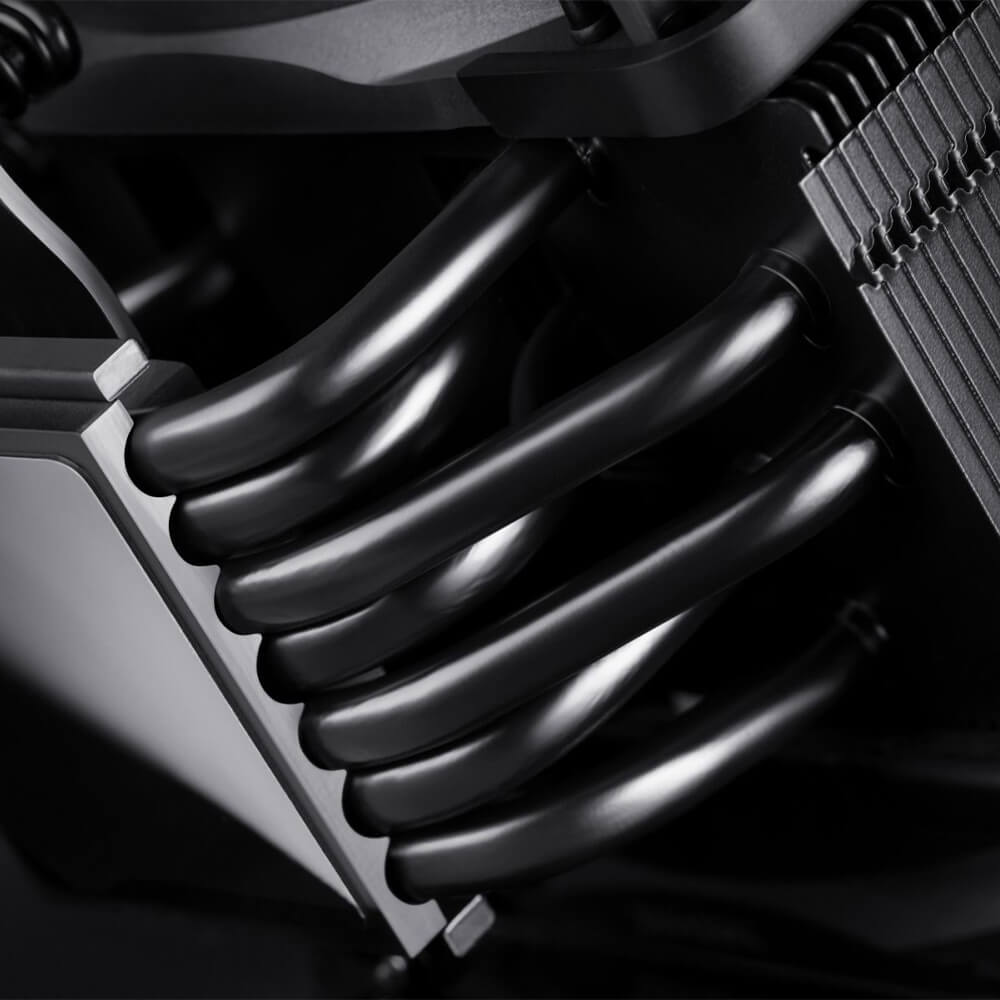

Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
Max. TDP | See CPU compatibility list |
Fan compatibility | 120x120x25 |

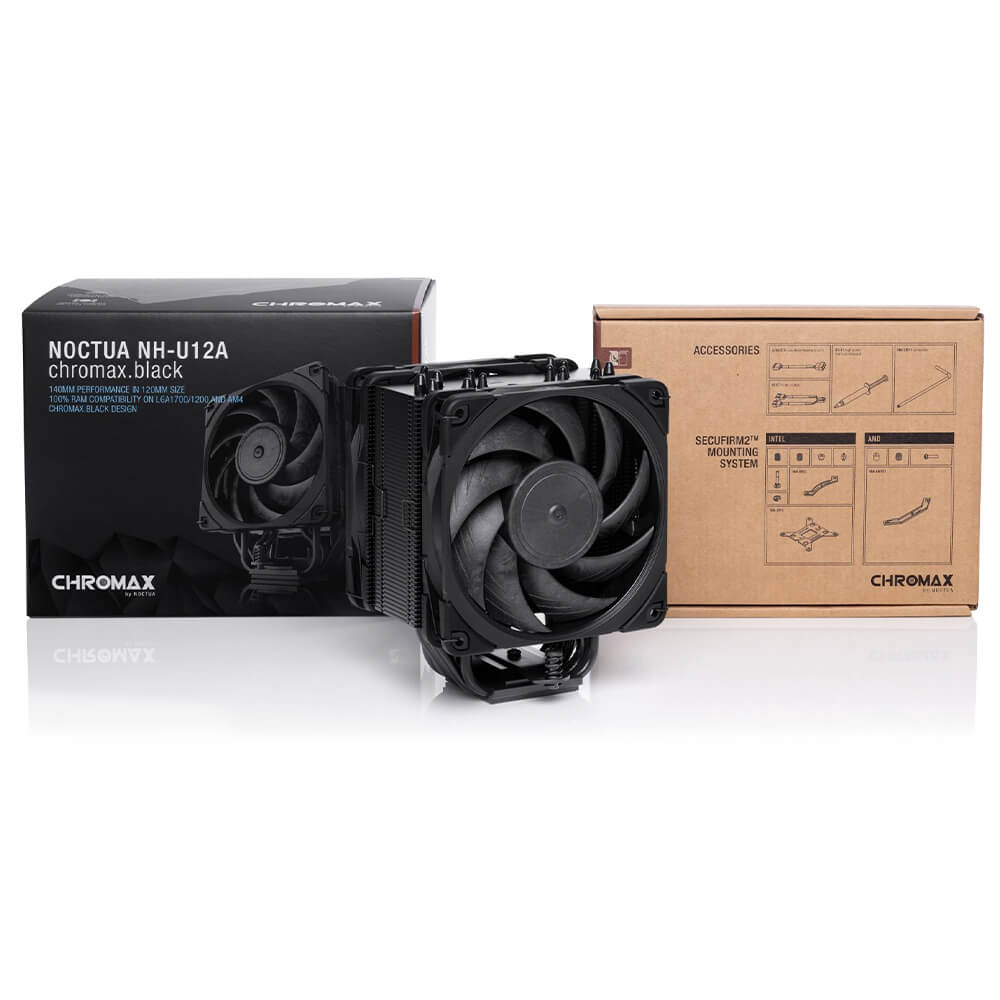

Scope of delivery |
|
Warranty | 6 Years |
FAN Specification
Model | Noctua NF-A12x25 PWM |
Bearing | SSO2 |
Max. rotational speed (+/- 10%) | 2000 RPM |
Max. rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
Min. rotational speed (PWM, +/-20%) | 450 RPM |
Max. airflow | 102,1 m³/h |
Max. airflow with L.N.A. | 84,5 m³/h |
Max. acoustical noise | 22,6 dB(A) |
Max. acoustical noise with L.N.A. | 18,8 dB(A) |
Voltage range | 12 V |
MTTF | > 150.000 h |
