Thông Số Kỹ Thuật :
| Socket compatibility |
|
| Height (without fan) | 165 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 52 mm |
| Weight (without fan) | 770 g |
| Height (with fan) | 165 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 78 mm |
| Weight (with fan) | 935 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Max. TDP | See CPU compatibility list |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |

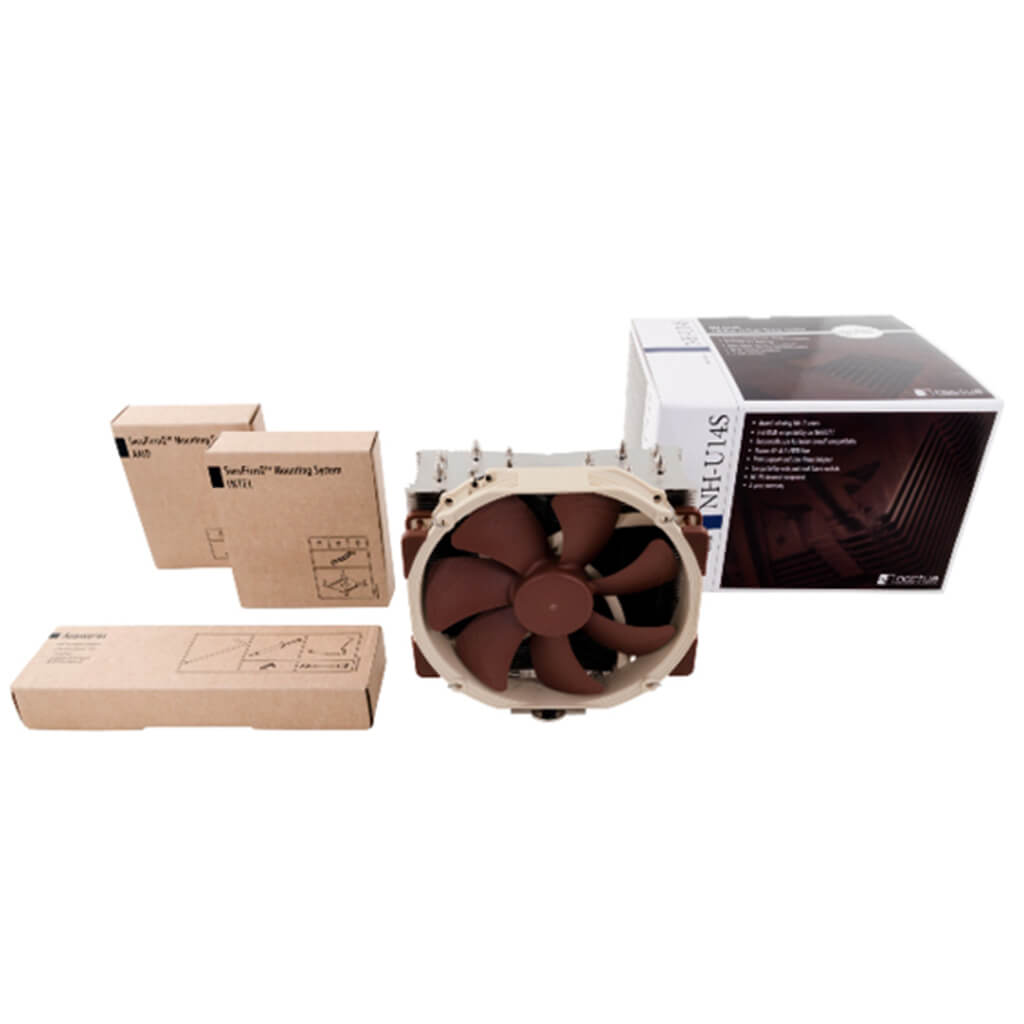

| Scope of delivery |
|
| Warranty | 6 Years |
Thông Số Kỹ Thuật Quạt :
| Model | Noctua NF-A15 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Max. airflow | 140,2 m³/h |
| Max. airflow with L.N.A. | 115,5 m³/h |
| Max. acoustical noise | 24,6 dB(A) |
| Max. acoustical noise with L.N.A. | 19,2 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
