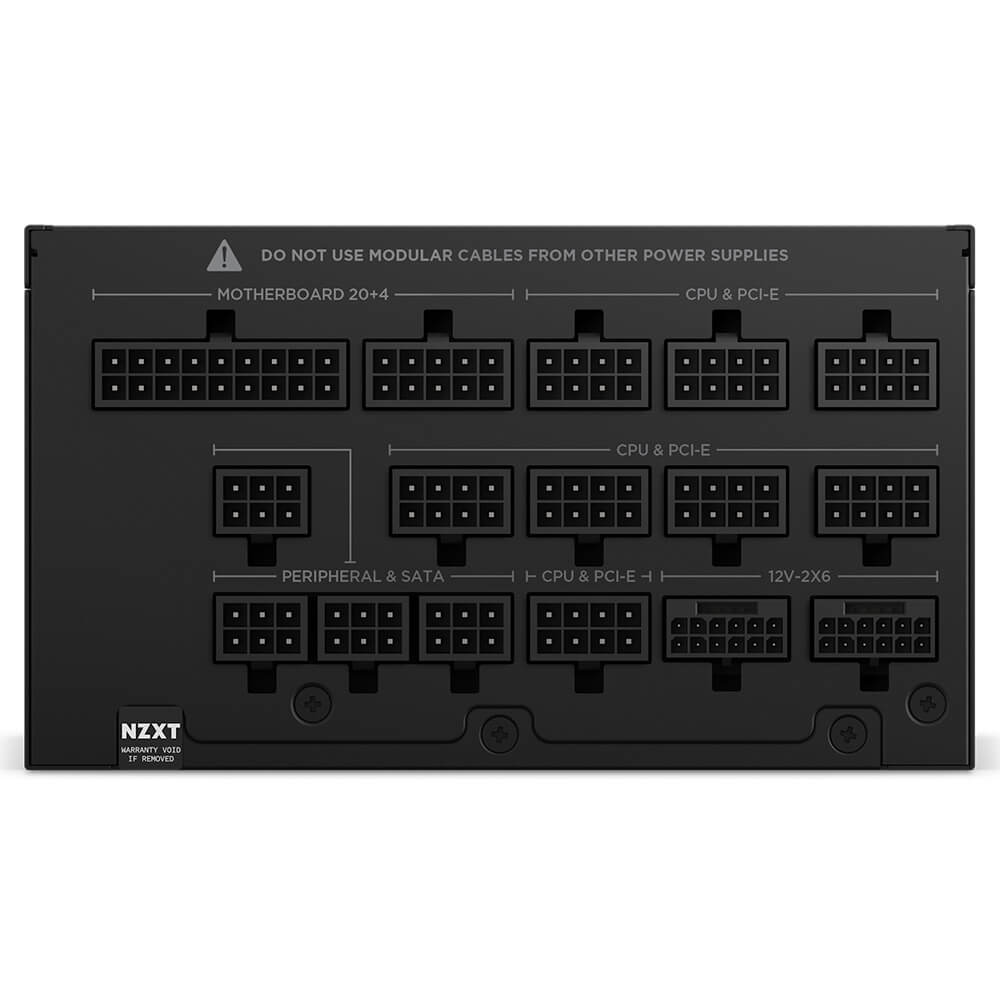

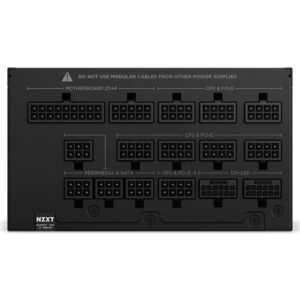

OUTPUT CONNECTORS |
- 24-pin ATX Power Cable:1
- 4+4-pin CPU Power Cable:1
- 8-pin CPU Power Cable:1
- 6+2-pin PCIe Power Cable:6
- 16-pin (12+4) 12V-2×6 PCIe Cable:2
- SATA Cable:12
- Peripherals Cable:4
|
CABLE SPECS |
- 24-pin ATX Power Cable:600mm with nylon sleeving
- 4+4-pin CPU Power Cable:700mm with nylon sleeving
- 8-pin CPU Power Cable:700mm with nylon sleeving
- 6+2-pin PCIe Power Cable:650mm with nylon sleeving
- 16-pin (12+4) 12V-2×6 PCIe Cable:650mm with nylon sleeving
- SATA Cable:500 + 150 mm with nylon sleeving
- Peripherals Cable:500 + 150 mm with nylon sleeving
|

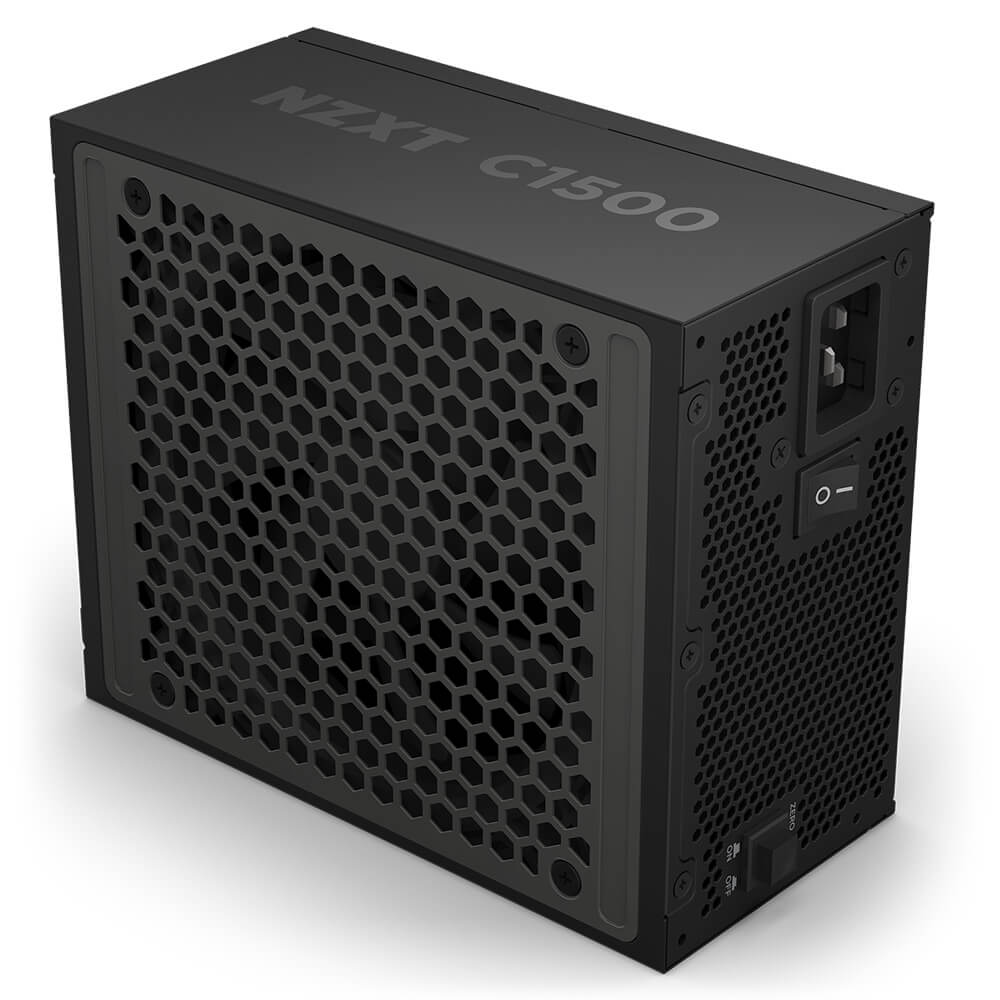

AC INPUT RATING |
- 100 – 240Vac:15A-9A 50Hz-60Hz
- 200 – 240Vac:9A 50Hz-60Hz
|
DC OUTPUT RATING |
- 3.3V / +5V:22A (120W)
- 12V:125A (1500W)
- 5Vsb:3A (15W)
- Total:1500W (115-240Vac) / 1300W (100-115Vac)
|
ENERGY EFFICIENCY |
- Rating:80 Plus Platinum
- 10% loading:92% @115Vac
- 20% loading:94% @115Vac
- 50% loading:93.8% @115Vac
- 100% loading:90.8% @115Vac
|
ELECTRICAL FEATURES |
- PF Correction:Active @0.99
- Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
|

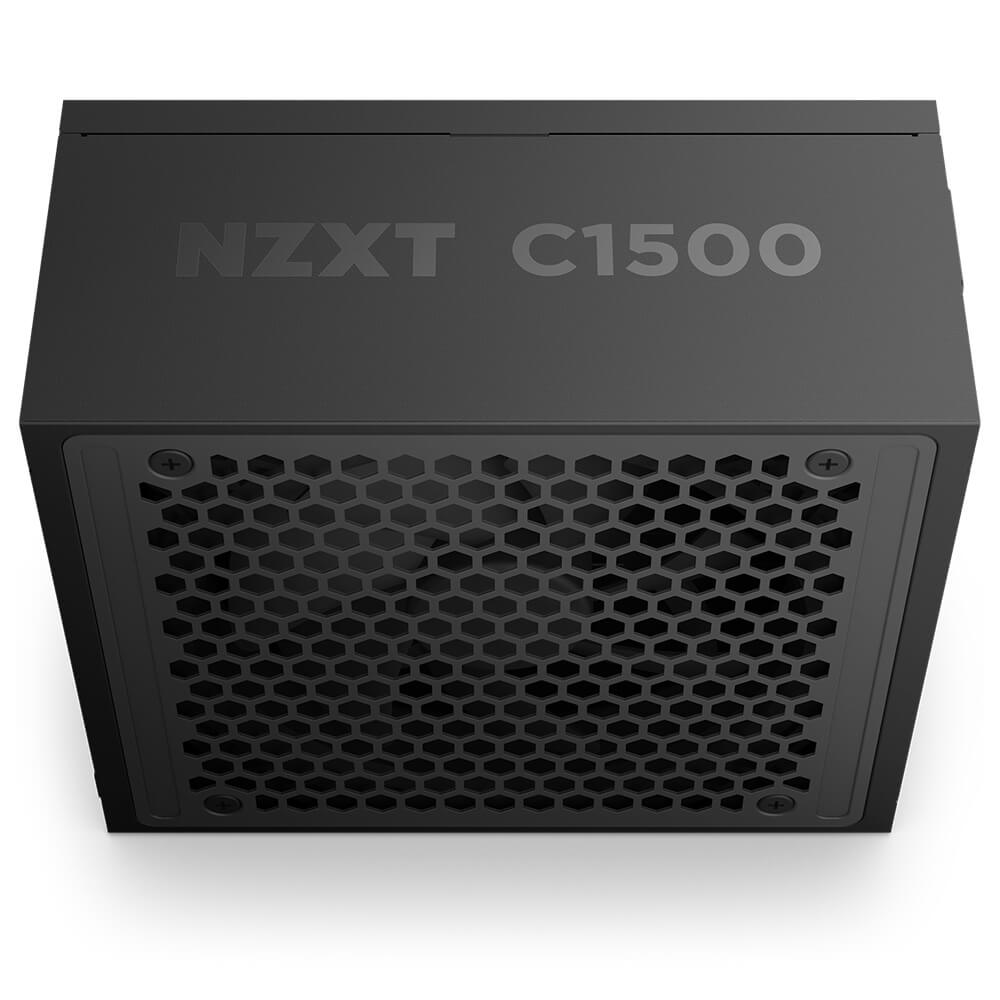

FAN SPECS |
- Dimensions:140 x 140 x 25 mm
- Speed:2500 ± 10% RPM
- Airflow:125 CFM (Tpy.)
- Noise:41.0 dBA max
- Bearing:Magnetic Levitation Bearing (ML)
|
OPERATION |
- MTBF:100,000 hours
- Temperature:0 – 50 °C
|
DIMENTION |
- Width:5.91 in / 150 mm
- Height:3.39 in / 86 mm
- Depth:7.09 in / 180 mm
|
GENERAL |
- Material(s):Steel, PCB and Plastic
- Compliance Standard:ATX12V v3.1 / EPS12V v2.92
- Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
- Warranty:10 Years
- Model Number:PA-5P1BB-US / PA-5P1BB-EU / PA-5P1BB-UK / PA-5P1BB-CN / PA-5P1BB-JP / PA-5P1BB-AU
- EAN:5056547203645 (US) / 5056547203652 (EU) / 5056547203669 (UK) / 5056547203638 (CN) / 5056547203676 (JP) / 5056547203683 (AU)
- UPC:810074843720 (US) / 810074843737 (EU) / 810074843744 (UK) / 810074843713 (CN) / 810074843751 (JP) / 810074843768 (AU)
|
