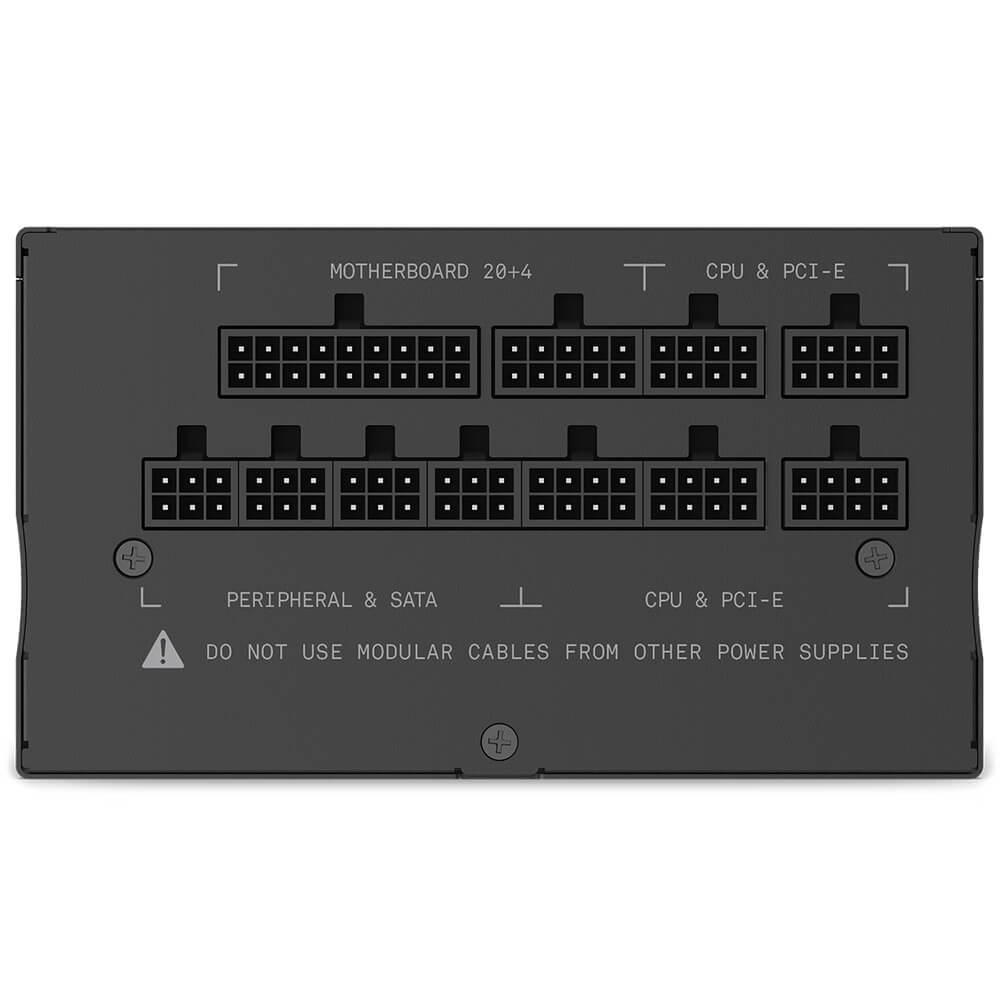

OUTPUT CONNECTORS | 24-pin ATX power:1
4+4-pin CPU power:2 6+2-pin PCIe power:6 SATA power:6 Peripherals:6 |
CABLE SPECS
|
24-pin ATX power:600 mm, Nylon sleeving
4+4-pin CPU power:700 mm, Nylon sleeving 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving SATA power:500 + 150 mm Peripherals:500 + 150 mm |
AC INPUT RATING
|
100 – 240Vac: 14A-7A 50Hz-60Hz |
DC OUTPUT RATING
|
+3.3V and +5V:22A (120W)
+12V:70.8A (850W) -12V:0.3A (3.6W) 5Vsb:3A (15W) Total:850W |
OPERATION
|
PF Correction:Active @0.96
MTBF:100,000 hours Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
ENERGY EFFICIENCY
|
Rating: 80 Plus Gold
20% loading: 87.5% @115Vac 50% loading: 90.5% @115Vac 100% loading: 87.5% @115Vac |
FAN SPECS
|
Dimensions: 135 x 135 x 25 mm
Speed: 0-2300 ± 10% RPM Airflow: 93.02 CFM (Tpy.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
GENERAL | Dimensions:150 x 150 x 86mm
Material(s):Steel, PCB and Plastic Compliance Standard:ATX12V v2.52 / EPS12V v2.92 Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA Warranty:10 years Model Number:PA-8G1BB |
UPC | UPC (TW):815671017383
UPC (CN):815671017314 UPC (AR):815671017321 UPC (US):815671017338 UPC (EU):815671017345 UPC (UK):815671017352 UPC (AU):815671017369 UPC (JP):815671017376 UPC (WO):815671017406 UPC (IN):815671017390 |
EAN | EAN (TW):5060301697694
EAN (CN):5060301697625 EAN (AR):5060301697632 EAN (US):5060301697649 EAN (EU):5060301697656 EAN (UK):5060301697663 EAN (AU):5060301697670 EAN (JP):5060301697687 EAN (WO):5060301697717 EAN (IN):5060301697700 |
NZXT C850 Gold – 850W 80 Plus Gold – Full Modular PSU
