GENERAL | Enclosure Type: Micro-ATX Case Motherboard Compatibility: Micro-ATX, Mini-ITX Supports Rear-Connecting Motherboards (BTF, Project Zero): Yes (Micro-ATX) Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black) |
DIMENSIONS | Height (with feet): 400 mm (15.75 in) Width: 225 mm (8.86 in) Depth: 389 mm (15.31 in) Volume: 35.0 L Weight: 4.8 kg (10.58 lb) |
CLEARANCE | CPU Cooler Height: 170 mm GPU Length: Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans) PSU Length: Up to 185 mm Cable Routing Space: Up to 31.5 mm Front Radiator + Fan Thickness: Up to 63 mm Top Radiator + Fan Thickness: Up to 70 mm |
FRONT I/O PORTS | USB 3.2 Type-A: 1 USB 3.2 Gen2x2 Type-C: 1 |
EXPANSION SLOTS | Standard: 4 Vertical: 0 |
DRIVE BAYS | 2.5″: 1+2 3.5″: 1 |
FAN SUPPORT | Front: 2 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (1 x F120Q (CV) included) |
RADIATOR SUPPORT | Front: Up to 280 mm Top: Up to 240 mm |
FAN SPECS | Model: F120Q (CV) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mmH2O Noise: 24.1 dBA Fan Connector: 3-pin |
Product Info | Model Number: CC-H31FW-01 CC-H31FB-01 CC-H31FW-02 CC-H31FB-02 UPC: 810074848039 810074848046 810074843508 810074843515 EAN: 5056547207971 5056547207988 5056547203393 5056547203409 |

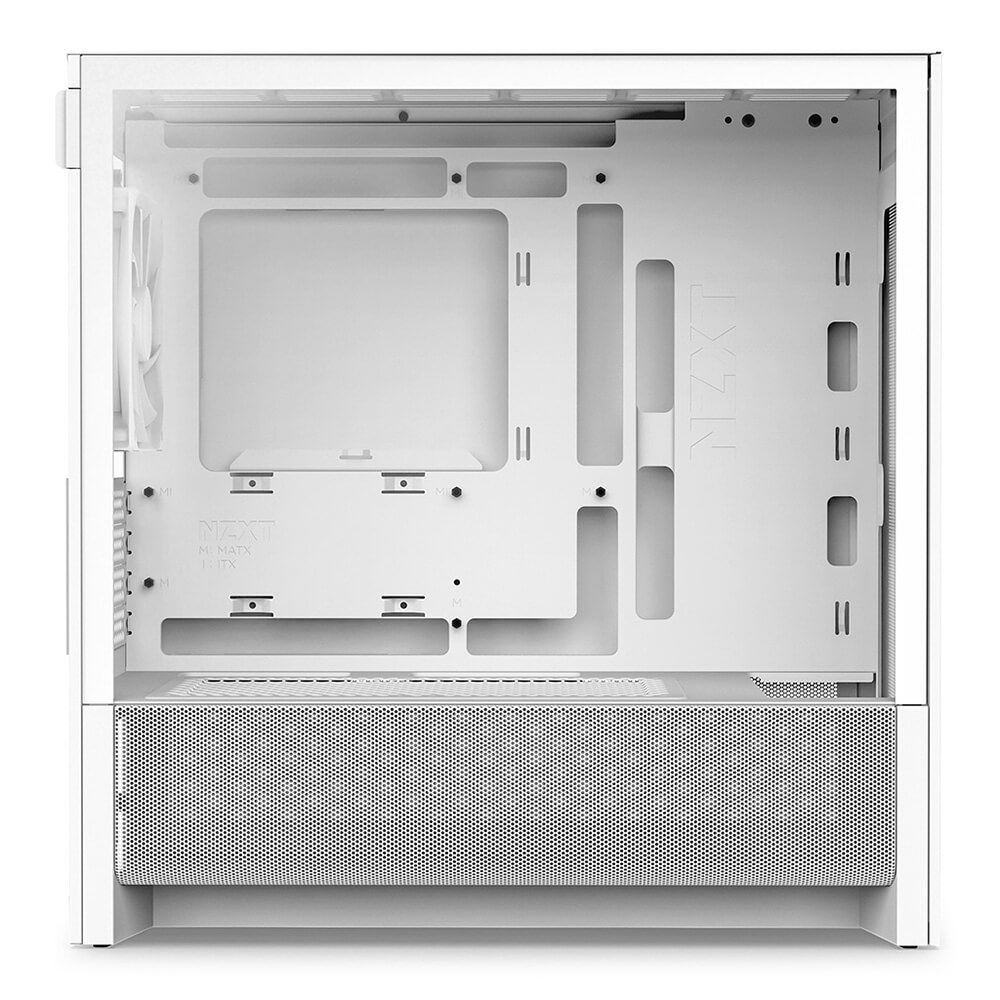

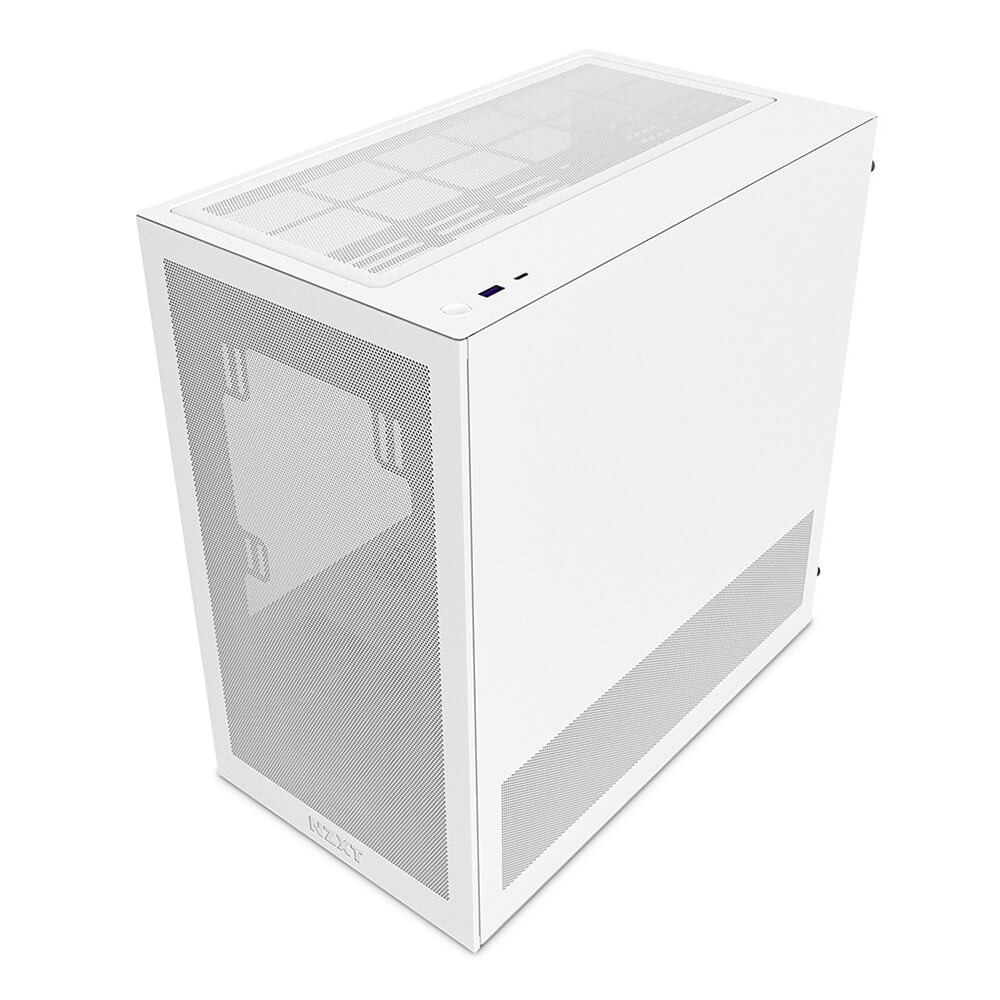

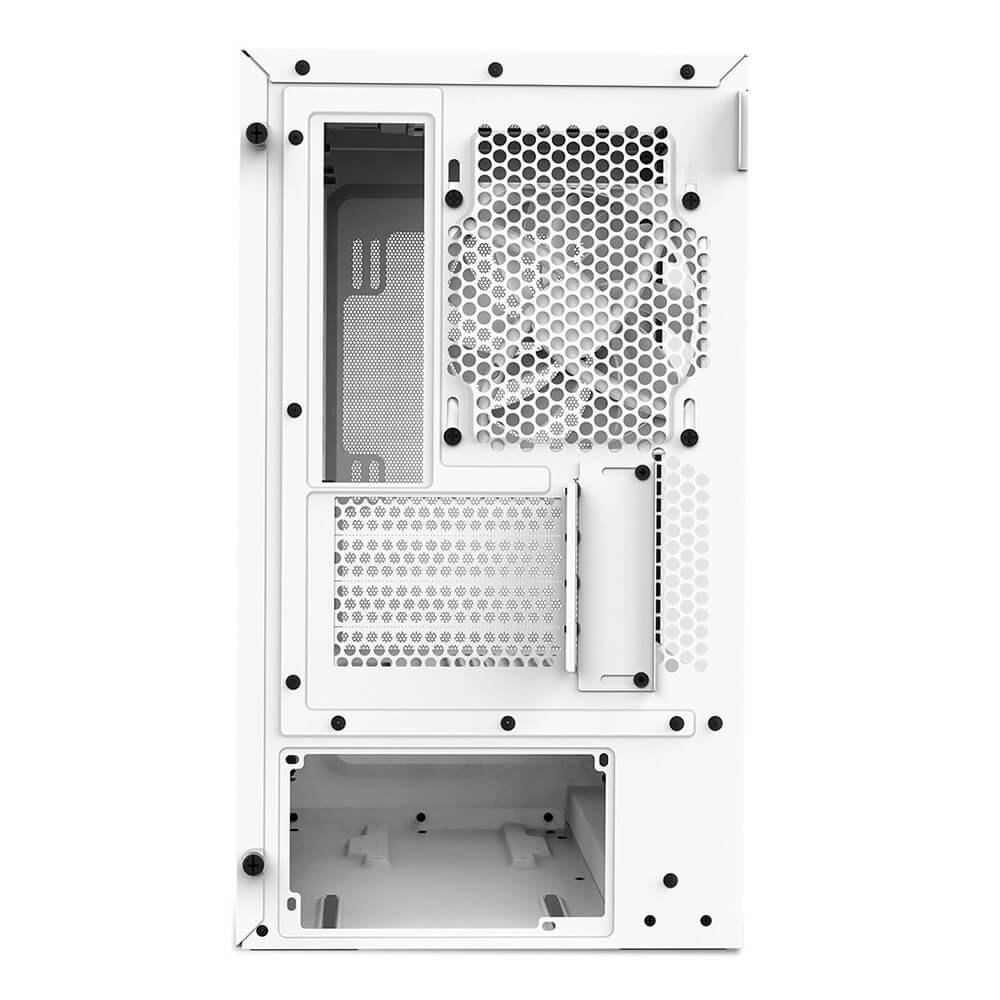

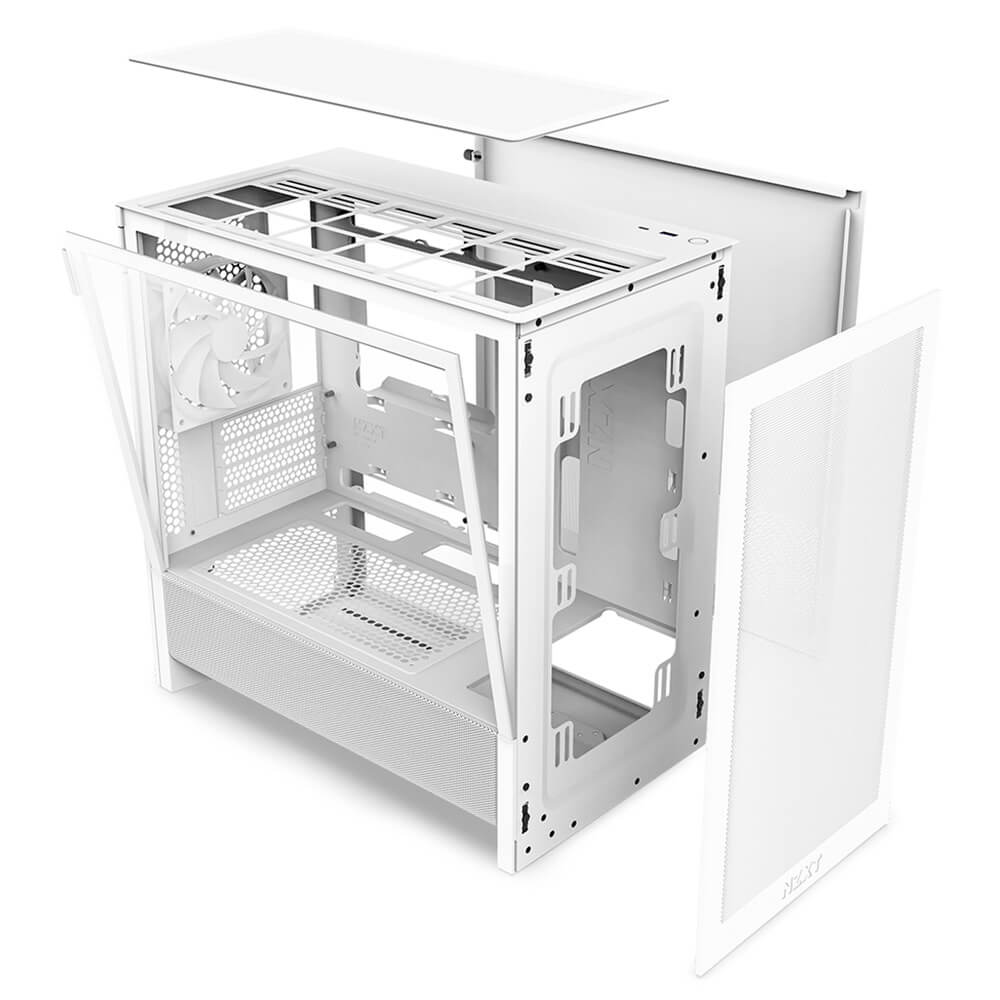

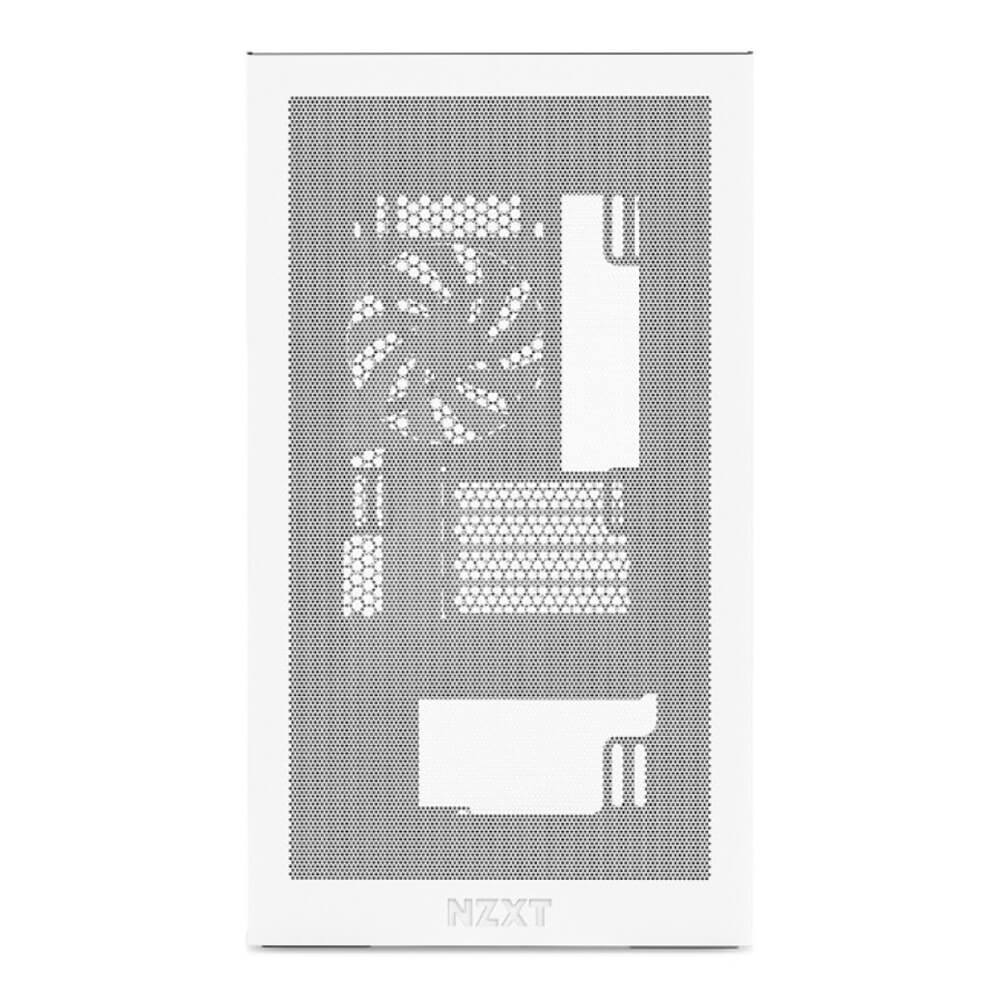

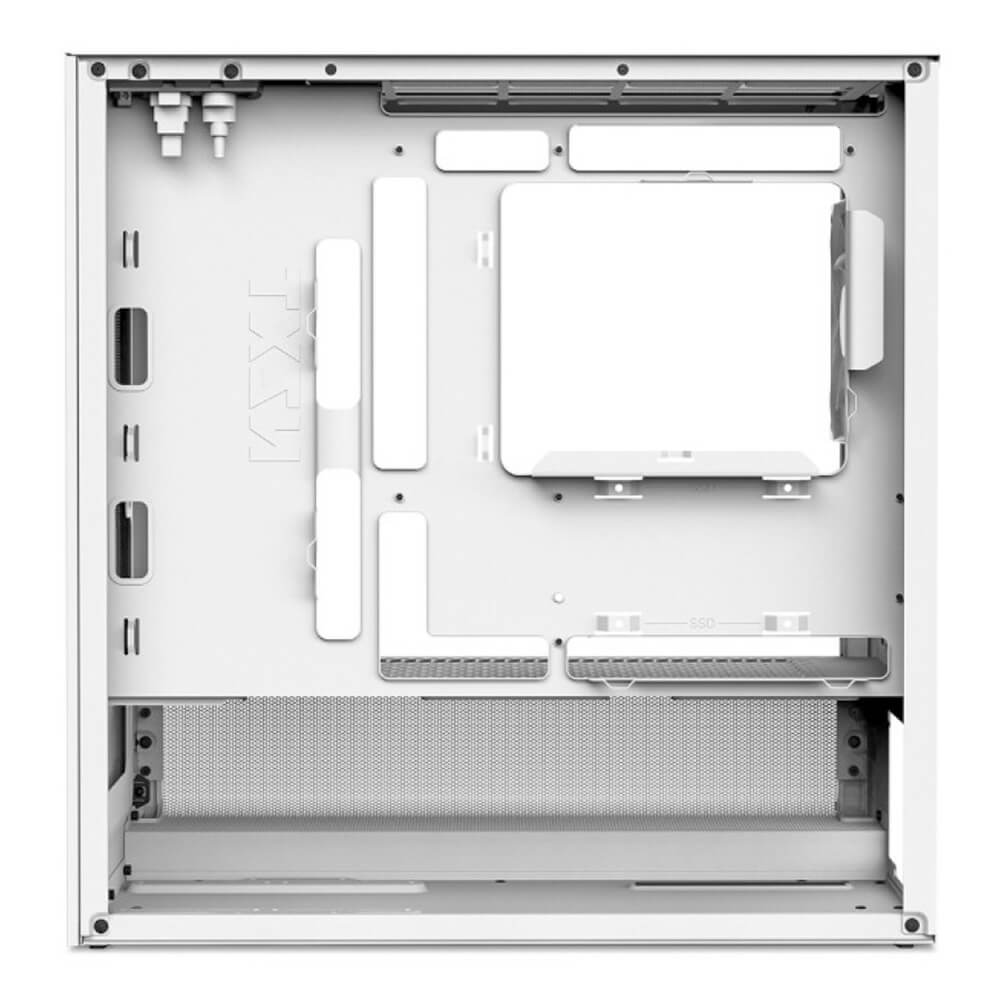

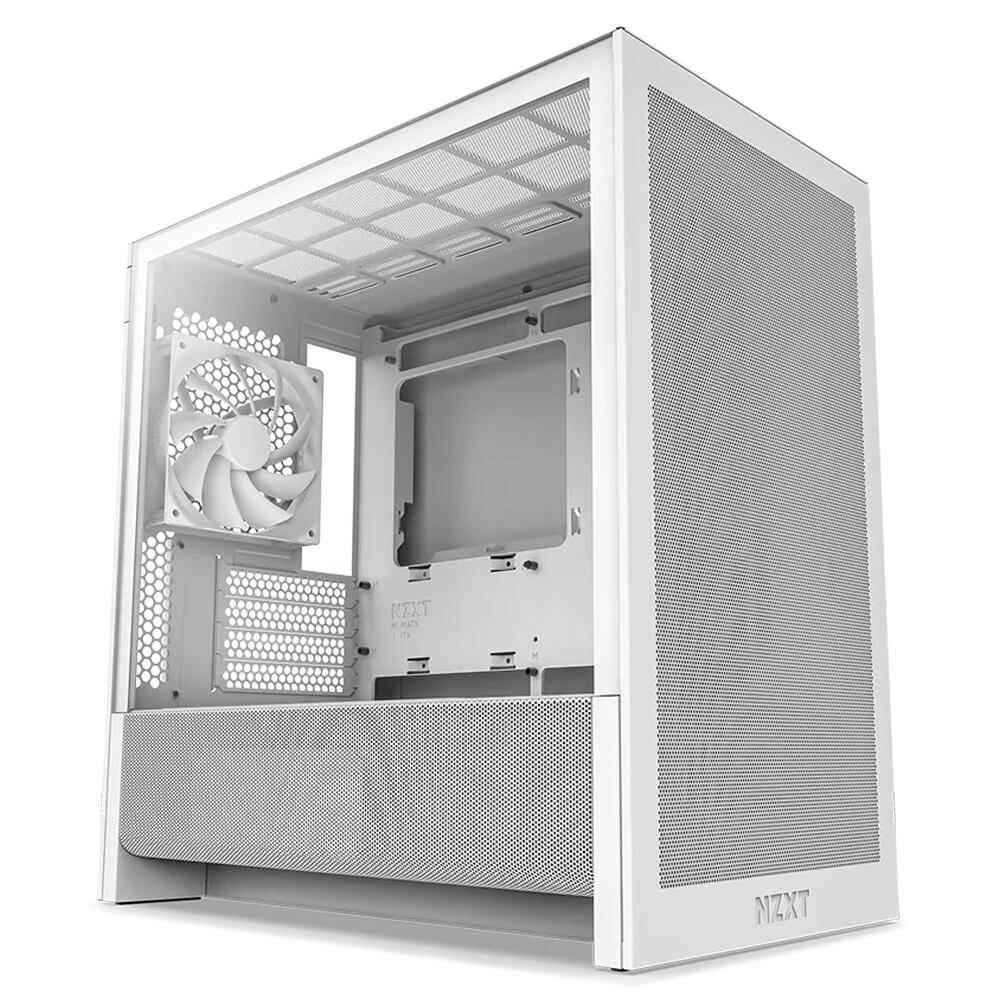

NZXT H3 Flow – White – Micro-ATX Airflow Case
