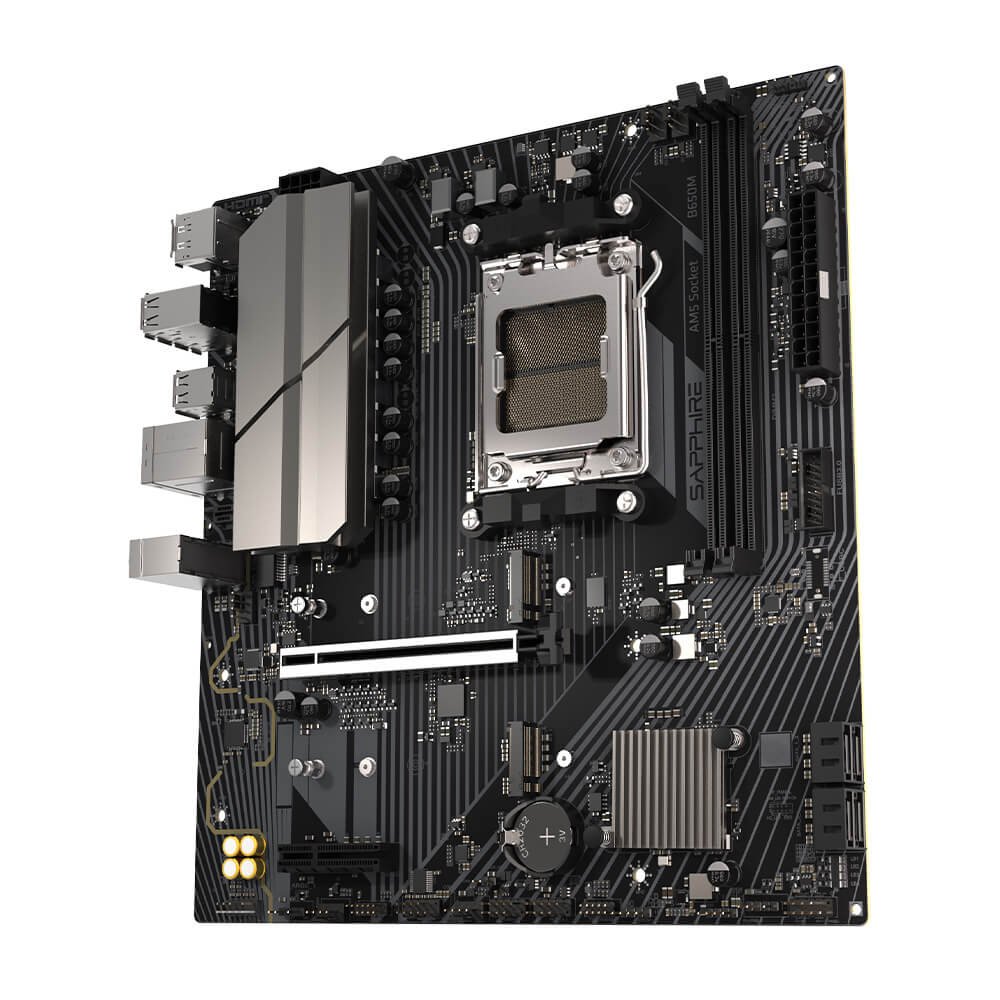

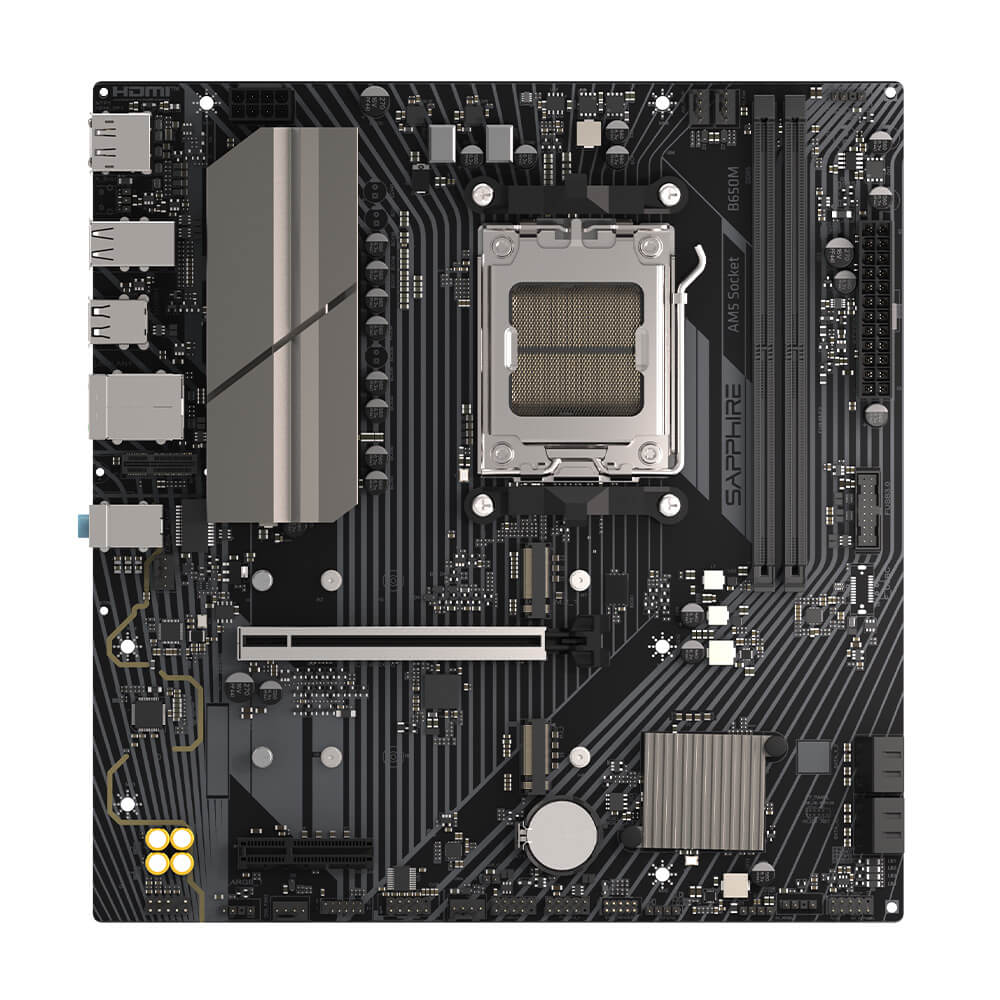

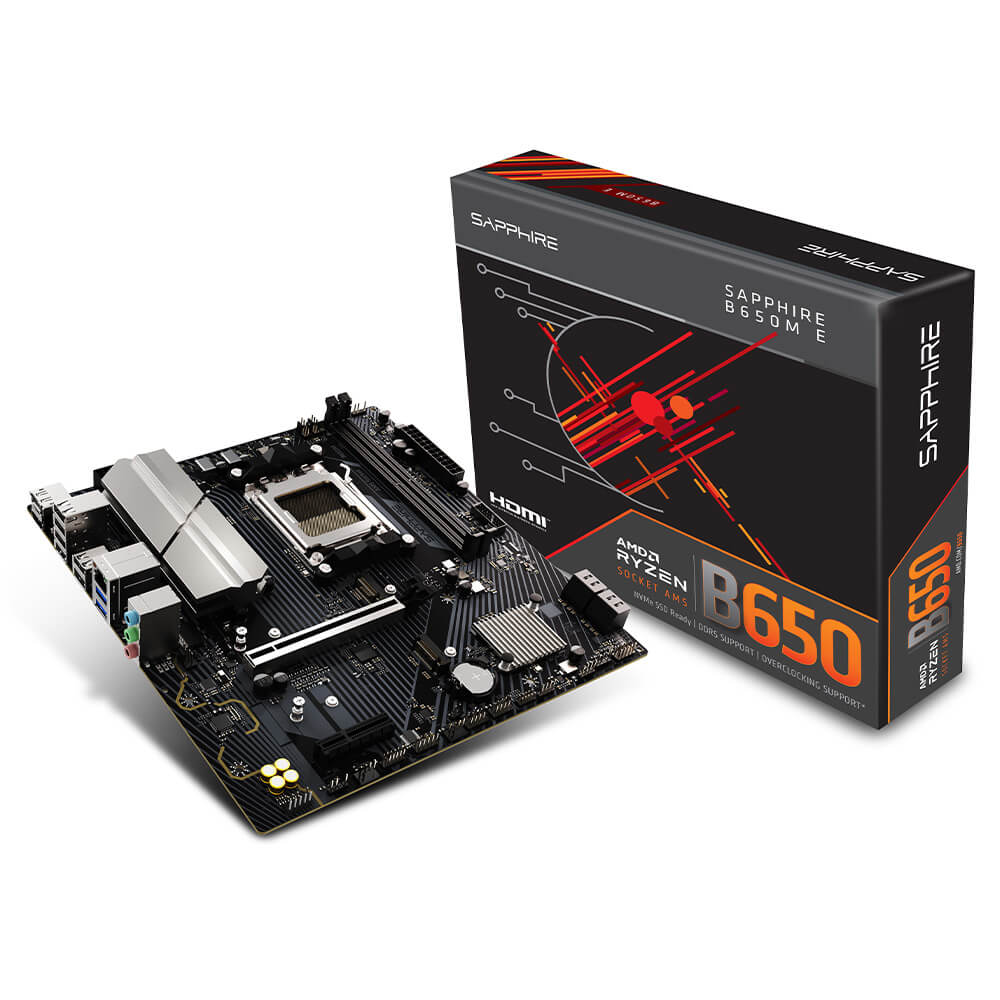

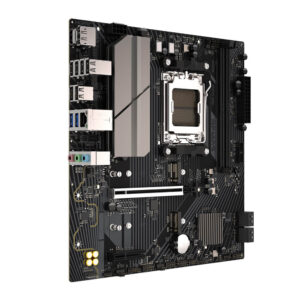

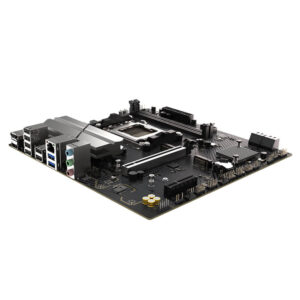

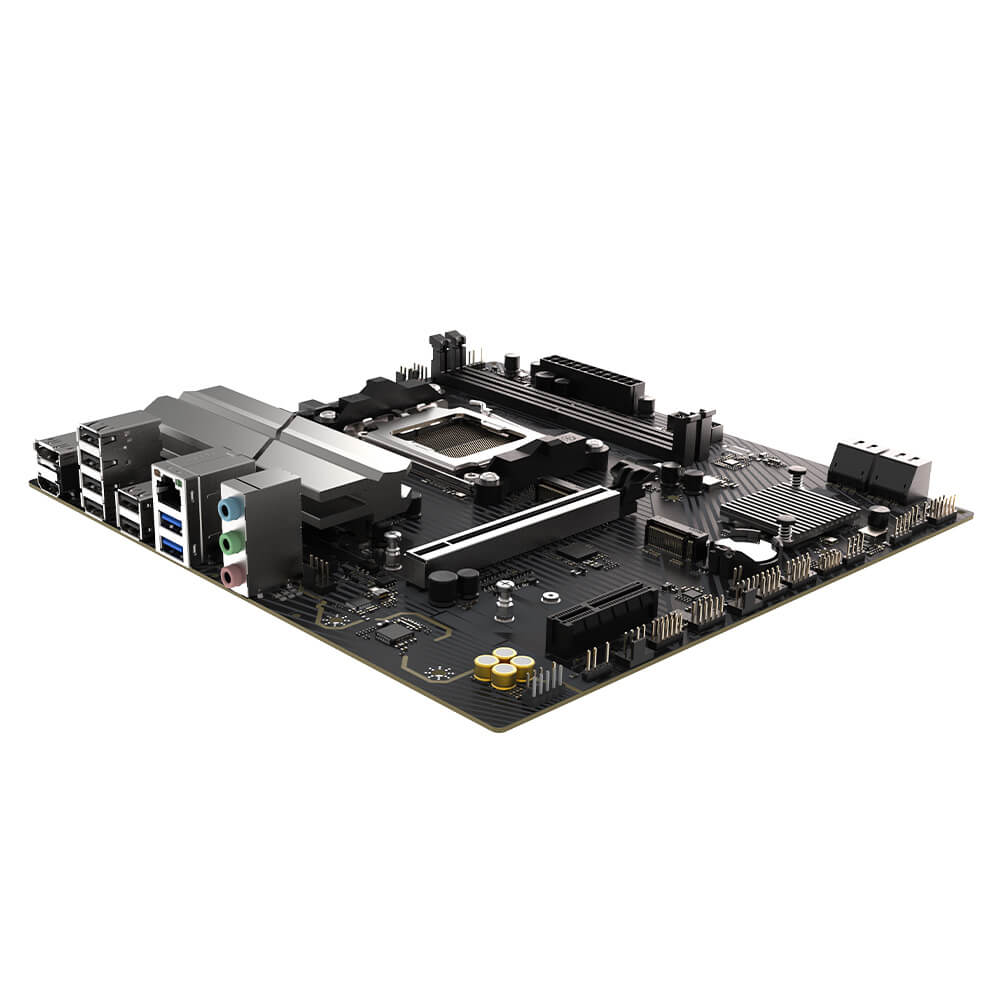

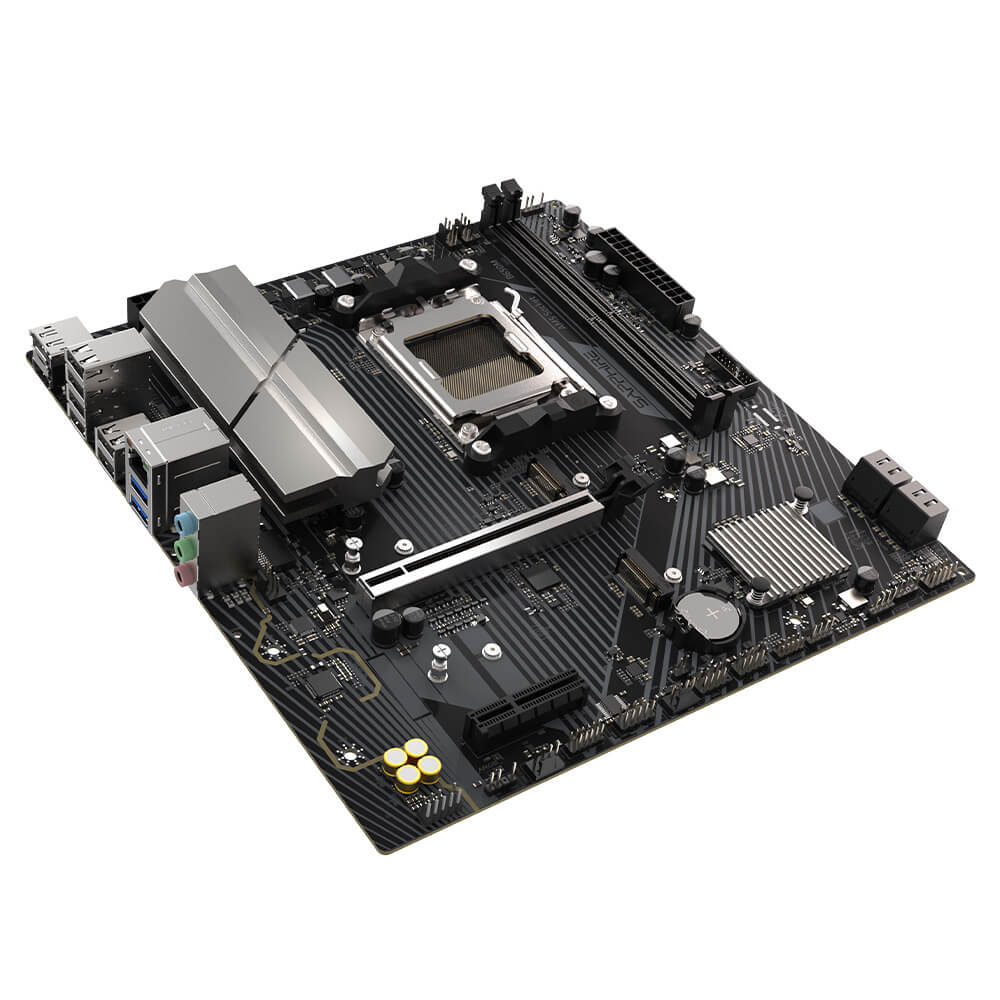

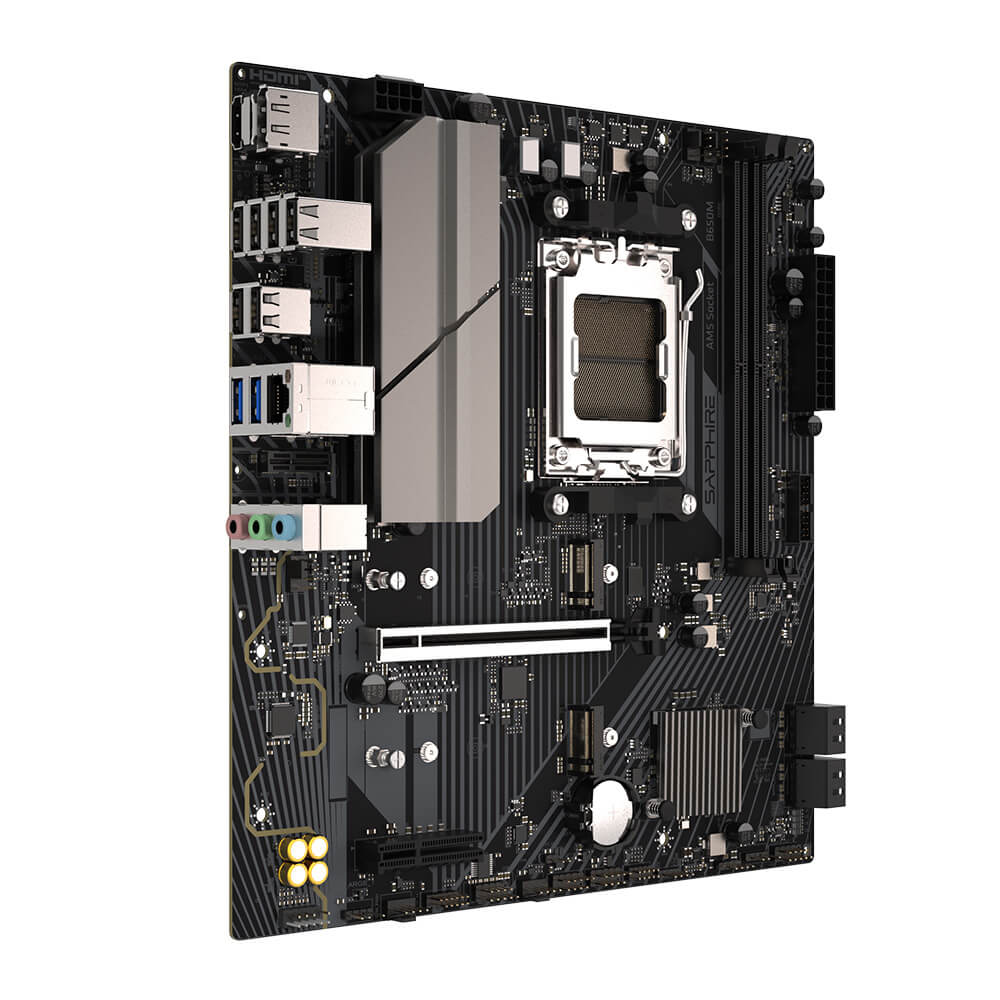

SAPPHIRE B650M-E – Socket AM5
Thông tin Sản Phẩm
Chipset |
AMD® B650 |
CPU Support |
Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
Memory Support |
2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC) |
PCI-E Expansion Slots |
1x PCIe 4.0 x16, 1x PCIe 4.0 x4
|
Display Connector |
DisplayPort x1, HDMI x1 |
Audio |
Realtek® ALC897 HD Audio, 5.1 Channel |
Network |
Realtek® RTL8125BG 2.5 Gigabit Ethernet |
Front USB Headers |
1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |
Rear Ports |
1× DisplayPort, 1× HDMI™ 6× USB 2.0, 2× USB 3.2 Gen1 Type-A 1× RJ45 LAN, 3× Audio Jacks |
Storage |
1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
Dimensions |
Micro-ATX, 244x235mm |
Debug LED |
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
