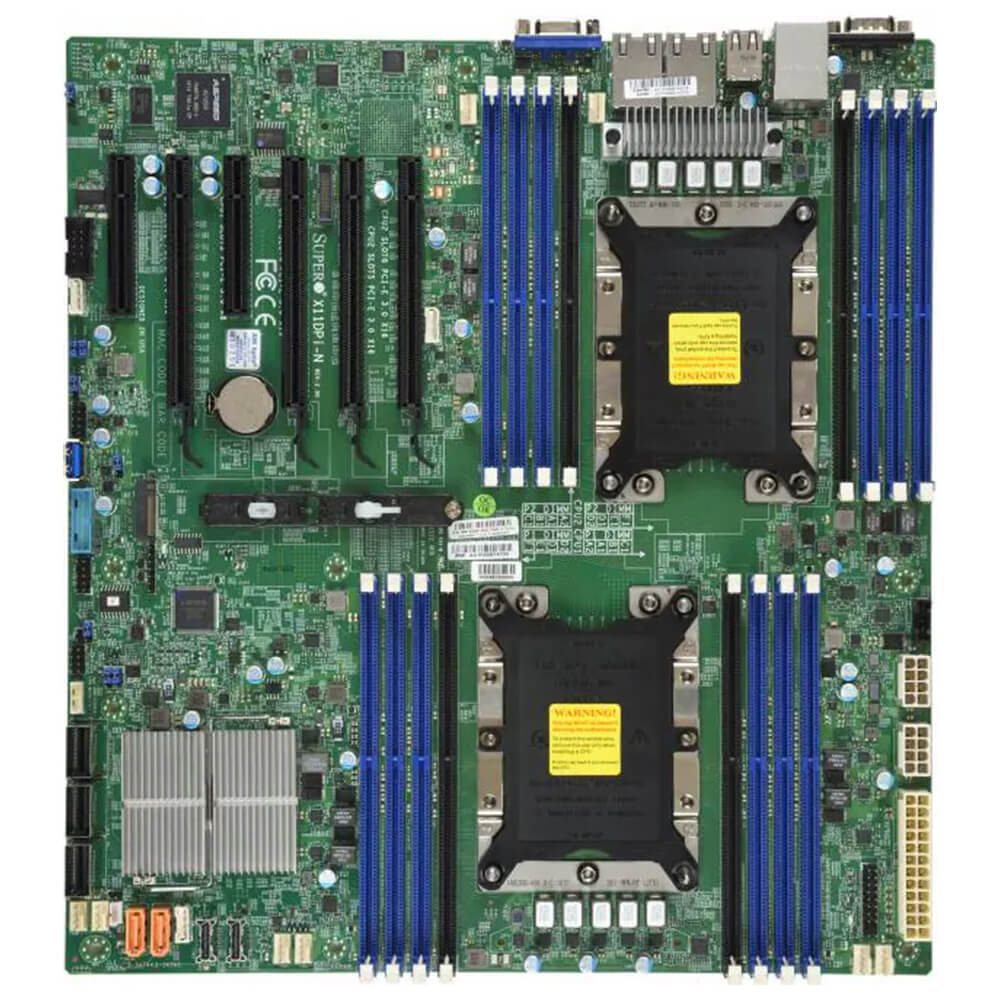

| MBD-X11DPI-N |
| Form Factor |
|
| Dimension |
- 12″ x 13″ (30.48cm x 33.02cm)
|
| CPU |
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
- Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
|
| Core |
|
| Note |
- BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
|
| Memory Capacity |
- 16 DIMM slots
- Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
- Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
- Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
|
| Memory Type |
- 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
|
| DIMM Sizes |
- LRDIMM: 128GB
- RDIMM: 64GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| Chipset |
|
| SATA |
- Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI |
|
| Graphics |
- 1 ASPEED AST2500 BMC port(s)
|
| Network Controllers |
- Dual LAN with 1GbE LAN with Intel® X722
|
| SATA |
|
| LAN |
|
| Video Output |
|
| Serial Port |
|
| DOM |
- 2 SuperDOM (Disk on Module) ports
|
| PCIe |
- 4 PCIe 3.0 x16,
- 2 PCIe 3.0 x8
|
| M.2 |
- M.2 Interface: PCIe 3.0 x4
- Form Factor: 22110, 2280, 2260
- Key: M-Key
|
| BIOS Type |
|
| Software |
- SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
|
| Voltage |
- Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V
|
| LED |
- UID/remote UID LED
- Power LED
- BMC/IPMI Heartbeat LED
- CPU/system overheat LED
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- PECI
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans)
- PWM fan speed control
|
| Other Features |
- UID, RoHS, Node manager support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, SDDC, NCSI header
|
| Operating Temperature Range |
- 10°C – 35°C (50°F – 95°F)
|
| Non-Operating Temperature Range |
- -40°C – 70°C (-40°F – 158°F)
|
| Operating Relative Humidity Range |
- 8% – 90% (non-condensing)
|
| Non Operating Relative Humidity Range |
- 5% – 95% (non-condensing)
|
