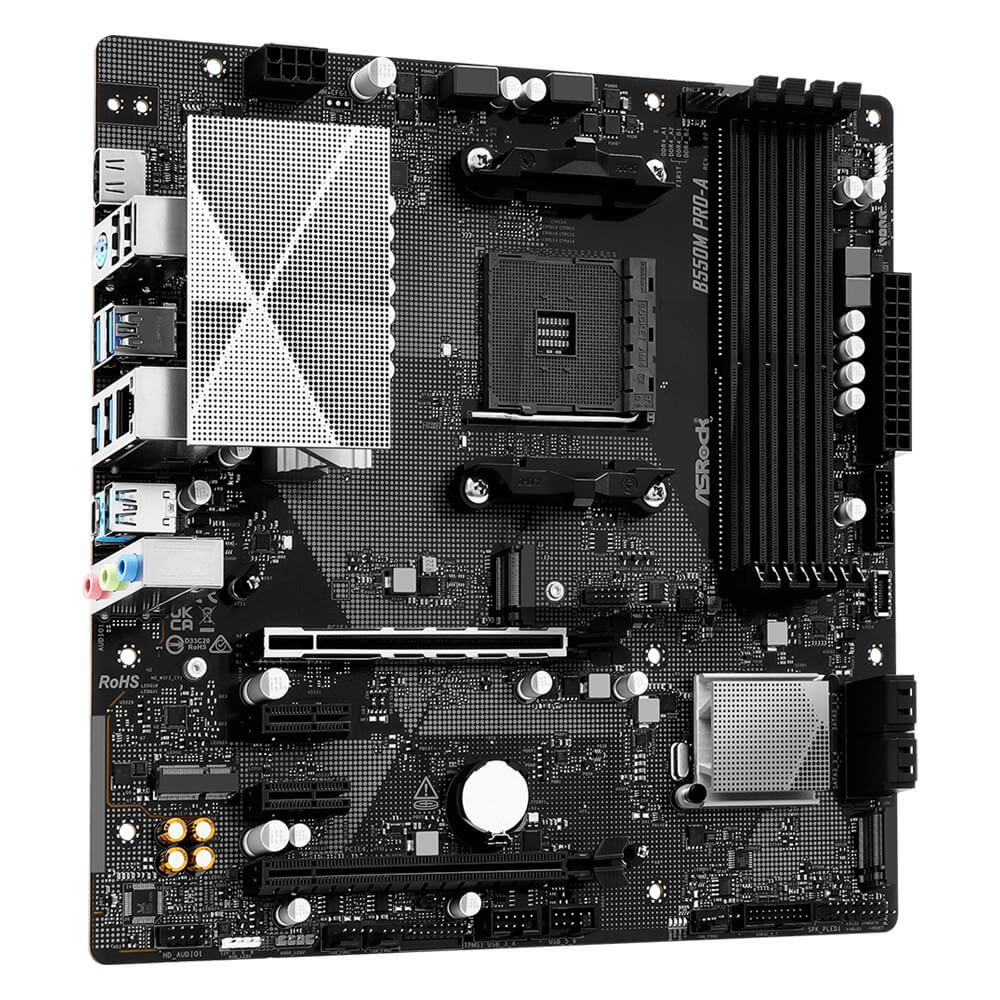

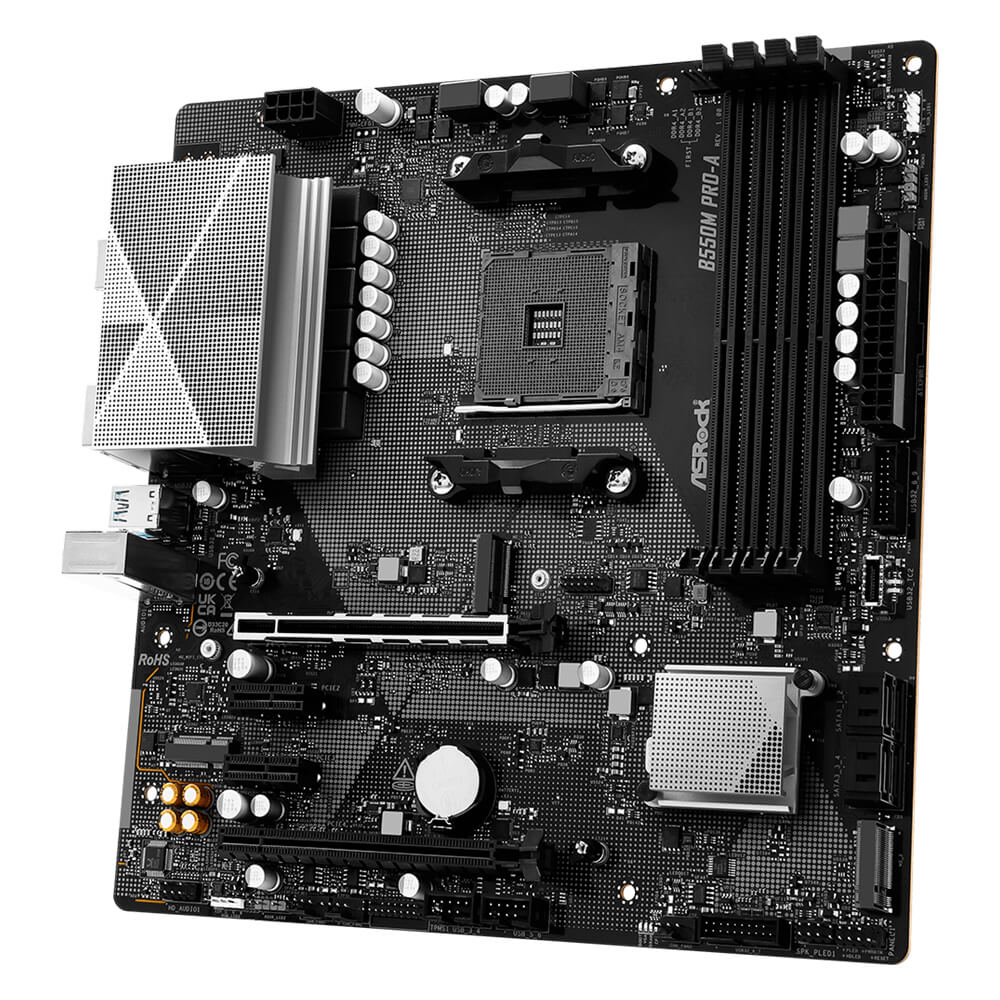

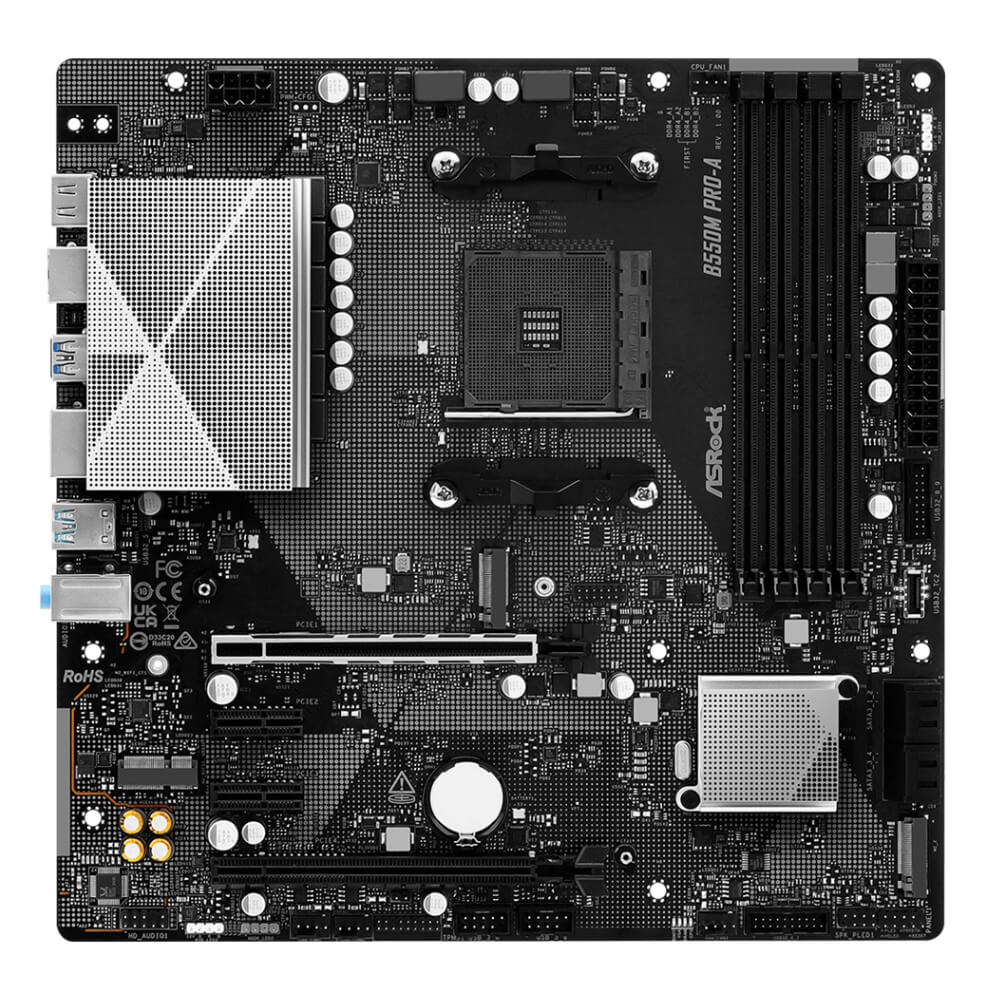

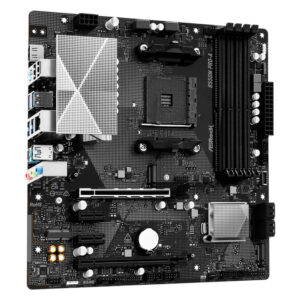

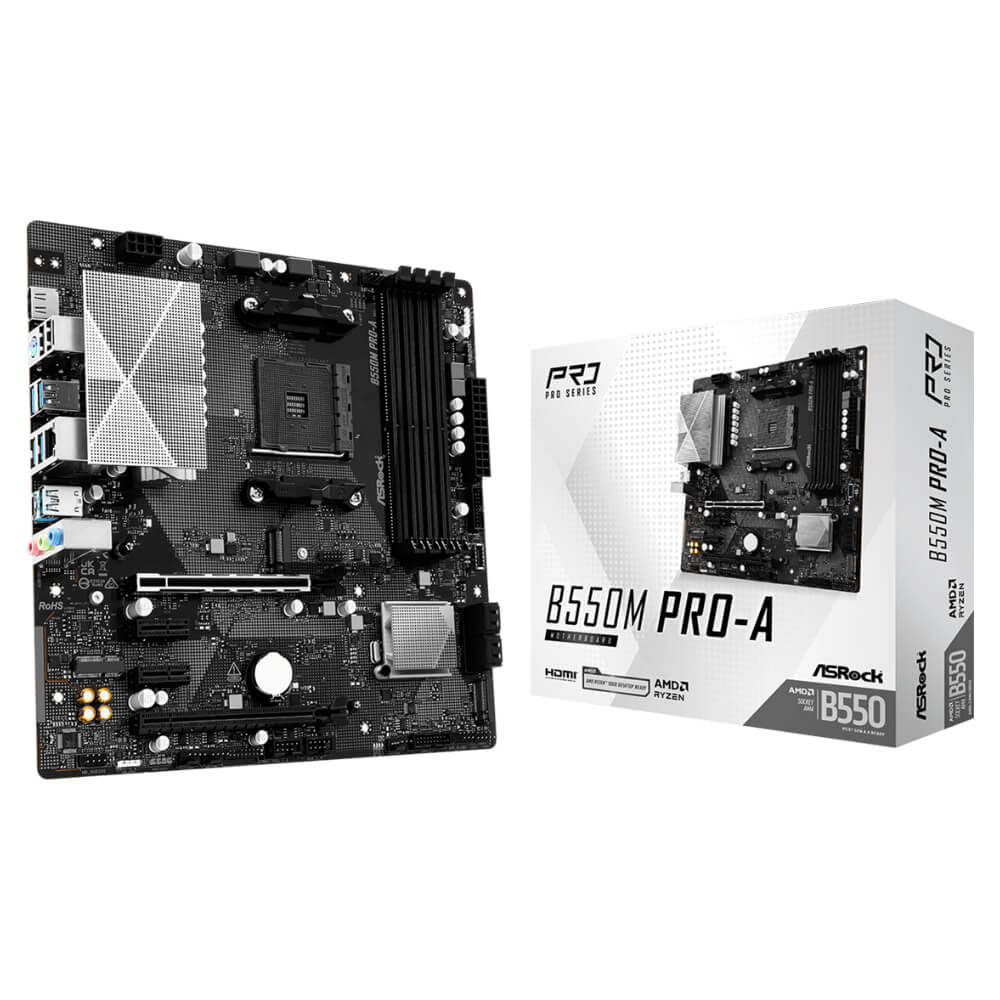

ASROCK B550M Pro-A – SOCKET AM4

Giá Tân Doanh: 2,490,000₫

Tình trạng: Mới 100%
Bảo hành: 36 tháng
Xuất xứ: Chính hãng
Thương hiệu: ASROCK
Giá trên đã bao gồm VAT.

Danh mục: AMD B550 AM4 Thẻ: ASRock, B550

Giao hàng

Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây
Đổi trả

Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây
Tổng đài CSKH

1900.966.939
Hotline Kinh Doanh

093.88.99.941
078.366.6668
Hotline Kỹ Thuật

093.88.99.947

Thông tin Sản Phẩm

Mô tả

Unique Feature	Rock-Solid Durability – 8 Power Phase EZ Troubleshooter ASRock POST Status Checker (PSC)
CPU	– Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* – Digi Power design – 8 Power Phase design *Not compatible with AMD Athlon™ Processors.
Chipset	– AMD B550
Memory	– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 128GB** – Supports Extreme Memory Profile (XMP) memory modules – 15μ Gold Contact in DIMM Slots*
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz** Actual support may vary by CPU *Picasso supports HDCP 2.2 with HDMI 2.0 Port
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN	– Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H
Slots	AAMD Ryzen series CPUs (Vermeer and Matisse) – 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE4: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) – 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE4: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) – 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE4: Gen3 x4 mode)* – Supports AMD CrossFire™ – 2 x PCIe 3.0 x1 Slots (PCIE2/PCIE3: x1 mode) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks
Storage	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1~3 support the fan power up to 2A (24W). CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.
USB	CPU: – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (4 Rear (USB32_12 and USB32_34), 2 Front (USB32_8_9)) Chipset: – 1 x USB 3.2 Gen1 Type-C (Rear) – 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_5), 2 Front (USB32_6_7)) – 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection

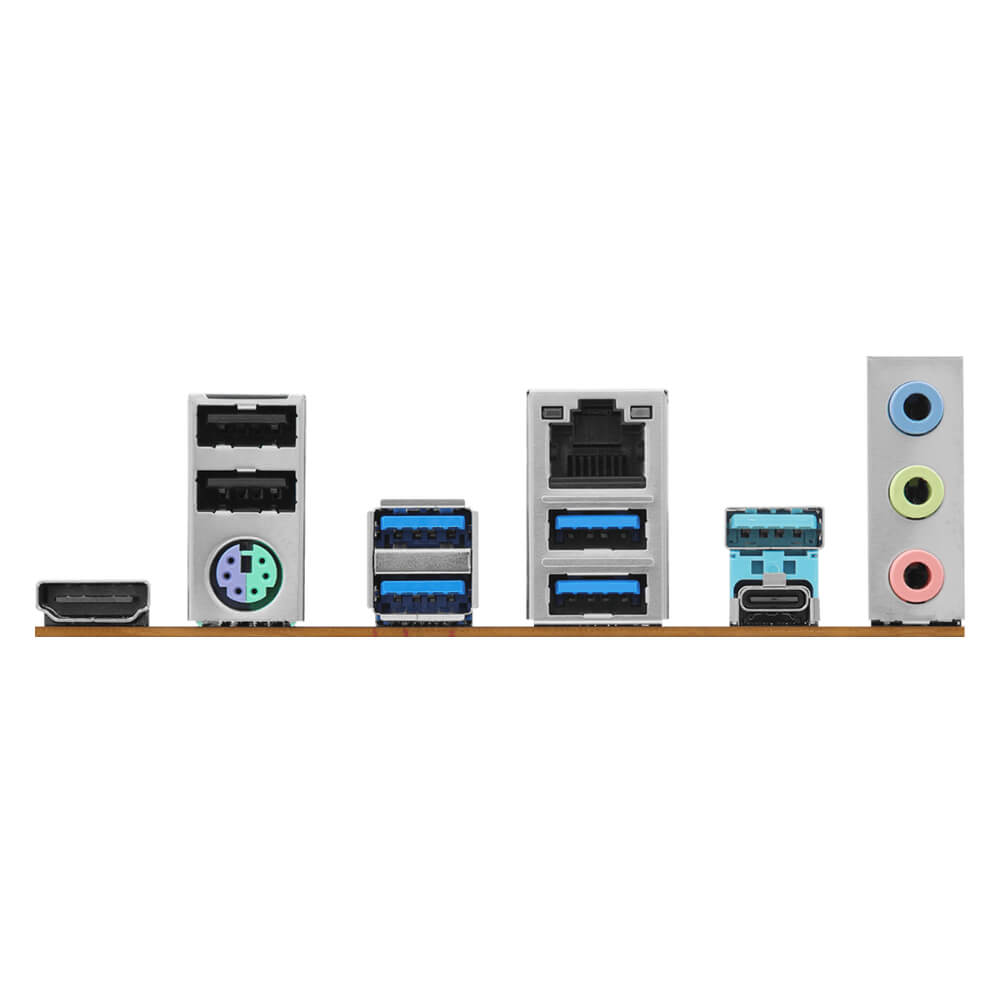

Rear Panel I/O	– 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x USB 3.2 Gen1 Type-C Port – 5 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	– 1 x I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	– Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
