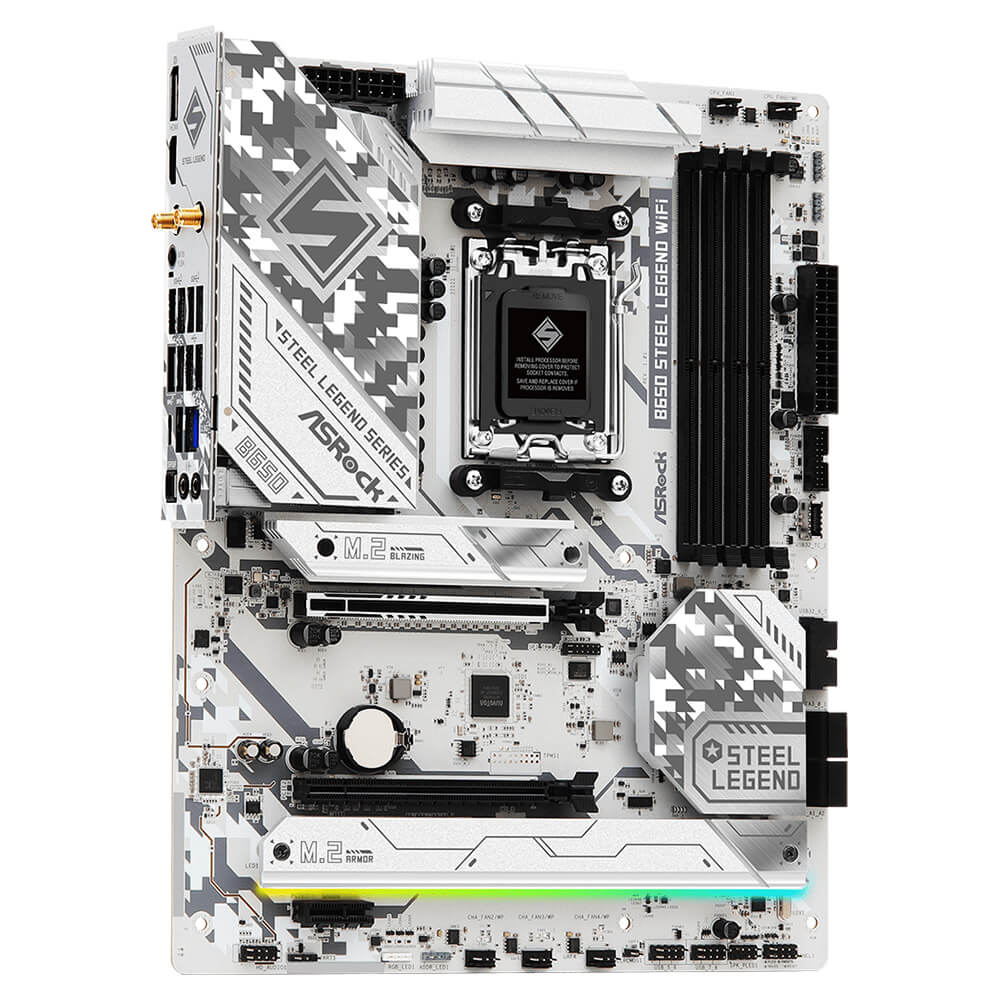

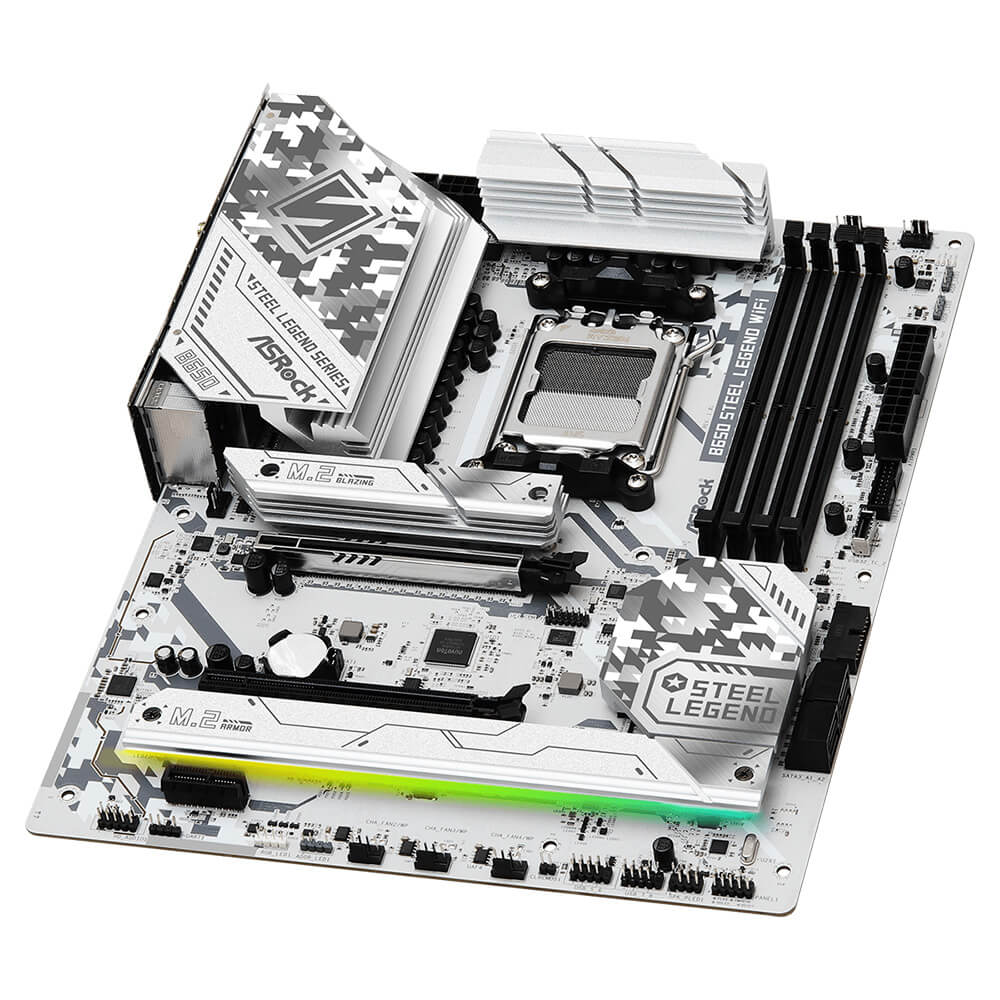

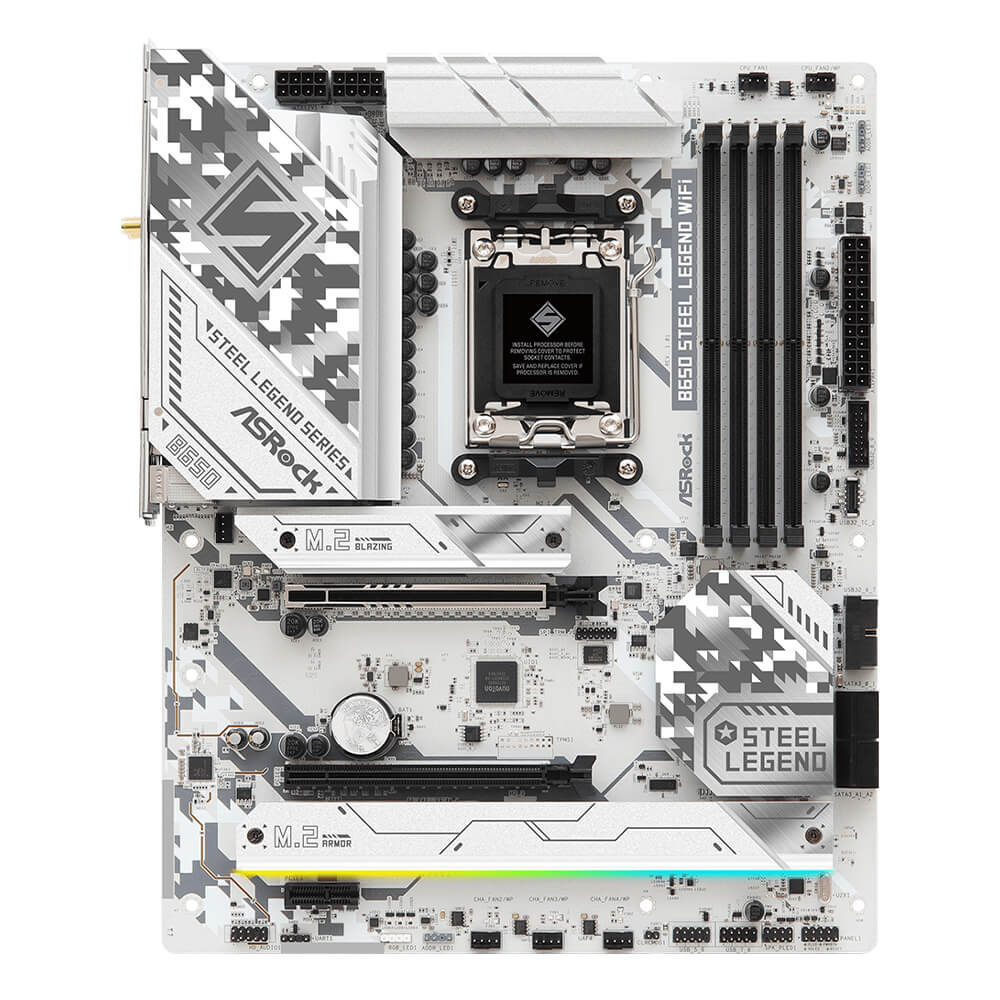

ASRock B650 Steel Legend WiFi – SOCKET AM5
Giá Tân Doanh:
5,990,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASROCK
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 Rock-Solid Durability – 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
|
CPU
|
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
|
Chipset
|
– AMD B650
|
|
Memory
|
– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
BIOS
|
– 256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – Individual PCB Layers for R/L Audio Channel – Impedance Sensing on Rear Out port – Nahimic Audio |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
|
Slots
|
CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x1 Slot (PCIE3)* – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
* Supports NVMe SSD as boot disks
If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode. |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 2 x SATA3 6.0 Gb/s Connectors** ASMedia ASM1061: – 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
** If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode. |
|
RAID
|
– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10
|
|
USB
|
CPU:
– 1 x USB 3.2 Gen2 Type-A (Rear) – 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
|
| Connector | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
|

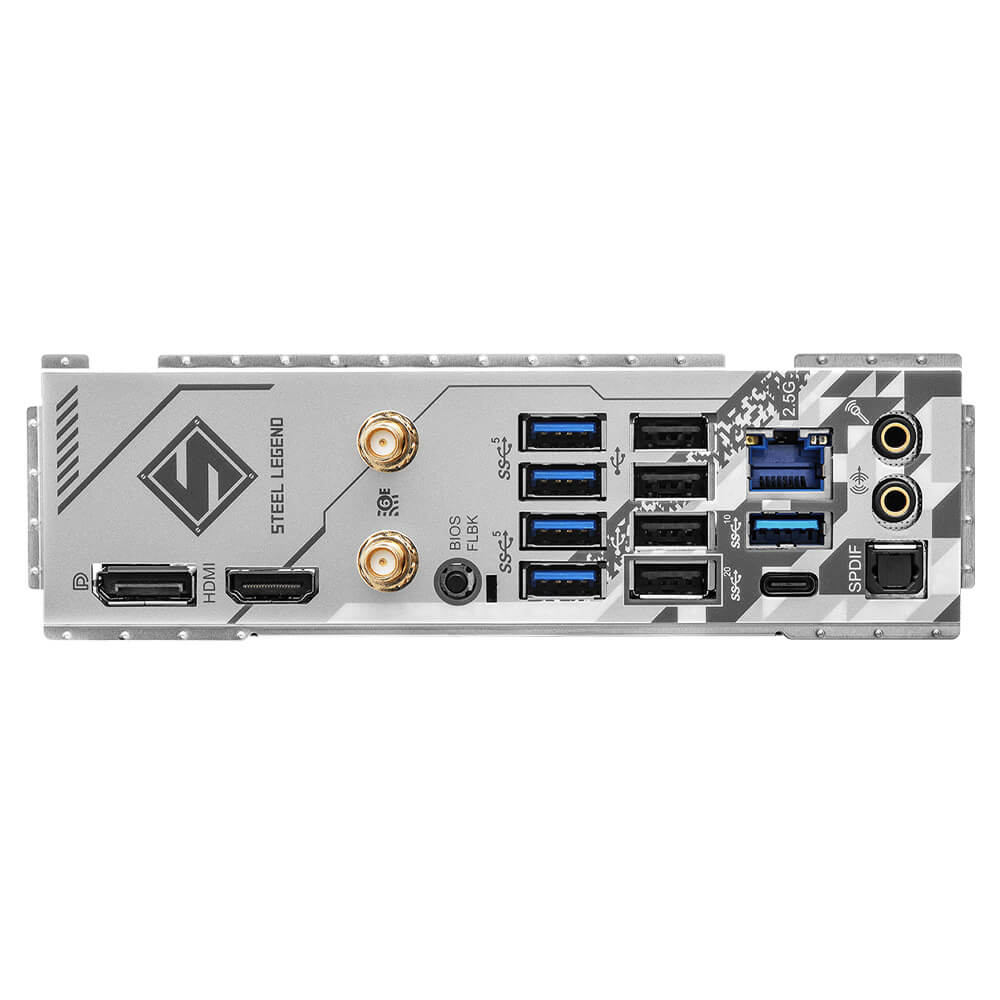

Rear Panel I/O
|
– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.) – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
|
Software and UEFI
|
Software
– ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|

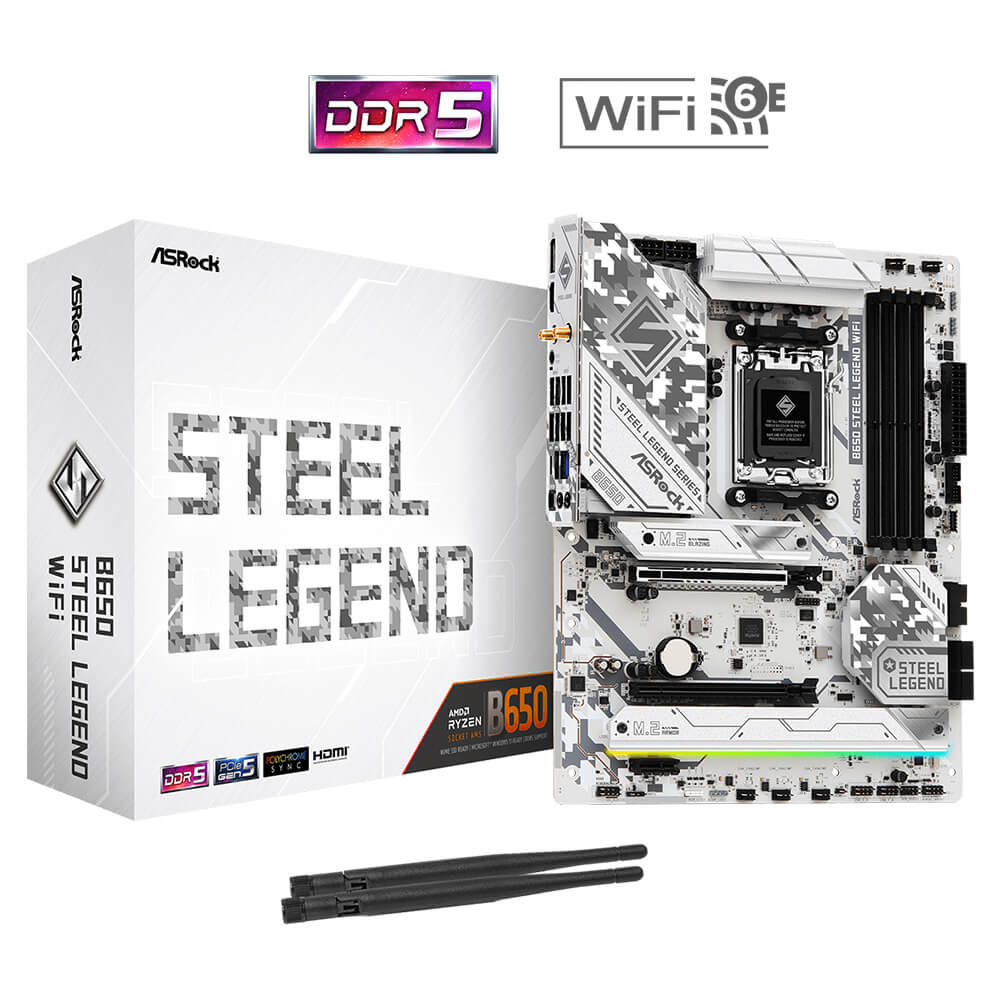

| Accessories |
– 1 x User Manual
– 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 3 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket |
|
Form Factor
|
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB |
|
OS
|
– Microsoft® Windows® 10 64-bit / 11 64-bit
|
| Certifications |
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |
