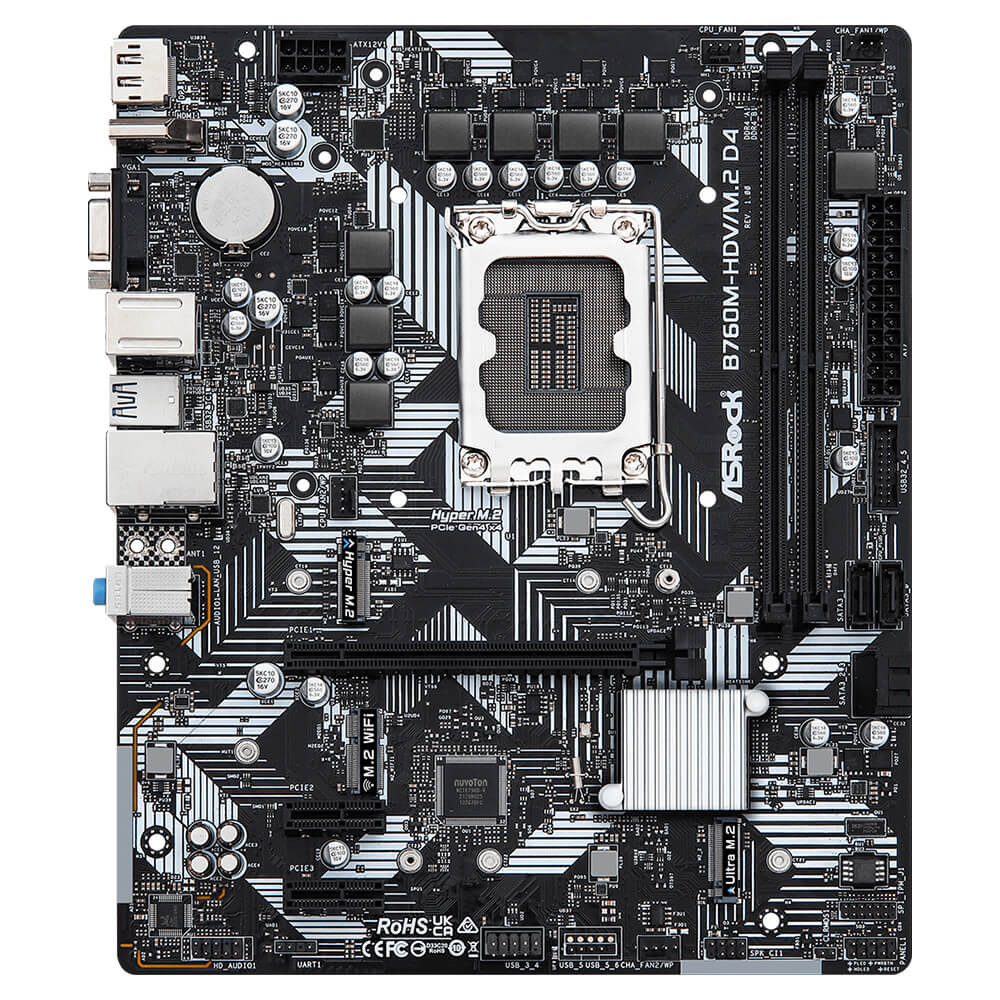

ASRock B760M-HDV/M.2 D4 – Socket 1700

Giá Tân Doanh: 2,490,000
  • Tình trạng: Mới 100%
  • Bảo hành: 36 tháng
  • Xuất xứ: Chính hãng
  • Thương hiệu: ASRock
  • Giao hàng
    Giao hàng

    Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây

  • Đổi trả
    Đổi trả

    Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây

  • Tổng đài CSKH
    Tổng đài CSKH

    1900.966.939

  • Hotline Kinh Doanh
    Hotline Kinh Doanh

    093.88.99.941
    078.366.6668

  • Hotline Kỹ Thuật Kỹ Thuật
    Hotline Kỹ Thuật

    093.88.99.947

Thông tin Sản Phẩm

Unique Feature Rock-Solid Durability
– 5+1+1 Power Phase
EZ Update
– ASRock Auto Driver Installer
CPU – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
Chipset – Intel® B760 Chipset
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Ethernet – Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H
Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Supports NVMe SSD as boot disks
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
– 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB – 1 x USB 3.2 Gen1 Type-C (Rear)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 5 x USB 2.0 (2 Rear, 3 Front)
* All USB ports support ESD Protection

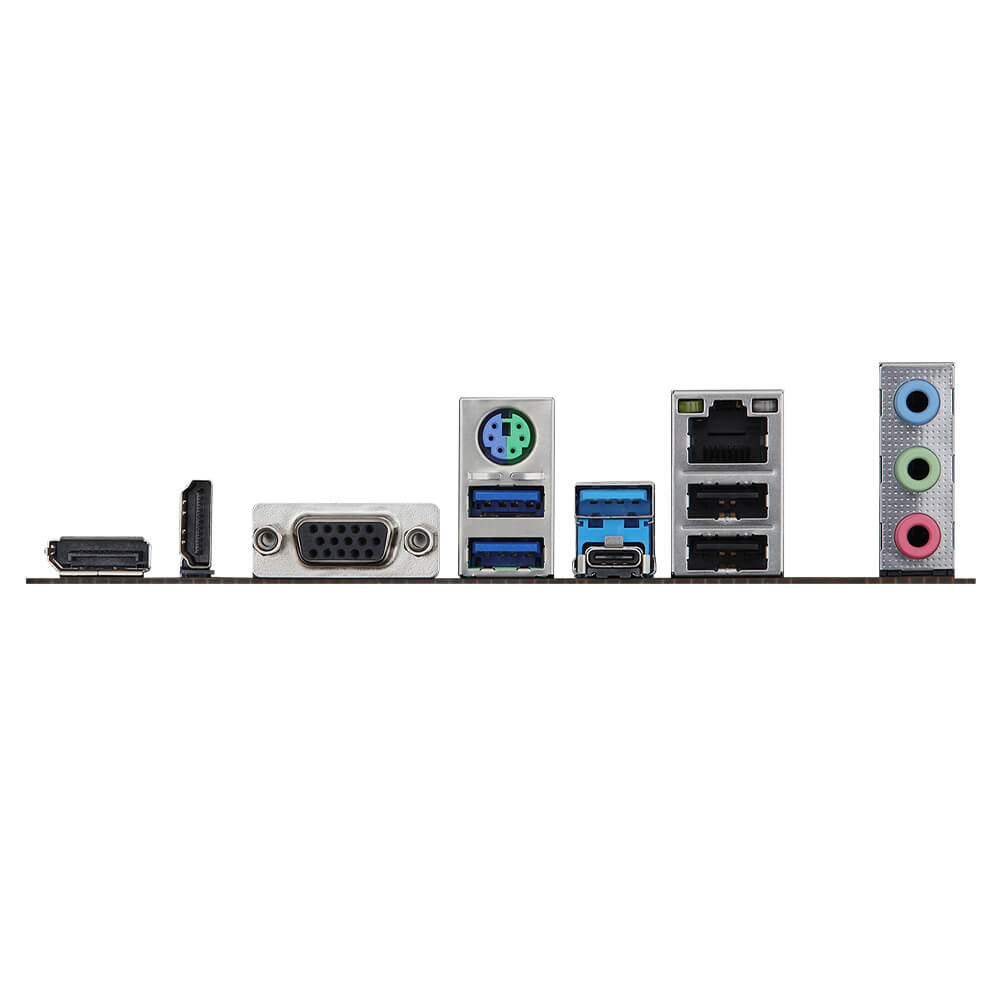

Rear I/O Ports – 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors – 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories – 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
Operating System – Microsoft® Windows® 10 64-bit / 11 64-bit
Form Factor – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
