MOBO B760M-WIFI DDR4 – Socket 1700
Thông tin Sản Phẩm
| Model | MOBO B760M-WIFI DDR4 |
| CPU | Supports Intel’s 12th, 13th and 14th generation platform processors |
| Chipset | Intel® B760 Chipset |
| Memory | 2 x DIMM slots, max. 64GB Supports dual channel DDR4 2133-3200MHz |
| Display interface | 1 HDMI interface, 1 DP interface |
| Expansion Slots | 1 PCI Express x16 slot; 1 PCI Express x1 slot |
| Storage interface | 4 SATA3.0 6Gbps interfaces; Two M.2 nvme protocol 4.0 rate interfaces |
| USB interface | 4 USB 3.2 and 2 USB 2.0 in the rear; Front 1 USB 3.2, 1 USB 2.0 |

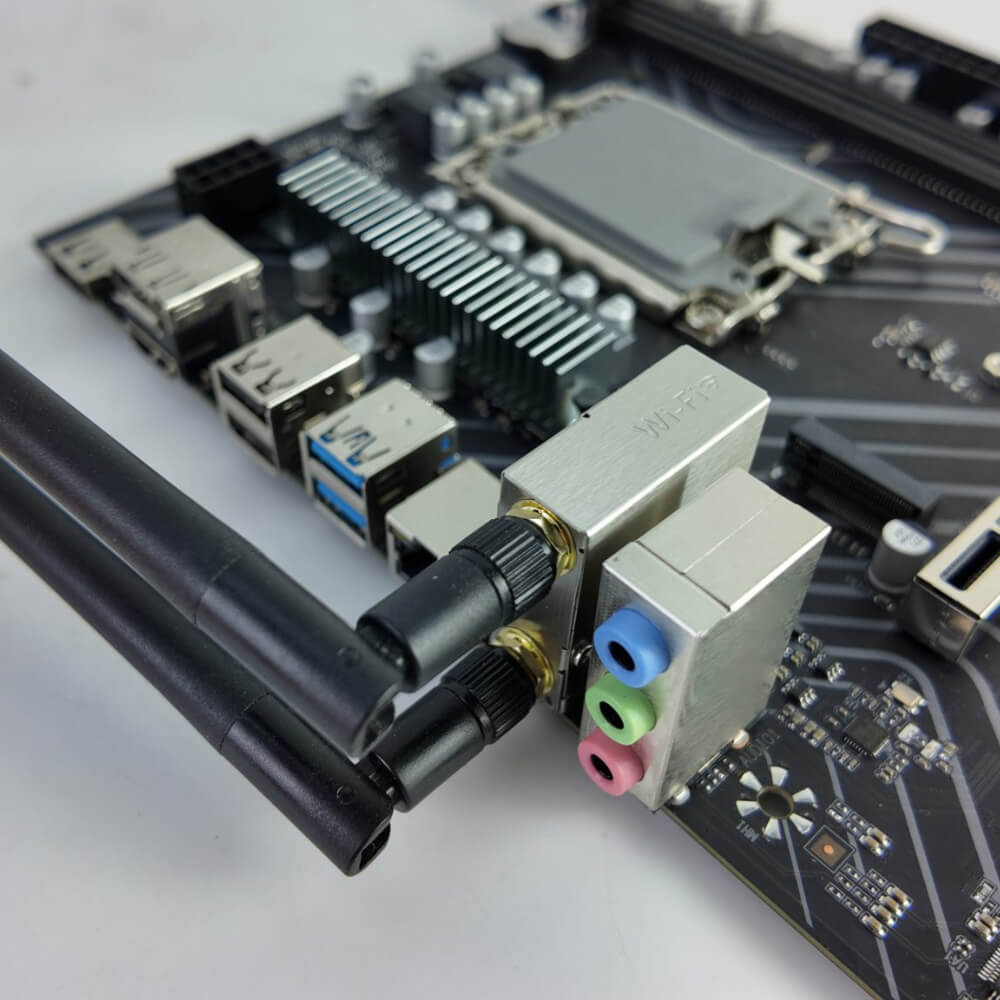

| Wireless interface | WiFi interface (onboard 9560 module with antenna) |
| Onboard sound card | HD Audio Codec |
| Onboard network card | Realtek 8111H |
| Internal I/O Connectors | 2x 4-pin fan pins 1x 24Pin motherboard for power supply; 1x 8Pin processor powered 2x 5v3 pin RGB interfaces |

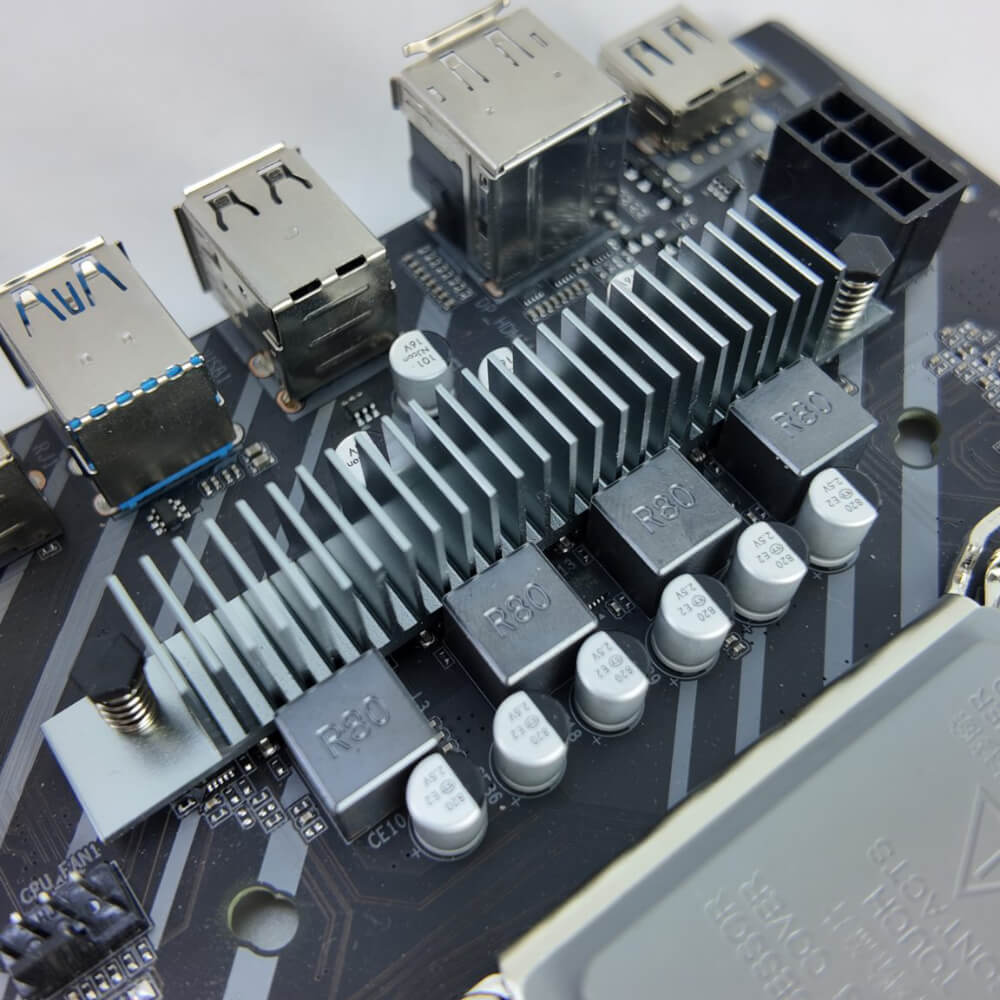

| Number of power supply phases | 8-phase power supply |
| Operating System | Windows® 11, Windows® 10 |
| Form Factor | 22cmx18cm; M-ATX |
