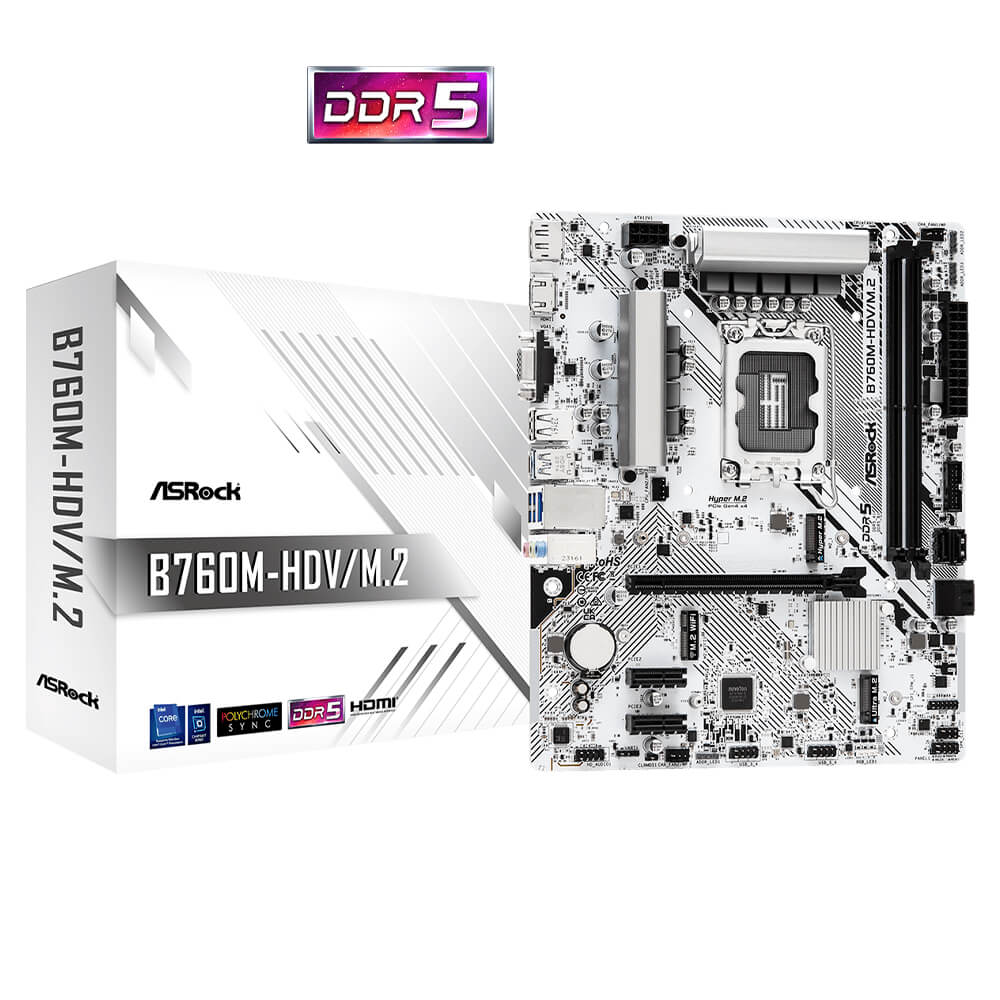

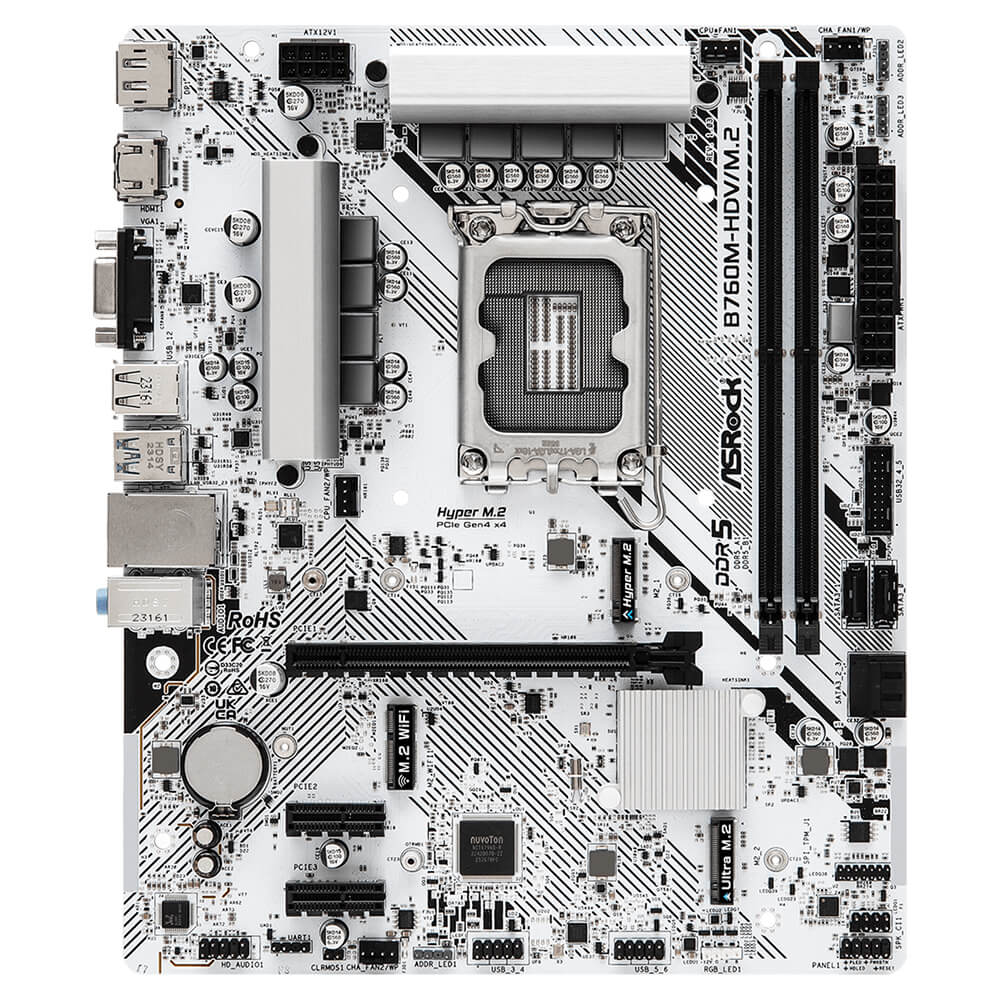

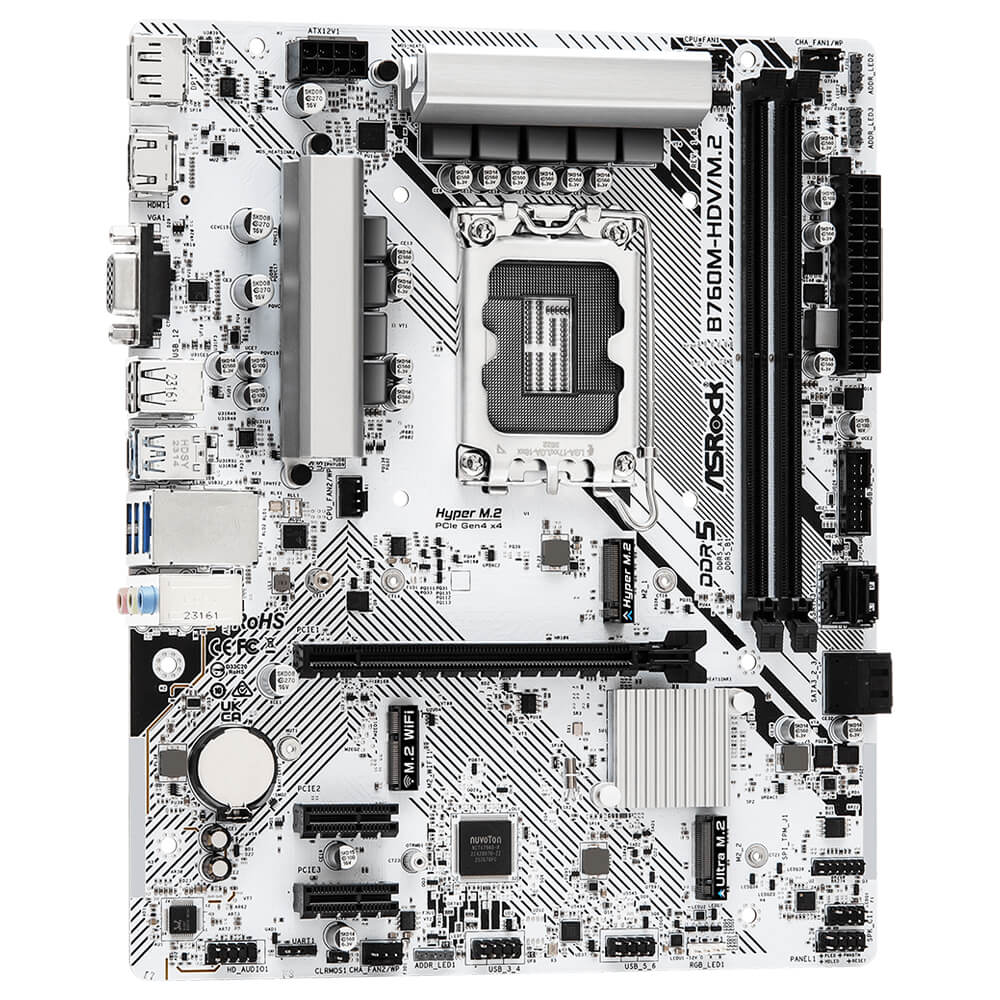

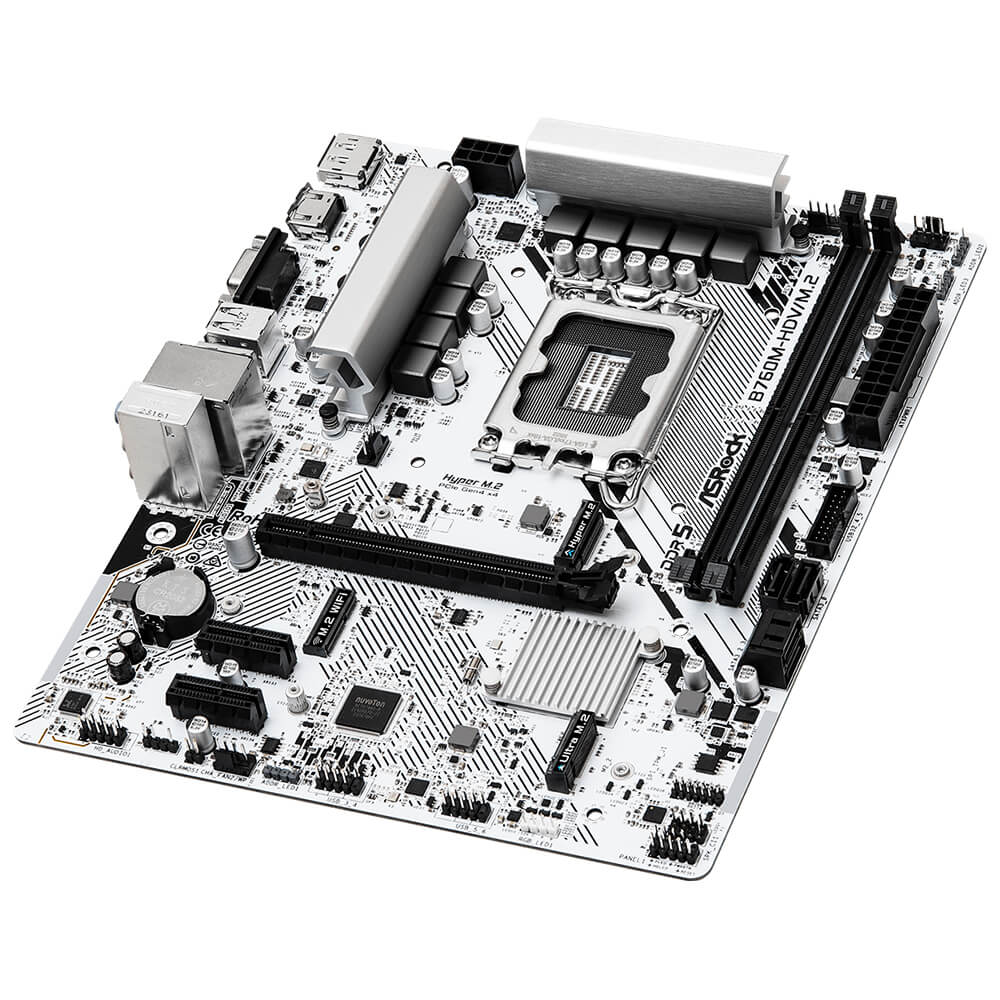

ASRock B760M-HDV/M.2 – Socket 1700
Giá Tân Doanh:
2,890,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASRock
- Giá trên đã bao gồm VAT.
Thông tin Sản Phẩm
| Unique Feature | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer |
| CPU | – Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | – Intel® B760 Chipset |
| Memory | – Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 96GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 * 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively. Please refer to Memory Support List on ASRock’s website for more information. |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz – 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Ethernet | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * Supports NVMe SSD as boot disks
|
| Storage | Chipset: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** – 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD)
** Supports NVMe SSD as boot disks |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
|

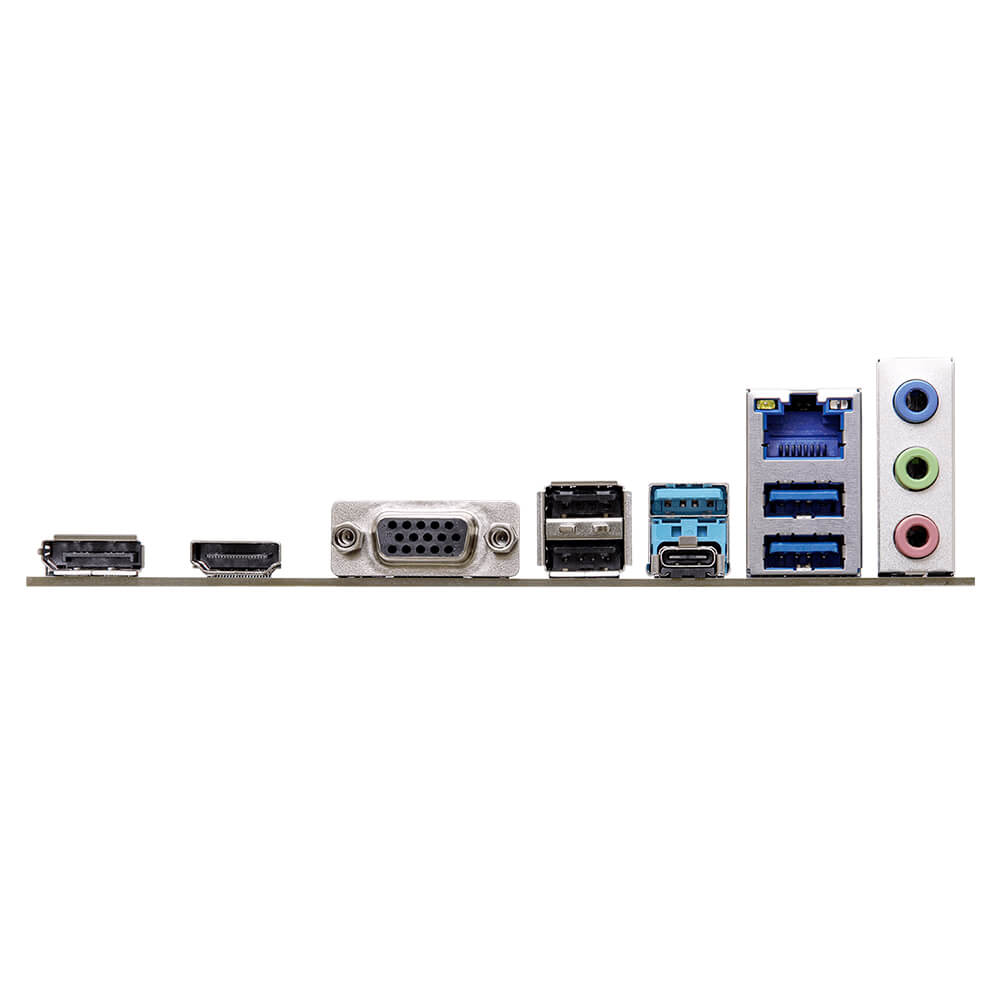

| Rear I/O Ports | – 2 x Antenna Mounting Points – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~2/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | – 1 x User Manual – 1 x I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets |
| Operating System | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
