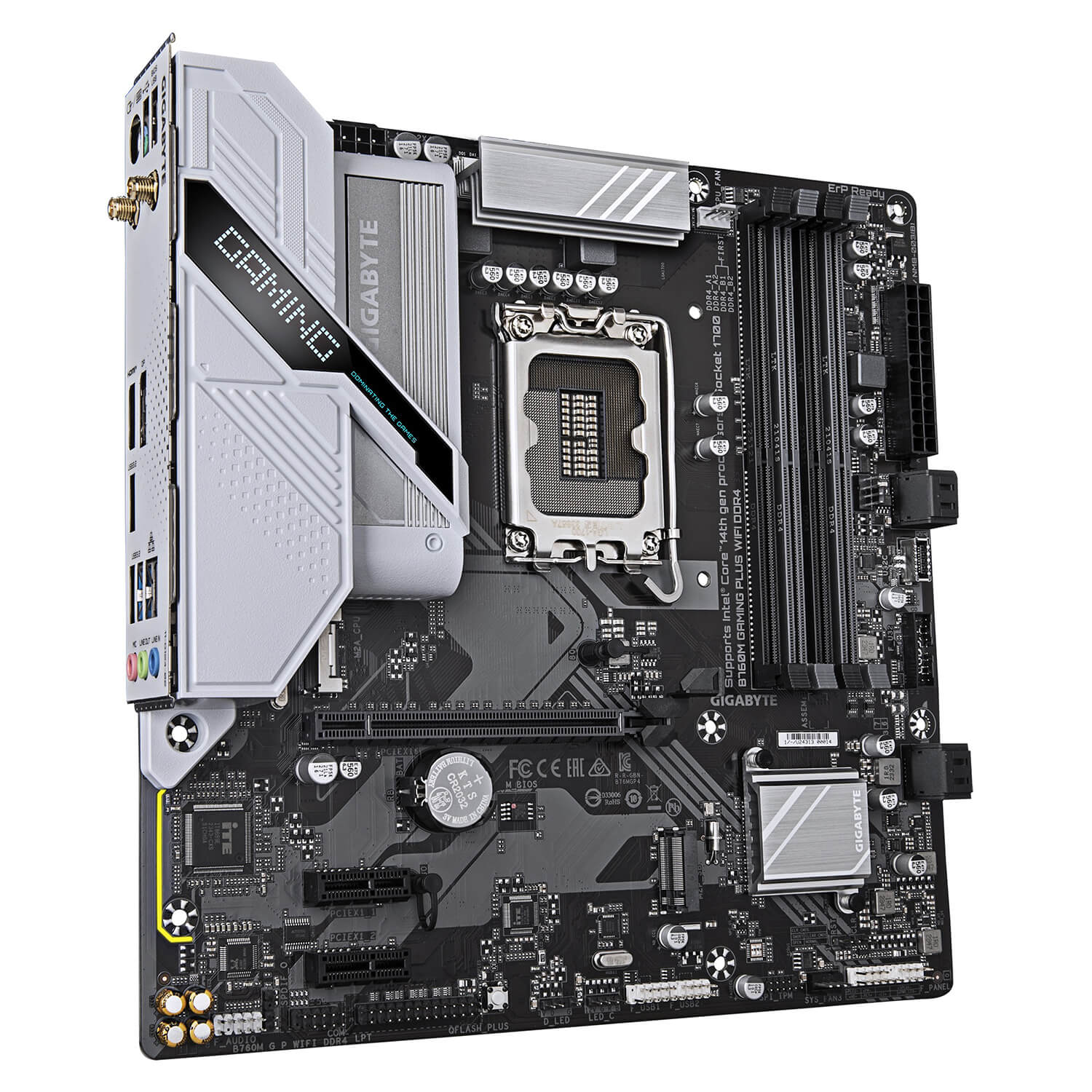

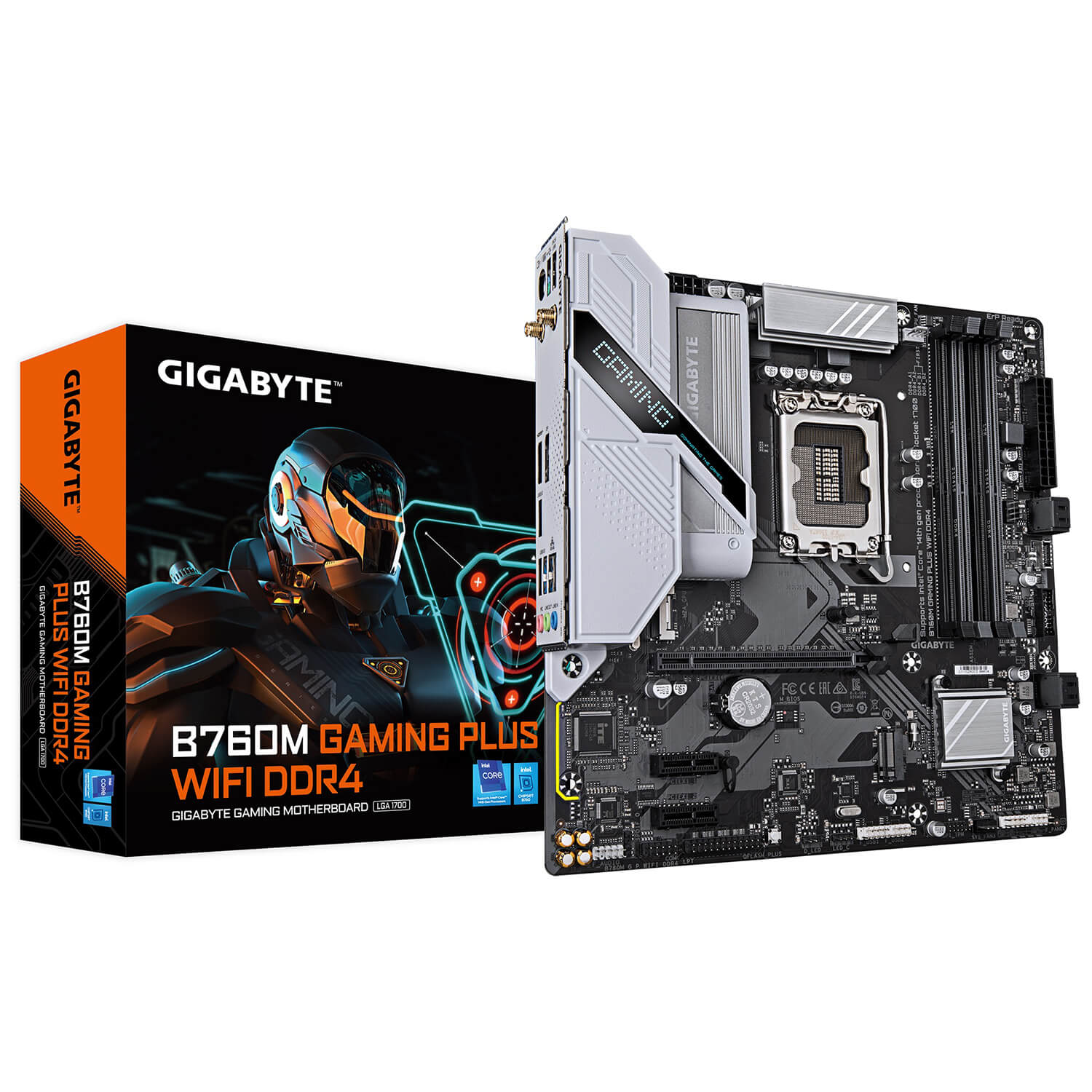

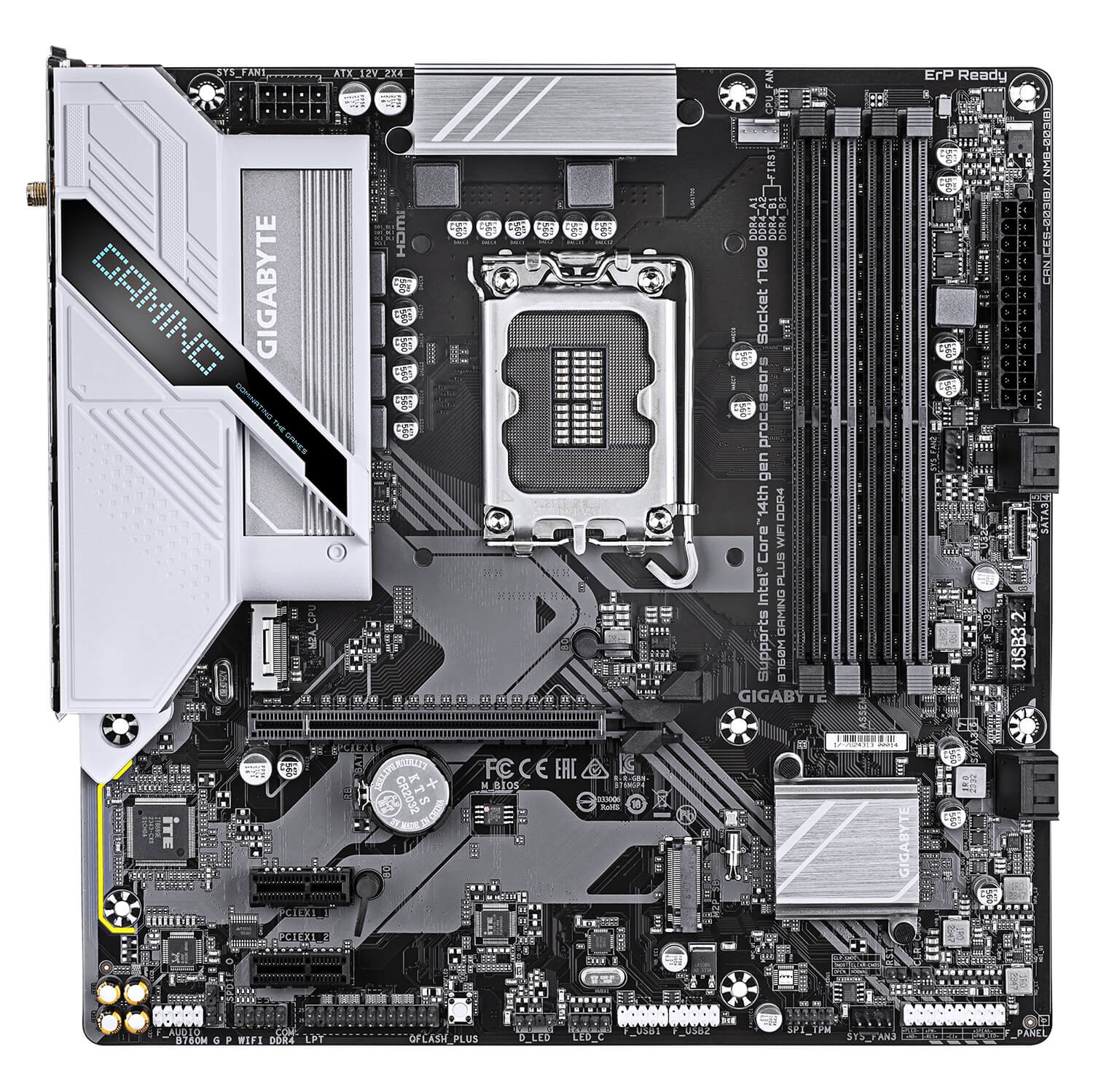

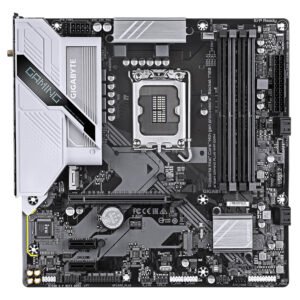

Gigabyte B760M GAMING PLUS WIFI DDR4 – Socket 1700
Thông tin Sản Phẩm
| Model | Gigabyte B760M Gaming Plus WiFi DDR4 |
| CPU | LGA1700 Socket Support for Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold và Celeron® Processors |
| Chipset | Intel® B760 Express |
| Memory | 4 x DDR4 DIMM Slots, max. 128GB (32GB single DIMM) DDR4 5333(OC) ~ 2133 MT/s Dual Channel Memory Architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) Support for Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support for Intel XMP |
| Onboard Graphics | Intel® HD Graphics (varies by CPU) 1 x HDMI 2.1 (max. 4096×2160@60Hz, HDCP 2.3) 1 x DisplayPort 1.2 (max. 4096×2304@60Hz, HDCP 2.3) Support for Triple-Display simultaneously |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 (PCIEX16) Chipset: 2 x PCIe 3.0 x1 |
| Storage | CPU: 1 x M.2 (M2A_CPU), type 2280, PCIe 4.0 x4/x2 Chipset: 1 x M.2 (M2P_SB), type 2280, PCIe 4.0 x4/x2 4 x SATA 6Gb/s |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 cho SATA storage devices |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless & Bluetooth | Realtek® Wi-Fi 6 RTL8851BE 802.11 a/b/g/n/ac/ax – 2.4GHz / 5GHz Support for 11ax 160MHz Bluetooth 5.3 |
| Audio | Realtek® Audio CODEC High Definition Audio – 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB | Rear: 3 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 Front (via Headers): 1 x USB 3.2 Gen 1 Type-C 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 |

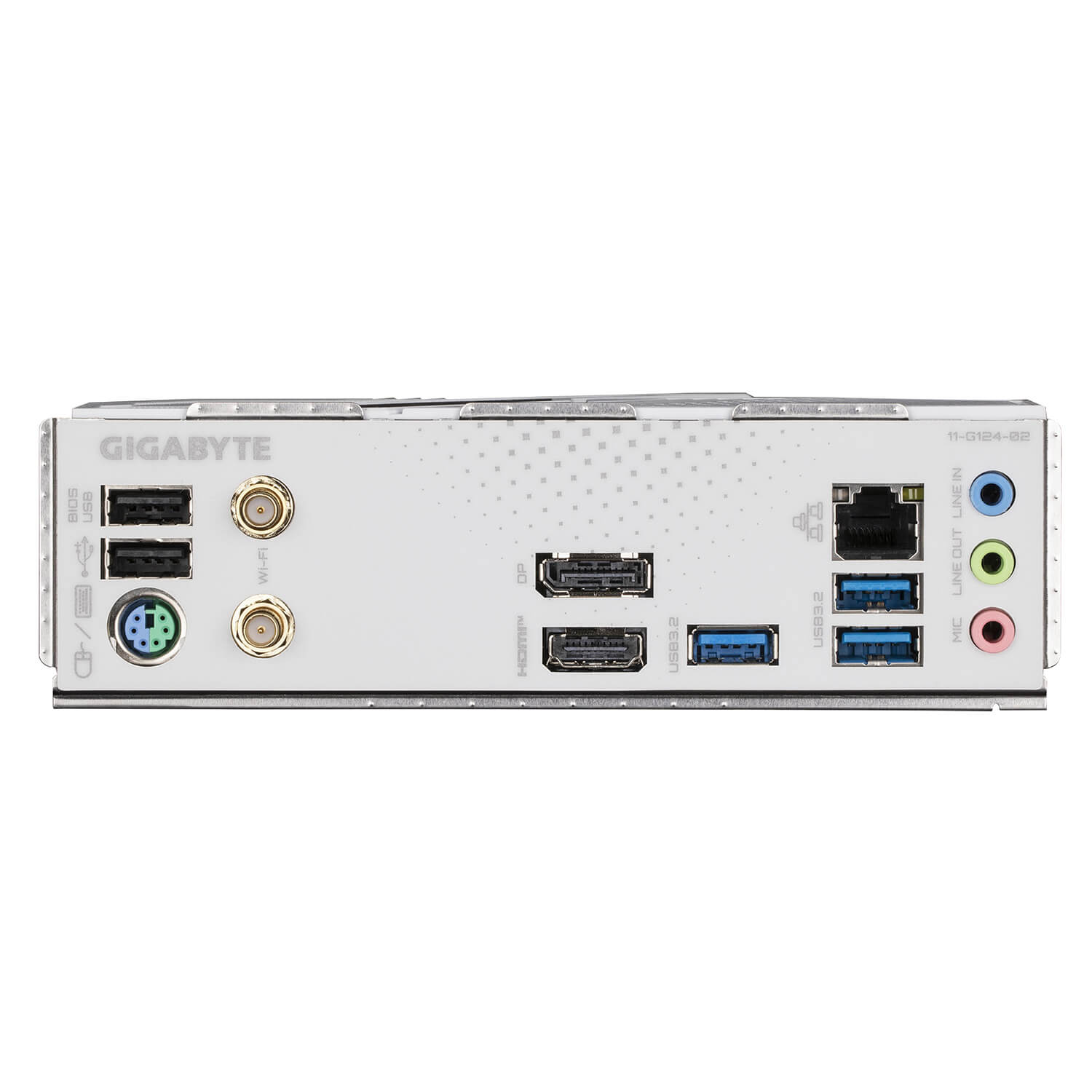

| Back Panel I/O | 1 x PS/2 Keyboard/Mouse Port 1 x DisplayPort 1 x HDMI 3 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 1 x RJ-45 (GbE LAN) 2 x SMA Antenna Connectors (2T2R) 3 x Audio Jacks |
| Internal Connectors | 1 x 24-pin ATX Main Power 1 x 8-pin ATX 12V Power 1 x CPU Fan Header 3 x System Fan Headers 1 x Addressable LED Strip Header 1 x RGB LED Strip Header 2 x M.2 Socket 3 Connectors 4 x SATA 6Gb/s Connectors 1 x Front Panel Header 1 x Front Panel Audio Header 1 x USB Type-C® Header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 Header 2 x USB 2.0/1.1 Headers 1 x TPM Header 1 x Serial Port Header 1 x Parallel Port Header 1 x S/PDIF Out Header 1 x Q-Flash Plus Button 1 x Reset Jumper 1 x Clear CMOS Jumper |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage / Temperature / Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning / Fan Speed Control |
| BIOS | 1 x 128 Mbit Flash – AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software | GIGABYTE Control Center (GCC) Q-Flash / Q-Flash Plus Norton® Internet Security (OEM) LAN Bandwidth Management Software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX – 24.4 x 24.4 cm |
