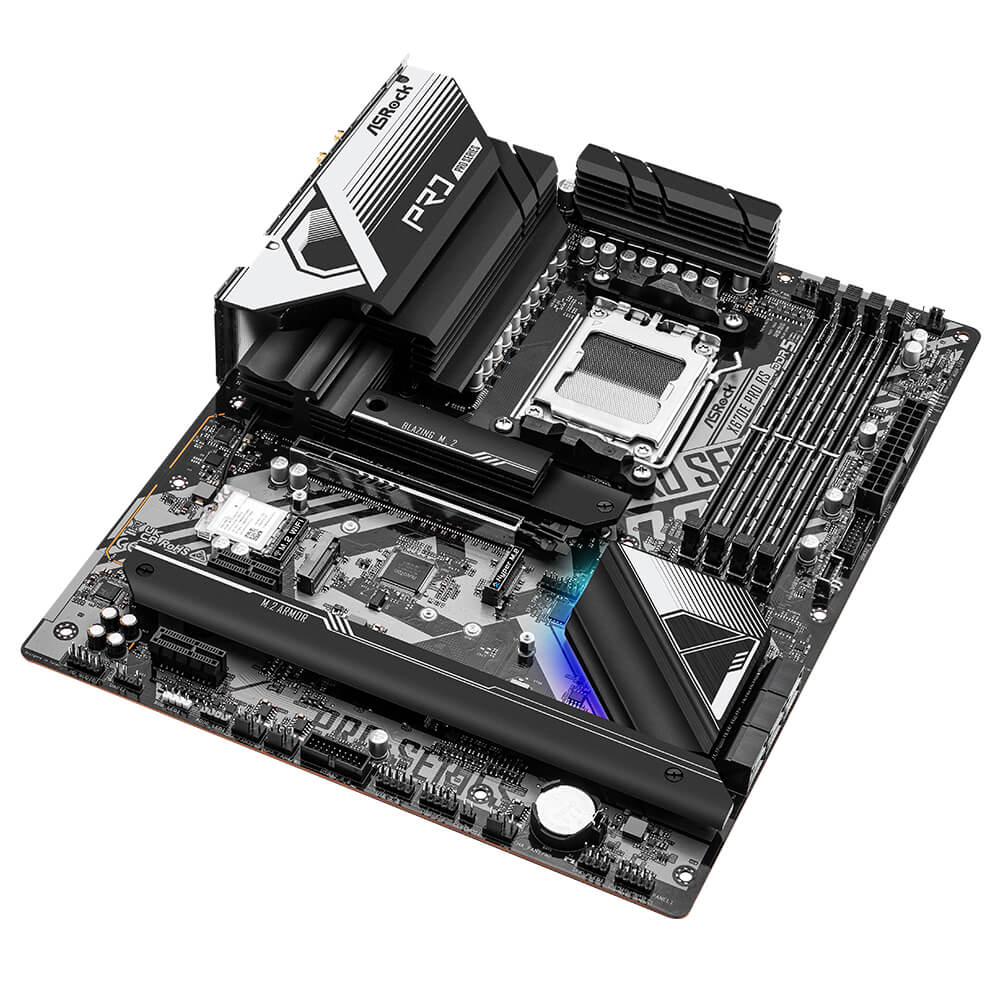

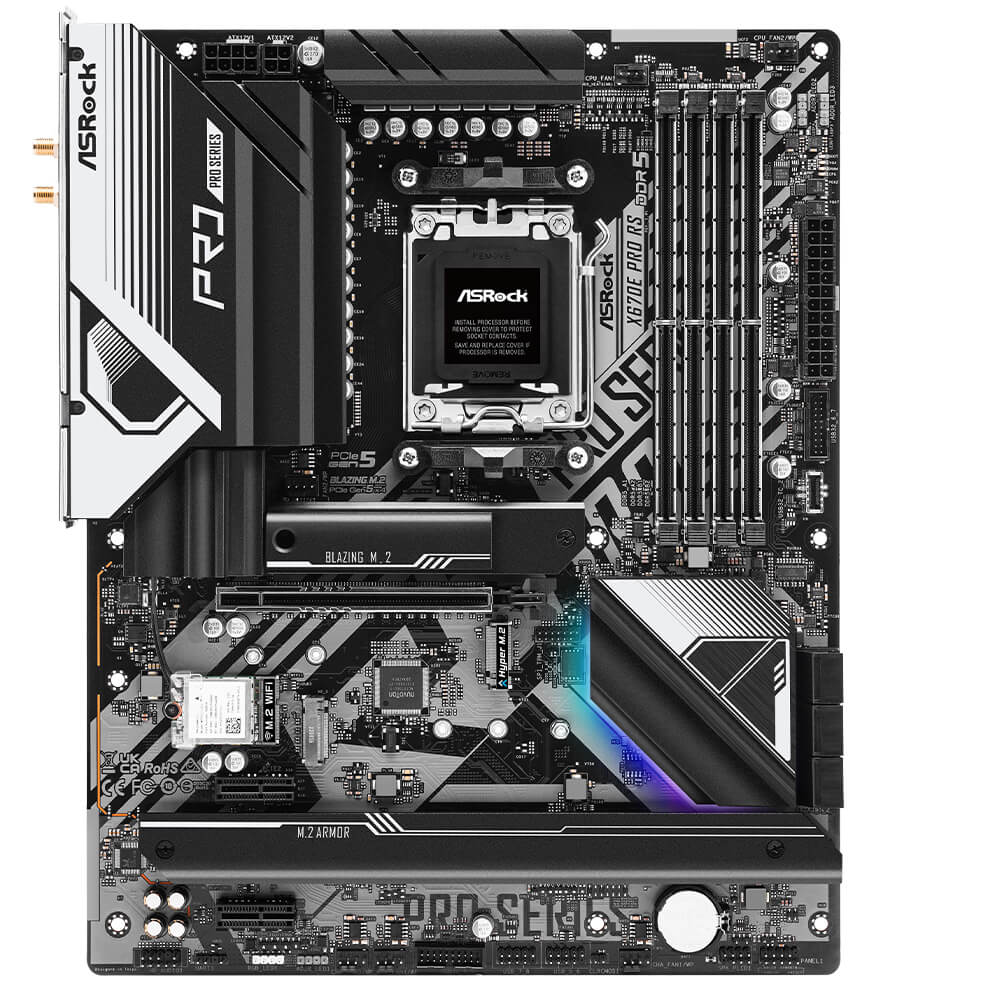

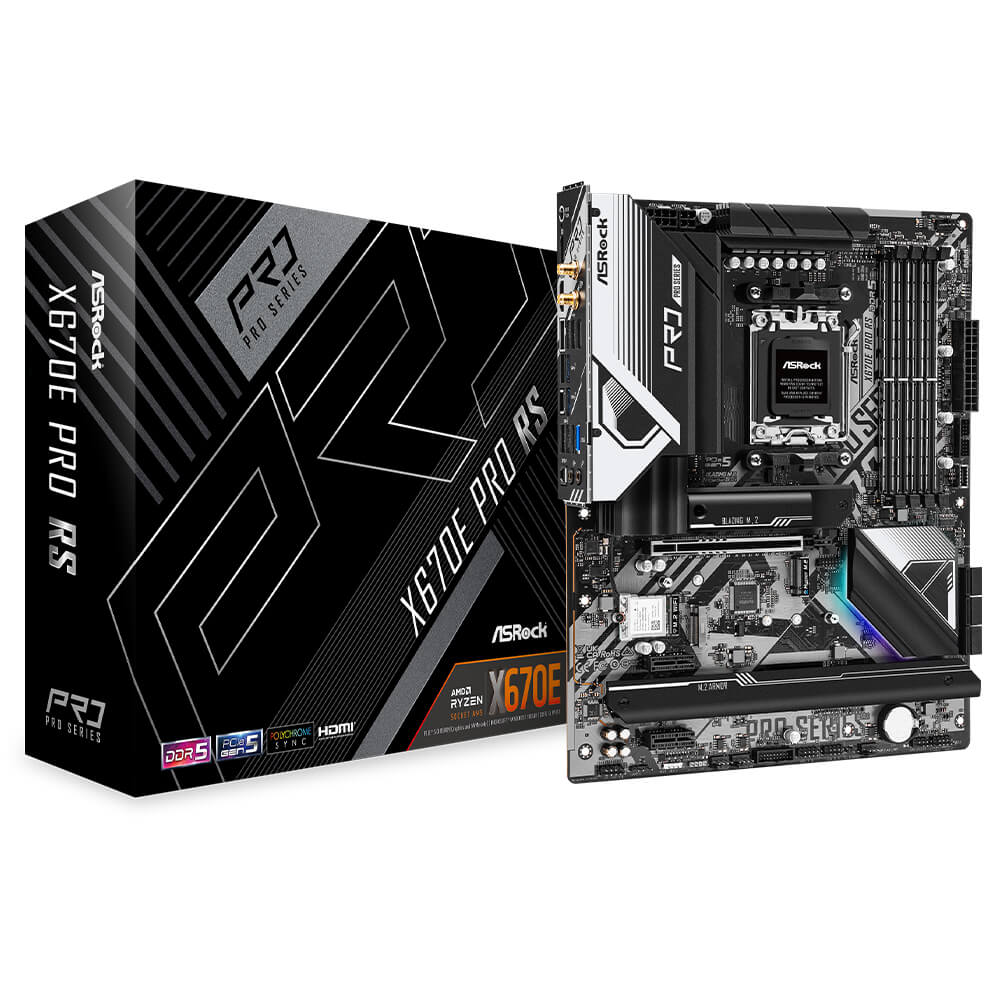

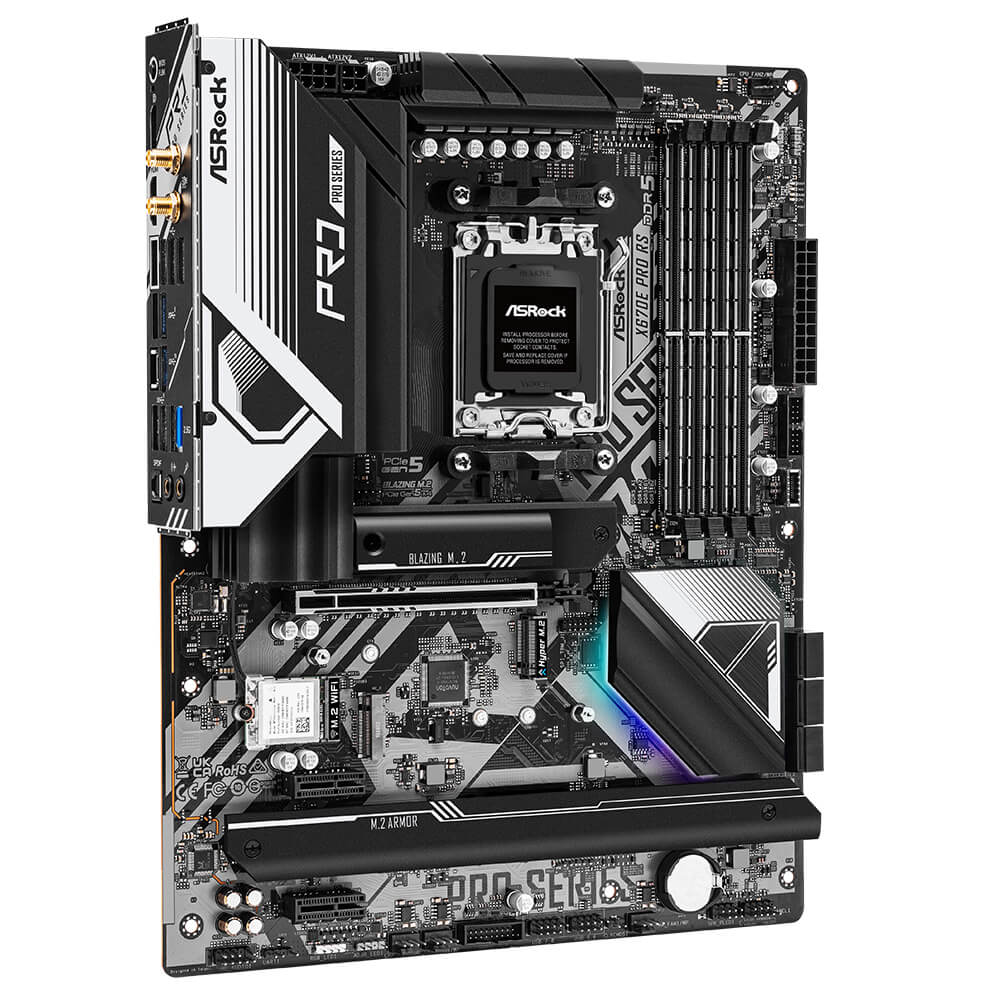

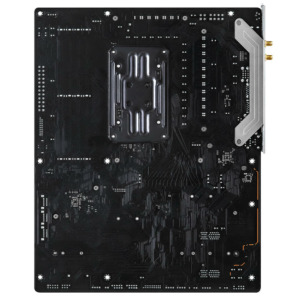

Asrock X670E Pro RS – Socket AM5

Giá Tân Doanh: Liên hệ
  • Tình trạng: Mới 100%
  • Bảo hành: 36 tháng
  • Xuất xứ: Chính hãng
  • Thương hiệu: ASRock
  • Giá trên đã bao gồm VAT.
Danh mục: Từ khóa: ,
  • Giao hàng
    Giao hàng

    Miễn phí giao hàng trong nội thành các Quận TP.HCM. Xem thêm chính sách vận chuyển tại đây

  • Đổi trả
    Đổi trả

    Đổi mới sản phẩm trong 7 ngày nếu lỗi từ nhà sản xuất. Xem thêm tại đây

  • Tổng đài CSKH
    Tổng đài CSKH

    1900.966.939

  • Hotline Kinh Doanh
    Hotline Kinh Doanh

    093.88.99.941
    078.366.6668

  • Hotline Kỹ Thuật Kỹ Thuật
    Hotline Kỹ Thuật

    093.88.99.947

Thông tin Sản Phẩm

Unique Feature Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
Ultrafast Connectivity
– 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset – AMD X670
Memory – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless LAN – 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth + High speed class II
– Supports MU-MIMO*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 6 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
RAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Connector – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

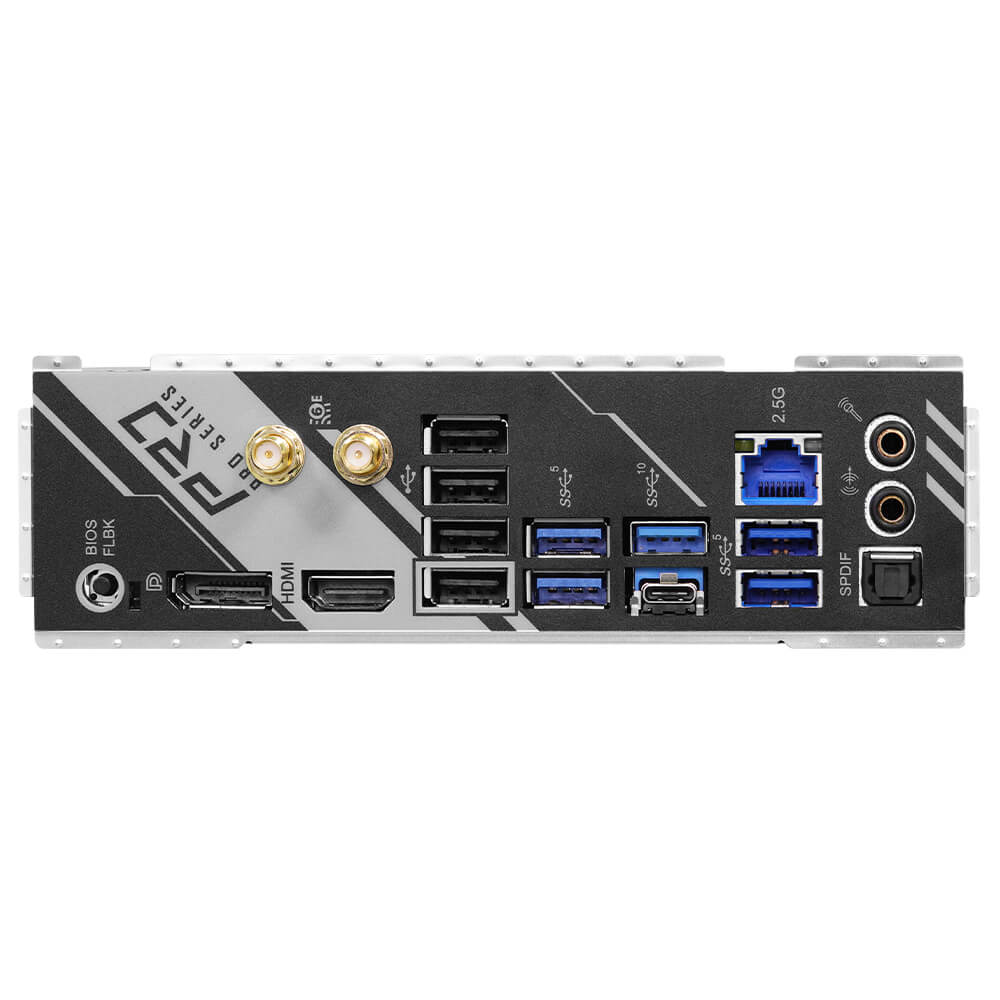

Rear Panel I/O – 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
– 4 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.

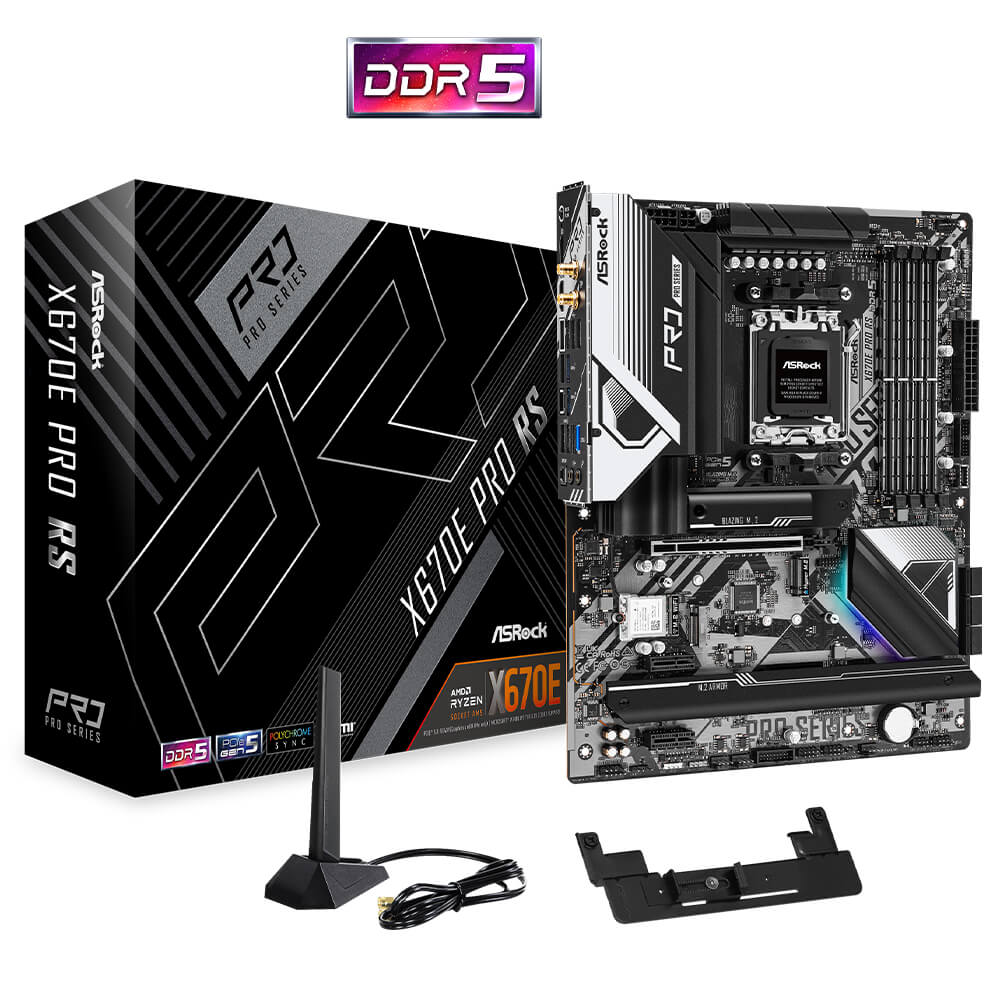

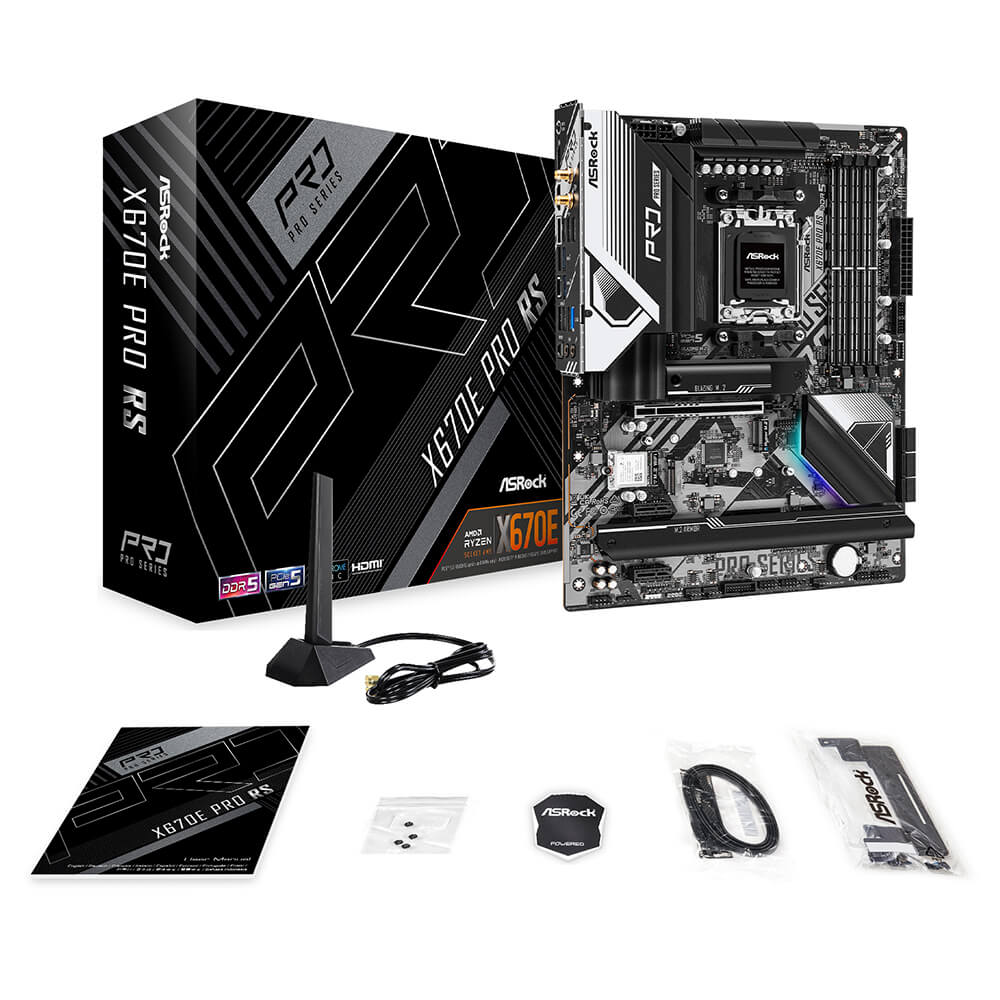

Accessories – 1 x User Manual
– 2 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 4 x Screws for M.2 Sockets

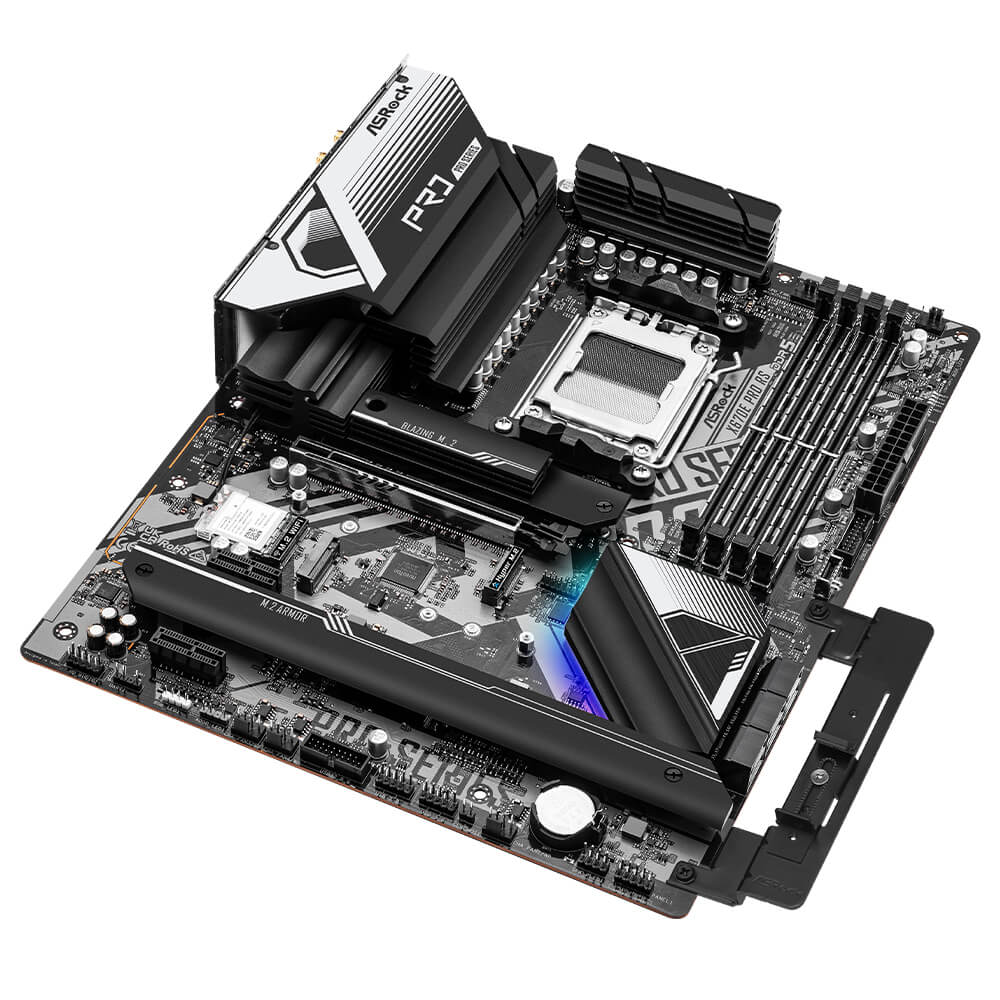

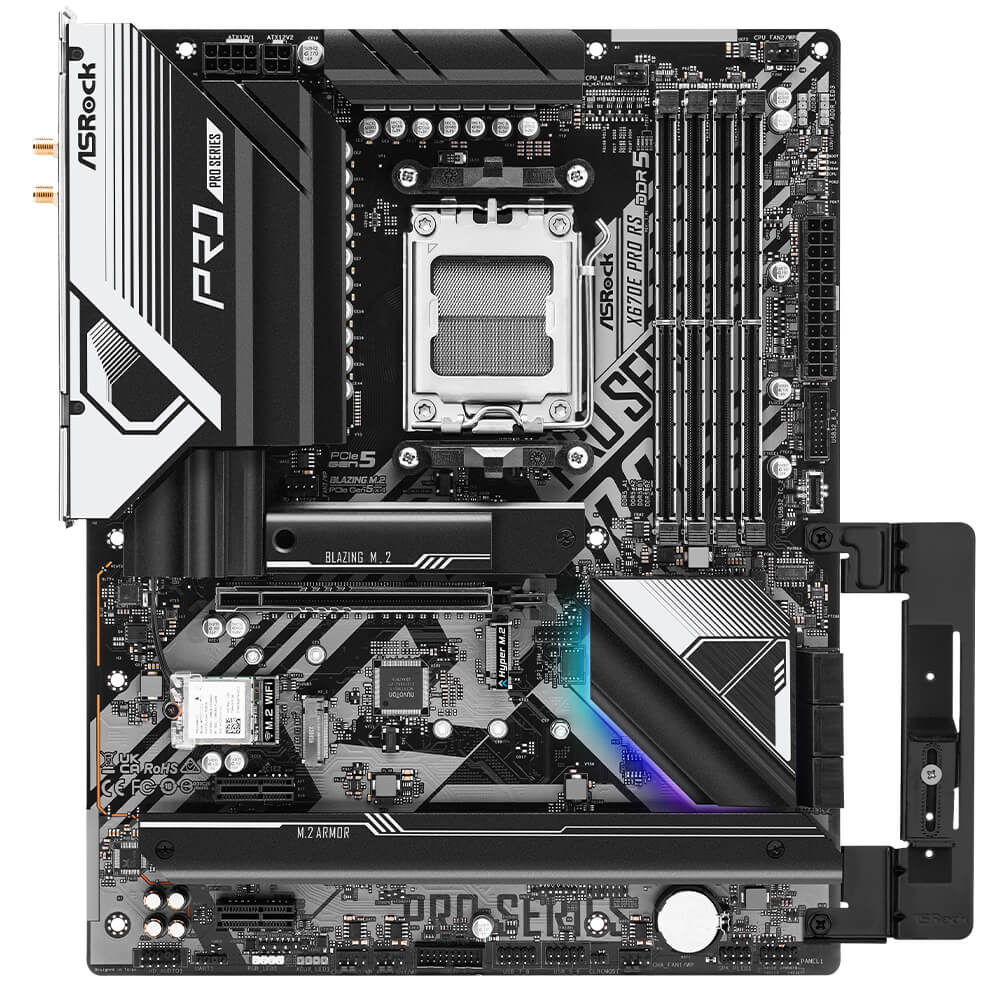

– 1 x Graphics Card Holder
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
