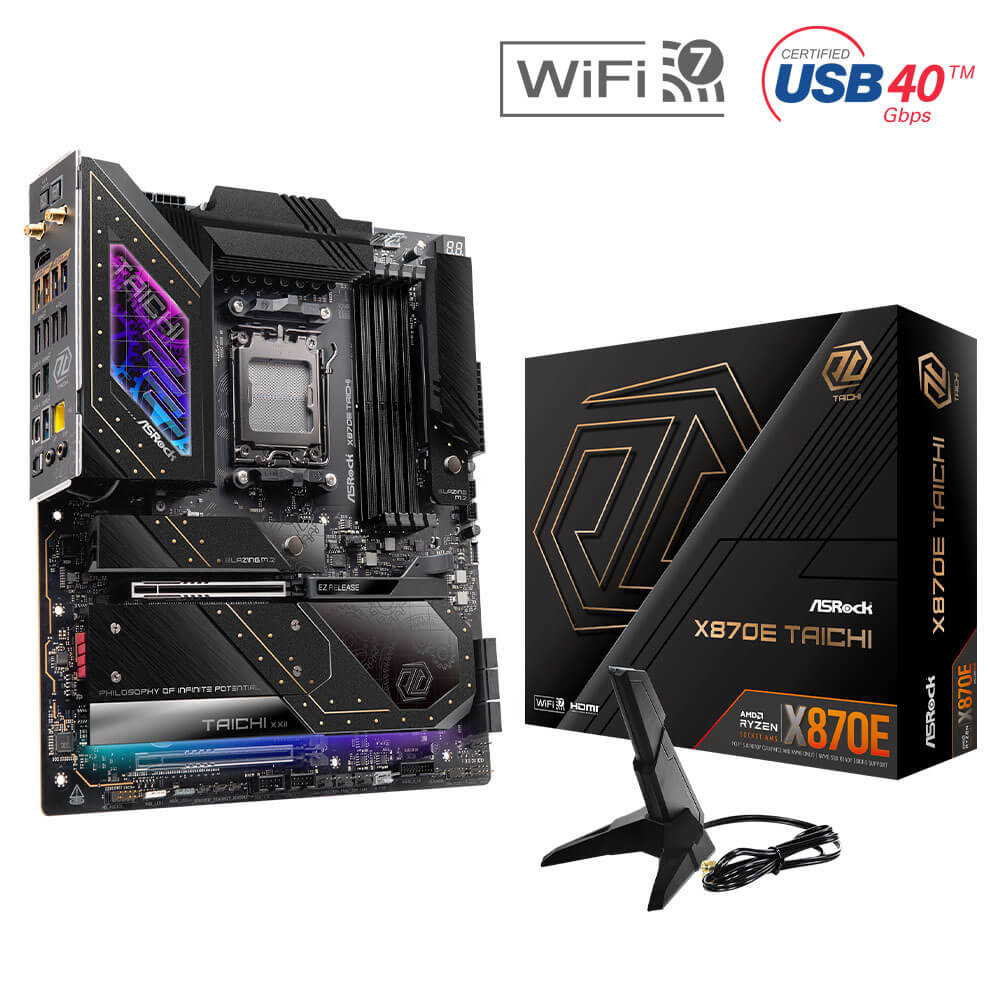

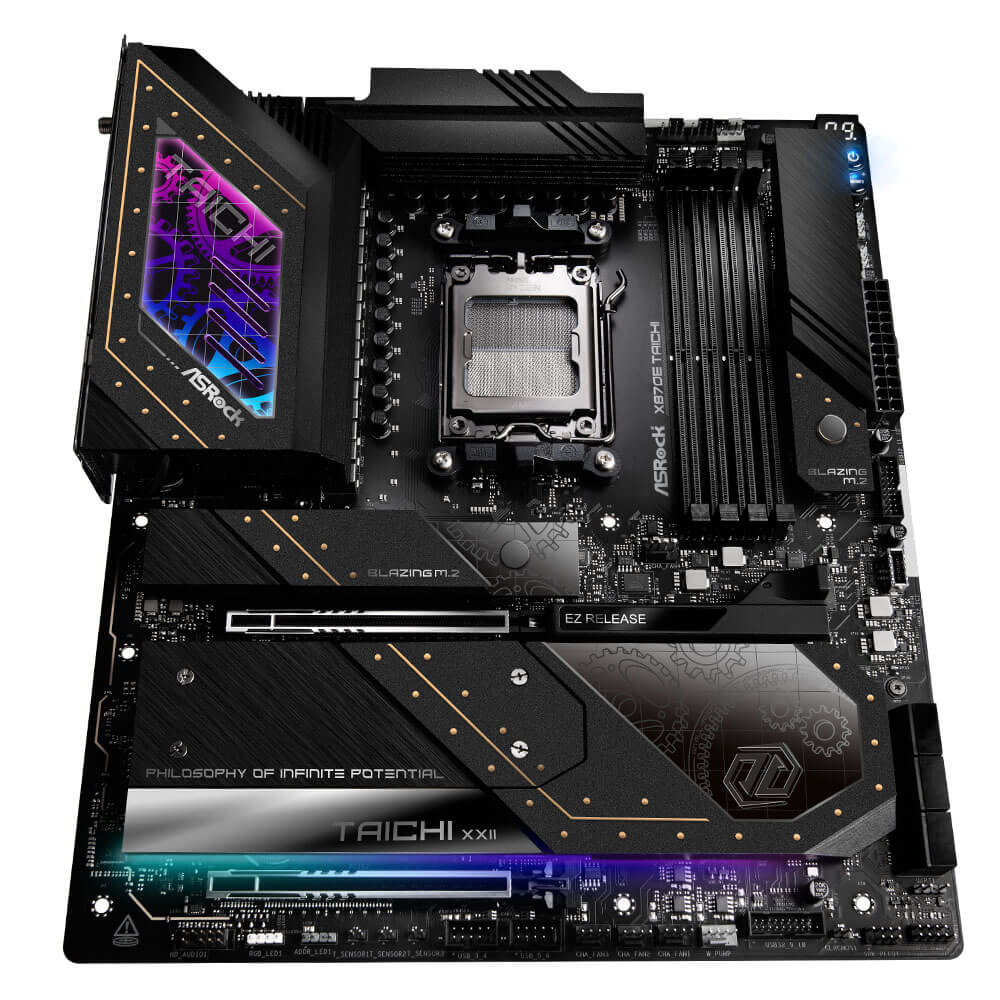

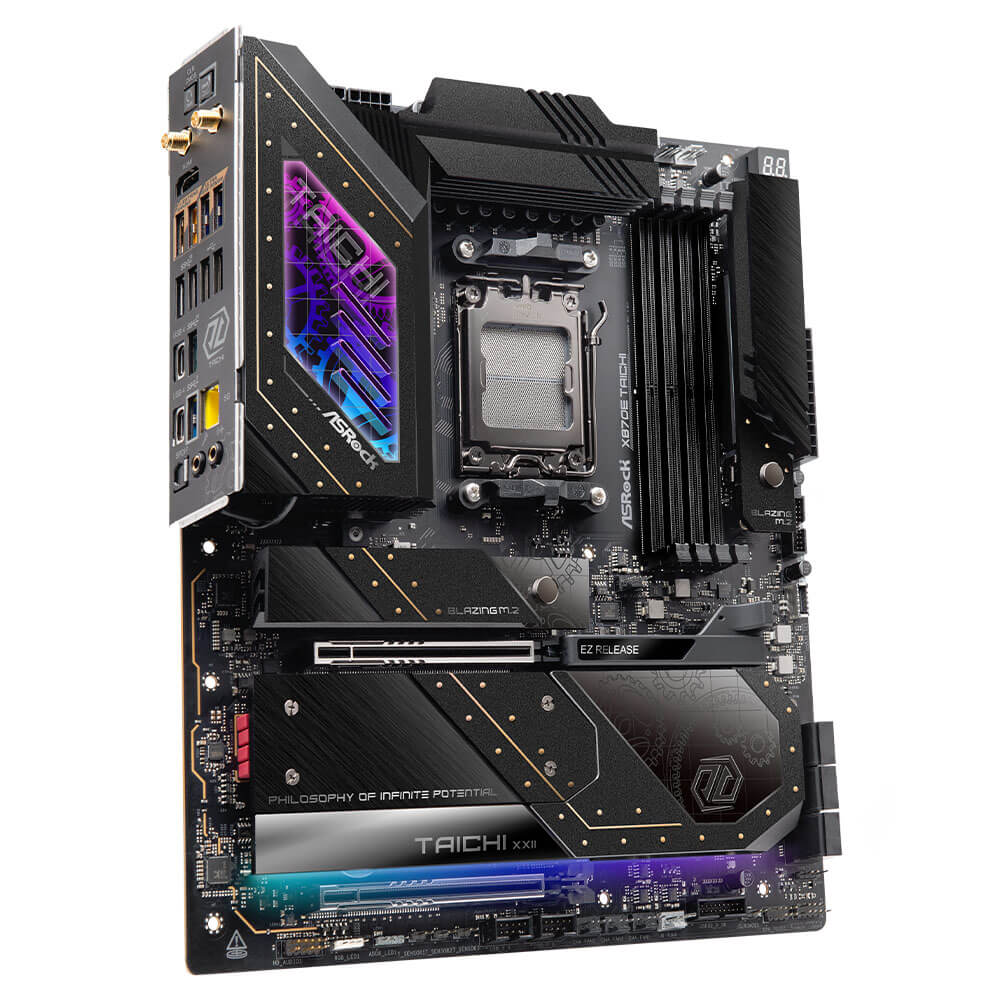

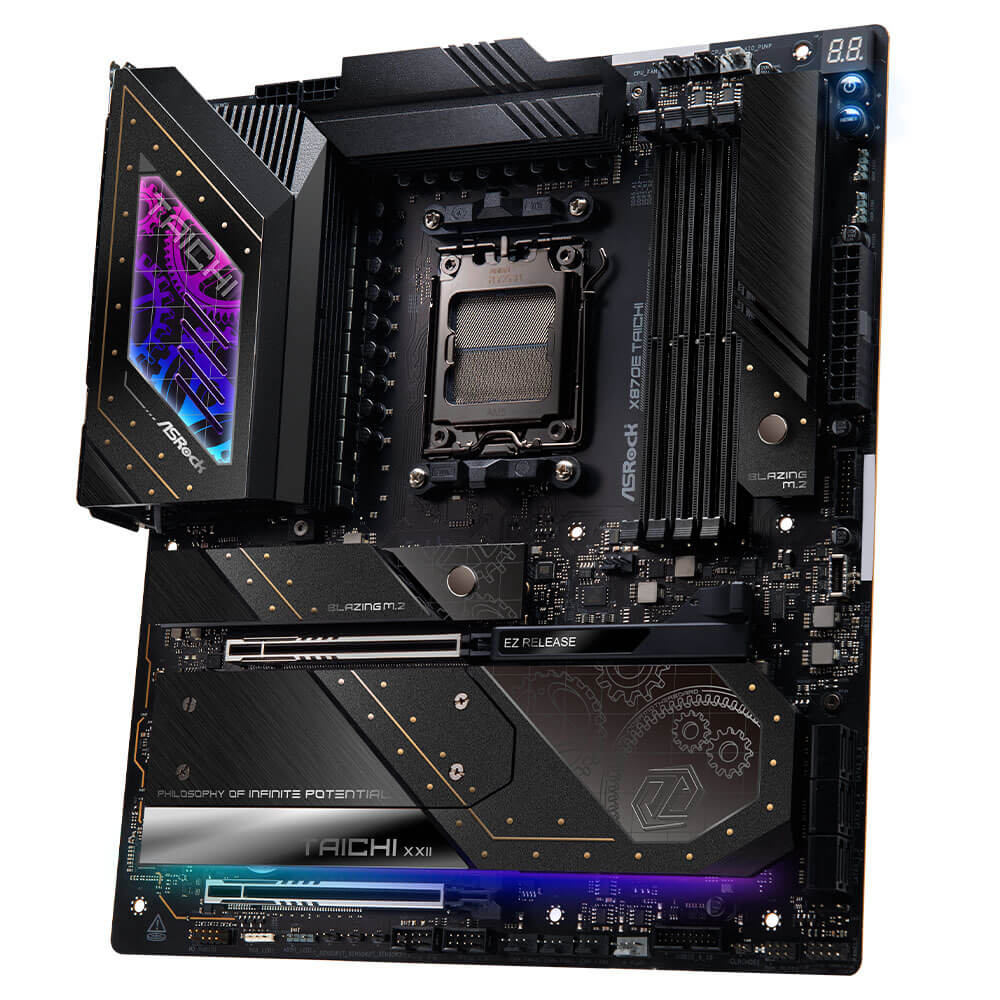

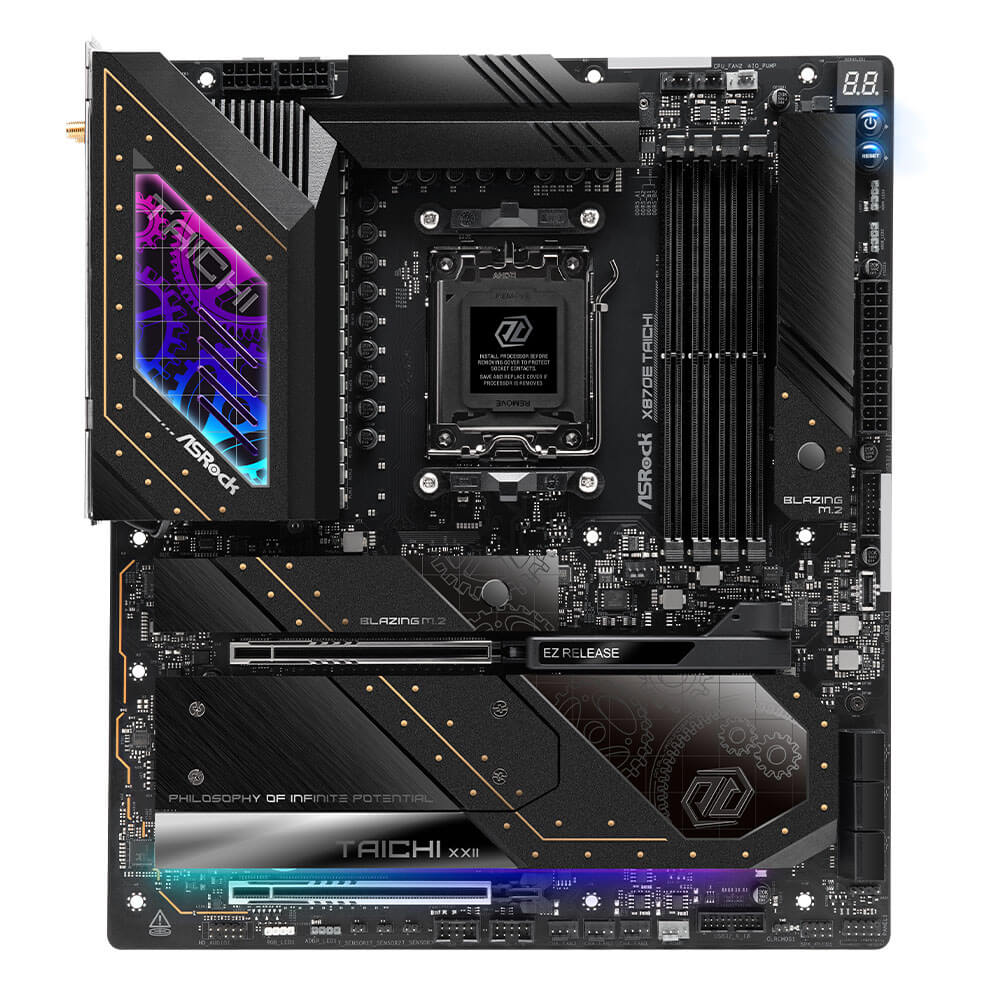

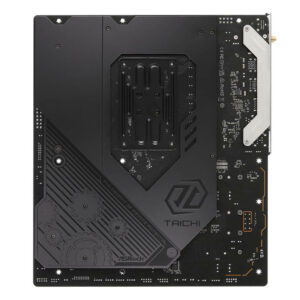

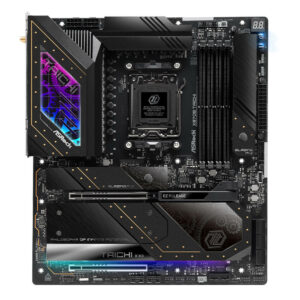

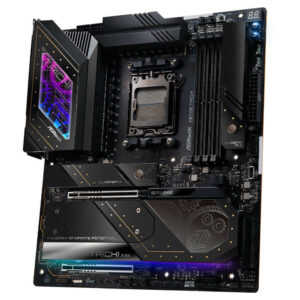

Asrock X870E Taichi – Socket AM5
Thông tin Sản Phẩm
| Model | ASRock X870E Taichi |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 và 7000 Series Processors Supports ASRock Hyper BCLK Engine |
| Chipset | AMD X870E |
| Memory | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Max. capacity: 256GB Supports XMP và EXPO memory modules |
| Graphics | Integrated AMD RDNA™ Graphics (varies by CPU) 1 x HDMI 2.1 (TMDS/FRL 8G, HDR, HDCP 2.3, max. 4K@120Hz) 2 x USB4 (HDCP 2.3, max. 8K@30Hz) |
| Expansion Slots | CPU: 2 x PCIe 5.0 x16 Slots (PCIE1 và PCIE2), supports x16 hoặc x8/x8 mode – PCIE1: Gen5 x16 (9000/7000 series) / Gen4 x8 (8000 Phoenix 1) / Gen4 x4 (8000 Phoenix 2) Chipset: 1 x Vertical M.2 Socket (Key E), type 2230 WiFi/BT PCIe module Supports AMD CrossFire™ |
| Storage | CPU: 1 x Blazing M.2 (M2_1, Key M), type 2280, PCIe Gen5 x4 (128 Gb/s) Chipset: 1 x Hyper M.2 (M2_2, Key M), type 2280, PCIe Gen4 x4 (64 Gb/s) 1 x Hyper M.2 (M2_3, Key M), type 2280, PCIe Gen4 x4 (64 Gb/s) 1 x Hyper M.2 (M2_4, Key M), type 2280, PCIe Gen4 x4 (64 Gb/s) 6 x SATA3 6.0 Gb/s Connectors |
| RAID | RAID 0, RAID 1, RAID 10 cho SATA storage devices RAID 0, RAID 1, RAID 10 cho M.2 NVMe storage devices |
| LAN | 5 Gigabit LAN (10/100/1000/2500/5000 Mb/s) Realtek RTL8126 |
| Wireless LAN & Bluetooth | 802.11be 2×2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz / 5GHz / 6GHz frequency band Supports 160MHz channel bandwidth (6GHz) Supports Bluetooth 5.4 Supports MU-MIMO |
| Audio | 5.1 CH HD Audio with Content Protection (Realtek ALC4082) WIMA Audio Capacitors (Rear Outputs) ESS SABRE9219 DAC — 130dB SNR (Rear Panel) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front Headphone Port (up to 600 Ohm) Nahimic Audio |
| USB | CPU: 2 x USB4 Type-C (Rear, 40 Gb/s) 2 x USB 3.2 Gen2 Type-A (Rear, 10 Gb/s) Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front, 20 Gb/s) 3 x USB 3.2 Gen2 Type-A (Rear, 10 Gb/s) 7 x USB 3.2 Gen1 Type-A (3 Rear + 4 Front, 5 Gb/s) 6 x USB 2.0 (2 Rear + 4 Front) |

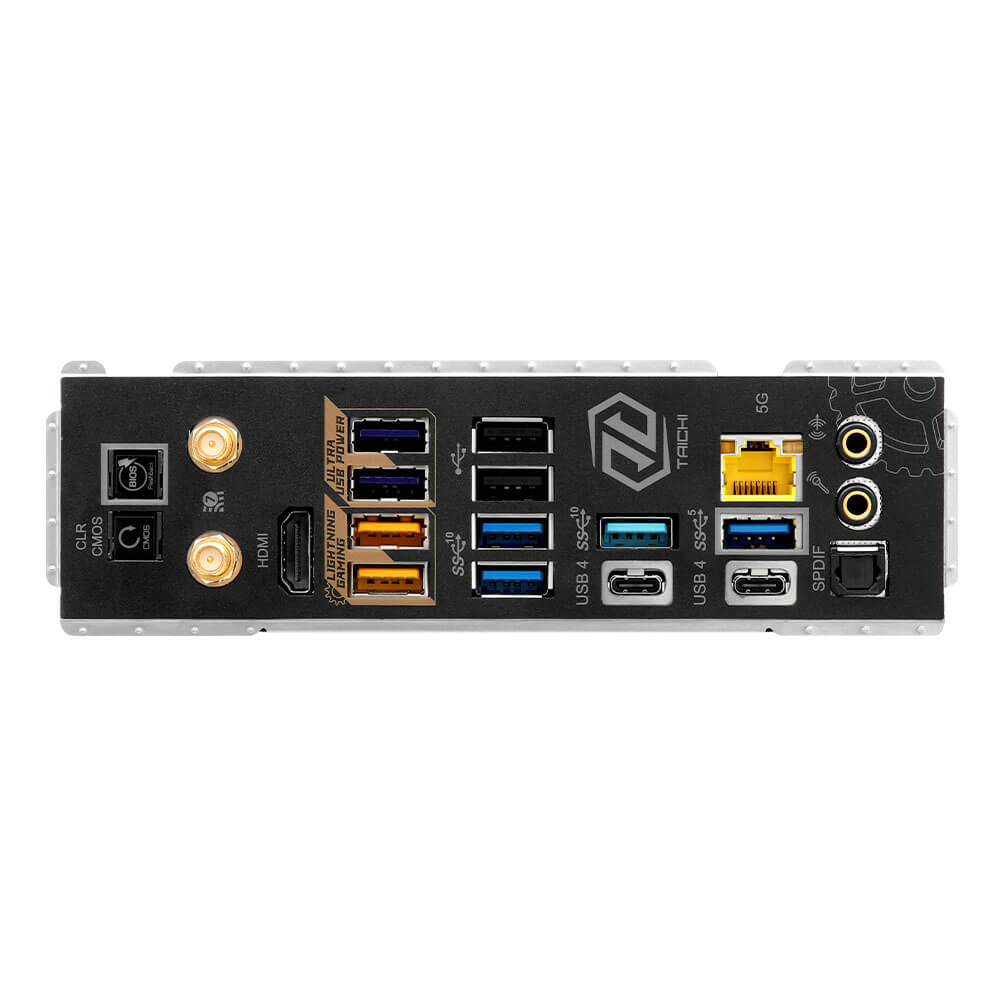

| Rear Panel I/O | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s) 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| Internal Connectors | 3 x Thermistor Cable Headers 1 x Power LED and Speaker Header 1 x RGB LED Header (12V/3A, 36W) 3 x Addressable LED Headers (5V/3A, 15W) 2 x CPU Fan Connectors (4-pin, Smart Fan) 4 x Chassis Fan Connectors (4-pin, Smart Fan) 1 x AIO Pump Fan Connector (4-pin, Smart Fan) 1 x Water Pump Fan Connector (4-pin, Smart Fan) 1 x 24-pin ATX Power Connector 2 x 8-pin 12V Power Connectors 1 x Front Panel Audio Connector (15μ Gold) 2 x USB 2.0 Headers (4 ports) 2 x USB 3.2 Gen1 Headers (4 ports) 1 x Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Software & UEFI | Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |

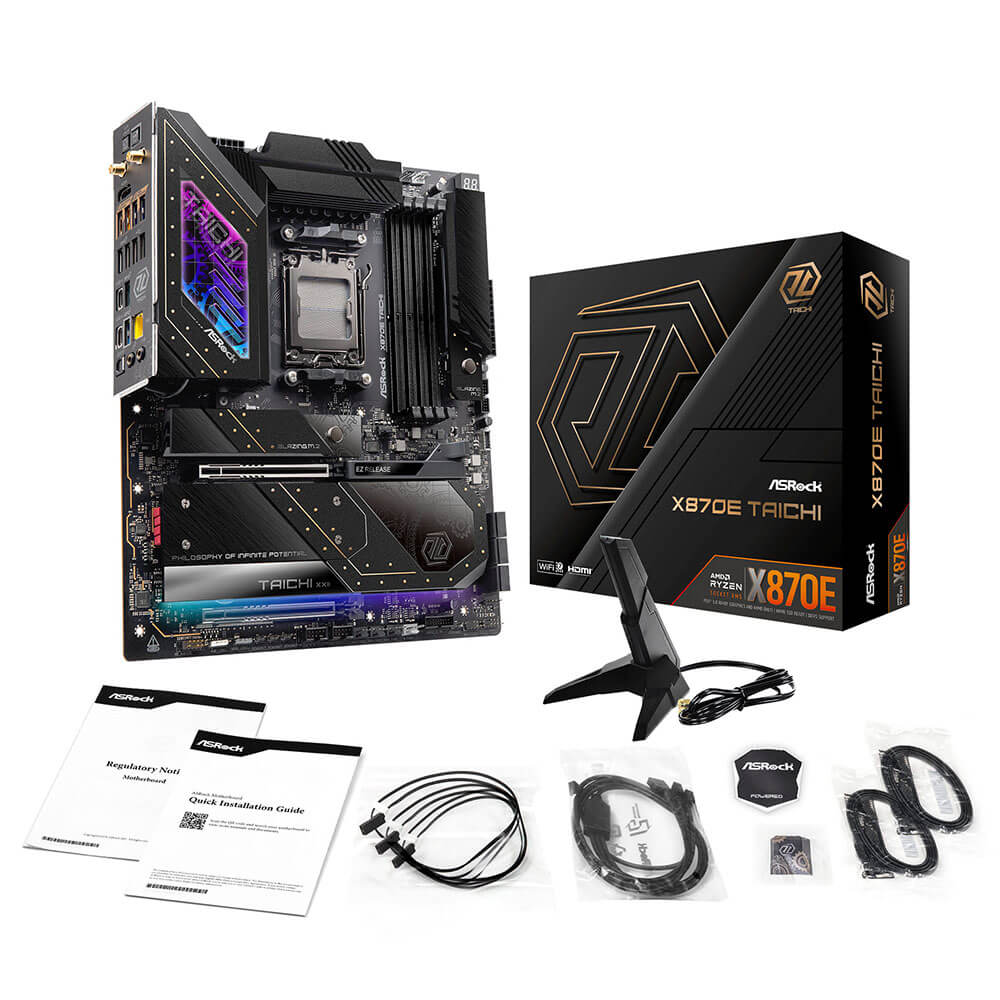

| Accessories | 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables |
| Form Factor | EATX Form Factor: 12.0″ x 10.5″ (30.5 cm x 26.7 cm) 8 Layer PCB 2oz Copper PCB |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP |
