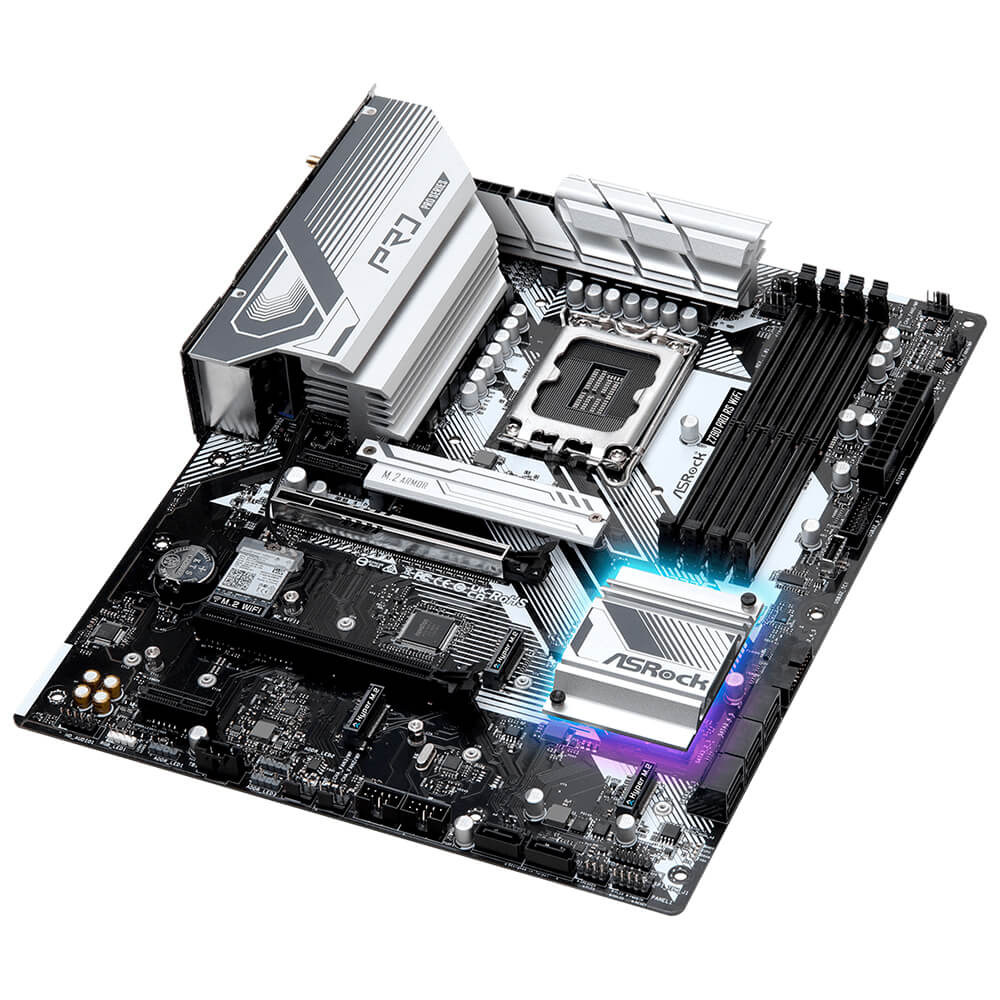

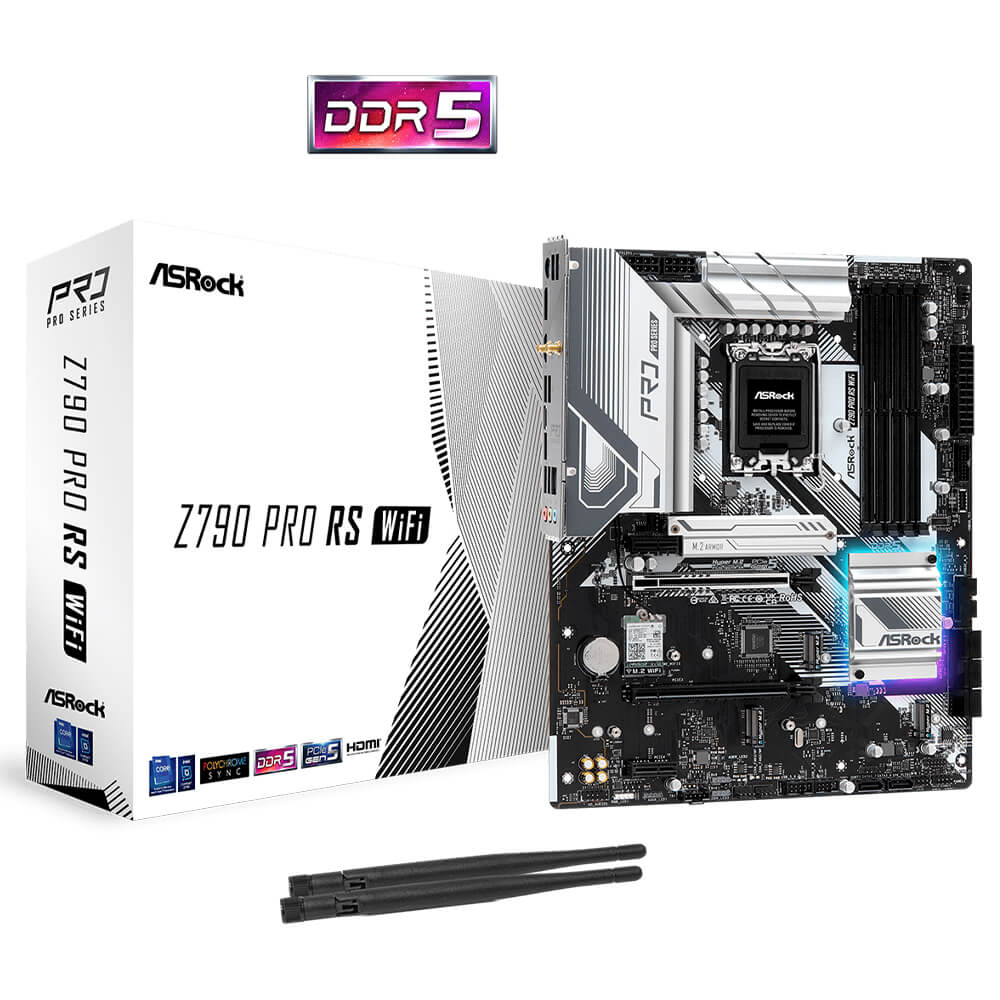

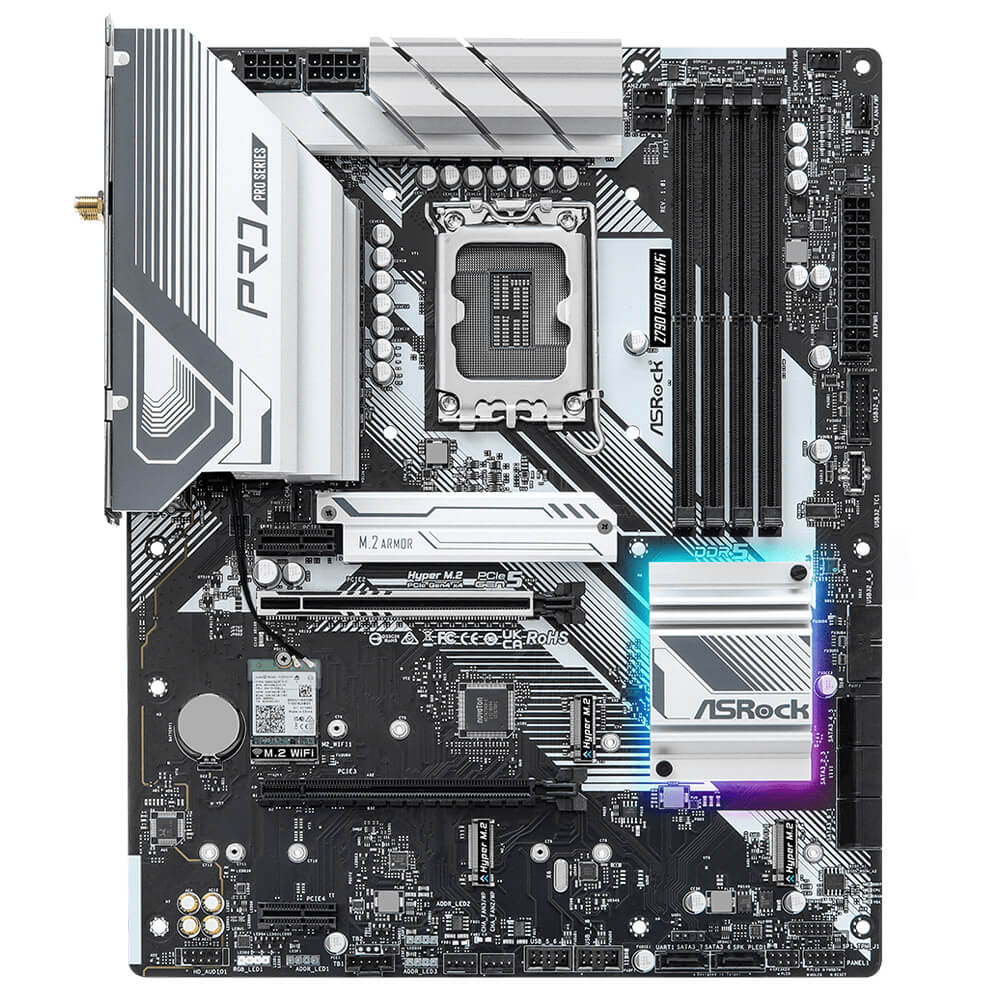

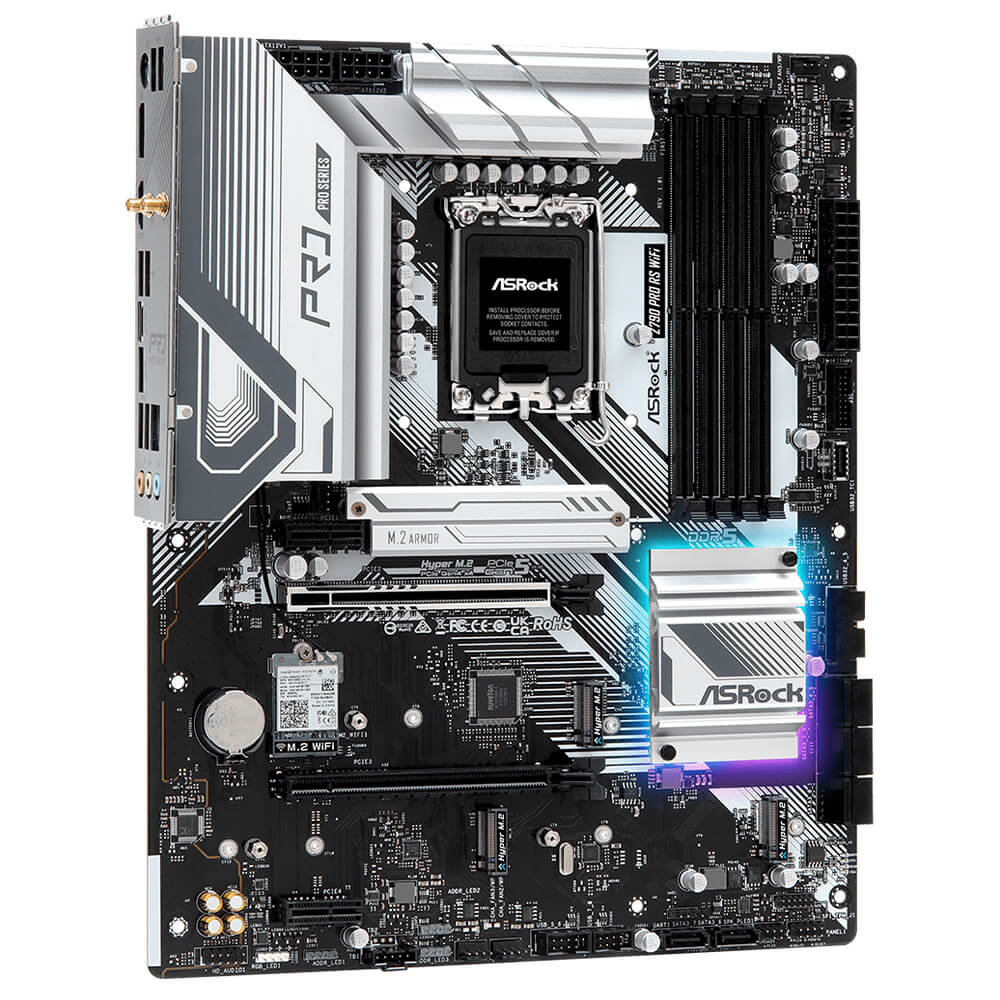

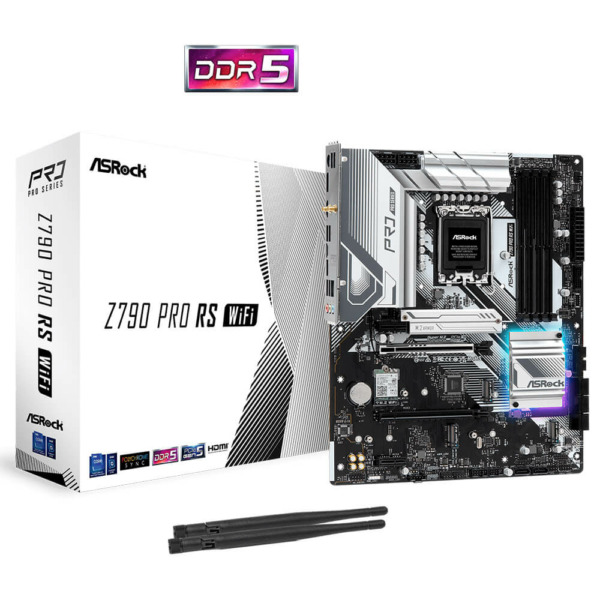

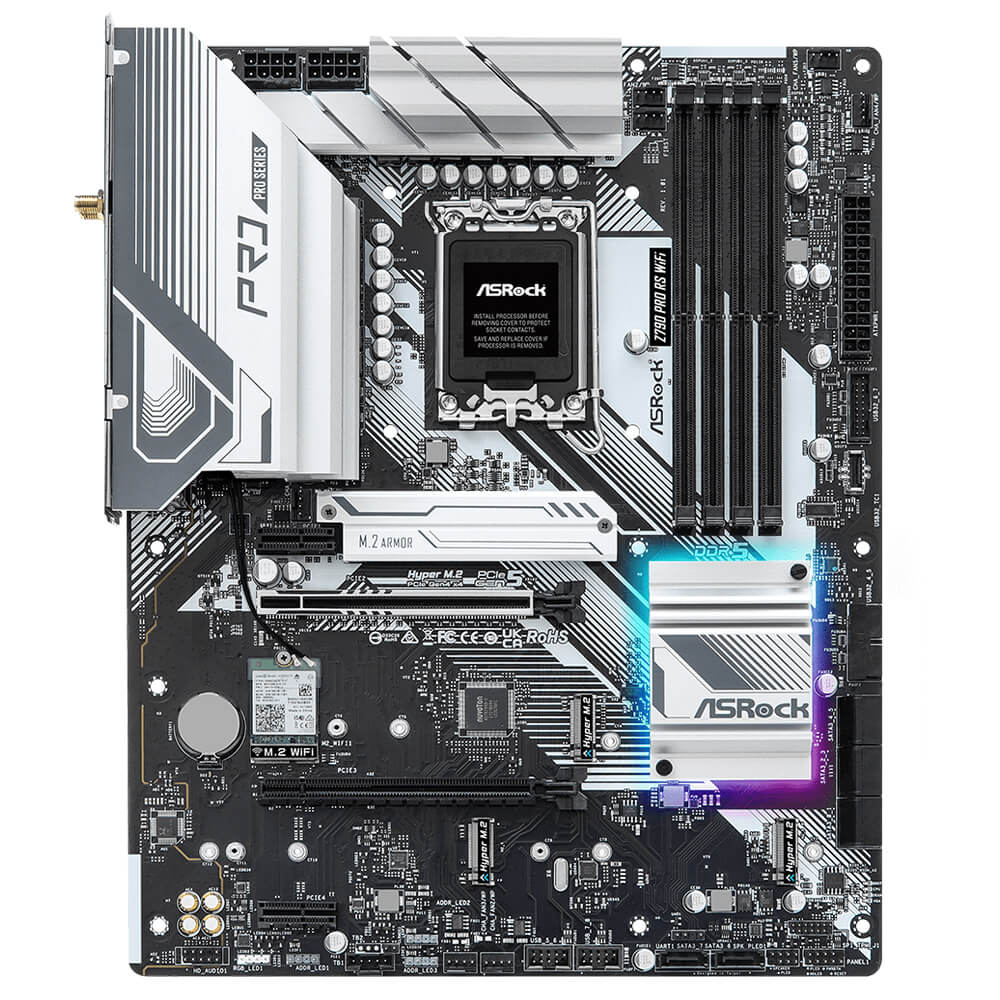

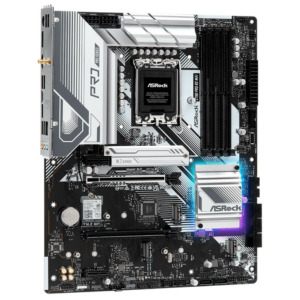

ASRock Z790 Pro RS WiFi – Socket 1700
Giá Tân Doanh:
5,550,000₫
- Tình trạng: Mới 100%
- Bảo hành: 36 tháng
- Xuất xứ: Chính hãng
- Thương hiệu: ASRock
- Giá trên đã bao gồm VAT.
- Thiết kế cực đẹp, hiệu năng cực tốt.
- Có thể gắn tối đa 4 SSD NVME chuẩn PCIE 4.0 cùng 1 lúc.
- Hỗ trợ Wifi 6E và Bluetooth 5.3 mới nhất giúp kết nối mạng không dây trở nên vô cùng mượt mà.
- Asrock Z790 Pro RS WIFI DDR5 tối ưu hóa dòng điện để với dàn VRM chắc chắn, có thể hỗ trợ rất tốt cho CPU i7 14700K hoạt động ổn định và bền bỉ ngay cả khi đang chạy các ứng dụng nặng nề.
- Khả năng truyền tải dữ liệu, xử lý bộ nhớ được tăng cao ngay cả khi làm việc với đồ họa cao cấp hay gaming nhờ vào công nghệ PCIe Gen5 và Dual Channel DDR5.
Thông tin Sản Phẩm
- Thiết kế cực đẹp, hiệu năng cực tốt.
- Có thể gắn tối đa 4 SSD NVME chuẩn PCIE 4.0 cùng 1 lúc.
- Hỗ trợ Wifi 6E và Bluetooth 5.3 mới nhất giúp kết nối mạng không dây trở nên vô cùng mượt mà.
- Asrock Z790 Pro RS WIFI DDR5 tối ưu hóa dòng điện để với dàn VRM chắc chắn, có thể hỗ trợ rất tốt cho CPU i7 14700K hoạt động ổn định và bền bỉ ngay cả khi đang chạy các ứng dụng nặng nề.
- Khả năng truyền tải dữ liệu, xử lý bộ nhớ được tăng cao ngay cả khi làm việc với đồ họa cao cấp hay gaming nhờ vào công nghệ PCIe Gen5 và Dual Channel DDR5.
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics) – Dual Channel DDR5 Rock-Solid Durability – 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor – Flexible Integrated I/O Shield Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU | – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | – Intel® Z790 |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 192GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)* – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band* support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)* – Supports AMD CrossFire™ *Supports NVMe SSD as boot disks
|
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (2 Rear, 4 Front) – 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection |
| Connector | – 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). |

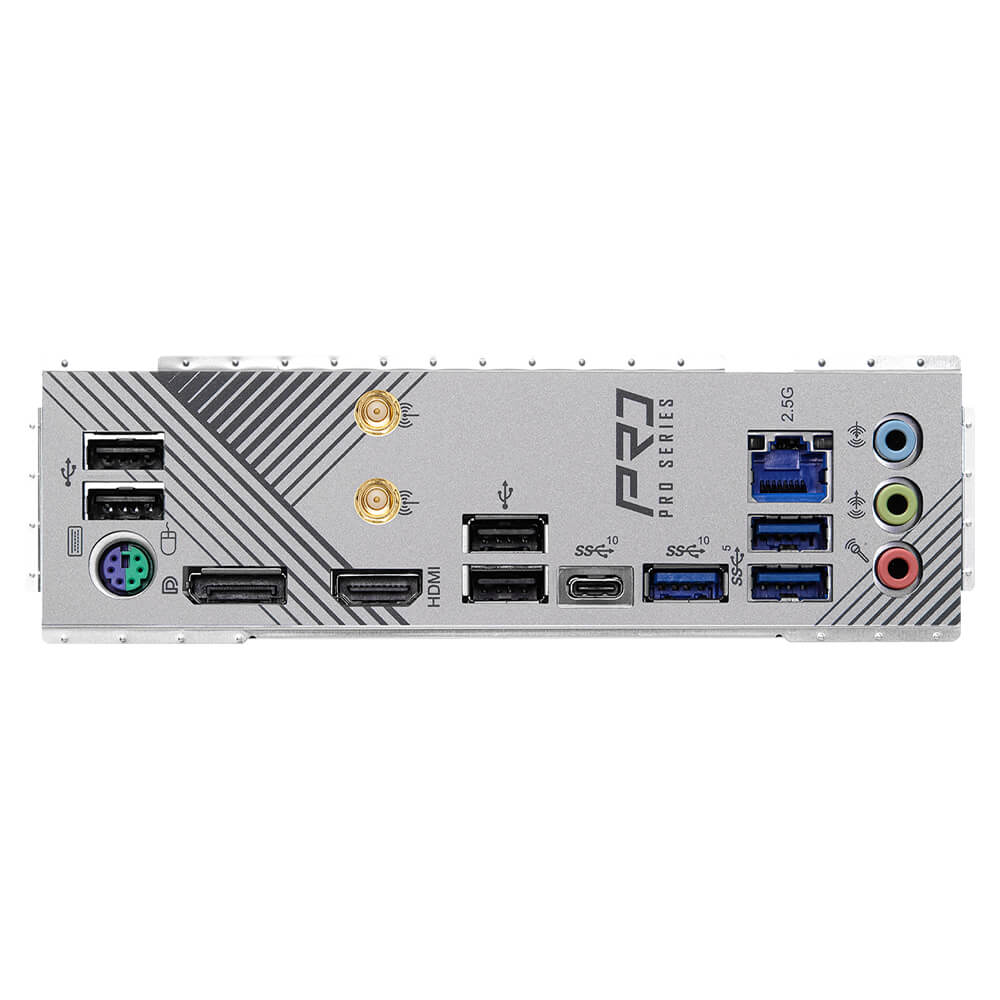

| Rear Panel I/O | – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | – 1 x User Manual – 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 4 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB |
| OS | – Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later
|
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
