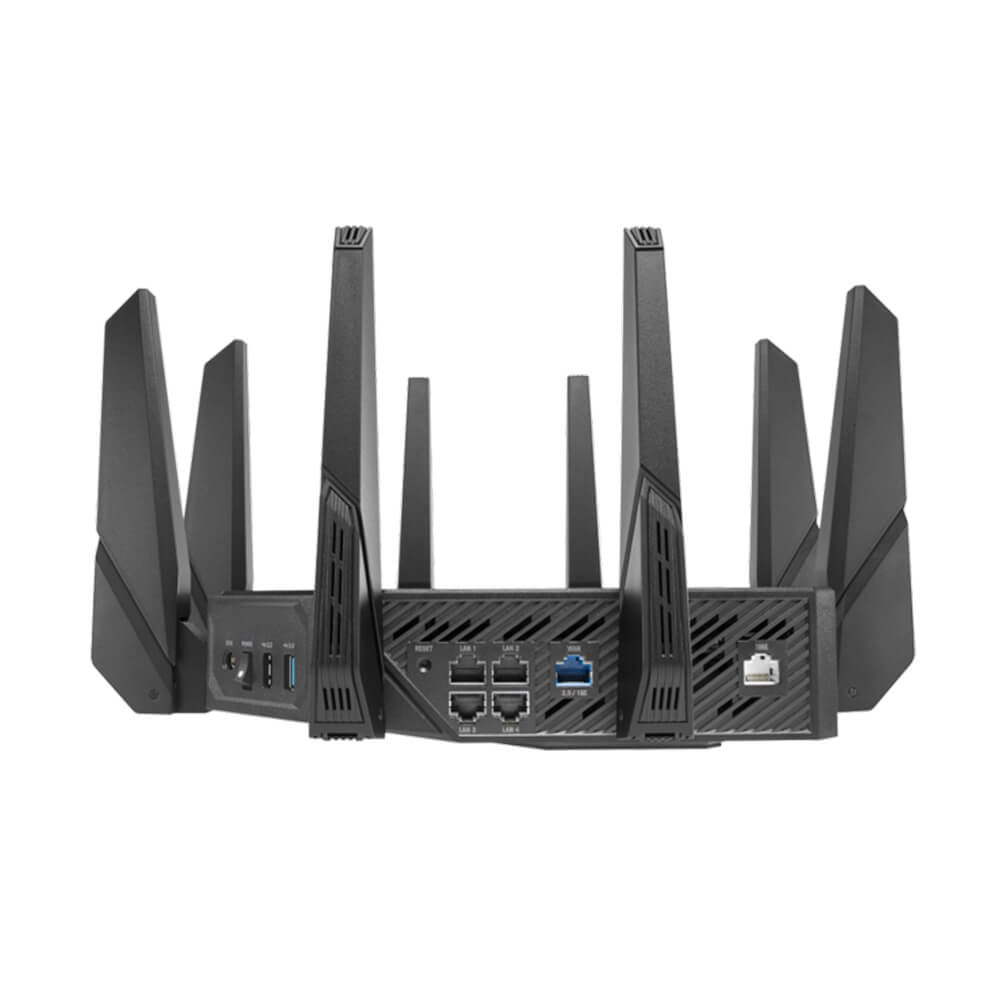

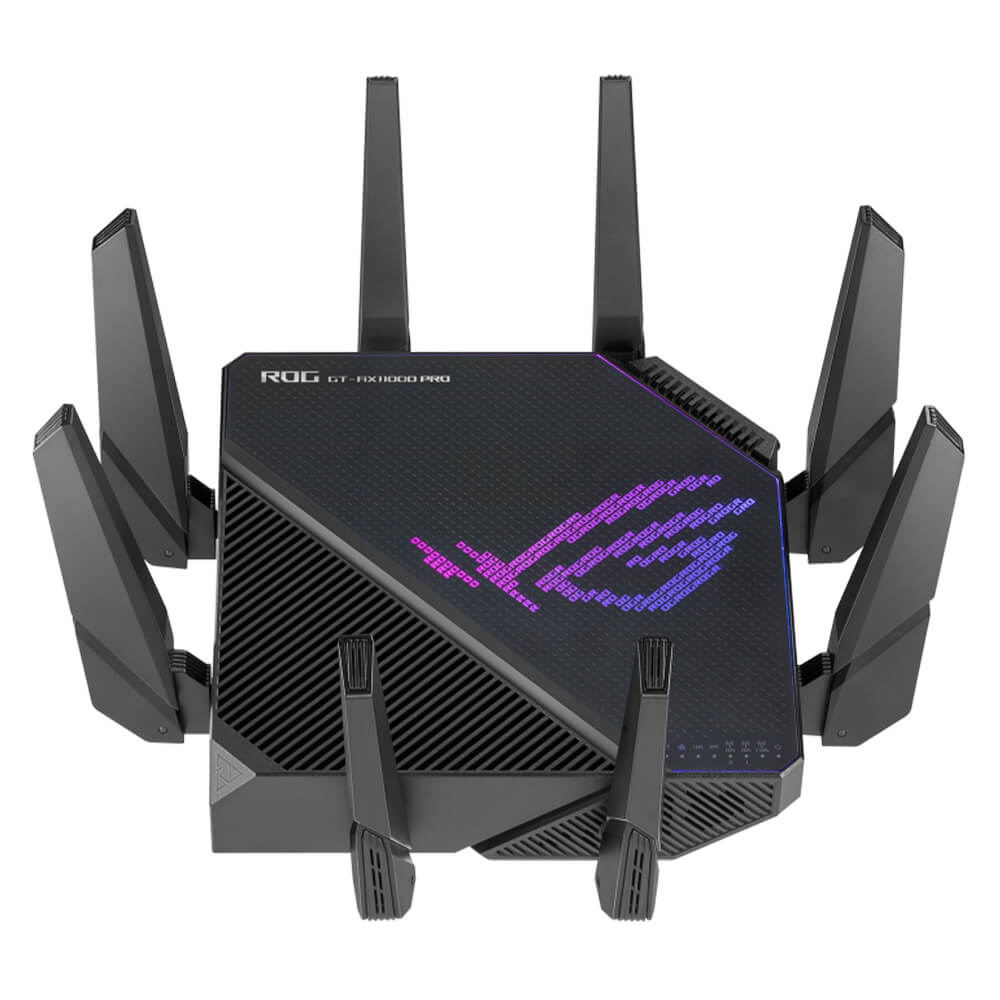

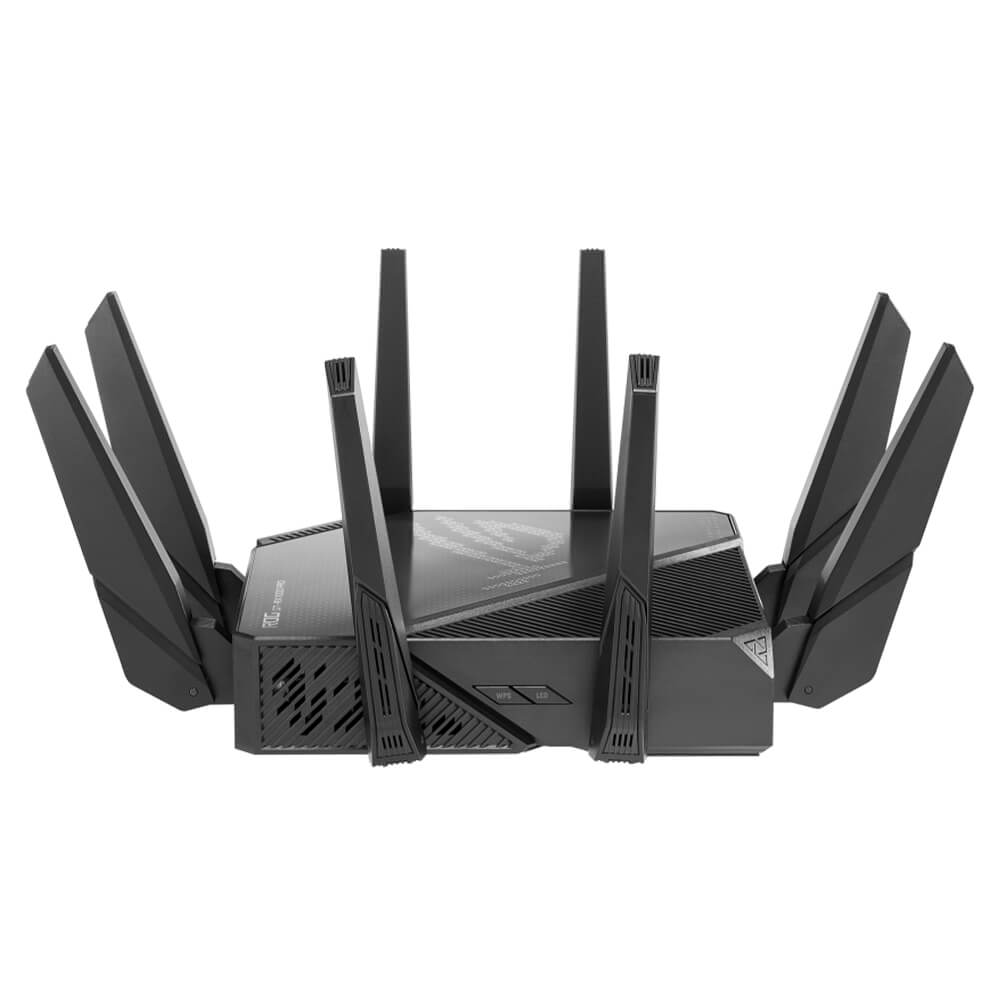

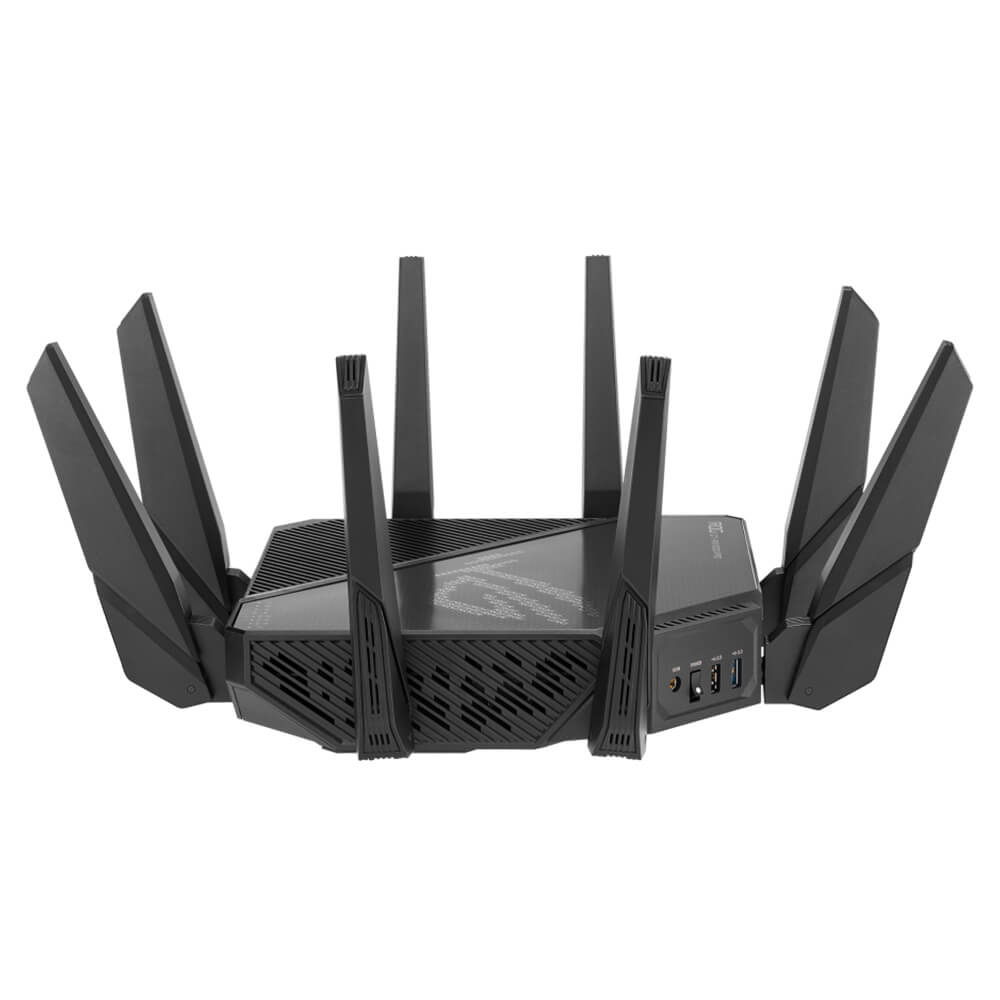

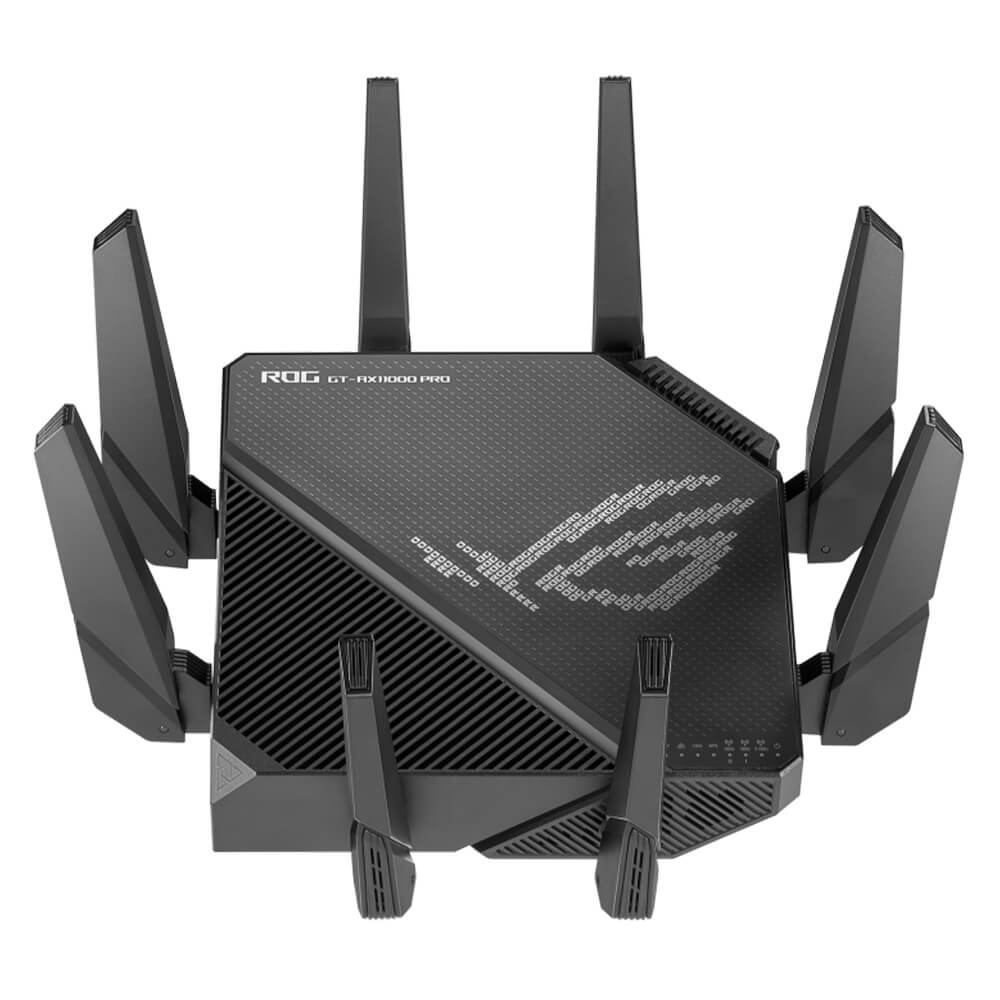

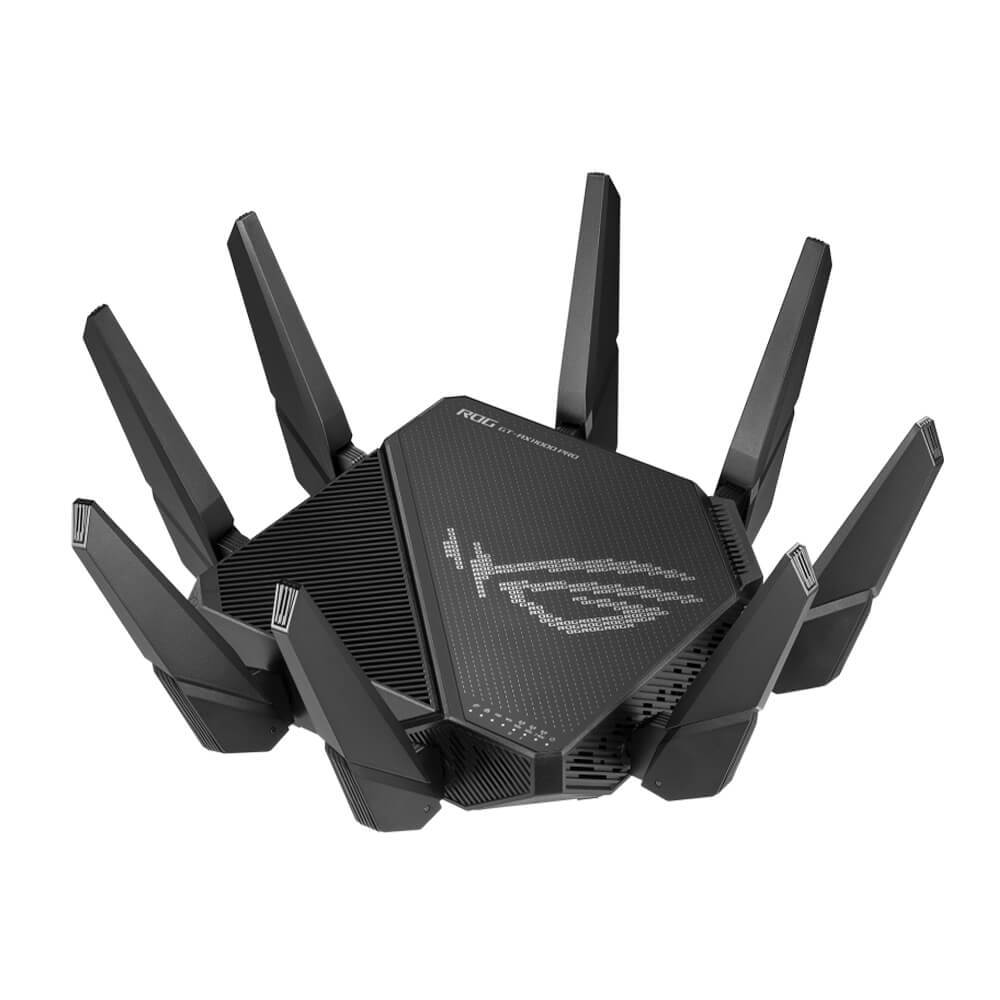

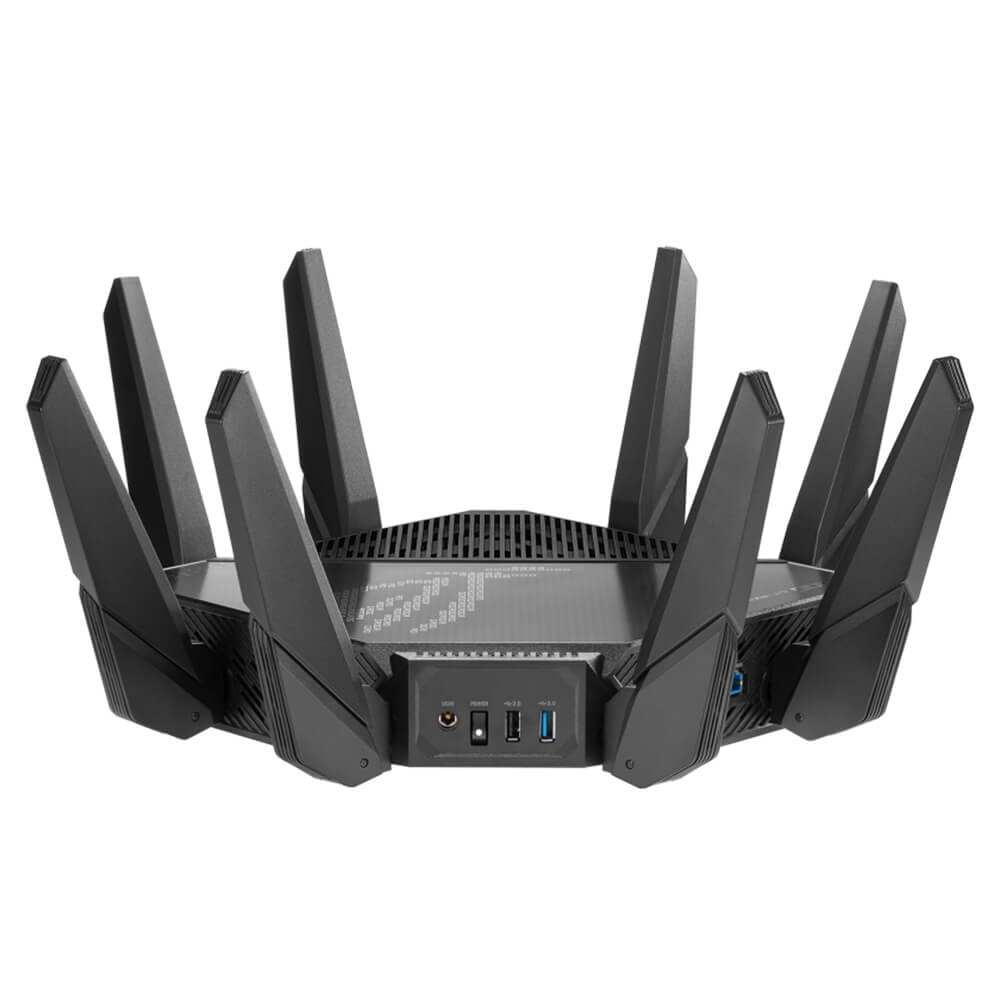

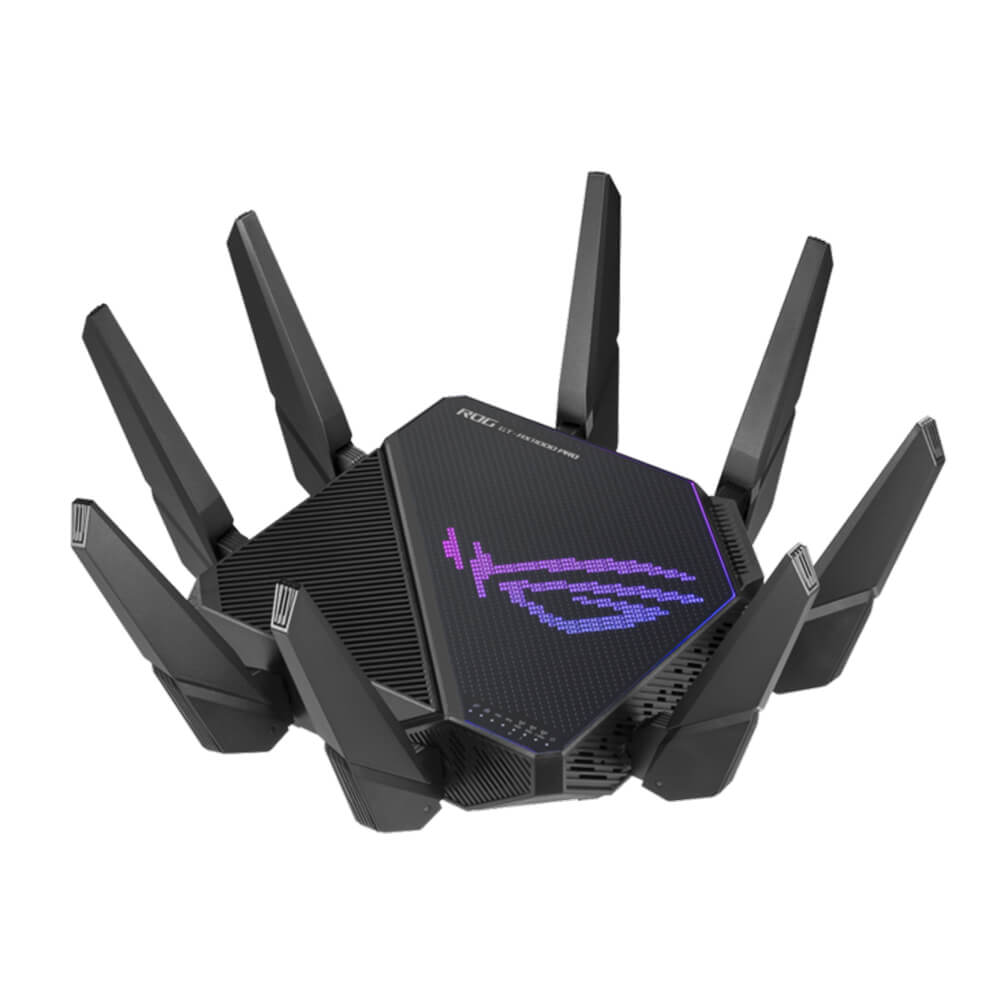

Asus ROG Rapture GT-AX11000 Pro – AX11000 Tri-Band WiFi 6 | Ultrafast WiFi 6 (802.11ax) | 8 Antenna | Router WiFi có thể mở rộng
Thông tin Sản Phẩm
| Model |
GT-AX11000 PRO
|
| Network Standard |
IEEE 802.11ax
IPv4
IPv6
|
|
Product Segment
|
AX11000 ultimate AX performance
|
|
AX technology
|
Yes |
| Data Rate |
2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
| Antenna | External antenna x 8 (non-detachable) |
| Transmit/Receive |
2.4GHz 4×4
5GHz-1 4×4
5GHz-2 4×4
|
| Processor |
2.0GHz quad-core processor
|
| Memory | 256MB NAND flash and 1GB DDR4 RAM |
|
Boosts speed
|
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency |
Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2
|
| Ports | 1 x 2.5 Gigabit WAN Port 1 x 10 Gigabit WAN/LAN Port 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port |
| Button |
WPS Button, LED Button, Reset Button, Power Switch
|
| LED Indicator | Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 WPS x 1 10GE x 1 LAN x 1 WAN x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) |
| Package content | GT-AX11000 Pro WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 2180g |
|
AiMesh
|
AiMesh
Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game |
Game Boost/acceleration
Game Radar
WTFast
UU boost
ROG_First
OpenNAT (Game Profile)
|
| Alexa |
Support Alexa skill
|
|
AiProtection
|
AiProtection Pro
AiProtection Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64
|
| Traffic Control |
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
|
| Wireless |
IPv6
MU-MIMO
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
WPS
Wi-Fi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
|
| WAN |
Explicit beamforming
Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
Let’s Encrypt
Safe browsing
DNS-over-TLS
|
| LAN |
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 128
|
| VPN |
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
|
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
|
| Administration |
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
|
